Description: Bio-Probe Spinner Flask Complete Bio-Probe Spinner Flask Complete consists of: Flask, and Impeller Assembly. Flask Specifications: Material: Type 1 Class A Borosilicate Glass Dimensions: 168mm OD x 290mm Overall Height, 278mm across side arms Two 45mm Side arms angled 53° off center Two 32mm Side arms angled 35° off center One 100mm Screw Thread Center Neck Indented bottom Graduations: 500mL to 3000mL, every 500mL – White Ink (Approx Volumes) Supply with: Two 45mm PP Blue Screw Caps, two PP Blue Pouring Rings, two 32mm blue screw caps, and two o-rings Impeller Assembly Specifications: Impeller Assembly consists of paddle, shaft, O-ring, retaining ring, magnet, magnet holder, adjustable paddle, bearing thimble, bearing spacer, ball bearing, compression spacer, compression washer, sealing ring, cap seal, and screw cap. Adjustable from 267mm-305mm in height. Paddle: Polytetrafluoroethylene, 4 1/4”x3”x1/16” Shaft: 316L Stainless Steel, 8 7/16” long x ¼” OD O-ring: Silicone, -008 Retaining ring: 316L SST, 0.365” OD x 17/64” ID x 5/32” long Magnet: PTFE coated, ½” OD x 3” long Magnet holder: PTFE, ¾” OD x ¼” ID x 4 11/16” long Adjustable paddle: PTFE, 3 3/8”x 1 ½” with a hub OD of 1 ½” Bearing thimble: PTFE, 1 ¼” OD by 4/4” ID x 3 1/8” long Bearing spacer: PTFE, ¾” OD x ½” ID x 0.880” long Ball bearing: Polybutylene terephthalate & SST, ¾” OD x ¼” ID x 0.281 thick Compression spacer: PTFE, ¾” OD x ½” ID x 1.645” long Compression washer: White Silicone, 1 1/16” OD x ½” ID x 1/16” thick Sealing ring: Red silicone, 3.6” OD x 3” ID x 0.240” thick Cap seal: PTFE, 3 ¾” OD x 0.985” long Screw cap: Blue Polypropylene, 4.25” OD x 7/8” long (1 per EA )

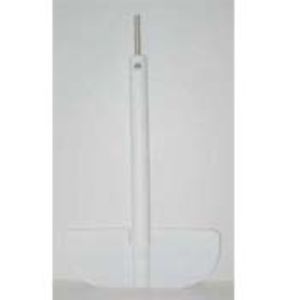

Ideal use for over head drive vessels. Description: 8L OHD Impeller Assembly Consists of Paddle, Plug, Paddle Holder, and Drive Shaft Paddle [A523-214]: PTFE material, 171.5mm wide x 76.2mm tall x 1.6mm thick Plug [A542-49]: PTFE, 9.5mm OD x 19.1mm long (approx.) Paddle Holder [A542-50]: White PTFE, 279.4mm long x 19.1mm OD Drive Shaft [A542-46]: 316L SST, 190.5mm long x 6.4mm OD (approx.) (1 per EA )

Ideal for growing, storing and mixing of aerobic and anaerobic cultures. Has a threaded neck and sidearm with clean-out port. 3 baffles increase oxygenation of cultures. Supplied with 38mm and 18mm rubber lined black phenolic cap. Specifications: Type 1 Class A Borosilicate Glass Sizes: 300ml Includes: 38mm & 18mm Rubber Lined Black Phenolic Cap Sidearm Dimensions: 14x130mm Case Quantity: 4 (4 per CS )

Manufactured for type 1 class a Borosilicate glass. Ideal for growing, storing, and mixing of aerobic and anaerobic cultures. Graduated to approximate volumes. Size: 500ml Closure: 38 Dimensions: 100x205mm Stainless steel closure or Kaput closure sold separately (12 per CS )

Manufactured from type 1 class a Borosilicate glass. Ideal for culture aerobic & anaerobic organisms, media storage and mixing. Deep skirted screw caps protect against contamination. Supplied with rubber line black phenolic caps and graduated to approximate volumes. Size: 25mL Cap: 18-415 Dimensions: 41x65mm (24 per CS )

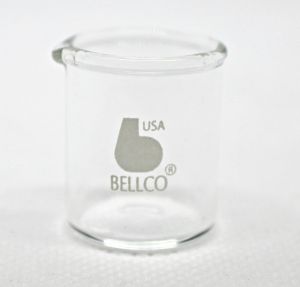

Manufactured from Type 1 Class A Borosilicate Glass with a low coefficient of expansion. Heavy wall beakers meet astime-960 type 1 specifications for classification design capacity and markings. Features a easy pour spout, white permanent graduations and a large marking square. Specifications: Type 1 Class A Borosilicate Glass Size: 2L Dimensions: 134 x 190mm Case Quantity: 3 (3 per CS )

Manufactured from Type 1 Class A Borosilicate Glass. Ideal for culturing organisms requiring a large surface to volume. DeLong style neck and uses 38mm stainless steel closure (sold separately) Specifications: Type 1 Class A Borosilicate Glass Sizes: 1800ml OD x OAH: 200 x 175mm Case Quantity: 3 (3 per CS )

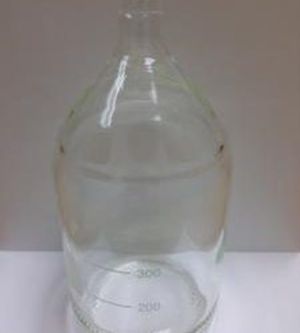

Type 1 Class A Borosilicate Glass that are designed for maintaining anaerobic conditions. Useful for studies involving methane-producing bacteria, cell culture, drug discovery, and research and development. Specifications: Size: 50mL Dimensions: 46mm X 88mm Neck OD: 19.7-20.2mm 13.3-13.6mm Supply With: 20mm Septum Stopper & Aluminum Seal Case Quantity: 12 Accessories: 2048-11800 Septum Stopper 2048-11020 Aluminum Seal 2048-10020 Seal Crimper (12 per CS )

Manufactured from type 1 class a Borosilicate glass. Includes long skirted black phenolic screw cap with white rubber liner. Screw cap included Size: 13 x 100mm (1000 per CS )

Manufactured from type 1 class a Borosilicate glass. Includes long skirted black phenolic screw cap with white rubber liner. Screw cap included Size: 16 x 150mm Replacement cap: 2029-00016 (144 per CS )

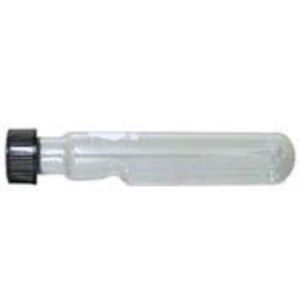

Manufactured from type 1 class a Borosilicate glass. Includes long skirted screw cap with nontoxic white rubber liner. Extra long working area yet short overall length for convenient handling. The short neck provides easy entry and removal of cover slips. (36 per CS )

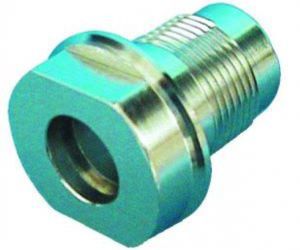

3/4" septum port w/cap and stopper. 316 l stainless steel Ra 32 finish (1 per EA )

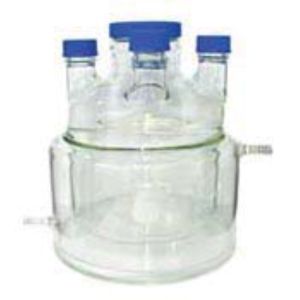

Ideal for use with water baths for precise temperature control. Supplied with 100mm center cap, sidearms cap, and pouring ring. Size: 8l Material: type 1 class a Borosilicate glass Dimensions of Water Jacketed: 300mm od x 440 oah Dimension of inner flask: 238mm OD x 420mm OAH. Dimensions: width including two hose barbs 396mm. 2 - #4 hose connectors. 100mm screw thread H.W. neck. 4 - 45mm screw thread vertical side arms. Graduations:1500mL to 8000mL every 500mL (1 per EA )

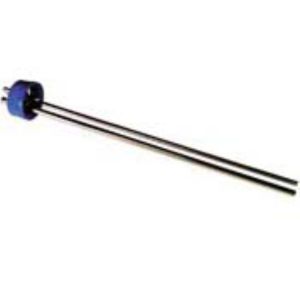

Thermowell assembly is manufactured from 316l stainless steel with 32ra finish or better. It can be used with rtd temperature sensor. Includes polypropylene screw cap and silicone gasket. There are also tubes for addition media and vent. Thermowell assemblies attach to the sidearms with a screw cap assembly. 3-PORT THERMOWELL ASSY - 45mm. FOR 1964 VERTICAL OHD VESSELS. WELDED - ELECTROPOLISH FINISH. ALL MATERIAL IS: 316L SST. CONSIST OF: 1 - SST 5/16"OD X .225"ID X 1.0" above x 15 31/32" insertion X 17 3/32" LONG 1.0" above x 15 31/32" insertion 1- SST VENT TUBE; .250"OD X .152" ID) SUPPLY WITH CAP ( A523-599) & A523-600 (LINER) (1 per EA )

Manufactured from Type 1 Class A Borosilicate Glass. Shake flasks are ideal for preliminary fermentation and bacterial growth studies. They are the basic tool for growth studies of aerobic microbial cultures. They have rigidly controlled baffle angles and depths to promote optimal oxygen transfer while reducing vortex formation. Designed for all orbital shakers. Closures sold separately. Specifications: Type 1 Class A Borosilicate Glass Size: 2L Dimensions: 160x295mm Closure Sizes: 38 Baffle Dimensions: 10mm DP X 35° Case Quantity: 3 (3 per CS )

Bellco manufactures all precision pipettes from type 1 class a Borosilicate glass. All bellco pipettes feature tempered tips and permanent silk screened graduations to withstand repeated usage and alkali washings. Plain top promotes rapid even flow with a calibrated to tip -tempered tip; to deliver; blow out. (250 per CS )

Manufactured from type 1 class a Borosilicate glass. Ideal for growing, storing and mixing of aerobic and anaerobic cultures. Graduated to approximate volumes Size: 500ml Closure: 38 Dimensions: 100x205mm (12 per CS )

Manufactured from Type 1 Class A Borosilicate Glass. 3 Side baffles positioned at 120 degree and 3 bottom baffles offset from the side baffles. GL45 polypropylene membrane cap has a sealed in 0.2u PTFE membrane. Cap can be tightened during autoclaving. Specifications: Type 1 Class A Borosilicate Glass Includes Polypropylene Membrane Cap And Pouring Ring Size: 1L Dimensions: 128x200mm Case Quantity: 6 (6 per CS )

Bellco manufactures all precision pipettes from type 1 class a Borosilicate glass. All bellco pipettes feature tempered tips and permanent silk screened graduations to withstand repeated usage and alkali washings. Plain top promotes rapid even flow with a calibrated to tip -tempered tip; to deliver; blow out. (250 per CS )

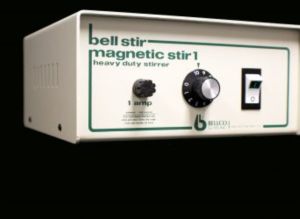

Bellco Magnetic Stirrers are specifically designed for growing both mammalian and bacterial cultures where minimal heat transfer from the magnetic stirrer to the culture vessel is essential. They are ideal for tissue cultures grown in spinner flasks. Bellco incorporates low wattage DC motors to reduce stirrer heat up. Independent power and speed controls allow unit to maintain a speed setting when switched on and off. Powerful magnets rotate on ball bearing shafts for increased coupling and continuous maintenance free service. Polyurethane drive belts resist humidity and temperature. The 100V, 115V & 230V models feature a convenience outlet that allows daisy chaining of up to ten stirrers. Speed range: 30 - 1000 rpm +/- 5% (1 per EA )

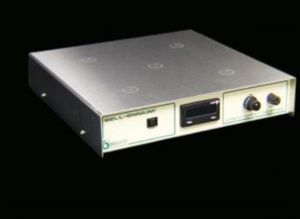

Bell-ennium Magnetic Stirrers are designed for both cell cultures in spinner flasks as well as for general laboratory procedures requiring the use of magnetic stirring equipment. Bell-ennium stirrers offer the laboratory researcher a wide range of capabilities and the latest innovations in stirring technology. Bell-ennium stirrers feature brushless maintenance free DC motors with drive assemblies designed for quiet operation. Stainless steel covers are stamped to show the vessel positions for accurate placement and optimum performance. The Bell-ennium single position low profile chassis measure 10 x 11 x 3 3/8” and are designed to fit side-by-side in Bellco incubators. Units are powered by standard 24V in-line power supplies and are CE compliant. (1 per EA )

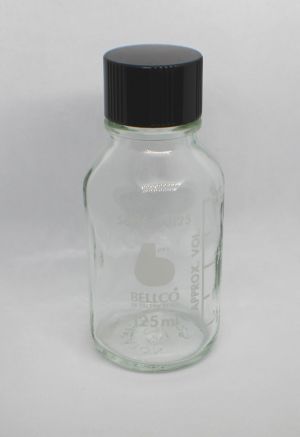

Manufactured from Type1 Class B Borosilicate Glass. Large opening and sloping shoulders facilitate pouring and cleaning. Heavier walls prevent breakage of glass. Media storage bottles have white graduations and a marking area. They are supplied with rubber lined black phenolic screw cap. Specifications: Type 1 Class B Borosilicate Glass Sizes: 125ml (33)mm Cap OD x OAH: 55 x 120 Case Quantity: 12 (12 per CS )

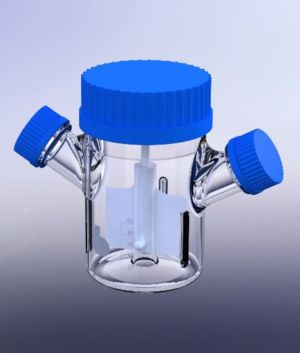

Internal impeller decreases risk of contamination. Impeller has an adjustable shaft to align paddle. The large paddle promotes increased oxygenation. Sealed internal impeller decreases risk of contamination. Specifications: Cap Size: 100mm Flask Size: 100mL Paddle Size: 9 1/2" x 6" (1 per EA )

Internal impeller decreases risk of contamination. Impeller has an adjustable shaft to align paddle. The large paddle promotes increased oxygenation. Cap size: 100mm Flask size: 3l Dimensions: 165 x 300mm Sidearm cap: 45mm (1 per EA )
