Photo Documentation

Blu-Lite UHC Autoradiography film, 8x10in, 100 sheets/PK Learn More

Accuris SmartDoc 2.0 System with Blue Light Illumination Base, 115V, EA /1 Learn More

Accuris SmartDoc 2.0 Imaging Enclosure, EA /1 Learn More

Accuris SmartDoc 2.0 System with Blue Light Illumination Base, 230V, EA /1 Learn More

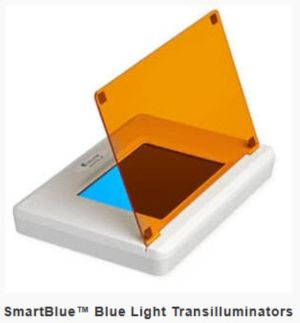

Safer for samples, safer for you: The SmartBlue Transilluminator is the perfect partner for the most common safe DNA stains. It emits blue light at a wavelength of 465nm, perfect for excitation of most green fluorophors, including our Accuris’ SmartGlow™, SYBR Green, SYBR Safe, SYBR Gold, GelStar, GelGreen, to name a few. The SmartBlue also works for excitation of EtBr, see our Technical Bulletin with sample images. Exposing DNA to this wavelength does not cause molecular damage, and results in a much higher downstream cloning efficiency as compared to even short UV light exposures. In addition, the visible blue light is not damaging to the user’s skin and is less harmful to the eyes.* Two position filter cover: The SmartBlue transilluminator requires no special shielding, however, the light does need to be filtered for visualization of the dyes. The amber cover, which rests above the viewing surface and gel, filters out the blue light, allowing the bands to be seen clearly. The cover can be placed at a 60º angle to provide easy access to the gel for band excision. For documentation, the filter cover is easily removed completely. UI technology, bright and clear images: Engineered diffusers and filters provide an extremely evenly lit viewing surface. Even in ambient light, bands of DNA can clearly be seen in gels. Images obtained using the SmartBlue Transilluminator are brighter and more balanced than those obtained using epi-illuminators which light from the sides. Reliable, durable and long lasting: An array of super bright LEDs with a long, 30,000 hour service life provide the light source for the SmartBlue Transilluminator. Unlike those in a UV transilluminator, the filters in the SmartBlue will not solarize and degrade in performance over time. Gel bands can be excised directly on the scratch resistant, glass viewing surface. To save energy, the power switch includes an automatic 5 minute shutoff. The SmartBlue Transilluminator is covered by a 2 year warranty. * The SmartBlue product uses high intensity LED lights. Although the visible blue wavelength is significantly safer than UV light, it is recommended to not stare directly at the viewing surface without the amber cover in place. Learn More

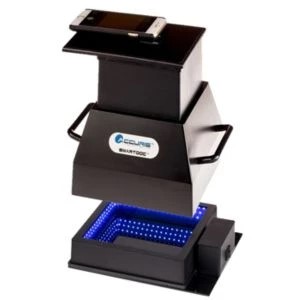

Introducing the SmartDoc 2.0 (Item no. E5000-SDB). This complete system has been developed for safely viewing nucleic acids in agarose gels and also for capturing quality digital images with a smart phone camera. Blue light is used instead of UV, which is safer for lab personnel and will not damage DNA samples. The illumination base emits an intense blue light with a peak output of 460nm for optimum excitation of nucleic acids stained with green fluorescent dyes (SYBR® Green, SmartGlow™, GelStar™, GelGreen™, etc). The orange cover fits on top of the illumination base and acts as a filter to absorb blue light, allowing visualization of the fluorescing samples. The cover can also be set at an angle for gel access and cutting out DNA bands for further study. The SmartDoc™ imaging enclosure includes an orange photo filter for photography of the gels with a smart phone. An extending adapter can be inserted for full dimension imaging of gels up to 15 x 15 cm or removed for close up pictures. The enclosure can also be used directly on any other existing UV or blue light transilluminator. Additional filters are available for imaging gels on a UV transilluminator. Please see our “Filter and User Guide” to show which filter is best for different imaging applications. Please see our Technical Bulletin showing sample gel images captured with an iPhone using the SmartDoc System. The SmartDoc Imaging Enclosure can also be purchased separately (item no. E5000-SD) without the blue light illumination base. The enclosure by itself can be used on most existing UV transilluminators or blue light transilluminators for smart phone imaging. Learn More

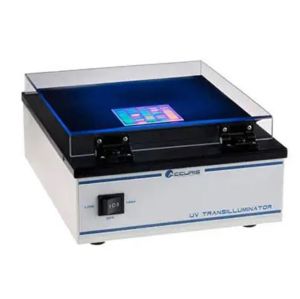

The new Accuris™ E3000 UV Transilluminator features a space-saving design, with a width of only 10.5 inches, to fit perfectly in any busy laboratory. However, the 16 x 19 cm UV viewing surface is sized to accommodate large gels or multiple smaller gels. The illuminated surface is comprised of a special black glass which is easy to clean, durable and scratch resistant. An array of high intensity UV bulbs coupled with an optimized filter provides even illumination across the viewing surface and allows detection of small sample quantities. The dual intensity switch can be used to lower the UV intensity to 50% to reduce DNA damage during long exposure times, or switch to high intensity (100%) for viewing weak fluorescent signals or for photo documentation. The acrylic UV blocking cover allows safe viewing of samples and has two friction hinges on the front edge to allow angling of the cover for gel access. The cover can be positioned to 90° (straight up) to fit a gel imaging hood, such as the Accuris SmartDoc™ imaging enclosure. Learn More

Introducing the SmartDoc 2.0 (Item no. E5000-SDB). This complete system has been developed for safely viewing nucleic acids in agarose gels and also for capturing quality digital images with a smart phone camera. Blue light is used instead of UV, which is safer for lab personnel and will not damage DNA samples. The illumination base emits an intense blue light with a peak output of 460nm for optimum excitation of nucleic acids stained with green fluorescent dyes (SYBR® Green, SmartGlow™, GelStar™, GelGreen™, etc). The orange cover fits on top of the illumination base and acts as a filter to absorb blue light, allowing visualization of the fluorescing samples. The cover can also be set at an angle for gel access and cutting out DNA bands for further study. The SmartDoc™ imaging enclosure includes an orange photo filter for photography of the gels with a smart phone. An extending adapter can be inserted for full dimension imaging of gels up to 15 x 15 cm or removed for close up pictures. The enclosure can also be used directly on any other existing UV or blue light transilluminator. Additional filters are available for imaging gels on a UV transilluminator. Please see our “Filter and User Guide” to show which filter is best for different imaging applications. Please see our Technical Bulletin showing sample gel images captured with an iPhone using the SmartDoc System. The SmartDoc Imaging Enclosure can also be purchased separately (item no. E5000-SD) without the blue light illumination base. The enclosure by itself can be used on most existing UV transilluminators or blue light transilluminators for smart phone imaging. Learn More

Safer for samples safer for you: The SmartBlue Transilluminator is the perfect partner for the most common safe DNA stains. It emits blue light at a wavelength of 465nm perfect for excitation of most green fluorophors including our Accuris Learn More
