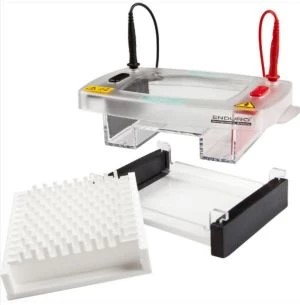

Electrophoresis

He39 Replacement Electrode Kit (1 per EA)

Comb A Del 20Well 1.0Mm (1 per EA)

Se252 Red Springclamp Long (4) (1 per EA)

Standard vertical format for 18 cm long gels Features: Maximum glass plate size 18 x 16 cm Produce straight lanes and sharp, well defined bands Run up to four gels (maximum 112 samples) at one time under identical conditions Run gels at uniform temperature from 1 to 45°C Accommodates denaturing and native polyacrylamide gels and 2-D electrophoresis A wide array of accessories allows you to tailor gel configurations to your needs Complete Unit Includes: Buffer Chamber; Safety Lid w/High Voltage Leads; Heat Exchanger; Glass Plates 18 x 16 cm, 6 pcs; Combs, 15-well, 1.5 mm thick, 2 pcs; Spacers, 1.5 mm thick, 2 cm wide, 4 pcs; Dual Gel Caster Basic Unit Includes: The same as complete unit (SE600-15-1.5) without the combs and spacers. Specifications: Glass Plate Size (W x H) 18 x 16 cm or 18 x 8 cm Spacers 0.75 mm, 1.0 mm, 1.5 mm Maximum Power Settings 1000 V, 500 mA, 50 W Maximum Temperature 45°C Indoor Use 4 to 40°C Humidity Up to 80% Unit Dimensions (W x H x D) 32 x 29 x 14 cm (1 per EA)

Save time and money with a combination package Includes: • SE260-10A-.75 Mighty Small II Mini Deluxe Vertical Unit • TE22 Mighty Small Mini Transfer Tank • PS300B 300 V, 500 mA, 90 W Power Supply (1 per EA)

The SE300 minVE is a sturdy, compact vertical protein electrophoresis unit that also performs electro transfer (blotting). Blot Module Includes: Blot Module Blotter Paper, 25 sheets Dacron Sponges, 6 mm thick, 4 pcs. (1 per EA)

Ideal for high resolution analytical and preparative studies of nucleic acids Features and Benefits: Large format–20 x 20 cm gel tray is ideal for high resolution techniques Multichannel pipette compatible combs–with a maximum 40 sample throughput–reduce gel loading time Color-coded and height adjustable combs–easily identify comb thickness at a glance and control well depth Buffer recirculation ports–may be connected to a peristaltic pump (see page 142) for buffer recirculation during electrophoresis to maintain buffer pH and prevent ionic gradient formation Colored loading strips–for easy well detection when loading UV-transparent running tray–allows the user to image the gel without risk of damage due to handling Side handles–for safe and easy transportation around the laboratory SUB20 Includes: Buffer Chamber Assembly; 1 mm thick, 16 well combs–2 pcs; Safety Lid; Colored Loading Strips; High Voltage Leads; Buffer Recirculation Ports–2 pcs; Running Tray w/Casting Gates SUB20C Includes: Buffer Chamber Assembly w/Cooling Ports; 1 mm thick, 16 well combs–2 pcs; Safety Lid; Colored Loading Strips; High Voltage Leads; Buffer Recirculation Ports–2 pcs; Running Tray w/Casting Gates Specifications Gel Dimensions (w x l) . . . . . . . . . . . 20 x 20 cm Maximum Buffer Volume . . . . . . . . . . 2.2 L Maximum Power Settings . . . . . . . . . 1000 V, 500 mA, 500 W Maximum Sample Capacity . . . . . . . . 160 Maximum Running Temperature . . . . 45°C Indoor Use . . . . . . . . . . . . . . . . . . . . 4-40°C Humidity . . . . . . . . . . . . . . . . . . . . . . Up to 80% Unit Dimensions (w x l x h) . . . . . . . . 27 x 47.5 x 8 cm Safety Certifications . . . . . . . . . . . . . . EN61010-1, CE (1 per EA)

Combines the advantages of small format and efficient cooling for rapid screening of proteins and nucleic acids Features: Maximum glass plate size 10 x 10.5 cm Flexible design, additionally able to accommodate 10 x 8 cm format with optional accessories Supports a wide variety of precast gels Efficient active cooling ensures sharp bands Run up to two gels (maximum 30 samples) at one time under identical conditions Quick and easy to assemble Complete Units Include: Buffer Chamber/Cooling Core; Safety Lid with High Voltage Leads; Glass Plates, Rectangular, 10 x 10.5 cm, 10 pcs; Alumina Plates, Notched, 10 x 10.5 cm, 5 pcs; Combs, 10 well, 2 pcs; T-Spacers, 4 pcs; Gel caster Basic Unit Includes: The same as complete unit without the combs, spacers, plates, and caster. Specifications: Glass Plate Size (W x H) 10 x 10.5 cm or 10 x 8 cm Spacers 0.75 mm, 1.0 mm, 1.5 mm Maximum Power Settings 500 V, 500 mA, 12 W Unit Dimensions (W x H x D) 16.5 x 18 x 16 cm (1 per EA)

Ideal for high resolution analytical and preparative studies of nucleic acids Features and Benefits: Large format–20 x 20 cm gel tray is ideal for high resolution techniques Multichannel pipette compatible combs–with a maximum 40 sample throughput–reduce gel loading time Color-coded and height adjustable combs–easily identify comb thickness at a glance and control well depth Buffer recirculation ports–may be connected to a peristaltic pump (see page 142) for buffer recirculation during electrophoresis to maintain buffer pH and prevent ionic gradient formation Colored loading strips–for easy well detection when loading UV-transparent running tray–allows the user to image the gel without risk of damage due to handling Side handles–for safe and easy transportation around the laboratory SUB20 Includes: Buffer Chamber Assembly; 1 mm thick, 16 well combs–2 pcs; Safety Lid; Colored Loading Strips; High Voltage Leads; Buffer Recirculation Ports–2 pcs; Running Tray w/Casting Gates SUB20C Includes: Buffer Chamber Assembly w/Cooling Ports; 1 mm thick, 16 well combs–2 pcs; Safety Lid; Colored Loading Strips; High Voltage Leads; Buffer Recirculation Ports–2 pcs; Running Tray w/Casting Gates Specifications: Gel Dimensions (w x l) . . . . . . . . . . . 20 x 20 cm Maximum Buffer Volume . . . . . . . . . . 2.2 L Maximum Power Settings . . . . . . . . . 1000 V, 500 mA, 500 W Maximum Sample Capacity . . . . . . . . 160 Maximum Running Temperature . . . . 45°C Indoor Use . . . . . . . . . . . . . . . . . . . . 4-40°C Humidity . . . . . . . . . . . . . . . . . . . . . . Up to 80% Unit Dimensions (w x l x h) . . . . . . . . 27 x 47.5 x 8 cm Safety Certifications . . . . . . . . . . . . . . EN61010-1, CE (1 per EA)

Ideal for routine preparatory and analytical electrophoresis techniques (1 per EA)

Quickly and efficiently transfers proteins and nucleic acids from small gels to nylon, nitrocellulose or PVDF membranes, Maximum Gel Size 9 x 10 cm (1 per EA)

Provides the most commonly used tray size and comb options (1 per EA)

Quickly and evenly transfers proteins and nucleic acids from polyacrylamide or agarose gels onto nylon, nitrocellulose, or PVDF membranes Features & Benefits: Uniform and strong electric field—supports efficient and even transfers Color-coded, easy to assemble cassettes—ensures proper orientation during transfer Superior tank design allows the cassettes to apply equal pressure across the stack—prevents gel distortion Optional TE47 heat exchanger—provides excellent buffer temperature control when used with an external cooling water bath Includes: Lower Chamber; Safety Lid with High Voltage Leads; Electrode Panels, 2 pcs; Cassettes, 2 pcs; Foam Sponges, 6 mm thick, 2 pcs; Foam Sponges, 3 mm thick, 4 pcs; Cassette Hook; Blotter Paper (14.5 x 21.5 cm), 25 sheets Specifications: Capacity: Up to four 15 x 21 cm gels (without cooling), Up to two 15 x 21 cm gels (with cooling) Maximum Power Settings 100 V, 2 A, 200 W Unit Dimensions (W x H x D) 8 x 13 x 30.5 cm (1 per EA)

Perform both electrophoresis and electro transfer in one sturdy, compact unit Features: Quick, excellent results using minimal buffer Passive cooling produces gels with straight lanes and sharp bands Cast your own or use precast gels from a variety of manufacturers Transfer up to 4 gels in 45 minutes with only 300 ml buffer using optional SE302 Blot Modules Designed for use with a wide variety of precast gels Complete Unit Includes: Buffer Chamber; Gel Modules with Gaskets, 2 assemblies; Safety Lid with High Voltage Leads; Glass Plates, Rectangular, 10 x 10.5 cm, 3 pcs; Glass Plates, Notched, 10 x 10.5 cm, 3 pcs; Combs, 10-well, 1.0 mm thick, 2 pcs; T-Spacers, 1.0 mm thick, 4 pcs; Basic Unit Includes: The same as complete unit without the combs, spacers, and glass plates. Specifications: Glass Plate Size (W x H) 10 x 10.5 cm or 10 x 8 cm Spacers 0.75 mm, 1.0 mm, 1.5 mm Maximum Power Settings 1000 V, 500 mA, 50 W Unit Dimensions (W x H x D) 32 x 37 x 14 cm (1 per EA)

Designed for quick screening and rapid separation Features: Maximum glass plate size 10 x 8 cm Efficient active cooling ensures sharp bands Quick and easy to assemble Requires minimal buffer Easily upgradable to the SE260 (with optional accessories) resulting in the additional capability of accommodating both 10 x 8 and 10 x 10.5 cm gels, enabling a wider variety of precast gel options Complete Units Include: Buffer Chamber with Cooling Core; Safety Lid with High Voltage Leads; Glass Plates, Rectangular, 10 x 8 cm, 10 pcs; Alumina Plates, Notched, 10 x 8 cm, 2 pcs; Combs,10 well, 2 pcs; T-Spacers, 4 pcs; Gel caster Basic Unit Includes: The same as complete unit without the combs, spacers, and caster. Specifications: Glass Plate Size (W x H) 10 x 8 cm Spacers 0.75 mm, 1.0 mm, 1.5 mm Maximum Power Settings 500 V, 500 mA, 12 W Maximum Temperature 45°C Indoor Use 4 to 40°C Humidity Up to 80% Unit Dimension (W x H x D) 16.5 x 16 x 16 cm (1 per EA)

Perform both electrophoresis and electro transfer in one sturdy, compact unit Features: Quick, excellent results using minimal buffer Passive cooling produces gels with straight lanes and sharp bands Cast your own or use precast gels from a variety of manufacturers Transfer up to 4 gels in 45 minutes with only 300 ml buffer using optional SE302 Blot Modules Designed for use with a wide variety of precast gels Complete Unit Includes: Buffer Chamber; Gel Modules with Gaskets, 2 assemblies; Safety Lid with High Voltage Leads; Glass Plates, Rectangular, 10 x 10.5 cm, 3 pcs; Glass Plates, Notched, 10 x 10.5 cm, 3 pcs; Combs, 10-well, 1.0 mm thick, 2 pcs; T-Spacers, 1.0 mm thick, 4 pcs; Basic Unit Includes: The same as complete unit without the combs, spacers, and glass plates. Specifications: Glass Plate Size (W x H) 10 x 10.5 cm or 10 x 8 cm Spacers 0.75 mm, 1.0 mm, 1.5 mm Maximum Power Settings 1000 V, 500 mA, 50 W Unit Dimensions (W x H x D) 32 x 37 x 14 cm (1 per EA)

Taller vertical format accommodates 24 cm long gels for increased resolution Features: Maximum glass plate size 18 x 24 cm Produce straight lanes and sharp,well-defined bands Run up to four gels (maximum 112 samples) at one time under identical conditions Accommodates denaturing and native polyacrylamide gels and 2-D electrophoresis A wide array of accessories allows you to tailor gel configurations to your needs Complete Unit Includes: Buffer Chamber; Safety Lid w/High Voltage Leads; Heat Exchanger; Glass Plates 18 x 24 cm, 6 pcs; Combs, 15-well, 1.5 mm thick, 2 pcs; Spacers, 1.5 mm thick (2 cm wide), 4 pcs; Dual Gel Caster Basic Unit Includes: The same as complete unit(SE660-15-1.5) without the combs and spacers. Specifications: Glass Plate Size (W x H) 18 x 24 cm, 18 x 16 cm or 18 x 8 cm Spacers 0.75 mm, 1.0 mm, 1.5 mm Maximum Power Settings 1000 V, 500 mA, 50 W Maximum Temperature 45°C Indoor Use 4 to 40°C Humidity Up to 80% Unit Dimensions (W x H x D) 32 x 37 x 14 cm (1 per EA)

The TE70XP and TE77XP semi-dry transfer units electrotransfer proteins from polyacrylamide gels onto membranes (either nitrocellulose or PVDF) rapidly and efficiently. Their unique design includes an intelligent built-in power supply which automatically monitors the transfer status, stopping the transfer before the stack overheats. The Semi-Dry Transfer Units support as many as two layers of gels being transferred simultaneously. The TE70XP has a 14 x 16 cm maximum transfer area which can handle up to four mini gels using the stacked format. The TE77XP has a 21 x 26 cm transfer area for a capacity of up to 12 mini gels at one time. (1 per EA)

Quickly and evenly transfers proteins and nucleic acids from polyacrylamide or agarose gels onto nylon, nitrocellulose, or PVDF membranes (1 per EA)

Ideal for high throughput screening applications like single strand polymorphism (SSP) analysis following PCR (1 per EA)

Ergonomic design offers easier handling and sample introduction Features: Maximum glass plate size 18 x 16 cm Gels are fully submerged for greater temperature equilibration Produces straight lanes and sharp,well-defined bands Run up to four gels (maximum 112 samples) at one time under identical conditions Accommodates denaturing and native polyacrylamide gels, and the second-dimension of 2-D electrophoresis Run gels at uniform temperature from 1 to 45°C A wide array of accessories enables you to tailor gel configurations to your needs Basic Unit Includes: Buffer Chamber; Safety Lid w/High Voltage Leads; Heat Exchanger; Glass Plates 18 x 16 cm-6 pcs; Dual Gel Caster Specifications: Glass Plate Size (W x H) 18 x 16 cm or 18 x 8 cm Spacers 0.75 mm, 1.0 mm, 1.5 mm Maximum Power Settings 1000 V, 500 mA, 50 W Maximum Temperature 45°C Unit Dimensions (W x H x D) 32 x 29 x 14 cm (1 per EA)

Offers a variety of gel lengths and comb sizes to enable the design of the gel required for optimum resolution of DNA fragments (1 per EA)

The SE640 is an extra wide vertical protein electrophoresis unit that accomodates up to 112 samples at one time (1 per EA)

Ideal for routine preparatory and analytical electrophoresis techniques Features and Benefits: Color-coded and height adjustable combs—easily identify comb thickness at a glance and control well depth Colored loading strips—for easy well detection when loading Compact tank—reduces the buffer volume required to cover the gel, providing greater control over the voltage gradient and run-time UV-transparent running tray—allows the user to image the gel without risk of damage due to handling Side handles—for safe and easy transportation around the laboratory Includes: Buffer Chamber; Safety Lid; High Voltage Leads; Running Tray with Silicone Gasket; 1 mm thick, 8-well combs, 2 pcs; Colored Loading Strips Specifications: Gel Dimensions (w x l): 6 x 7.5 cm Maximum Buffer Volume: 325 ml Maximum Power Settings: 300 V, 200 mA, 60 W Maximum Sample Capacity: 32 Unit Dimensions (w x l x h): 13 x 24 x 6.5 cm Safety Certifications: EN61010-1, CE (1 per EA)
