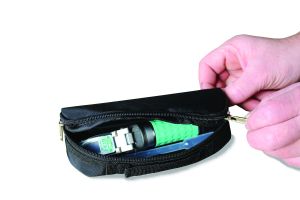

In this section, you will find carrying cases, replacement parts, and standards for our collection of Refractometers.
Whatever your industry, LPS can assist you in finding affordable, high-quality lab products to suit your needs. Give us a call!

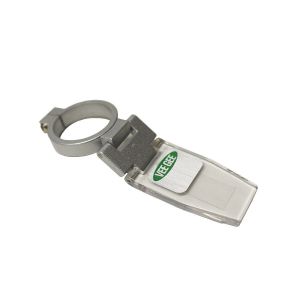

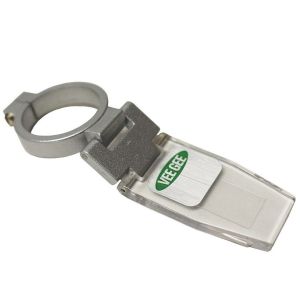

Replacement daylight plate kits are model-specific, so check the model number on your refractometer (for example BX-1, BX-50, BTX-20, CTX-2, SX-1, SGX-1, NDX-2 or URX-60) and order the kit listed for that exact model. Calibration standards come water-based (0.00% Brix, 1.33297 nD at 20°C) for zeroing and oil-based (60.0% Brix) for checking a higher point on the scale; pick values that bracket your samples. Bromonaphthalene contact solution is used with prism-type instruments, so confirm your instrument calls for it. The section also carries a manual polarimeter and glass sample tubes with bubble traps in 100 mm and 200 mm lengths.
A typical handheld refractometer has a measuring prism, a hinged daylight plate (cover plate) that holds the sample against the prism, a calibration screw for zeroing, a body tube, and an eyepiece with focus adjustment through which you read the scale. Many models also include automatic temperature compensation. The daylight plate and the prism surface are the parts most often scratched or damaged and replaced.
Place a few drops of distilled water or a zero standard on the clean prism, close the daylight plate, and read the scale. If the boundary line is not at zero, turn the calibration screw until it is. Do this with the instrument, standard and room close to 20°C, since refractive index changes with temperature. A higher-value standard can then confirm the reading further up the scale.
nD is the refractive index measured with light at the sodium D line, about 589 nm, which is the standard reference wavelength for refractometry. A standard labeled 1.33297 nD at 20°C, for example, has that refractive index at that temperature. Brix scales are based on the refractive index of sucrose solutions, so each Brix value corresponds to a specific nD reading.
