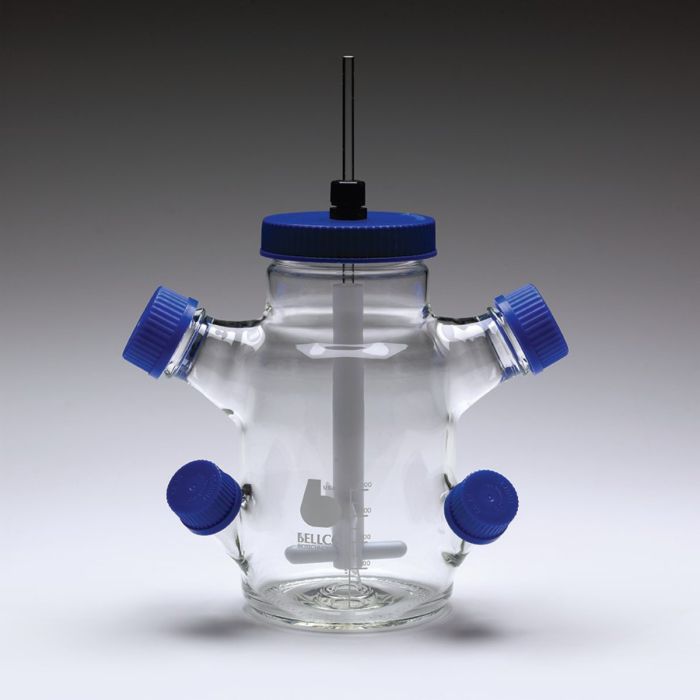

Bio-Probe Complete,3L

Description: Bio-Probe Spinner Flask Complete Bio-Probe Spinner Flask Complete consists of: Flask, and Impeller Assembly. Flask Specifications: Material: Type 1 Class A Borosilicate Glass Dimensions: 168mm OD x 290mm Overall Height, 278mm across side arms Two 45mm Side arms angled 53° off center Two 32mm Side arms angled 35° off center One 100mm Screw Thread Center Neck Indented bottom Graduations: 500mL to 3000mL, every 500mL – White Ink (Approx Volumes) Supply with: Two 45mm PP Blue Screw Caps, two PP Blue Pouring Rings, two 32mm blue screw caps, and two o-rings Impeller Assembly Specifications: Impeller Assembly consists of paddle, shaft, O-ring, retaining ring, magnet, magnet holder, adjustable paddle, bearing thimble, bearing spacer, ball bearing, compression spacer, compression washer, sealing ring, cap seal, and screw cap. Adjustable from 267mm-305mm in height. Paddle: Polytetrafluoroethylene, 4 1/4”x3”x1/16” Shaft: 316L Stainless Steel, 8 7/16” long x ¼” OD O-ring: Silicone, -008 Retaining ring: 316L SST, 0.365” OD x 17/64” ID x 5/32” long Magnet: PTFE coated, ½” OD x 3” long Magnet holder: PTFE, ¾” OD x ¼” ID x 4 11/16” long Adjustable paddle: PTFE, 3 3/8”x 1 ½” with a hub OD of 1 ½” Bearing thimble: PTFE, 1 ¼” OD by 4/4” ID x 3 1/8” long Bearing spacer: PTFE, ¾” OD x ½” ID x 0.880” long Ball bearing: Polybutylene terephthalate & SST, ¾” OD x ¼” ID x 0.281 thick Compression spacer: PTFE, ¾” OD x ½” ID x 1.645” long Compression washer: White Silicone, 1 1/16” OD x ½” ID x 1/16” thick Sealing ring: Red silicone, 3.6” OD x 3” ID x 0.240” thick Cap seal: PTFE, 3 ¾” OD x 0.985” long Screw cap: Blue Polypropylene, 4.25” OD x 7/8” long (1 per EA )
