Supplies

Description: Glass Ball Impeller Assembly Only Size: 250mL Screw Cap: Blue PP, 70mm OD x 22.4mm T Cap Seal: Teflon, 67.9mm OD x 9.1mm T Sealing Ring: Blue silicone rubber, 66.7mm OD x 47.6mm ID x 4.76mm T Flex Tube: Soft silicone, 41.3mm OAL, 0.312” OD x 0.248” ID Magnet Tube: Type 1 Class A Borosilicate Glass, 95mm OAL, 28mm OD ball, houses one cast alnico magnet (1 per EA )

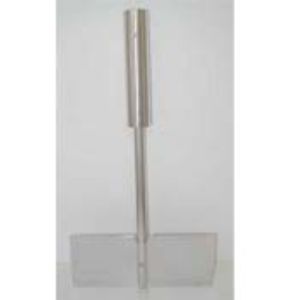

Short width stainless steel folding impeller assembly for standard bioreactor vessels 15l 316 l stainless steel Ra finish 32 micro inch or better (wxl) 3" x 7 1/2" (1 per EA )

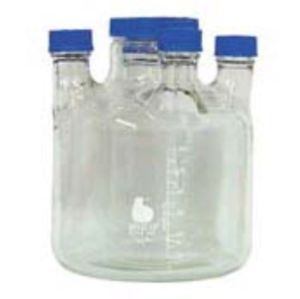

• Material: Type 1 Class A Borosilicate Glass • Dimensions: 168mm OD x 290mm Overall Height • Two 45mm Side arms angled 53° off center • Two 32mm Side arms angled 35° off center • One 100mm Screw Thread Center Neck • Indented bottom • Graduations: 500mL to 3000mL, every 500mL – White Ink (Approx Volumes) • Supply with: Two 45mm PP Blue Screw Caps, two PP Blue Pouring Rings, two 32mm blue screw caps, and two o-rings (1 per EA )

3L bioreactor vessel 145 x 250mm, round bottom. Heavy walled construction for cell culture and fermentation applications. Heavy duty o-ring flange creates positive seal for stainless steel head-plate. For use with stainless steel head-plate, o-ring, and locking clamp. Use with CellTrol II only single or dual system and speed control modules. (1 per EA )

200mm large flange headplate 10-port 6@ 1/4" OD 4@ 1/2" OD 1 center for drive motor 1964-90115 1/4" compression fitting 1964-90120 1/2" compression fitting 1964-90125 5/16" compression fitting (thermowell) Headplates are used with the large flange vessels to seal and to also provide ports for access to the interior of the vessel. The 18-port headplate is most used since more components can be fitted into its ports. The impeller is always positioned in the center drive port and a variety of components i.e. probe (1/2"), harvesting tubes (1/4" or 1/2"), thermowells (5/16") can be added as needed. Headplates and all stainless components of the bioreactor systems are electropolished to seal the surface against bacterial contamination that might occur with a rough surface. O-ring replacements: a554-30 6 each a554-42 4 each a554-13 1 each (1 per EA )

Manufactured from Type 1 Class A Borosilicate Glass with rigidly controlled baffle angles and depths. The 3 side baffles are used to promote optimal oxygen transfer while reducing vortex formation. Has a break resistant lip to resist chipping and is designed for use with orbital shakers. Specifications: Type 1 Class A Borosilicate Glass Sizes: 250ml Dimensions: 80x140mm Case Quantity: 12 (12 per CS )

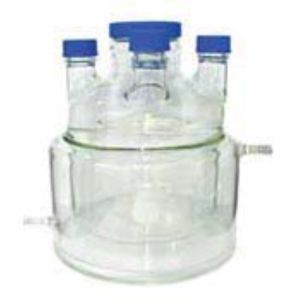

Ideal for use with water baths for precise temperature control. Supplied with 100mm center cap, sidearms cap, and pouring ring. Specifications: #4 Hose Barbs For 1/2" Id Tubing Material: Type 1 Class A Borosilicate Glass Supplied: 45mm Polypropylene Blue Cap & Pouring Ring Size 6L OD x OAH: 300x325mm (1 per EA )

Reduced height vessels maximize incubator space. This vessel is suitable for all cell culture applications (Insect, Plant, & Bacterial). 100mm neck takes drive adapter and overhead drive motor. Supplied with 100mm polypropylene center cap, sidearm cap and pouring ring. Specifications: 45mm Vertical Sidearm Accepts Port And Thermowell Assemblies Or Probes OD x OAL: (mm): 240×295 Use 8L Flask Carrier & 1964-51040 Heating Blanket (1 per EA )

Short width stainless steel folding impeller assembly for standard bioreactor vessels 36l 316 l stainless steel Ra finish 32 micro inch or better (wxl) 3" x 12" (1 per EA )

Promotes optimal growth of suspension and micro-carrier culture. Impeller height adjust through compression fitting center cap. The indented bottom prevents accumulation of micro-carrier beads under impeller. Size: 500ml Center Cap:100mm Sidearm cap: 45mm OD X OAH:110 X 180 (1 per EA )

Thermowell assemblies are used to hold inside one tube the rtd temperature sensor that monitors the temperature within the vessel in conjunction with a temperature controller. There are also tubes for addition of media and vent tube. • Thermowell assemblies for 1965 and 1967-style angled sidearm flasks, 3-port • 5/16" od thermowell tube,1/4" siphon and vent tubes • Includes 45mm pp cap and silicone gasket • Seam welded and electropolished • Longest tube length:6" (1 per EA )

Manufactured from type 1 class a Borosilicate glass. Bottom indent and 3 vertical baffles for optimal mixing. Sidearm cap: 45mm Center cap: 70mm sold separately Dimensions: 1110" x 175" Flask size: 500ml (1 per EA )

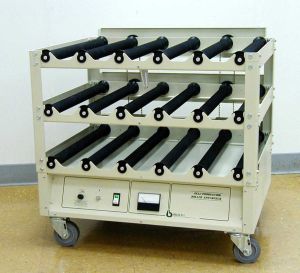

The Bellco Cell Production Roller Apparatus has been designed for production of animal cells, viruses and cell products. Modular units are available from 5 to 45 bottle positions and allow easy expansion with modular add-on decks. Non-modular production units come in 45 and 50 bottle positions with over 80,000 cm2 of surface area. Rollers have a key design to eliminate slipping and are easily removable for servicing of bearings. Rollers are formulated from a chemical-resistant non-slip EDPM. All units feature a solid state control with heavy-duty DC motor and analog tachometer. Non-modular production models feature rubber bumpers, handles and a slotted rear guard. (1 per EA )

Bellco manufactures all precision pipettes from type 1 class a Borosilicate glass. All bellco pipettes feature tempered tips and permanent silk screened graduations to withstand repeated usage and alkali washings. Color code:white (250 per CS )

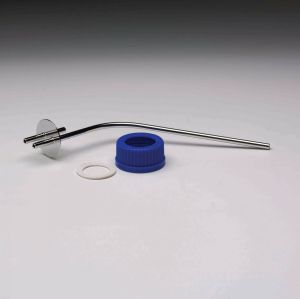

All port assemblies are manufactured from 316l stainless steel and have an electropolish finish. 2- port assemblies have siphon and vent tubes. 3-port assemblies have siphon, fill tube and vent tubes. All port assemblies include a 45mm blue polypropylene cap. (1 per EA )

Designed for growing insect cell cultures such as SF9 and SF21 cells. The system comes complete with all accessories needed to grow your insect culture line for expression Includes: –7785-D2005 Digital 5-Position Magnetic Stirrer 115V –1965-03000 Micro-Carrier Spinner Flask Complete 3L –1965-20003R 2-Port Assembly 3L –7808-10004 Gas Blending Stand –7725-00120 Air Supply Pump 115V –7800-10050 Silicone Tubing 1/4” ID (1 per EA )

Manufactured from Type 1 Class A Borosilicate Glass. The 3 side and bottom baffles are used for optimal agitation. 38mm DeLong style neck. Specifications: Type 1 Class A Borosilicate Glass Sizes: 500ml Dimensions: 100x205mm Closure Sizes: 38 Case Quantity: 12 (12 per CS )

Manufactured from Type 1 Class A Borosilicate Glass. The 3 side and bottom baffles are used for optimal agitation. 38mm DeLong style neck. Specifications: Type 1 Class A Borosilicate Glass Sizes: 2L Dimensions: 158x295mm Closure Sizes: 38 Case Quantity: 3 (3 per CS )

The Bellco Cell Production Roller Apparatus has been designed for production of animal cells, viruses, and cell products. Modular units are available from 5 to 45 bottle positions and allow easy expansion with modular add-on decks. Non-modular production units come in 45 and 50 bottle positions with over 80,000 cm2 of surface area. Rollers have a key design to eliminate slipping and are easily removable for servicing of bearings. Rollers are formulated from a chemical-resistant non-slip EDPM. All units feature a solid state control with heavy-duty DC motor and digital display. All Position Drives are for use with plastic roller bottles to prevent slipping of the light-weight bottles. Roller Shaft Construction: Non-transferring chemical-resistant rubber rollers with key-shape. Clearance between Decks for Bottle Placement: 134 mm. Construction Material: Aluminum, enamel finish. Usable Roller Length: 51 cm. Brushless motor with controller for smooth operation and no maintenance. Easy-to-remove roller bar assembly (tool provided). Digital LCD display. Locking speed control knob. All position drives. Accepts all Bellco Roller Bottles (glass or plastic* in 110mm or 120mm diameter). Battery backup provides 18 hour service (typical at 2 RPM). Battery backup includes both audible and visual indicators. Motion Alarm (1 per EA )

The Bellco Cell Production Roller Apparatus has been designed for production of animal cells, viruses, and cell products. Modular units are available from 5 to 45 bottle positions and allow easy expansion with modular add-on decks. Non-modular production units come in 45 and 50 bottle positions with over 80,000 cm2 of surface area. Rollers have a key design to eliminate slipping and are easily removable for servicing of bearings. Rollers are formulated from a chemical-resistant non-slip EDPM. All units feature a solid state control with heavy-duty DC motor and digital display. All Position Drives are for use with plastic roller bottles to prevent slipping of the light-weight bottles. Roller Shaft Construction: Non-transferring chemical-resistant rubber rollers with key-shape. Clearance between Decks for Bottle Placement: 134 mm. Construction Material: Aluminum, enamel finish. Usable Roller Length: 51 cm. Brushless motor with controller for smooth operation and no maintenance. Easy-to-remove roller bar assembly (tool provided). Digital LCD display. Locking speed control knob. All position drives. Accepts all Bellco Roller Bottles (glass or plastic* in 110mm or 120mm diameter). Battery backup provides 18 hour service (typical at 2 RPM). Battery backup includes both audible and visual indicators. Motion Alarm (1 per EA )

The Bellco Cell Production Roller Apparatus has been designed for production of animal cells, viruses, and cell products. Modular units are available from 5 to 45 bottle positions and allow easy expansion with modular add-on decks. Non-modular production units come in 45 and 50 bottle positions with over 80,000 cm2 of surface area. Rollers have a key design to eliminate slipping and are easily removable for servicing of bearings. Rollers are formulated from a chemical-resistant non-slip EDPM. All units feature a solid state control with heavy-duty DC motor and digital display. All Position Drives are for use with plastic roller bottles to prevent slipping of the light-weight bottles. Roller Shaft Construction: Non-transferring chemical-resistant rubber rollers with key-shape. Clearance between Decks for Bottle Placement: 134 mm. Construction Material: Aluminum, enamel finish. Usable Roller Length: 51 cm. Brushless motor with controller for smooth operation and no maintenance. Easy-to-remove roller bar assembly (tool provided). Digital LCD display. Locking speed control knob. All position drives. Accepts all Bellco Roller Bottles (glass or plastic* in 110mm or 120mm diameter). Battery backup provides 18 hour service (typical at 2 RPM). Battery backup includes both audible and visual indicators. Motion Alarm (1 per EA )

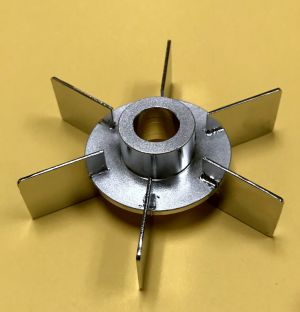

SST Vertical Disk Impeller for 10l bioreactor systems - English threads Material: 316l SST with electropolish finish 3 1/4" od (1 per EA )

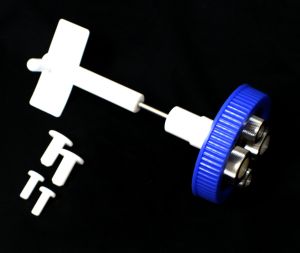

The stainless steel 100mm IOB probe cap seal is manufactured from 316L stainless steel and has a red-silicone sealing gasket with a 100mm blue polypropylene screw cap. The stainless steel probe cap seal has four accessory ports surrounding a centrally located internal impeller assembly. Two of these ports have a white silicone plug inside a threaded cap that acts as a compression fitting for probe insertion. The other ports accept accessories using the same silicone compression plugs and threaded caps. These compression plugs make it easy to adjust the insertion length of probes or straight tubes depending upon the working volume of the bioreactor flask. The stainless steel cap seal, stainless steel PTFE impeller and all fittings are steam autoclavable. (1 per EA )

Nephelo culture flask is ideal for growing, storing and mixing of aerobic and anaerobic cultures. Supplied with 25mm Bellco stainless steel closures. Specifications: Type 1 Class A Borosilicate Glass Sizes: 125ml Includes: Bellco Stainless Steel Closure (2005 Series) Sidearm Dimensions: 14x130mm Case Quantity: 4 (4 per CS )
