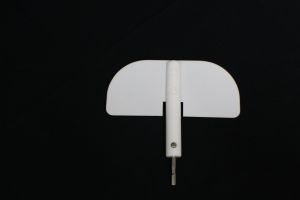

Ptfe impeller for use with over head drive motor and drive adapter in 3l low profile bioreactor vessel. Paddle size: 3 x 6 3/4" (1 per EA )

This vessel is suitable for all cell culture applications- insect, plant and bacterial. Reduced height vessels maximize incubator space. Low profile cell culture vessels. Reduced height vessels maximize incubator space. Suitable for all cell culture applications-insect, plant, and bacterial. 100mm neck for cap assembly and overhead drive. 45mm vertical sidearm accept port and thermowell assemblies or probes. Supplied with 100mm center cap, 45mm caps and pouring rings. Od x oah (mm): 240 x 250. Use 8l flask carrier & 1964-51040 heating blanket. (1 per EA )

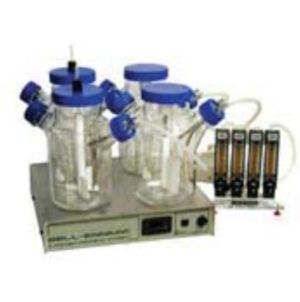

Designed for growing insect cell cultures such as SF9 and SF21 cells. The system comes complete with all accessories needed to grow your insect culture line for expression. Consist Of: 7785-D2005 Digital 5-Position Magnetic Stirrer, 115V 1965-03000 Micro-Carrier Spinner Flask Complete, 3L 1965-20003R 2-Port Assembly, 3L 7808-10004 Gas Blending Stand 7725-00120 Air Supply Pump, 115V 7800-10050 Silicone Tubing, 1/4" ID (1 per EA )

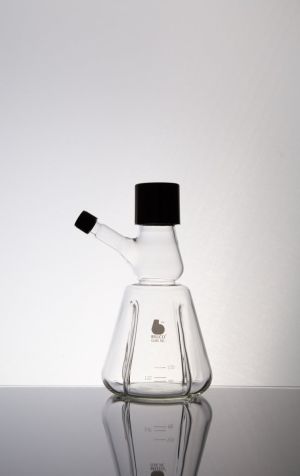

Manufactured from Type 1 Borosilicate Glass. Designed with deep side baffles for optimal agitation. Promotes enzyme digestion of tissue fragments and homogenates into cell suspense. Includes rubber lined black phenolic screw caps. Integral dam contains non-trypsinized tissue during decanting. Specifications: Type 1 Class A Borosilicate Glass Size: 500ml Acid Etched & Filled Graduations TOP SCREW CAP SIZE IS 38MM SIDEARM SCREW CAP SIZE IS 16MM OD X OAH (mm): 100 X 190 Case Qty:3 (3 per CS )

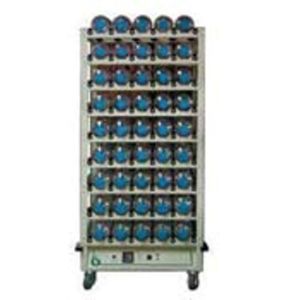

The Bellco Process Controlled Bottom Drive Roller Apparatus holds up to 50 (see specifications below) full size glass or plastic roller bottles (110 to 120 mm diameter and up to 510 mm in length). The unit features a brushless DC motor and controller that operate at bottle speeds ranging from 0.3 to 9.0 rpm with the ability to select clockwise or counter clockwise direction. Units feature brushless, maintenance-free DC motors with drive assemblies designed for quiet operation. Four corner bumpers and two locking castors (on the front wheel positions) are also provided. Rollers are easily removed for replacement by using the special tool provided with each unit. All-Position Drive facilitates the use of lightweight plastic roller bottles by ensuring rotation at each bottle station, independent of any load configurations. (1 per EA )

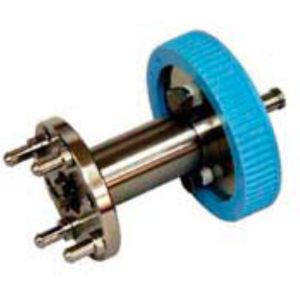

Hi -Torque Over Head Drive Adapter is used in conjunction with the High-Torque Over Head Drive Motor to drive the impeller assembly for mixing within a vessel. Adapts all Bellco PTFE impeller assys or SST impeller assys. Used with 100mm cap assembly. 316 SST design with polyester/SST bearing. Includes two (2) 1/4"npt female plugged ports for optional fittings. NOT HIGH SPEED! SPEED RANGE: 5- 150rpm Dimensions: 3 3/4" l x 3 3/4' w x 7 1/2" tall (including dust shield coupling (1 per EA )

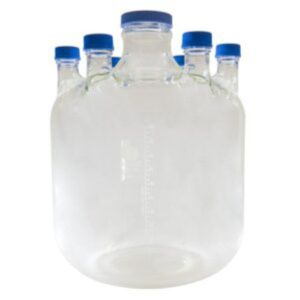

Manufactured from type 1 class a Borosilicate glass. Includes 4 or 6 45mm polypropylene blue screw caps and pouring rings, also 1 100mm polypropylene blue cap for the center. Suitable for all cell culture fermentation. Specifications: Material: Type 1 Class A Borosilicate Glass 100mm Center Neck Baffles: 0 Sidearms: 4 OD x OAH: 295 x 460mm (1 per EA )

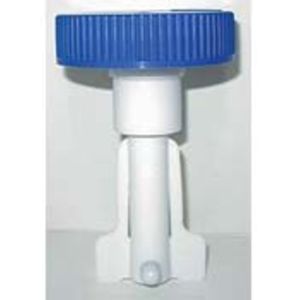

Bell-Flo iob assembly was designed to be used with the bell-flo vessel with bottom indents and 3 vertical baffles for optimal mixing. Rugged stainless steel ptfe internal bearing impeller assemblies utilize a wing style impeller blade that increases mixing. Internal Overhead Bearing Assembly Specifications: Consists of screw cap, cap seal, sealing ring, compression washer, ball bearing spacer, ball bearing, bearing thimble, magnet, o-ring, magnet holder, shaft, & paddle 100mm PP Blue Screw Cap: 82.6mm OD x 22.4mm tall PTFE Cap Seal: 95.3mm OD x 25mm long Red Silicone Sealing Ring: 86mm OD x 76.2mm ID x 6.1mm thick White Silicone Compression Washer: 27.0mm OD x 12.7mm ID x 1.6mm thick PTFE Ball Bearing Spacer: 19.1mm OD x 12.7mm ID x 22.4mm deep PBT & SST Ball Bearing: 19.1mm OD x 6.4mm ID x 7.1mm deep PTFE Bearing Thimble: 31.8mm OD x 19.1mm ID x 38.1mm long PTFE Magnet: 9.5mm OD x 41.3mm long Silicone O-ring: 7.9mm OD x 4.8mm ID PTFE Magnet Holder: 19.1mm OD x 95.3mm long 316L SST Shaft: 6.4mm OD x 130.2mm long PTFE Paddle: 82.6mm wide x 95.3 long x 1.6mm thick (1 per EA )

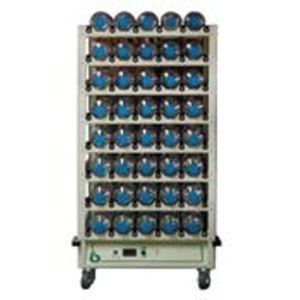

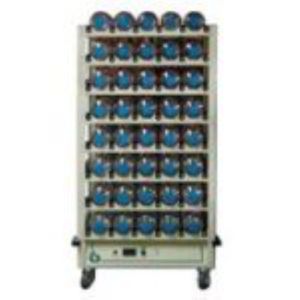

The Bellco Digital Bottom Drive Roller Apparatus holds up to 50 (see specifications below) full size glass or plastic roller bottles (110 to 120 mm diameter and up to 510 mm in length).Digital bottom drive roller apparatus. Digital display speed indicator readout. 24v brushless dc motor and controller. Locking speed control knob. Optional battery backup gives up to 18 hours of battery power during power Interruptions. Battery level indicator. Rotational switch for cw & ccw rotation. Optional motion alarm (factory installation only). (1 per EA )

The Bellco Cell Production Roller Apparatus has been designed for production of animal cells, viruses, and cell products. Modular units are available from 5 to 45 bottle positions and allow easy expansion with modular add-on decks. Non-modular production units come in 45 and 50 bottle positions with over 80,000 cm2 of surface area. Rollers have a key design to eliminate slipping and are easily removable for servicing of bearings. Rollers are formulated from a chemical-resistant non-slip EDPM. All units feature a solid state control with heavy-duty DC motor and digital display. All Position Drives are for use with plastic roller bottles to prevent slipping of the light-weight bottles. Roller Shaft Construction: Non-transferring chemical-resistant rubber rollers with key-shape. Clearance between Decks for Bottle Placement: 134 mm. Construction Material: Aluminum, enamel finish. Usable Roller Length: 51 cm. Brushless motor with controller for smooth operation and no maintenance. Easy-to-remove roller bar assembly (tool provided). Digital LCD display. Locking speed control knob. All position drives. Accepts all Bellco Roller Bottles (glass or plastic* in 110mm or 120mm diameter). Battery backup provides 18 hour service (typical at 2 RPM). Battery backup includes both audible and visual indicators. Motion Alarm (1 per EA )

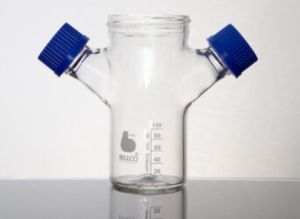

Promotes optimal growth of suspension and micro-carrier culture. Impeller height adjust through compression fitting center cap. The indented bottom prevents accumulation of micro-carrier beads under impeller. Size: 500ml Sidearm cap: 32mm (included) (1 per EA )

Bellco manufactures all precision pipettes from type 1 class a Borosilicate glass. All bellco pipettes feature tempered tips and permanent silk screened graduations to withstand repeated usage and alkali washings. Plain top promotes rapid even flow with a calibrated to tip -tempered tip; to deliver; blow out. (250 per CS )

Stainless steel harvest port assembly 3/8 for 3l bioreactor systems. Fits .375" hole in headplate Material: SST 316l ra 32 finish or better Tubing: 316l 1/4" od x 5/32" id Dimension: 10 11/16" oal Insertion length: 9 1/4" Supply with O-ring & SST nut (1 per EA )

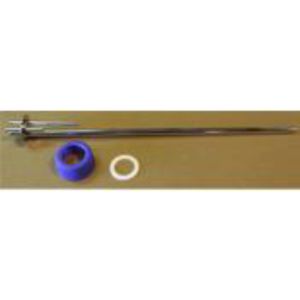

Material: 316l SST with electropolish finish, ra 32 or better, inside & out Dimensions: harvest tube (3/8" od) - 1" above slug, 8 3/8" insertion length Addition tube (1/4"od) - 1" above slug, 2 21/64" below Vent tube (1/4" od) - 1" above slug, .975" below Supply with 45mm PP blue open top screw cap & white silicone gasket (1 per EA )

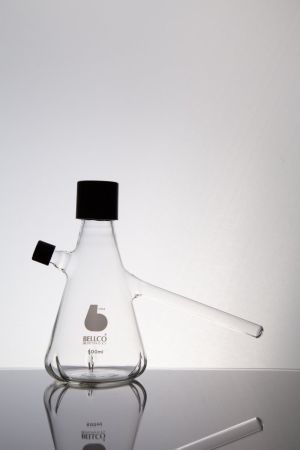

Ideal for growing, storing and mixing of aerobic and anaerobic cultures. Has a threaded neck and sidearm with clean-out port. 3 baffles increase oxygenation of cultures. Supplied with 38mm and 18mm rubber lined black phenolic cap. Specifications: Type 1 Class A Borosilicate Glass Sizes: 500ml Includes: 38mm & 18mm Rubber Lined Black Phenolic Cap Sidearm Dimensions: 19x130mm Case Quantity: 4 (4 per CS )

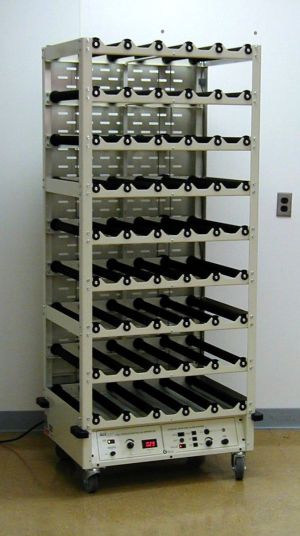

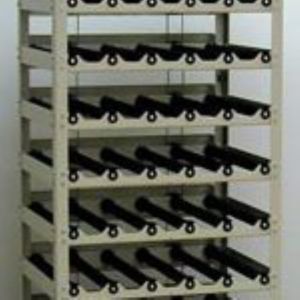

The Bellco Sci/ERA Cell Production Roller Apparatus has been designed for production of mammalian cells, viruses and cell products. Non-modular production units come in 45 and 50 bottle positions with over 80,000 cm2 of surface area. All units feature a solid state control with heavy-duty DC motor and digital tachometer. All Position Drives are for use with plastic roller bottles to prevent slipping of the light-weight bottles. A Stand-By Drive and Alarm System provides motion and power failure alarms and has a backup drive system that automatically drives the unit should the original fail. (1 per EA )

The Bellco Cell Production Roller Apparatus has been designed for production of animal cells, viruses, and cell products. Modular units are available from 5 to 45 bottle positions and allow easy expansion with modular add-on decks. Non-modular production units come in 45 and 50 bottle positions with over 80,000 cm2 of surface area. Rollers have a key design to eliminate slipping and are easily removable for servicing of bearings. Rollers are formulated from a chemical-resistant non-slip EDPM. All units feature a solid state control with heavy-duty DC motor and digital display. All Position Drives are for use with plastic roller bottles to prevent slipping of the light-weight bottles. Roller Shaft Construction: Non-transferring chemical-resistant rubber rollers with key-shape. Clearance between Decks for Bottle Placement: 134 mm. Construction Material: Aluminum, enamel finish. Usable Roller Length: 51 cm. Brushless motor with controller for smooth operation and no maintenance. Easy-to-remove roller bar assembly (tool provided). Digital LCD display. Locking speed control knob. All position drives. Accepts all Bellco Roller Bottles (glass or plastic* in 110mm or 120mm diameter). Battery backup provides 18 hour service (typical at 2 RPM). Battery backup includes both audible and visual indicators. Motion Alarm (1 per EA )

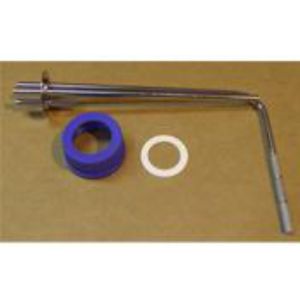

316-l stainless steel ra32 or better finish 10 micron porosity stainless steel frit for low profile vertical side arm vessels. Frit is removable for cleaning. Comes with 45mm blue polypropylene open top cap and silicone gasket Triple tube configuration With Vent, Fill/Sample And Sparge. (1 per EA )

Thermowell assemblies are used to hold inside one tube the rtd temperature sensor that monitors the temperature within the vessel in conjunction with a temperature controller. There are also tubes for addition of media and vent tube. For low profile 6L Vessel Material: 316L SST with Ra 32 or better - inside & out One Vent port; .250"OD x .152" ID x 1.0"above & below cap slug One Addition port: .250"OD x .152"ID x 10 9/32" insertion length One Thermowell port: .375"OD x .305"ID x 10 9/32" insertion length All tubes seam weld in to cap slug - bottom side only Supply with 45mm PP blue open top screw cap & white silicone gasket (1 per EA )

Foam Trap Bottle,2000mL (1 per EA )

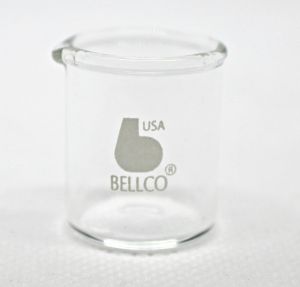

Manufactured from Type 1 Class A Borosilicate Glass with a low coefficient of expansion. Heavy wall beakers meet astime-960 type 1 specifications for classification design capacity and markings. Features a easy pour spout, white permanent graduations and a large marking square. Specifications: Type 1 Class A Borosilicate Glass Size: 600mL Dimensions: 95 x 110mm Case Quantity: 12 (12 per CS )

The Bellco Process Controlled Bottom Drive Roller Apparatus holds up to 50 (see specifications below) full size glass or plastic roller bottles (110 to 120 mm diameter and up to 510 mm in length). The unit features a brushless DC motor and controller that operate at bottle speeds ranging from 0.3 to 9.0 rpm with the ability to select clockwise or counter clockwise direction. Units feature brushless, maintenance-free DC motors with drive assemblies designed for quiet operation. Four corner bumpers and two locking castors (on the front wheel positions) are also provided. Rollers are easily removed for replacement by using the special tool provided with each unit. All-Position Drive facilitates the use of lightweight plastic roller bottles by ensuring rotation at each bottle station, independent of any load configurations. (1 per EA )

The Bellco Sci/ERA Cell Production Roller Apparatus has been designed for production of mammalian cells, viruses and cell products. Non-modular production units come in 45 and 50 bottle positions with over 80,000 cm2 of surface area. All units feature a solid state control with heavy-duty DC motor and digital tachometer. All Position Drives are for use with plastic roller bottles to prevent slipping of the light-weight bottles. A Stand-By Drive and Alarm System provides motion and power failure alarms and has a backup drive system that automatically drives the unit should the original fail. (1 per EA )

The Bellco Cell Production Roller Apparatus has been designed for production of animal cells, viruses, and cell products. Modular units are available from 5 to 45 bottle positions and allow easy expansion with modular add-on decks. Non-modular production units come in 45 and 50 bottle positions with over 80,000 cm2 of surface area. Rollers have a key design to eliminate slipping and are easily removable for servicing of bearings. Rollers are formulated from a chemical-resistant non-slip EDPM. All units feature a solid state control with heavy-duty DC motor and digital display. All Position Drives are for use with plastic roller bottles to prevent slipping of the light-weight bottles. Roller Shaft Construction: Non-transferring chemical-resistant rubber rollers with key-shape. Clearance between Decks for Bottle Placement: 134 mm. Construction Material: Aluminum, enamel finish. Usable Roller Length: 51 cm. Brushless motor with controller for smooth operation and no maintenance. Easy-to-remove roller bar assembly (tool provided). Digital LCD display. Locking speed control knob. All position drives. Accepts all Bellco Roller Bottles (glass or plastic* in 110mm or 120mm diameter). Battery backup provides 18 hour service (typical at 2 RPM). Battery backup includes both audible and visual indicators. Motion Alarm (1 per EA )
