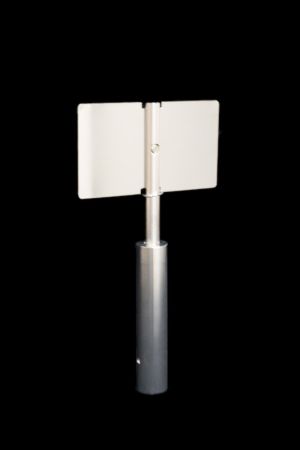

Blades and impeller assemblies are use for cell culture. Reduces shear in delicate cell culture. Manufactured from 316l stainless steel with electropolish finish. Ra 32 finish or better inside and out. Blade dimension: 5 3/4 x 2". Shaft oal: 12 1/2". (1 per EA )

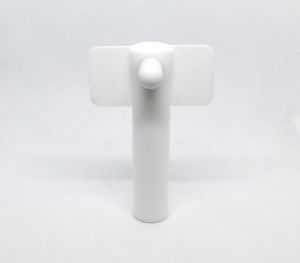

Micro-Carrier Impeller Assembly Promote optimal growth of suspension and micro-carrier cultures. Impeller height adjusts through compression fitting in cap. Indented bottom up to 1L prevents accumulation of micro-carrier beads under impeller.. Impeller assembly for micro-carrier spinner flasks. Consist of magnet holder, silicone plug, magnet, and ptfe paddle. Impeller size: 100-250ml Paddle dimensions: 1" x 2" (1 per EA )

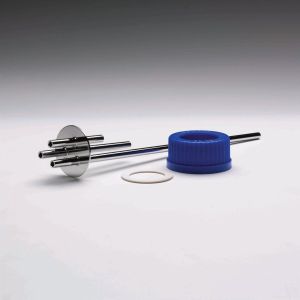

Stainless steel 3-port assembly for media bottles, 6l low profile. Welded, 316l stainless steel construction, 1/4" inch od tubing Electropolished finish, continuous seal weld Three port model features siphon, fill and vent tubes 45mm polypropylene screw cap and silicone gasket included Cap slug: 45mm Tube specifications: 1/4" OD X 5/32" ID, SIPHON (LONG TUBE): 10 13/32" LONG BELOW CAP SLUG, FILL TUBE: 3" LONG BELOW CAP SLUG, VENT TUBE: 1" LONG BELOW CAP SLUG. (1 per EA )

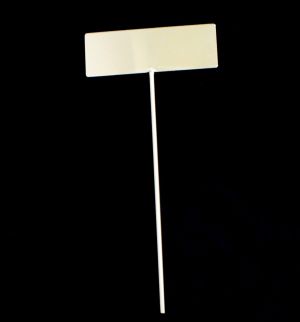

Manufactured from 316l stainless steel for standard bioreactor vessels. Use with over head drive motors. PADDLE L X W (IN): 3 X 5 1/4". (1 per EA )

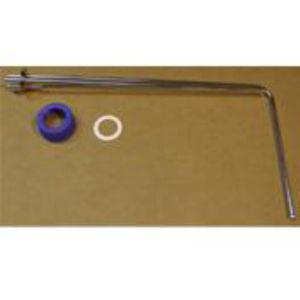

316-l stainless steel ra32 or better finish 10 micron porosity stainless steel frit for low profile vertical side arm vessels. Frit is removable for cleaning. Comes with 45mm blue polypropylene open top cap and silicone gasket Triple tube configuration With Vent, Fill/Sample And Sparge. (1 per EA )

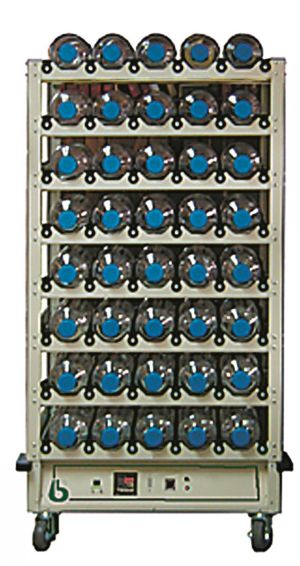

The Bellco Process Controlled Bottom Drive Roller Apparatus holds up to 50 (see specifications below) full size glass or plastic roller bottles (110 to 120 mm diameter and up to 510 mm in length). The unit features a brushless DC motor and controller that operate at bottle speeds ranging from 0.3 to 9.0 rpm with the ability to select clockwise or counter clockwise direction. Units feature brushless, maintenance-free DC motors with drive assemblies designed for quiet operation. Four corner bumpers and two locking castors (on the front wheel positions) are also provided. Rollers are easily removed for replacement by using the special tool provided with each unit. All-Position Drive facilitates the use of lightweight plastic roller bottles by ensuring rotation at each bottle station, independent of any load configurations. (1 per EA )

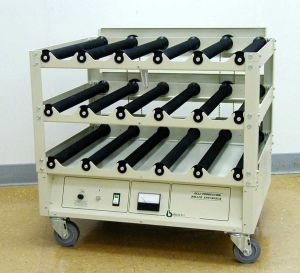

The Bellco Cell Production Roller Apparatus has been designed for production of animal cells, viruses and cell products. Modular units are available from 5 to 45 bottle positions and allow easy expansion with modular add-on decks. Non-modular production units come in 45 and 50 bottle positions with over 80,000 cm2 of surface area. Rollers have a key design to eliminate slipping and are easily removable for servicing of bearings. Rollers are formulated from a chemical-resistant non-slip EDPM. All units feature a solid state control with heavy-duty DC motor and analog tachometer. Non-modular production models feature rubber bumpers, handles and a slotted rear guard. (1 per EA )

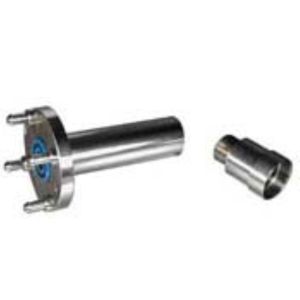

316 L Stainless Steel Large Flange Drive Adapter for use with High Speed Drive Adapter. For attachment of Overhead Drive Motors. Heavy duty cap assembly for large flange vessels Adapt overhead drives to teflon or sst folding impeller assembly 316 sst design with polyester stainless steel bearings (1 per EA )

Round Bottom Glass Pipette Canister. Manufactured From Type 1, Class A Borosilicate Glass Components Will Withstand Repeated Dry Or Steam Heat Sterilization Case Qty: 6 (6 per CS )

Bellco manufactures all precision pipettes from type 1 class a Borosilicate glass. All bellco pipettes feature tempered tips and permanent silk screened graduations to withstand repeated usage and alkali washings. Constricted top for cotton plugging. (12 per CS )

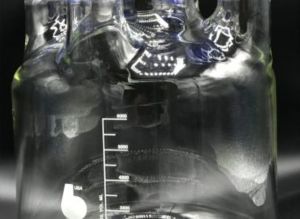

LOW PROFILE CELL CULTURE VESSELS. REDUCED HEIGHT VESSELS MAXIMIZE INCUBATOR SPACE SUITABLE FOR ALL CELL CULTURE APPLICATIONS-INSECT, PLANT,BACTERIAL 100MM NECK FOR CAP ASSEMBLY AND OVERHEAD DRIVE 45MM VERTICAL SIDEARM ACCEPT PORT AND THERMOWELL ASSEMBLIES OR PROBES -SUPPLIED WITH 100MM CENTER CAP, 45MM CAPS AND POURING RINGS OD X OAH (MM): 240 X 295 Qty: 1 ea. (1 per EA )

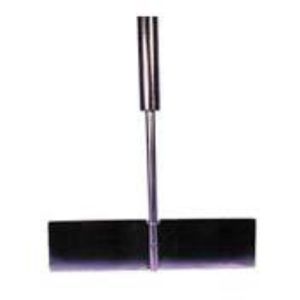

SST Low Profile Impeller Assembly For 6000mL Low Profile Vessels. Requires Over Head Drive & cap assembly Material: SST 316l Consist of: dust shield, shaft, paddle, locking ring, washer, cotter pin Four (4) SST set screws: 8-32 x 1/4" Dimensions: 9 1/2" to 12 1/2" oal Paddle size: 3" tall x 5 1/4" wide Fully assembled (1 per EA )

Promotes optimal growth of suspension and micro-carrier culture. Impeller height adjust through compression fitting center cap. The indented bottom prevents accumulation of micro-carrier beads under impeller. Size: 15l Sidearm cap: 45mm Center cap: 100mm OD X OAH:294 X 470 (with cap) (1 per EA )

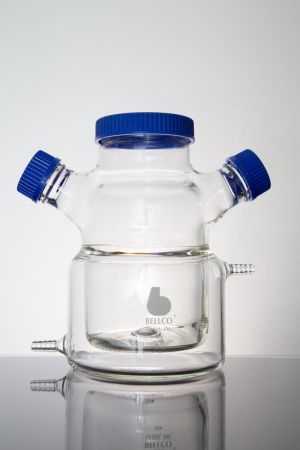

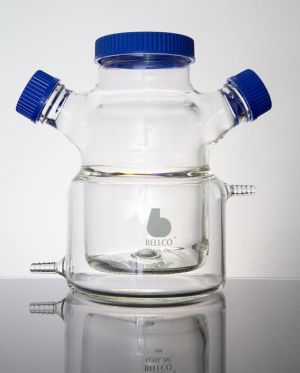

Flask only. For use circulating water bath or chiller and magnetic stir plate. Hose connection accepts 3/8" ID silicone tubing (Bellco M7965037) Available complete with micro-carrier impeller assembly or as components. Specifications: Jacket Volume (mL): 260ml Cap Size: 70mm Sidearm Cap Size (mm): 38 OD x OAH: 110x200mm (1 per EA )

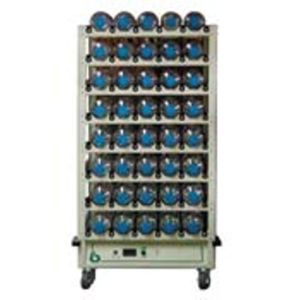

The Bellco Process Controlled Bottom Drive Roller Apparatus holds up to 50 (see specifications below) full size glass or plastic roller bottles (110 to 120 mm diameter and up to 510 mm in length). The unit features a brushless DC motor and controller that operate at bottle speeds ranging from 0.3 to 9.0 rpm with the ability to select clockwise or counter clockwise direction. Units feature brushless, maintenance-free DC motors with drive assemblies designed for quiet operation. Four corner bumpers and two locking castors (on the front wheel positions) are also provided. Rollers are easily removed for replacement by using the special tool provided with each unit. All-Position Drive facilitates the use of lightweight plastic roller bottles by ensuring rotation at each bottle station, independent of any load configurations. (1 per EA )

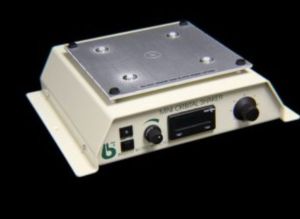

The Bellco Digital Shaker is a compact, heavy-duty variable speed shaker. It is used for the agitation of electrophoretic gels and filter assay media for staining, destaining and assay development. The Shaker accommodates a variety of vessels. It is continuously adjustable from 30 to 350 RPM. This Bellco design incorporates an orbital platform that accepts a variety of optional trays. A variety of tray models are available, including three equipped with flask clamps for common sizes of flasks. Peg and Grommet style trays make changing convenient. The timer circuit permits automatic shutoff after 3-120 minutes. (1 per EA )

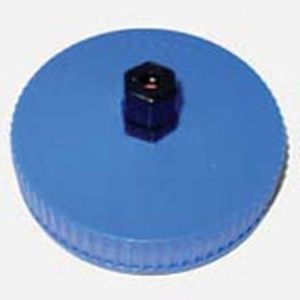

Polypropylene screw cap with silicone gasket pouring ring and compression fitting. 100mm (1 per EA )

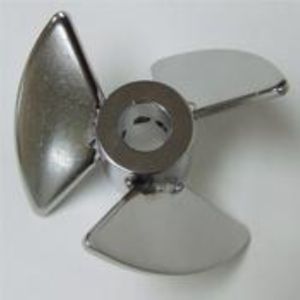

SST Pitch Blade Assyembly. 316l stainless steel construction, electropolish finish For 10L Bioreactor Systems - English Threads Left hand - down OD: 3/1/4" Usually requires 2ea. (1 per EA )

Ideal for use with water baths for precise temperature control. Supplied with 100mm center cap, sidearms cap, and pouring ring. 6 VERTICAL 45mm SIDEARMS. Material: type 1 class a Borosilicate glass. Dimensions: 300mm od x 280mm overall height Two (2) #4 hose connection (1 per EA )

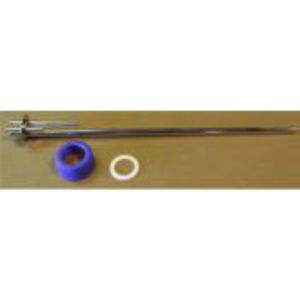

Material: 316l SST with electropolish finish, ra 32 or better, inside & out Dimensions: harvest tube (3/8" od) - 1" above slug, 17" insertion length Addition tube (1/4"od) - 1" above slug, 2 21/64" below Vent tube (1/4" od) - 1" above slug, .975" below Supply with 45mm PP blue open top screw cap & white silicone gasket (1 per EA )

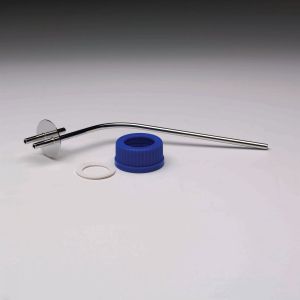

All port assemblies are manufactured from 316l stainless steel and have an electropolish finish. 2- port assemblies have siphon and vent tubes. 3-port assemblies have siphon, fill tube and vent tubes. All port assemblies include a 45mm blue polypropylene cap. (1 per EA )

For use circulating water bath or chiller and magnetic stir plate. Hose connection accepts 3/8" ID silicone tubing (Bellco M7965037) Available complete with micro-carrier impeller assembly or as components. Specifications: Jacket Volume (mL): 3700ml Cap Size: 100mm Sidearm Cap Size (mm): 45 OD x OAH: 200x445mm (1 per EA )

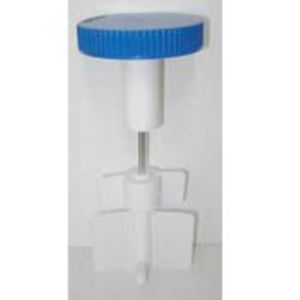

Stainless steel shaft design prevents cell damage and minimizes magnetic decoupling. Sealed internal assembly requires less incubator space. For use with bellco 1965-series standard and water jacketed spinner flasks Cap size: 70mm Flask size: 500m PADDLE: L X W:2 X 2 IN (1 per EA )

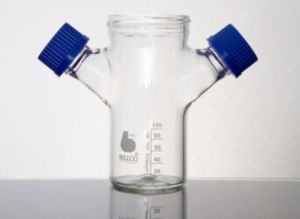

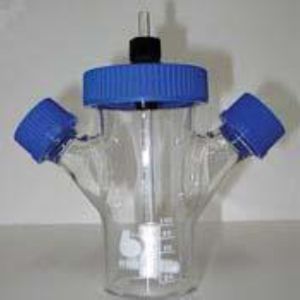

• Designed for the efficient growth of suspension cells at low speeds • Flask Specifications: o 100 mL flat bottom, Type 1 Class A Borosilicate o Dimensions: 63.5mm OD x 135mm OAH o Two 32mm Sidearms angled 55º offset center o One 70mm Screw thread center neck o Graduations: 20mL to 100mL, every 20mL o Includes two 32mm blue PP screw caps and pouring rings • Impeller Assembly Specifications: o Consists of PTFE coated magnet and white Teflon magnet holder • Glass Shaft Specifications: o Type 1 Class A Borosilicate o Dimensions: 7mm OD x 155mm long • Cap Assembly Specifications: o Consists of one 70mm blue PP screw cap with 16.2 mm hole for black compression fitting, 70mm white silicone liner with 15.8mm hole, 7mm black compression fitting (1 per EA )
