Glassware

Stainless steel port plug fits onto stainless steel head plate for 3 & 7 liter bioreactor vessel Material: 316l SST with electropolish finish 1/2-20 tpi threads For 3l & 7l bioreactor systems - English threads For 1/4" port on headplate (1 per EA )

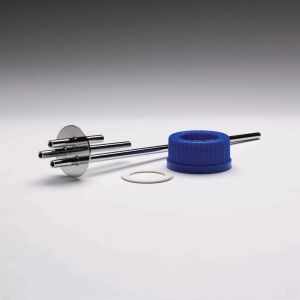

Thermowell assemblies are used to hold inside one tube the rtd temperature sensor that monitors the temperature within the vessel in conjunction with a temperature controller. There are also tubes for addition of media and vent tube. 45mm THERMOWELL ASSY FOR L/P 6L VESSEL, SEAM WELDED - ELECTROPOLISH FINISH, 316L SST MATERIAL, SUPPLY WITH S/CAP (A523-599) & WHITE SILICONE LINER (A523-600), 1- THERMOWELL TUBE: 5/16"OD X .242"ID X 1.0" above x10 9/32" insertion, 1- SIPHON TUBE: 1/4"OD X 5/32" ID X 1.0" above x 10 9/32" insertion, 1- VENT TUBE: 1/4"OD X 5/32" ID X 1.0". (1 per EA )

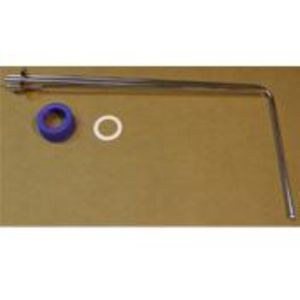

316-l stainless steel ra32 or better finish .040" drilled holes sparger for low profile vertical side arm vessels. Threaded end is removable for cleaning. Comes with 45mm blue polypropylene open top cap and silicone gasket. Triple tube configuration With Vent, Fill/Sample And Sparge. (1 per EA )

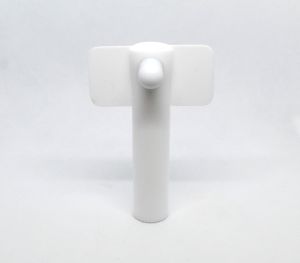

Micro-Carrier Impeller Assembly Promote optimal growth of suspension and micro-carrier cultures. Impeller height adjusts through compression fitting in cap. Indented bottom up to 1L prevents accumulation of micro-carrier beads under impeller. Impeller assembly for micro-carrier spinner flasks. Consist of magnet holder, silicone plug, magnet, and ptfe paddle. Impeller size: 500ml Paddle dimensions: 1" x 3" (1 per EA )

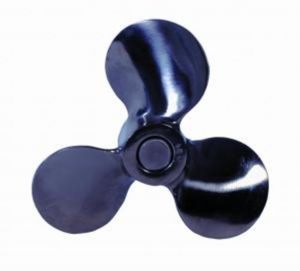

Dimensions: 1/2" od x 7 1/2" long Stainless steel 4" od right hand pitch marine prop & e-clip Material: 316l stainless steel with electropolish finish For round bottom omni vessel (1964-88405) Need l/f head plate, over head drive motor Size: 5l (1 per EA )

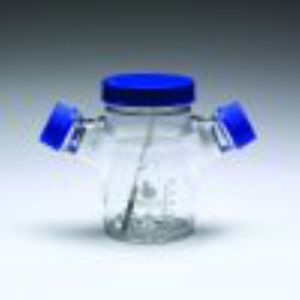

Description: Glass Ball Spinner Comp, 6000mL Size: 6000mL Material: Type 1 Class A Borosilicate Glass Flask Dimensions: 204mm OD x 410mm OAH, two 45mm sidearms offset at 30º, 100mm center neck Includes two 45mm blue PP screw caps & two 45mm blue PP pouring rings Impeller Assembly: one 100mm blue PP screw cap, 100mm Teflon cap seal, 100mm blue silicone sealing gasket, soft silicone flex tube, glass ball magnet tube, and magnet Specially Formed Bottom Indent Prevents Accumulation under impeller Glass ball houses a magnet for gentle agitation of Micro carrier Beads (1 per EA )

The Bellco Cell Production Roller Apparatus has been designed for production of animal cells, viruses, and cell products. Modular units are available from 5 to 45 bottle positions and allow easy expansion with modular add-on decks. Non-modular production units come in 45 and 50 bottle positions with over 80,000 cm2 of surface area. Rollers have a key design to eliminate slipping and are easily removable for servicing of bearings. Rollers are formulated from a chemical-resistant non-slip EDPM. All units feature a solid state control with heavy-duty DC motor and digital display. All Position Drives are for use with plastic roller bottles to prevent slipping of the light-weight bottles. Roller Shaft Construction: Non-transferring chemical-resistant rubber rollers with key-shape. Clearance between Decks for Bottle Placement: 134 mm. Construction Material: Aluminum, enamel finish. Usable Roller Length: 51 cm. Brushless motor with controller for smooth operation and no maintenance. Easy-to-remove roller bar assembly (tool provided). Digital LCD display. Locking speed control knob. All position drives. Accepts all Bellco Roller Bottles (glass or plastic* in 110mm or 120mm diameter). Battery backup provides 18 hour service (typical at 2 RPM). Battery backup includes both audible and visual indicators. Motion Alarm (1 per EA )

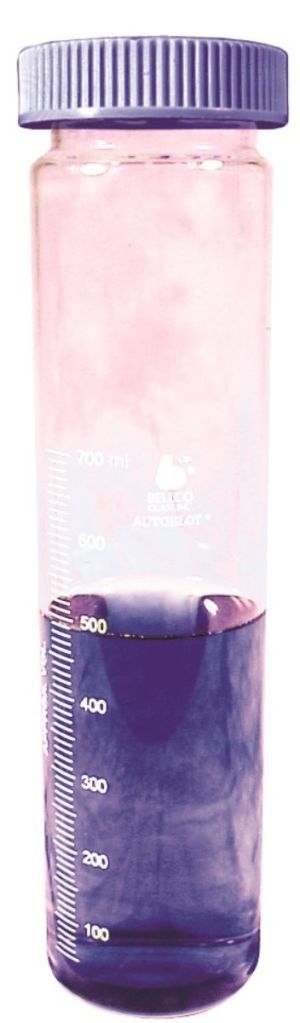

Manufactured from medium wall Borosilicate Glass Type 1 Class A, with permanent graduations designed for DNA/RNA protocols. Includes high temperature red PBT cap with PTFE faced silicone liner. Replacement cap 5639-90045 (2 per CS )

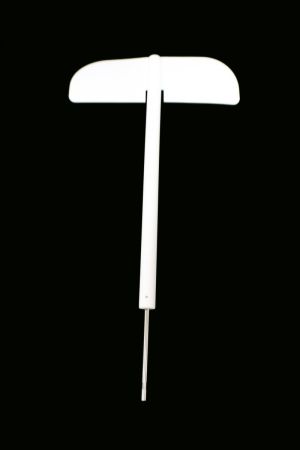

Ideal use for over head drive vessels. Overall length is adjustable from approximately 450-490mm Consists of Paddle, Plug, Paddle Holder, and Drive Shaft. Paddle [A523-215]: PTFE, 241.3mm wide x 76.2mm tall x 1.6mm thick Plug [A542-49]: PTFE, 9.5mm OD x 19.1mm long Paddle Holder [A542-51]: PTFE, 355.6mm long x 19.1mm OD Drive Shaft [A542-48]: 316L SST, 244.5mm long x 6.4mm OD (1 per EA )

Description: Glass Ball Spinner Comp, 500mL Size: 500mL Material: Type 1 Class A Borosilicate Glass Flask Dimensions: 110mm OD x 170mm OAH, two 45mm sidearms offset at 60º, 100mm center neck Includes two 45mm blue PP screw caps & two 45mm blue PP pouring rings Impeller Assembly: one 100mm blue PP screw cap, 100mm Teflon cap seal, 100mm blue silicone sealing gasket, soft silicone flex tube, glass ball magnet tube, and magnet Specially Formed Bottom Indent Prevents Accumulation under impeller Glass ball houses a magnet for gentle agitation of Micro carrier Beads (1 per EA )

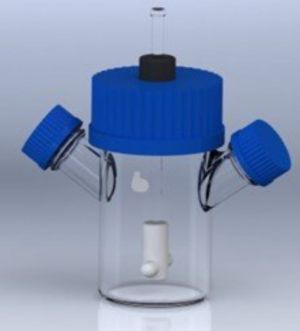

Description: Adjustable Hanging Bar Spinner Flask Complete The Bellco Adjustable Hanging Bar Spinner Flasks are designed for the efficient growth of suspension cells. The hanging spinner is adjustable and useful over a wide range of stirring speeds. The 1967-style vessels include a center screw cap with compression fitting for mounting the spinner impeller shaft. Adjustable Hanging Bar Spinner Flasks consists of: Flask, Impeller Assembly, and Impeller Glass Shaft & Cap Assembly. Flask Specifications: Material: Type 1 Class A Borosilicate Glass Dimensions: 110mm OD x 170mm Overall Height, 236mm across sidearms Two 45mm Sidearms angled 60° offset center One 100mm Screw Thread Center Neck Flask has flat bottom – no dimple Graduations: 50mL to 500mL, every 50mL – White Ink (Approx Volumes) Supply with: Two 45mm PP Blue Screw Caps & PP Blue Pouring Rings Impeller Assembly Specifications: Impeller Assembly consists of impeller magnet & magnet holder Impeller magnet: PTFE coated magnet, 41.3mm long x 9.5mm OD (approx.) Magnet Holder: PTFE, 9.5mm long x 15.9mm OD Glass Shaft Specifications: Material: Type 1 Class A Borosilicate Glass Dimensions: 7mm OD x 190mm long Cap Assembly Specifications: Cap Assembly consists of screw cap, liner & compression fitting. 100mm PP Screw Blue Cap: 107.9mm OD x 22.2mm tall with 16.3mm hole for Compression Fitting 100mm White Silicone Liner: 96.8mm OD x 3.2mm thick with 15.9mm hole for Compression Fitting Compression Fitting: Black PP 6.4mm Compression fitting to accept 7mm OD Glass Shaft (1 per EA )

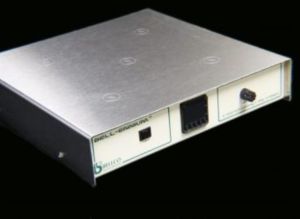

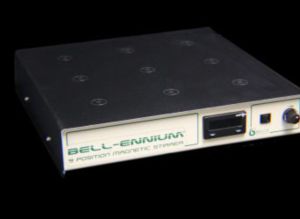

Bell-ennium Process Magnetic Stirrers are designed for both cell cultures in spinner flasks as well as for general laboratory procedures requiring the use of magnetic stirring equipment. The Front-End models are designed to position so that one flask is positioned behind the other, minimizing the width of the stirrer for limited space work areas. Bell-ennium stirrers feature brushless maintenance free DC motors with drive assemblies designed for quiet operation. Stainless steel covers are stamped to show the vessel positions for accurate placement and optimum performance. Heavy duty magnet assemblies provide the best magnetic coupling while timing belts on all positions insure smooth even stirring of vessel contents. The low profile chassis measure 11 x 20 x 3 3/8” and are designed to fit side-by-side in Bellco incubators. The PID process controller provides RS-485 communication with your existing lab network (software not included), as well as two alarm outputs for the optional Motion Alarm. Units are powered by standard 24V in-line power supplies and are CE compliant. (1 per EA )

Stainless steel port plug fits onto stainless steel head plate for 10 liter bioreactor vessel. 316l stainless steel with electropolish finish 1/2-20 tpi threads For 10l bioreactor systems - English threads For 1/2" port on headplate (1 per EA )

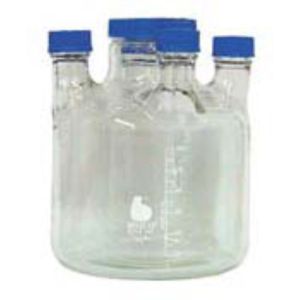

LOW PROFILE CELL CULTURE VESSELS. Reduced height vessels maximize incubator space. This vessel is suitable for all cell culture applications (insect, plant, & bacterial). 100mm neck takes drive adapter and overhead drive motor. 45MM vertical sidearm accept port and thermowell assemblies or probes. Supplied with 100mm polypropylene center cap, sidearm cap and pouring rings. OD X OAH (MM): 240 X 250. USE 8L FLASK CARRIER & 1964-51040 HEATING BLANKET (1 per EA )

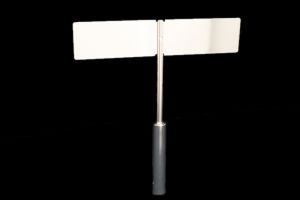

Hi-torq SST OHD impeller assembly - full width Size: 36l For hi-torq motor & cap assembly (7774-40115/40230 & 7764-74000) Similar to 1964-60036 but to accept 1/2" shaft from 7764-74000 cap assembly Material: 316l SST Paddle size: 3" tall x 14" wide (1 per EA )

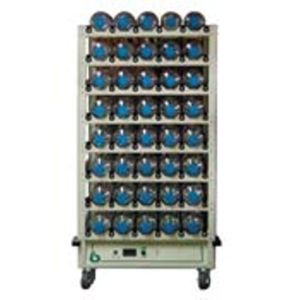

The Bellco Process Controlled Bottom Drive Roller Apparatus holds up to 50 (see specifications below) full size glass or plastic roller bottles (110 to 120 mm diameter and up to 510 mm in length). The unit features a brushless DC motor and controller that operate at bottle speeds ranging from 0.3 to 9.0 rpm with the ability to select clockwise or counter clockwise direction. Units feature brushless, maintenance-free DC motors with drive assemblies designed for quiet operation. Four corner bumpers and two locking castors (on the front wheel positions) are also provided. Rollers are easily removed for replacement by using the special tool provided with each unit. All-Position Drive facilitates the use of lightweight plastic roller bottles by ensuring rotation at each bottle station, independent of any load configurations. (1 per EA )

The Bellco Cell Production Roller Apparatus has been designed for production of animal cells, viruses, and cell products. Modular units are available from 5 to 45 bottle positions and allow easy expansion with modular add-on decks. Non-modular production units come in 45 and 50 bottle positions with over 80,000 cm2 of surface area. Rollers have a key design to eliminate slipping and are easily removable for servicing of bearings. Rollers are formulated from a chemical-resistant non-slip EDPM. All units feature a solid state control with heavy-duty DC motor and digital display. All Position Drives are for use with plastic roller bottles to prevent slipping of the light-weight bottles. Roller Shaft Construction: Non-transferring chemical-resistant rubber rollers with key-shape. Clearance between Decks for Bottle Placement: 134 mm. Construction Material: Aluminum, enamel finish. Usable Roller Length: 51 cm. Brushless motor with controller for smooth operation and no maintenance. Easy-to-remove roller bar assembly (tool provided). Digital LCD display. Locking speed control knob. All position drives. Accepts all Bellco Roller Bottles (glass or plastic* in 110mm or 120mm diameter). Battery backup provides 18 hour service (typical at 2 RPM). Battery backup includes both audible and visual indicators. Motion Alarm (1 per EA )

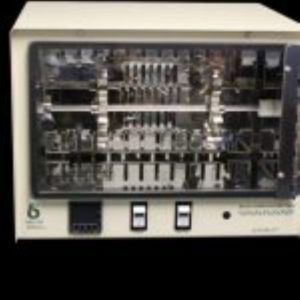

The Bellco Auto-blot Micro Hybridization Oven consists of an incubator with an integral rotisserie device. The rotisserie has the capacity for up to 4 large hybridization bottles or 8 small hybridization bottles. Alternatively, any combination of large or small bottles can be used. This Auto-blot Micro Hybridization Oven features an advanced temperature controller for precise control of oven temperature. Without Rotisserie Ext: 14”x17”x13” (35x42x32cm) 230v (1 per EA )

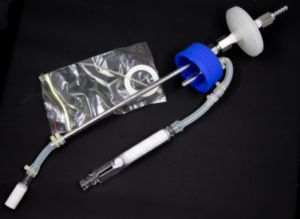

Sparger for 3l low profile Over Head Drive vessels To fit thru a 45mm sidearm Sparger tube: 8 1/2" long with glass frit.porosity: 12 c ( coarse) 12mm od coarse glass frit (40-60µ) Gently introduces bubbles into vessel 316l SST material 32ra (averasge) (1 per EA )

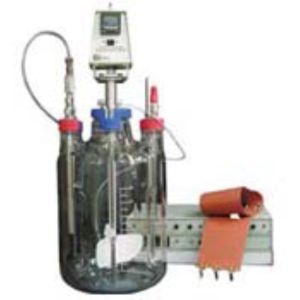

Suitable for all cell culture and fermentation. The vessel is compatible with bellco over head drives and magnetic stirrers. Supplied with 100mm center cap and 45mm caps and pouring ring. 6 sidearms 4 baffles Includes: 100mm center cap 45mm screw Specifications: Material: Type 1 Class A Borosilicate Glass 100mm Center Neck Baffles: 4 Sidearms: 6 OD x OAH: 295 x 460mm (1 per EA )

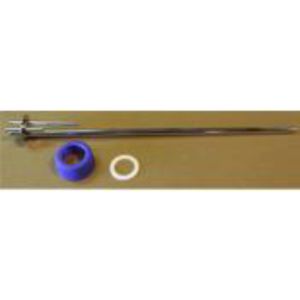

Thermowell assemblies are used to hold inside one tube the rtd temperature sensor that monitors the temperature within the vessel in conjunction with a temperature controller. There are also tubes for addition of media and vent tube. For OHD 8L Vessel Material: 316L SST with Ra 32 or better - inside & out One Vent port; .250"OD x .152" ID x 1.0"above & below cap slug One Addition port: .250"OD x .152"ID x 15 1/8" insertion length One Thermowell port: .375"OD x .305"ID x 15 1/8" insertion length All tubes seam weld in to cap slug - bottom side only Supply with 45mm PP blue open top screw cap & white silicone gasket (1 per EA )

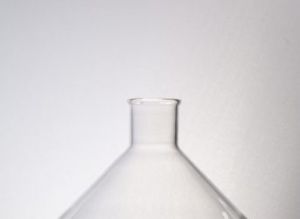

Manufactured from Type 1 Class A Borosilicate Glass. Designed for culturing organisms that require a large surface area to volume ratio. Break resistant lip to prevent chipping. Specifications: Type 1 Class A Borosilicate Glass Size: 2800ml Stopper Size: 13 Case Quantity: 3 Dimensions: 210x225mm (3 per CS )

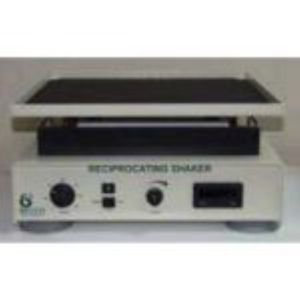

The unit is a laboratory shaker with a reciprocating stroke adjustable for 1”, 1 ¾” & 2 ½”. It is designed to shake clear plastic culture bags with working volumes between 5 & 10 liters, as well as function as a general purpose laboratory shaker. The unit incorporates a digital speed control and 50W brushless DC motor and runs on plastic raceways for minimal noise. Speed is controlled with a numbered dial located on the front of the unit and ranges from 5 to 150 cycles/min approximately. Units are powered by standard 24V in-line power supplies and are CE compliant. The OptimaTM bag trays are sold separately. (1 per EA )

Bell-ennium Magnetic Stirrers are designed for both cell cultures in spinner flasks as well as for general laboratory procedures requiring the use of magnetic stirring equipment. Bell-ennium stirrers offer the laboratory researcher a wide range of capabilities and the latest innovations in stirring technology. Bell-ennium stirrers feature brushless maintenance free DC motors with drive assemblies designed for quiet operation. Stainless steel covers are stamped to show the vessel positions for accurate placement and optimum performance. The Bell-ennium single position low profile chassis measure 10 x 11 x 3 3/8” and are designed to fit side-by-side in Bellco incubators. Units are powered by standard 24V in-line power supplies and are CE compliant. (1 per EA )
