Glassware

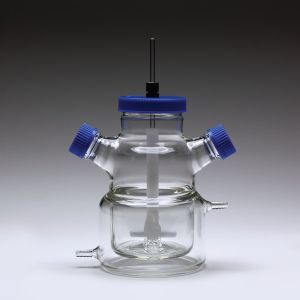

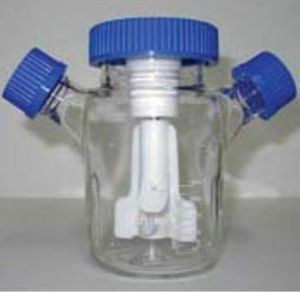

Internal impeller is useful because it decreases risk of contamination thorugh the cap. Has an adjustable shaft to align the paddle with the bottom of the flask. Large paddle promotes increased oxygenation with low shear. Stainless steel shaft design prevents cell damage and minimizes magnetic decoupling. (1 per EA )

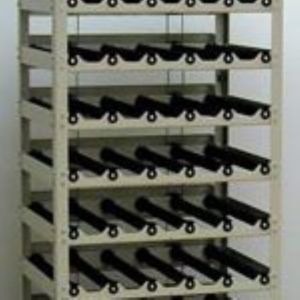

The Bellco Sci/ERA Cell Production Roller Apparatus has been designed for production of mammalian cells, viruses and cell products. Non-modular production units come in 45 and 50 bottle positions with over 80,000 cm2 of surface area. All units feature a solid state control with heavy-duty DC motor and digital tachometer. All Position Drives are for use with plastic roller bottles to prevent slipping of the light-weight bottles. A Stand-By Drive and Alarm System provides motion and power failure alarms and has a backup drive system that automatically drives the unit should the original fail. (1 per EA )

The Bellco Cell Production Roller Apparatus has been designed for production of animal cells, viruses, and cell products. Modular units are available from 5 to 45 bottle positions and allow easy expansion with modular add-on decks. Non-modular production units come in 45 and 50 bottle positions with over 80,000 cm2 of surface area. Rollers have a key design to eliminate slipping and are easily removable for servicing of bearings. Rollers are formulated from a chemical-resistant non-slip EDPM. All units feature a solid state control with heavy-duty DC motor and digital display. All Position Drives are for use with plastic roller bottles to prevent slipping of the light-weight bottles. Roller Shaft Construction: Non-transferring chemical-resistant rubber rollers with key-shape. Clearance between Decks for Bottle Placement: 134 mm. Construction Material: Aluminum, enamel finish. Usable Roller Length: 51 cm. Brushless motor with controller for smooth operation and no maintenance. Easy-to-remove roller bar assembly (tool provided). Digital LCD display. Locking speed control knob. All position drives. Accepts all Bellco Roller Bottles (glass or plastic* in 110mm or 120mm diameter). Battery backup provides 18 hour service (typical at 2 RPM). Battery backup includes both audible and visual indicators. Motion Alarm (1 per EA )

The Bellco Cell Production Roller Apparatus has been designed for production of animal cells, viruses, and cell products. Modular units are available from 5 to 45 bottle positions and allow easy expansion with modular add-on decks. Non-modular production units come in 45 and 50 bottle positions with over 80,000 cm2 of surface area. Rollers have a key design to eliminate slipping and are easily removable for servicing of bearings. Rollers are formulated from a chemical-resistant non-slip EDPM. All units feature a solid state control with heavy-duty DC motor and digital display. All Position Drives are for use with plastic roller bottles to prevent slipping of the light-weight bottles. Roller Shaft Construction: Non-transferring chemical-resistant rubber rollers with key-shape. Clearance between Decks for Bottle Placement: 134 mm. Construction Material: Aluminum, enamel finish. Usable Roller Length: 51 cm. Brushless motor with controller for smooth operation and no maintenance. Easy-to-remove roller bar assembly (tool provided). Digital LCD display. Locking speed control knob. All position drives. Accepts all Bellco Roller Bottles (glass or plastic* in 110mm or 120mm diameter). Battery backup provides 18 hour service (typical at 2 RPM). Battery backup includes both audible and visual indicators. Motion Alarm (1 per EA )

Bellco manufactures all precision pipettes from type 1 class a Borosilicate glass. All bellco pipettes feature tempered tips and permanent silk screened graduations to withstand repeated usage and alkali washings. Plain top promotes rapid & even flow. (18 per CS )

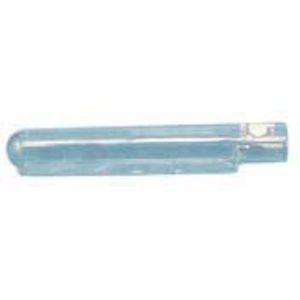

Leighton culture tubes are useful for the study of pathogenic effects on viruses on cells as well as sponge matrix culture and nutritional studies. Use cover slips for preparing expectant tissue cultures with leighton culture tubes. Tube dimensions 16x150mm (36 per CS )

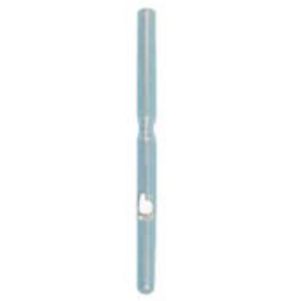

Type 1 Class A Borosilicate Glass for freeze drying or cryogenic storage. The neck has pre-drawn constriction to facilitate sealing. Specifications: Type 1 Class A Borosilicate Glass Flat Bottom Constriction Neck Neck OD : 7mm Bottom OD: 10mm Capacity: 1mL Length 80mm Case Quantity: 72 (72 per CS )

The Bellco Digital Bench-top Roller Apparatus holds 10 glass or plastic roller bottles (110 to 120 mm diameter and up to 22.5 cm in length). The unit features a heavy-duty DC motor and solid-state electronics that operate at bottle speeds ranging from 0.3 to 10.0 rpm with the ability to select clockwise or counter clockwise direction. The digital display panel has a 0.55” LED for easy reading and the apparatus has a locking speed knob. Rollers are easily removed for replacement by using the special tool provided with each unit. All-Position Drive facilitates the use of lightweight plastic roller bottles by ensuring rotation at each bottle station, independent of any load configurations. Bellco’s unique hex-shaped shafts prevent roller slippage for positive drive. Use of this equipment is limited to conventional laboratory mixing of roller bottles. (1 per EA )

316l stainless steel sparger assembly with stainless steel frit for 7 liter bioreactor system. English threads Material: 316l SST with electropolish finish ra 32 or better Tubing specifications: .250" od x .152" id Overall length: 10 43/64" Inseration Length: 9 1/4" With SST Frit - 10µ Supply with SST Nut & O-ring (1 per EA )

Manufactured from type 1 class a Borosilicate glass. Bottom indent and 3 vertical baffles for optimal mixing. Sidearm cap: 45mm Center cap: 100mm Dimensions: 170" x 110" Flask size: 500ml (1 per EA )

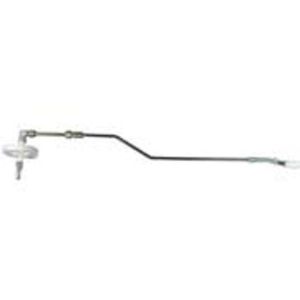

Large flange air stone sparger for large flange vessels. Fits through stainless steel head plate fitting. These spargers fit through a 5/16" fitting. 316 l stainless steel Ra 32 finish or better Acrodisc filter assembly, 0.2 micron (1 per EA )

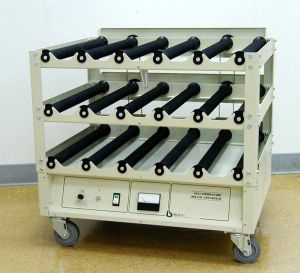

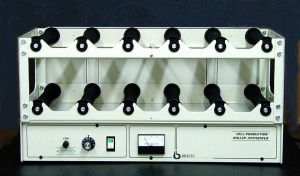

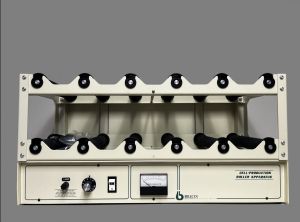

The Bellco Cell Production Roller Apparatus has been designed for production of animal cells, viruses and cell products. Modular units are available from 5 to 45 bottle positions and allow easy expansion with modular add-on decks. Non-modular production units come in 45 and 50 bottle positions with over 80,000 cm2 of surface area. Rollers have a key design to eliminate slipping and are easily removable for servicing of bearings. Rollers are formulated from a chemical-resistant non-slip EDPM. All units feature a solid state control with heavy-duty DC motor and analog tachometer. Non-modular production models feature rubber bumpers, handles and a slotted rear guard. (1 per EA )

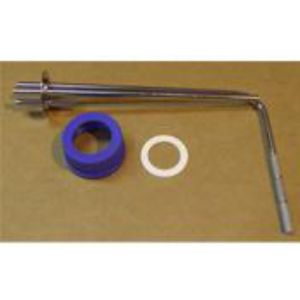

316-l stainless steel ra32 or better finish 10 micron porosity stainless steel frit for low profile vertical side arm vessels. Frit is removable for cleaning. Comes with 45mm blue polypropylene open top cap and silicone gasket Triple tube configuration With Vent, Fill/Sample And Sparge. (1 per EA )

Bellco Control System, Flat Bottom. The Bellco Stainless Steel Shaft Conversion Kit is designed to convert your standard glass shaft to stainless steel on 1967 and 1965 Spinner Flasks. Sizes range from: --100 mL to 36 liters for 1965 spinners --100 to 3000 mL for 1967 spinner flasks Material: --316L Stainless Steel 1965 & 1967 Series Micro-Carrier Spinner Flask 5L BCS Flat Bottom System 115v (1 per EA )

For 7l bioreactor systems - English threads Material: 316l SST with electropolish finish OD: 2 3/4" Requires two (2) ea per vessel (1 per EA )

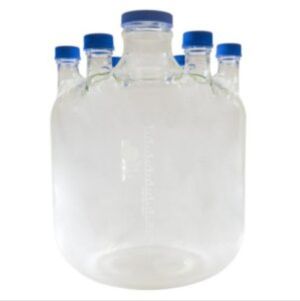

Manufactured from Type 1 Class A Borosilicate glass. Includes 4 or 6 polypropylene blue screw caps 45mm and pouring rings, also 1 polypropylene blue cap 100mm for the center. Specifications: Material: Type 1 Class A Borosilicate Glass 100mm Center Neck Baffles: 0 Sidearms: 6 OD x OAH: 240 x 430mm (1 per EA )

The Bellco Digital Bench-top Roller Apparatus holds 10 glass or plastic roller bottles (110 to 120 mm diameter and up to 22.5 cm in length). The unit features a heavy-duty DC motor and solid-state electronics that operate at bottle speeds ranging from 0.3 to 10.0 rpm with the ability to select clockwise or counter clockwise direction. The digital display panel has a 0.55” LED for easy reading and the apparatus has a locking speed knob. Rollers are easily removed for replacement by using the special tool provided with each unit. All-Position Drive facilitates the use of lightweight plastic roller bottles by ensuring rotation at each bottle station, independent of any load configurations. Bellco’s unique hex-shaped shafts prevent roller slippage for positive drive. Use of this equipment is limited to conventional laboratory mixing of roller bottles. (1 per EA )

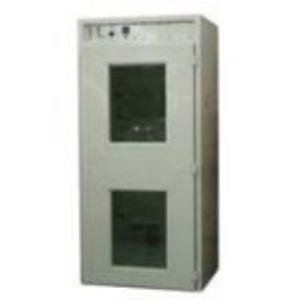

Bellco Roll-In Incubators have 40 cubic feet of volume and are designed for use with Bellco’s Cell Production Roller Apparatus (CPRA). The flush-to-floor design allows easy movement of the CPRA in and out of the chamber. Four internal convenience outlets allow simple connection to internally placed appliances such as CPRA, Roller Drums, Magnetic Stirrers, etc. Fans take air from the chamber top, pass it over the 1100 watt heater and re-inject it into the chamber on the bottom back wall. A microprocessor temperature controller and membrane keypad allows simple setting and monitoring of chamber temperature. A safety thermostat is included to prevent over-temperature failures. Shelf brackets are included for mounting of optional shelves. The control panel features indicating lights and dials for automatic control of temperature. (1 per EA )

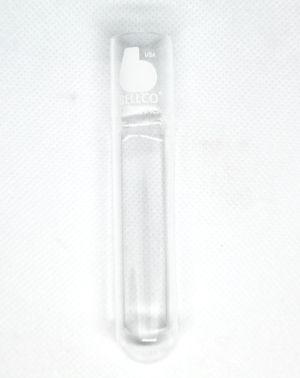

Manufactured from type 1 class a Borosilicate glass. Extra long working area yet short overall length promotes convenient handling. Short neck allows easy entry and removal of cover slips. Also can fit bellco self-locking racks. Tube dimensions: 19x95 (36 per CS )

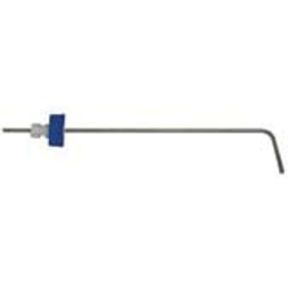

Sparging accessory for vertical sidearm spinner flasks 316L electropolished SST, 1/4" OD; 10micron porosity frit .040" holes for aeration of fermentation cultures where shear force is less critical. Includes PP cap with 1/4" white compression fitting and white silicone gasket DIMENSIONS: 18 1/2 X 4 4/2" (1 per EA )

Manufactured from medium wall Borosilicate Glass Type 1 Class A, with permanent graduations designed for DNA/RNA protocols. Includes high temperature red PBT cap with PTFE faced silicone liner. Replacement cap 5639-90045 (2 per CS )

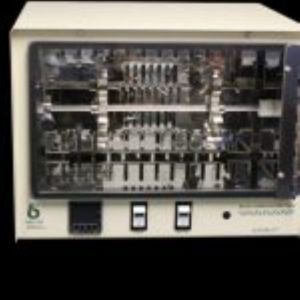

The Bellco Auto-blot Micro Hybridization Oven consists of an incubator with an integral rotisserie device. The rotisserie has the capacity for up to 4 large hybridization bottles or 8 small hybridization bottles. Alternatively, any combination of large or small bottles can be used. This Auto-blot Micro Hybridization Oven features an advanced temperature controller for precise control of oven temperature. Ext: 14”x17”x13” (35x42x32cm) 115v (1 per EA )

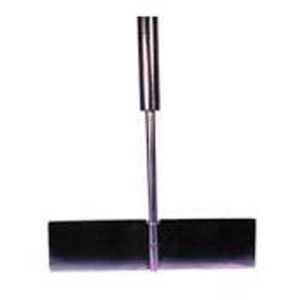

Hi-torq SST OHD impeller assembly, short width Size: 15l For hi-torq motor & cap assembly (7774-40115/40230 & 7764-74000) Similar to 1964-60115 but to accept 1/2" shaft from 7764-74000 cap assembly Material: SST 316L Paddle size: 3" tall x 7 1/2" wide (1 per EA )

The culture tube rack is designed for roller culture tubes. Manufactured from 303 stainless steel construction. Includes spring clips that prevent tubes from moving in the rack. SST WIRE RACK FOR 38mm OD TUBES, SPACING: 2x6 - HOLDS 12 TUBES, DIMENSIONS: 10" WIDE X 3 1/2" DEEP X 2 7/8" TALL, EACH OPENING IN RACK: 1 9/16" (39.6mm). WIRE SPECIFICATIONS: SIDE & UPRIGHTS: .162"OD WIRE, CROSS WIRE: 0.063" OD WIRE, BTTM MESH: 1/4" Minimum order requirement: 5 each (1 per EA )
