Glassware

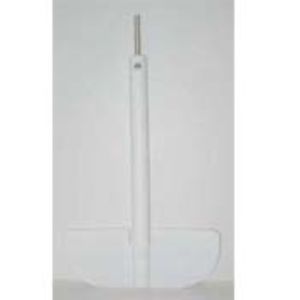

Ideal use for over head drive vessels. Description: 6L OHD Impeller Assembly Consists of Paddle, Plug, Paddle Holder, and Drive Shaft Paddle [A523-214]: PTFE material, 171.5mm wide x 76.2mm tall x 1.6mm thick Plug [A542-49]: PTFE, 9.5mm OD x 19.1mm long (approx.) Paddle Holder [A542-50]: PTFE, 279.4mm long x 19.1mm OD Drive Shaft [A542-46]: 316L SST, 190.5mm long x 6.4mm OD (approx.) (1 per EA )

Bellco manufactures all precision pipettes from type 1 class a Borosilicate glass. All bellco pipettes feature tempered tips and permanent silk screened graduations to withstand repeated usage and alkali washings. Plain top promotes rapid even flow with a calibrated to tip -tempered tip; to deliver; blow out. (250 per CS )

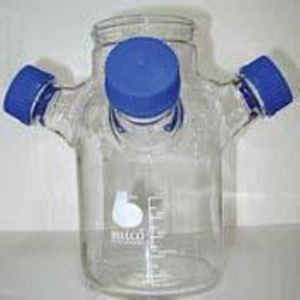

The 4-45 bioreactor vessel is manufactured from type 1 class a Borosilicate glass. This vessel has 4 sidearms around 100mm center neck. The stainless steel capseal has 5 ports for insertion of 12mm probes and 1/4" tubes. Flask only. Specifications: Accepts All Standard Fittings And Probes 316L Stainless Steel Cap Seal with compression fittings for probes/tube insertion. 4 sidearms positioned 90° for increased capabilities. Accessories: 1965-11400 Flask Only, 1L 1965-60014 SST Cap seal, 1L, 5 port with IOB 1965-13400 Flask Only, 3L 1965-60034 SST Cap seal, 3L, 5 port with IOB 1965-45200 45mm Plug w/Compression Fitting & Hose Barb. (1 per EA )

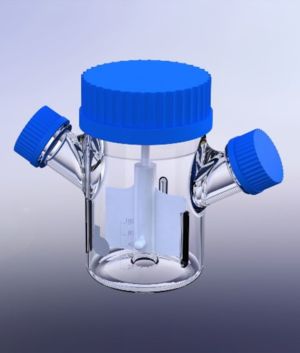

Internal impeller decreases risk of contamination. Impeller has an adjustable shaft to align paddle. The large paddle promotes increased oxygenation. Cap size: 70mm Flask size: 500ml Dimensions: 110 x 180mm Sidearm cap: 45mm (1 per EA )

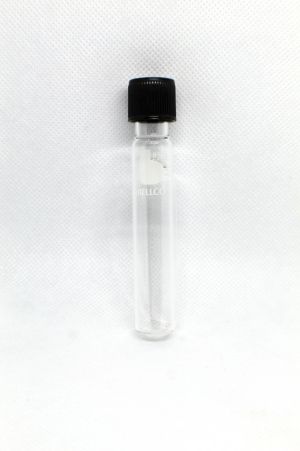

Manufactured from type 1 class a Borosilicate glass. Includes long skirted screw cap with nontoxic white rubber liner. Extra long working area yet short overall length for convenient handling. The short neck provides easy entry and removal of cover slips. (36 per CS )

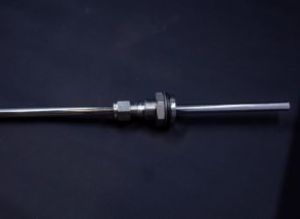

Accessory That Fits Thru A Headplate And Holds The Rtd Sensor Which Monitors The Temperature In A Bioreactor. These Thermowells Are Designed Specifically For The Bellco Control Systems And Fit Through A 5/16" Fitting On The Stainless Steel Headplate. (1 per EA )

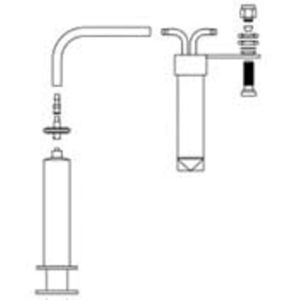

The bellco sample system attaches to the headplate of a bioreactor allowing the user to take repeated aseptic samples into a standard 50ml disposable conical tube. The sampler is designed to connect to an existing pipe by mounting under the nut of a headplate stud. Samples are taken by evacuating air with the supplied syringe & filter, thereby drawing culture into the 50ml disposable cent. tube. The Bellco Sampler can be used on third party vessels that meet the arm and clearance dimensions. For Omni Vessels. (1 per EA )

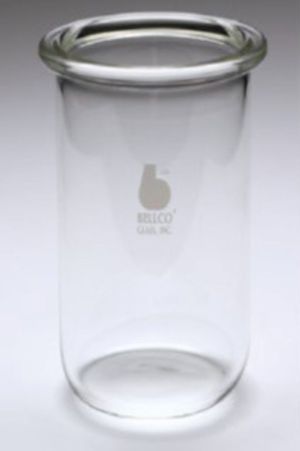

8L FLAT BOTTOMED OMNI VESSEL 238 x 400mm TAKES 200mm LARGE FLANGE HEADPLATE. LARGE FLANGE OMNI VESSELS FOE USE WITH STAINLESS STEEL HEADPLATE, 5L THRU 36L. HEAVY WALLED CONSTRUCTION FOR CELL CULTURE AND FERMENTATION APPLICATIONS HEAVY DUTY O-RING FLANGE CREATES POSITIVE SEAL FOR USE WITH STAINLESS STEEL HEADPLATE, O-RING AND LOCKING CLAMP. Qty: 1 ea. (1 per EA )

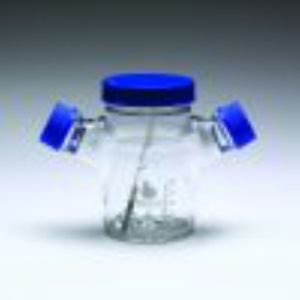

Description: Glass Ball Spinner Comp, 250mL Size: 250mL Material: Type 1 Class A Borosilicate Glass Flask Dimensions: 85mm OD x 140mm OAH, two 32mm sidearms offset at 55º, 70mm center neck Includes two 32mm blue PP screw caps & two 32mm blue PP pouring rings Impeller Assembly: one 70mm blue PP screw cap, 70mm Teflon cap seal, 70mm blue silicone sealing gasket, soft silicone flex tube, glass ball magnet tube, and magnet Specially Formed Bottom Indent Prevents Accumulation under impeller Glass ball houses a magnet for gentle agitation of Micro carrier Beads (1 per EA )

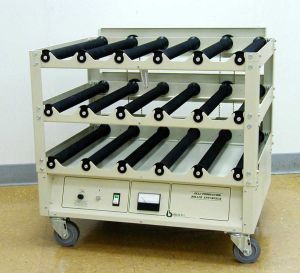

The Bellco Cell Production Roller Apparatus has been designed for production of animal cells, viruses, and cell products. Modular units are available from 5 to 45 bottle positions and allow easy expansion with modular add-on decks. Non-modular production units come in 45 and 50 bottle positions with over 80,000 cm2 of surface area. Rollers have a key design to eliminate slipping and are easily removable for servicing of bearings. Rollers are formulated from a chemical-resistant non-slip EDPM. All units feature a solid state control with heavy-duty DC motor and digital display. All Position Drives are for use with plastic roller bottles to prevent slipping of the light-weight bottles. Roller Shaft Construction: Non-transferring chemical-resistant rubber rollers with key-shape. Clearance between Decks for Bottle Placement: 134 mm. Construction Material: Aluminum, enamel finish. Usable Roller Length: 51 cm. Brushless motor with controller for smooth operation and no maintenance. Easy-to-remove roller bar assembly (tool provided). Digital LCD display. Locking speed control knob. All position drives. Accepts all Bellco Roller Bottles (glass or plastic* in 110mm or 120mm diameter). Battery backup provides 18 hour service (typical at 2 RPM). Battery backup includes both audible and visual indicators. Motion Alarm (1 per EA )

Bellco Control System, Flat Bottom. The Bellco Stainless Steel Shaft Conversion Kit is designed to convert your standard glass shaft to stainless steel on 1967 and 1965 Spinner Flasks. Sizes range from: --100 mL to 36 liters for 1965 spinners --100 to 3000 mL for 1967 spinner flasks Material: --316L Stainless Steel 1965 & 1967 Series Micro-Carrier Spinner Flask 8L 8L BCS Flat Bottom System 115v (1 per EA )

Bellco manufactures all precision pipettes from type 1 class a Borosilicate glass. All bellco pipettes feature tempered tips and permanent silk screened graduations to withstand repeated usage and alkali washings. Plain top promotes rapid even flow with a calibrated to tip -tempered tip; to deliver; blow out. (250 per CS )

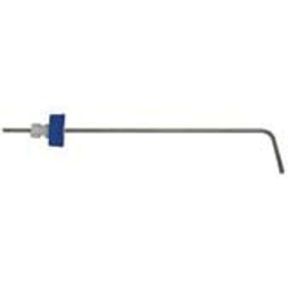

L-bubbler tube with drilled holes for 8l ohd vessel (10) .040" holes for sparging Supplied with cap & comp. Fitting Dimensions: 18 1/2" x 4 3/4" x .250" od tube with hose barb end 316l SST material (1 per EA )

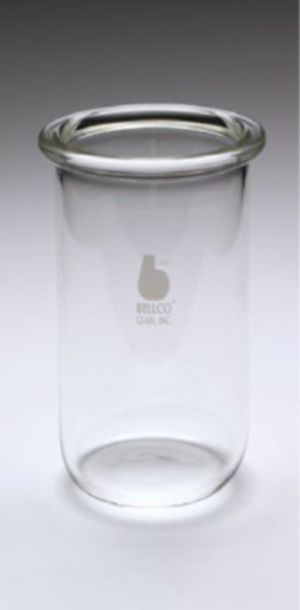

Heavy walled construction for cell culture and fermentation applications. Heavy duty o-ring flange creates positive seal for stainless steel head-plate. For use with stainless steel head-plate, o-ring, and locking clamp. 3L. (1 per EA )

The Bellco Cell Production Roller Apparatus has been designed for production of animal cells, viruses and cell products. Modular units are available from 5 to 45 bottle positions and allow easy expansion with modular add-on decks. Non-modular production units come in 45 and 50 bottle positions with over 80,000 cm2 of surface area. Rollers have a key design to eliminate slipping and are easily removable for servicing of bearings. Rollers are formulated from a chemical-resistant non-slip EDPM. All units feature a solid state control with heavy-duty DC motor and analog tachometer. Non-modular production models feature rubber bumpers, handles and a slotted rear guard. (1 per EA )

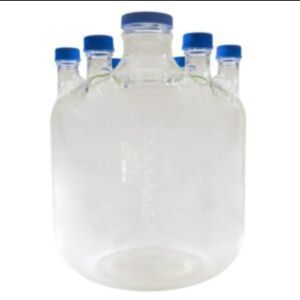

Manufactured from Type 1 Class A Borosilicate glass. Includes 4 or 6 polypropylene blue screw caps 45mm and pouring rings, also 1 polypropylene blue cap 100mm for the center. Specifications: Material: Type 1 Class A Borosilicate Glass 100mm Center Neck Baffles: 4 Sidearms: 6 OD x OAH: 240 x 430mm (1 per EA )

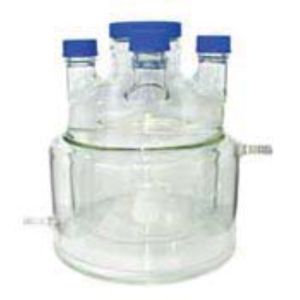

Ideal for use with water baths for precise temperature control. Supplied with 100mm center cap, sidearms cap, and pouring ring. Size: 8l Material: type 1 class a Borosilicate glass Dimensions of Water Jacketed: 300mm od x 440 oah Dimension of inner flask: 238mm OD x 420mm OAH. Dimensions: width including two hose barbs 396mm. Supplied with: 100mm center cap, 45mm caps and pouring rings. 2 - #4 hose connectors. 100mm screw thread H.W. neck. 6 - 45mm screw thread vertical side arms. Graduations:1500mL to 8000mL every 500mL. (1 per EA )

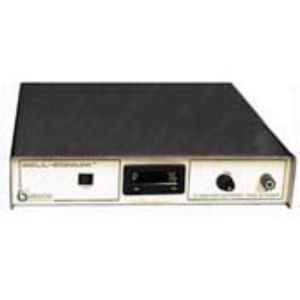

Bell-ennium Magnetic Stirrers are designed for both cell cultures in spinner flasks as well as for general laboratory procedures requiring the use of magnetic stirring equipment. Bell-ennium stirrers offer the laboratory researcher a wide range of capabilities and the latest innovations in stirring technology. Bell-ennium stirrers feature brushless maintenance free DC motors with drive assemblies designed for quiet operation. Stainless steel covers are stamped to show the vessel positions for accurate placement and optimum performance. The Bell-ennium single position low profile chassis measure 10 x 11 x 3 3/8” and are designed to fit side-by-side in Bellco incubators. Units are powered by standard 24V in-line power supplies and are CE compliant. (1 per EA )

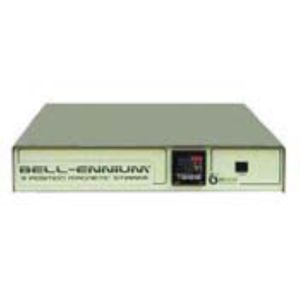

Bell-ennium Process Magnetic Stirrers are designed for both cell cultures in spinner flasks as well as for general laboratory procedures requiring the use of magnetic stirring equipment. The Front-End models are designed to position so that one flask is positioned behind the other, minimizing the width of the stirrer for limited space work areas. Bell-ennium stirrers feature brushless maintenance free DC motors with drive assemblies designed for quiet operation. Stainless steel covers are stamped to show the vessel positions for accurate placement and optimum performance. Heavy duty magnet assemblies provide the best magnetic coupling while timing belts on all positions insure smooth even stirring of vessel contents. The low profile chassis measure 11 x 20 x 3 3/8” and are designed to fit side-by-side in Bellco incubators. The PID process controller provides RS-485 communication with your existing lab network (software not included), as well as two alarm outputs for the optional Motion Alarm. Units are powered by standard 24V in-line power supplies and are CE compliant. (1 per EA )

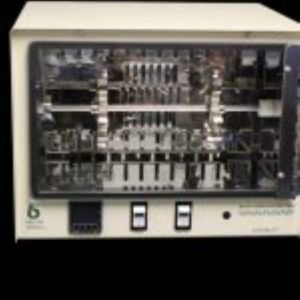

The Bellco Auto-blot Micro Hybridization Oven consists of an incubator with an integral rotisserie device. The rotisserie has the capacity for up to 4 large hybridization bottles or 8 small hybridization bottles. Alternatively, any combination of large or small bottles can be used. This Auto-blot Micro Hybridization Oven features an advanced temperature controller for precise control of oven temperature. Without Rotisserie Ext: 14”x17”x13” (35x42x32cm) 115v (1 per EA )

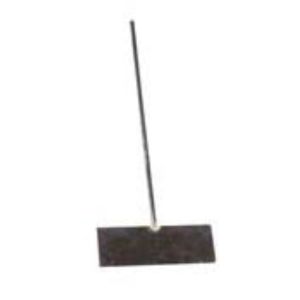

Blades and impeller assemblies are use for cell culture. Reduces shear in delicate cell culture. Manufactured from 316l stainless steel with electropolish finish. Ra 32 finish or better inside and out. Blade dimension: 5 3/4 x 2". Shaft oal: 6 3/4". MARINE IMPELLER INCLUDES 1/2" SHAFT AND IMPELLER BLADE. OMNI AND Z-Z PADDLES ARE ONE PIECE WELDED, 1/4" SHAFT (1 per EA )

Bellco manufactures all precision pipettes from type 1 class a Borosilicate glass. All bellco pipettes feature tempered tips and permanent silk screened graduations to withstand repeated usage and alkali washings. Constricted top for cotton plugging. (18 per CS )

316l stainless steel sparger assembly with stainless steel frit for 3 liter bioreactor system. English threads Material: 316l SST with electropolish finish ra 32 or better tubing specifications: .250" od x .152" id Overall length: 10 43/64" Inseration Length: 9 1/4" With SST Frit - 10µ Supply with SST Nut & O-ring (1 per EA )

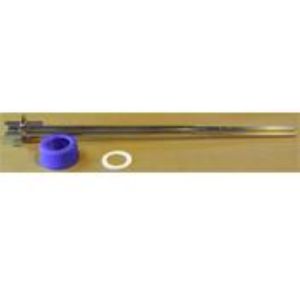

Thermowell assemblies are used to hold inside one tube the rtd temperature sensor that monitors the temperature within the vessel in conjunction with a temperature controller. There are also tubes for addition of media and vent tube. For OHD 15L Vessel Material: 316L SST with Ra 32 or better - inside & out One Vent port: .250"OD x .152" ID x 1.0"above & below cap slug One Addition port: .250"OD x .152"ID x 15 15/16" insertion length One Thermowell port: .375"OD x .305"ID x 15 15/16" insertion length All tubes seam weld in to cap slug - bottom side only Supply with 45mm PP blue open top screw cap & white silicone gasket (1 per EA )
