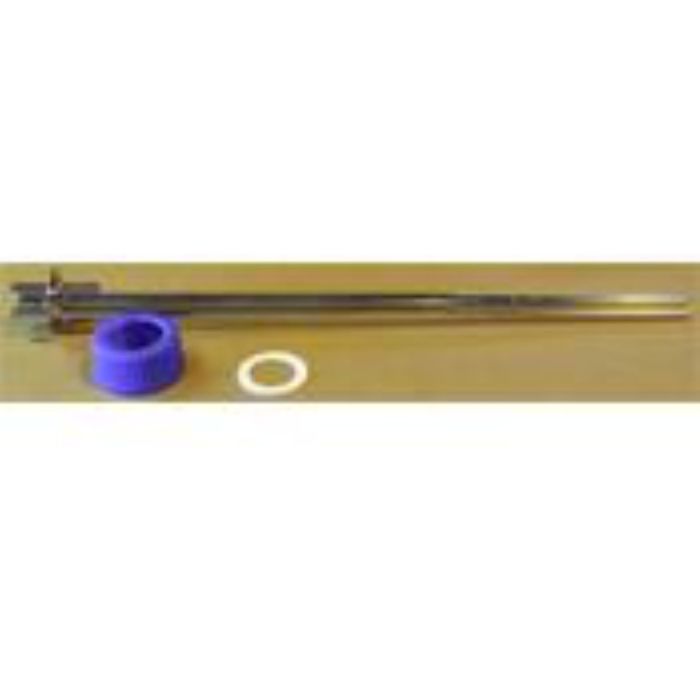

3-Port Thermowell Assembly, 15L For VSA Vessels

Thermowell assemblies are used to hold inside one tube the rtd temperature sensor that monitors the temperature within the vessel in conjunction with a temperature controller. There are also tubes for addition of media and vent tube. For OHD 15L Vessel Material: 316L SST with Ra 32 or better - inside & out One Vent port: .250"OD x .152" ID x 1.0"above & below cap slug One Addition port: .250"OD x .152"ID x 15 15/16" insertion length One Thermowell port: .375"OD x .305"ID x 15 15/16" insertion length All tubes seam weld in to cap slug - bottom side only Supply with 45mm PP blue open top screw cap & white silicone gasket (1 per EA )
