Glassware

Manufactured from Type1 Class B Borosilicate Glass. Large opening and sloping shoulders facilitate pouring and cleaning. Heavier walls prevent breakage of glass. Media storage bottles have white graduations and a marking area. They are supplied with rubber lined black phenolic screw cap. Specifications: Type 1 Class B Borosilicate Glass Sizes: 125ml (33)mm Cap OD x OAH: 55 x 120 Case Quantity: 12 (12 per CS )

Internal impeller decreases risk of contamination. Impeller has an adjustable shaft to align paddle. The large paddle promotes increased oxygenation. Sealed internal impeller decreases risk of contamination. Specifications: Cap Size: 100mm Flask Size: 100mL Paddle Size: 9 1/2" x 6" (1 per EA )

Internal impeller decreases risk of contamination. Impeller has an adjustable shaft to align paddle. The large paddle promotes increased oxygenation. Cap size: 100mm Flask size: 3l Dimensions: 165 x 300mm Sidearm cap: 45mm (1 per EA )

Manufactured from Type 1 Class A Borosilicate Glass with a low coefficient of expansion. Heavy wall beakers meet astime-960 type 1 specifications for classification design capacity and markings. Features a easy pour spout, white permanent graduations and a large marking square. Specifications: Type 1 Class A Borosilicate Glass Size: 5mL Dimensions: 20 x 23mm Case Quantity: 12 (12 per CS )

• Material: Type 1 Class A Borosilicate Glass • Dimensions: 65mm Width x 135mm Overall Height • Graduations: 20mL – 100mL, every 20mL • Working Volume: 80-100mL • Specially Formed Bottom Indent Prevents Accumulation Under Impeller • Glass Ball Houses a Magnet for Gentle Agitation of Microcarrier Beads • 5/16” OD x 1/4” ID Flex Tube Shaft • Two 32mm Side arms • One 70mm Screw Thread Center Neck (1 per EA )

Description: Adjustable Hanging Bar Spinner Flask Complete, 50ml Bellco Adjustable Hanging Bar Spinner Flasks were designed for the efficient growth of suspension cells at low speeds. This flask is manufactured of medium-walled borosilicate glass tubing with black phenolic screw caps. The hanging spinner is adjustable and useful over a wide range of stirring speeds. The 1967-style spinner includes a center screw cap with a black compression fitting for mounting the glass impeller shaft. Adjustable Hanging Bar Spinner Flask consists of: Flask, Impeller Assembly, Impeller Glass Shaft, and Cap Assembly. Flask Specifications [1967-10050]: Material: Type 1 Class A Borosilicate Glass Dimensions: 55mm OD x 110mm Overall Height, Two 18mm Sidearms angled 45° offset center One 51mm Screw Thread Center Neck Flask has flat bottom – no dimple Graduations: 10mL to 50mL, every 10mL – White Ink (Approx Volumes) Supply with: Two Rubber Lined Black Phenolic Caps Impeller Assembly Specifications [1969-30050]: Impeller Assembly consists of impeller magnet & magnet holder Impeller magnet: PTFE coated magnet, 34.9mm long x 9.5mm OD (approx.) Magnet Holder: White Teflon, 9.5mm long x 15.9mm OD Glass Shaft Specifications [1969-70100]: Material: Type 1 Class A Borosilicate Glass Dimensions: 7mm OD x 120mm long Cap Assembly Specifications [1967-90051]: Cap Assembly consists of screw cap and stopper Screw Cap: 54.0mm OD x 11.1mm H Stopper: Silicone 32.5mm OD x 26.2mm H (1 per EA )

316-l stainless steel ra32 or better finish .040" drilled holes sparger for low profile vertical side arm vessels. Threaded end is removable for cleaning. Comes with 45mm blue polypropylene open top cap and silicone gasket. Triple tube configuration With Vent, Fill/Sample And Sparge. (1 per EA )

The Media Addition Bottle is designed for holding media and comes with Stainless Steel 2-port assembly for attachment of tubing for connection to a pump to add media to a bioreactor vessel or spinner flask. Specifications: Size: 1L 316L Stainless Steel Port Assembly Ra 32 or Better Finish Type 1A Borosilicate Glass Bottle Case Quantity: 1 (1 per EA )

The Bellco low profile ptfe impellers are designed to be used with bellco low profile cell culture vessels. These low profile impeller consist of a semi-rigid ptfe blade, ptfe paddle holder and stainless steel shaft. Impellers are shipped fully assembled. Paddle Size: 3"Tx 6 3/4"W. Requires Bellco Overhead Drive & Cap Assembly (1 per EA )

VERTICAL DISK IMPELLER 3L Material: 316 SST For bioreactor system - 7802-03115 Dimensions: 2" od x 47/64" wide For .375" od shafts (1 per EA )

Manufactured from type 1 class a Borosilicate glass. Bottom pad prevents chipping and breaking of pipette tips. All components can and will withstand repeated dry or steam heat serialization. Supplied stainless steel closure. Case qty-6 (6 per CS )

Sparger assembly for 6l low profile Over Head Drive vessel. This fits through a 45mm sidearm. Designed for vertical side arm vessels. Sparger tube: 10 1/8" long 316 l SST 20 ra material. 12mm od coarse glass frit (40-60µ) Gently introduces bubbles into vessel. (1 per EA )

Ideal for use with water baths for precise temperature control. Supplied with 100mm center cap, sidearms cap, and pouring ring. Specifications: #4 Hose Barbs For 1/2" Id Tubing Material: Type 1 Class A Borosilicate Glass Supplied: 45mm Polypropylene Blue Cap & Pouring Ring Size 6L OD x OAH: 300x325mm (1 per EA )

Promotes optimal growth of suspension and micro-carrier culture. Impeller height adjust through compression fitting center cap. The indented bottom prevents accumulation of micro-carrier beads under impeller. Size: 250ml Sidearm cap: 32mm (included) (1 per EA )

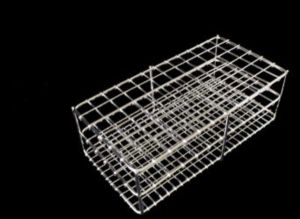

Will not rust or deteriorate in water baths or co2 atmospheres. Manufactured from 303 stainless steel with electropolish finish. Each opening rack 13/16" (20.6mm) Tube size: 20-22mm Spacing: 6x12 holds 72 tubes Dimensions: 275 x 150 x 80mm WIRE SPECIFICATIONS: SIDE & UPRIGHTS: .135"OD WIRE, CROSS WIRE: 0.063" OD WIRE, BTTM MESH: 1/4" Minimum order requirement: 5 each (1 per EA )

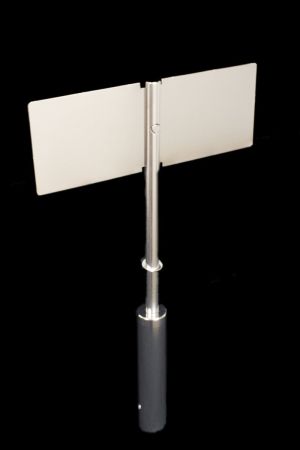

Stainless Steel Hi-Torq Over Head Drive Impeller Full Width 8L Specifications: Hi-Torq SST Over Head Drive Impeller Assembly – Full Width Size: 8L . For Hi-Torq Motor & Cap Assembly (7774-40115/40230 & 7764-74000) Similar To 1964-60008 But To Accept 1/2" Shaft From 7764-74000 Cap Assembly Material: 316L SST With Elelctropolish Finish Ra32 Or Better Paddle Size: 3" Tall X 8" Wide (1 per EA )

The stainless steel 100mm IOB probe cap seal is manufactured from 316L stainless steel and has a red-silicone sealing gasket with a 100mm blue polypropylene screw cap. The stainless steel probe cap seal has four accessory ports surrounding a centrally located internal impeller assembly. Two of these ports have a white silicone plug inside a threaded cap that acts as a compression fitting for probe insertion. The other ports accept accessories using the same silicone compression plugs and threaded caps. These compression plugs make it easy to adjust the insertion length of probes or straight tubes depending upon the working volume of the bioreactor flask. The stainless steel cap seal, stainless steel PTFE impeller and all fittings are steam autoclavable. (1 per EA )

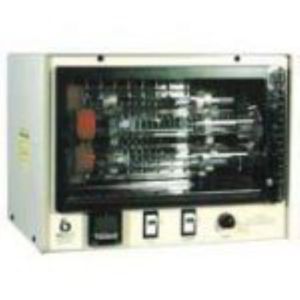

The Bellco Auto-blot Mini Hybridization Oven consists of an incubator with an integral rotisserie device. The rotisserie has the capacity for up to 4 large hybridization bottles or 8 small hybridization bottles. Alternatively, any combination of large or small bottles can be used. This Auto-blot Micro Hybridization Oven features an advanced temperature controller for precise control of oven temperature. 14”x17”x13” (35x42x32cm) 230v (1 per EA )

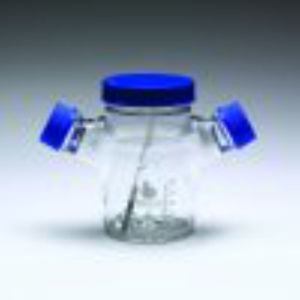

Description: Glass Ball Spinner Flask Only Size: 250mL Material: Type 1 Class A Borosilicate Glass Dimensions: 85mm OD x 140mm Overall Height, 164mm across sidearms Two 32mm Sidearms angled 55° offset center 70mm Screw Thread Center Neck Dimpled Bottom Graduations: 50mL to 250mL, every 25mL – White Ink (Approx Volumes) Supply with: Two 32mm PP Blue Screw Caps & PP Blue Pouring Rings (1 per EA )

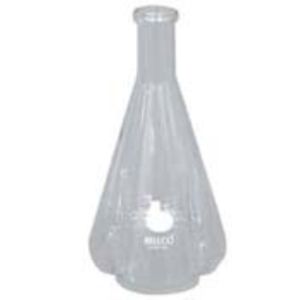

Manufactured from type 1 class a Borosilicate glass. Designed with deep side baffles for optimal agitation. Large bottom surface for easy access with Bellco large orifice pipette. Break resistant lip Size: 125mL OD x OAH – 66 x 115mm 3 per case (3 per CS )

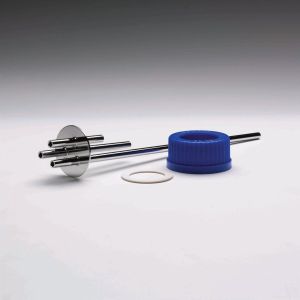

45mm low profile Thermowell assembly for low profile 3l vessel. Seam welded - electropolish finish 316l stainless steel material ra 32 finish or better Supply with s/cap (a523-599) & white silicone liner (a523-600) 1 - THERMOWELL TUBE: 5/16"OD X .242"ID X 1.0" above x 8 11/32" insertion 1- FILL TUBE: 1/4"OD X .152"ID X 1.0" above x 8 11/32" insertion 1- VENT TUBE: .250"OD X .152"ID X 1.0"LONG (1 per EA )

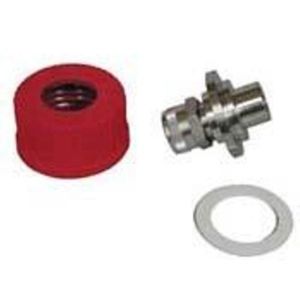

Probe adapters & compression fittings. Bellco compression fittings are designed using our standard 45 mm blue polypropylene open top caps and white silicone gaskets. A wide variety of fittings are available to allow pH and do monitoring via insertion of these probes into the sidearms of vessels. Bellco probe adapters are designed to allow introduction of threaded probes into vessels through 200 mm stainless steel headplate or a 45 mm vertical sidearm. Probe OD: 1/2" Stainless steel fitting w/ cap ½" (1 per EA )

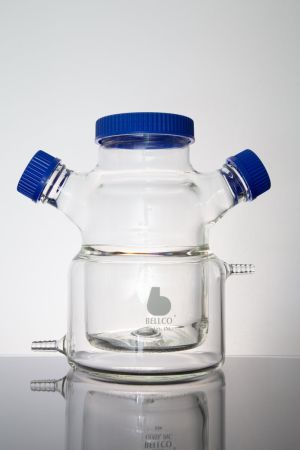

For use circulating water bath or chiller and magnetic stir plate. Hose connection accepts 3/8" ID silicone tubing (Bellco M7965037) Available complete with micro-carrier impeller assembly or as components. Specifications: Jacket Volume (mL): 75ml Cap Size: 70mm Sidearm Cap Size (mm): 18 OD x OAH: 75x160mm (1 per EA )

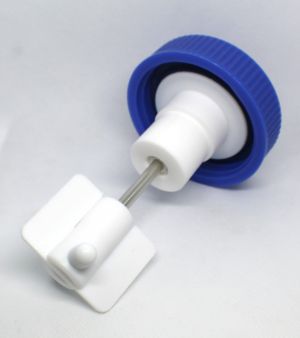

Stainless steel shaft design prevents cell damage and minimizes magnetic decoupling. Sealed internal assembly requires less incubator space. For use with Bellco 1965-series Standard and Water Jacketed Spinner Flasks. Specifications: Cap Size: 70mm Flask Size: 100mL – 250mL Paddle: 2" x 1.5" (1 per EA )
