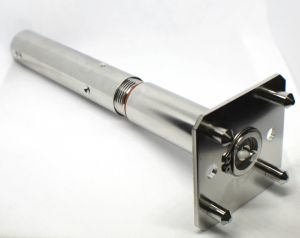

316 L Stainless Steel Large Flange Drive Adapter for use with Omni Vessels. For attachment of Overhead Drive Motors. Heavy duty cap assembly for large flange vessels Adapt overhead drives to teflon or sst folding impeller assembly 316 sst design with polyester stainless steel bearings (1 per EA )

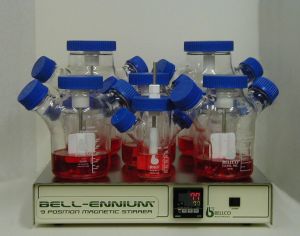

Bell-ennium Process Magnetic Stirrers are designed for both cell cultures in spinner flasks as well as for general laboratory procedures requiring the use of magnetic stirring equipment. The Front-End models are designed to position so that one flask is positioned behind the other, minimizing the width of the stirrer for limited space work areas. Bell-ennium stirrers feature brushless maintenance free DC motors with drive assemblies designed for quiet operation. Stainless steel covers are stamped to show the vessel positions for accurate placement and optimum performance. Heavy duty magnet assemblies provide the best magnetic coupling while timing belts on all positions insure smooth even stirring of vessel contents. The low profile chassis measure 11 x 20 x 3 3/8” and are designed to fit side-by-side in Bellco incubators. The PID process controller provides RS-485 communication with your existing lab network (software not included), as well as two alarm outputs for the optional Motion Alarm. Units are powered by standard 24V in-line power supplies and are CE compliant. (1 per EA )

Bellco Control System, Flat Bottom. The Bellco Stainless Steel Shaft Conversion Kit is designed to convert your standard glass shaft to stainless steel on 1967 and 1965 Spinner Flasks. Sizes range from: --100 mL to 36 liters for 1965 spinners --100 to 3000 mL for 1967 spinner flasks Material: --316L Stainless Steel 1965 & 1967 Series Micro-Carrier Spinner Flask 15L BCS Flat Bottom System 15L 115v (1 per EA )

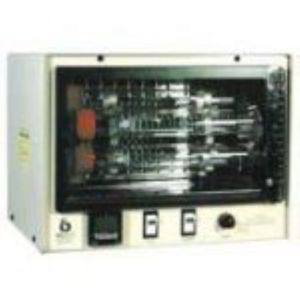

The Bellco Auto-blot Micro Hybridization Oven consists of an incubator with an integral rotisserie device. The rotisserie has the capacity for up to 4 large hybridization bottles or 8 small hybridization bottles. Alternatively, any combination of large or small bottles can be used. This Auto-blot Micro Hybridization Oven features an advanced temperature controller for precise control of oven temperature. Without Rotisserie 14”x17”x13” (35x42x32cm) 230v (1 per EA )

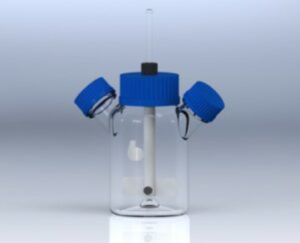

Promotes optimal growth of suspension and micro-carrier culture. Impeller height adjust through compression fitting center cap. The indented bottom prevents accumulation of micro-carrier beads under impeller. SIZE: 500ml (working volume). Dimensions: 110mm OD x 170mm overall height. Center neck: 100mm. Two 45mm angled sidearms; (ANGLED 60°). Grad. Range: 100-500ml, every 50ml. Supply with (2) 45mm PP blue screw caps & pouring rings. (1 per EA )

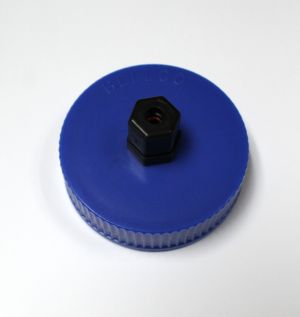

Polypropylene screw cap with silicone gasket pouring ring and compression fitting. 70mm (1 per EA )

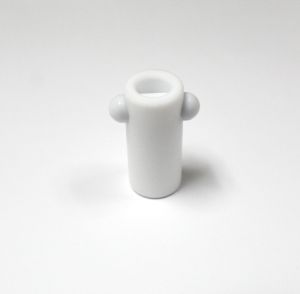

Glass shaft impeller assembly for 1967-style hanging bar spinner flask. Consist of ptfe magnet holder and ptfe coated magnet. Glass shaft ptfe magnet Size: 25ml (1 per EA )

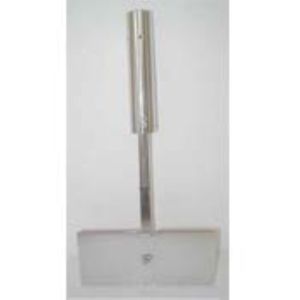

SST Low Profile Impeller Assembly For 6000mL Low Profile Vessels. Requires Over Head Drive & cap assembly Material: SST 316l Consist of: dust shield, shaft, paddle, locking ring, washer, cotter pin Four (4) SST set screws: 8-32 x 1/4" Dimensions: 9 1/2" to 12 1/2" oal Paddle size: 3" tall x 5 1/4" wide Fully assembled (1 per EA )

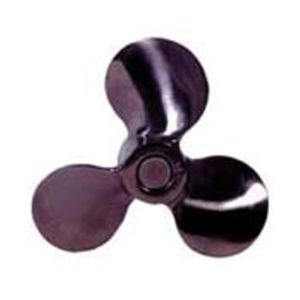

Blade dimension: 4"OD Marine prop – Right-Handed Shaft OAL: 16 1/4 Paddles and impeller assemblies for cell culture Constructed of 316l electropolished stainless steel Reduces shear in delicate cell culture Marine impeller includes 1/2" shaft and impeller blade Omni and z-z paddles are one piece welded, 1/4" shaft (1 per EA )

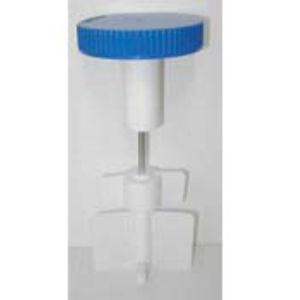

Stainless steel shaft design prevents cell damage and minimizes magnetic decoupling. Sealed internal assembly requires less incubator space. For use with bellco 1965-series standard and water jacketed spinner flasks. Cap size: 100mm Flask size: 1L PADDLE: 3" TALL X 3 1/8" WIDE (1 per EA )

Stainless steel shaft design prevents cell damage and minimizes magnetic decoupling. Sealed internal assembly requires less incubator space. For use with bellco 1965-series standard and water jacketed spinner flasks. Cap size: 100mm Flask size: 3l PADDLE: L X W:4 X 3 IN (1 per EA )

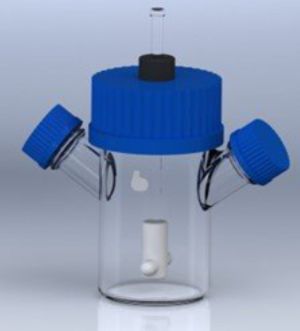

• Designed for the efficient growth of suspension cells at low speeds • Flask Specifications: o 1000 mL flat bottom, Type 1 Class A Borosilicate o Dimensions: 135mm OD x 240mm OAH o Two 45mm Sidearms angled 60º offset center o One 100mm Screw thread center neck o Graduations: 100mL to 1000mL, every 100mL o Includes two 45mm blue PP screw caps and pouring rings • Impeller Assembly Specifications: o Consists of PTFE coated magnet and white Teflon magnet holder • Glass Shaft Specifications: o Type 1 Class A Borosilicate o Dimensions: 7mm OD x 230mm long • Cap Assembly Specifications: o Consists of one 100mm blue PP screw cap with 16.2 mm hole for black compression fitting, 100mm white silicone liner with 15.8mm hole, 7mm black compression fitting (1 per EA )

The Bellco Process Controlled Bottom Drive Roller Apparatus holds up to 50 (see specifications below) full size glass or plastic roller bottles (110 to 120 mm diameter and up to 510 mm in length). The unit features a brushless DC motor and controller that operate at bottle speeds ranging from 0.3 to 9.0 rpm with the ability to select clockwise or counter clockwise direction. Units feature brushless, maintenance-free DC motors with drive assemblies designed for quiet operation. Four corner bumpers and two locking castors (on the front wheel positions) are also provided. Rollers are easily removed for replacement by using the special tool provided with each unit. All-Position Drive facilitates the use of lightweight plastic roller bottles by ensuring rotation at each bottle station, independent of any load configurations. (1 per EA )

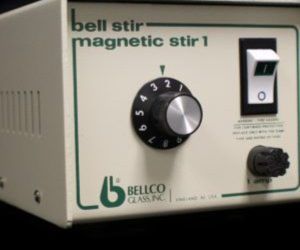

Bellco Magnetic Stirrers are specifically designed for growing both mammalian and bacterial cultures where minimal heat transfer from the magnetic stirrer to the culture vessel is essential. They are ideal for tissue cultures grown in spinner flasks. Bellco incorporates low wattage DC motors to reduce stirrer heat up. Independent power and speed controls allow unit to maintain a speed setting when switched on and off. Powerful magnets rotate on ball bearing shafts for increased coupling and continuous maintenance free service. Polyurethane drive belts resist humidity and temperature. The 100V, 115V & 230V models feature a convenience outlet that allows daisy chaining of up to ten stirrers. Speed range: 30 - 1000 rpm +/- 5% (1 per EA )

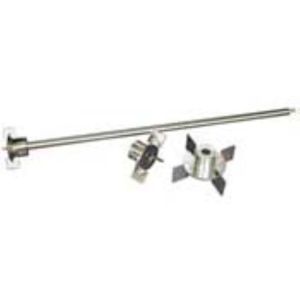

H/S Vertical Lift Impeller-36L Complete. Consist Of; 7764-75036 & 7764-76036. Dimensions: (Shaft); 5/8"OD X 23 1/4" Long, (Disk); 5 1/8"OD. 316L Sst (1 per EA )

Blade dimensions: 5 3/4" x 2" Shaft: 14 1/2" Paddles and impeller assemblies for cell culture Constructed of 316l electropolished stainless steel Reduces shear in delicate cell culture Marine impeller includes 1/2" shaft and impeller blade Omni and z-z paddles are one piece welded, 1/4" shaft (1 per EA )

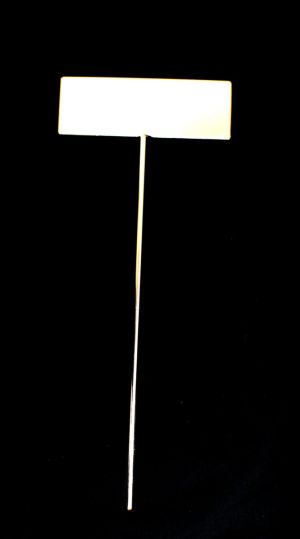

Manufactured from 316l stainless steel for standard bioreactor vessels. Use with over head drive motors. PADDLE L X W (IN): 3 X 6 3/4". (1 per EA )

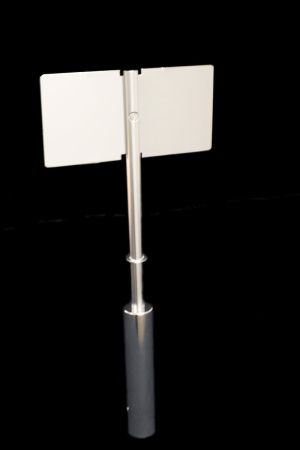

Hi-torq SST OHD impeller assembly - short width Size:8l For hi-torq motor & cap assembly (7774-40115/40230 & 7764-74000) Similar to 1964-60108 but to accept 1/2" shaft from 7764-74000 cap assembly Material: 316 SST with electropolish finish Paddle size: 3" tall x 6" wide (1 per EA )

Promotes optimal growth of suspension and micro-carrier culture. Impeller height adjust through compression fitting center cap. The indented bottom prevents accumulation of micro-carrier beads under impeller. Size: 8l Center Cap:100mm Sidearm cap: 45mm OD X OAH:237 X 430 (1 per EA )

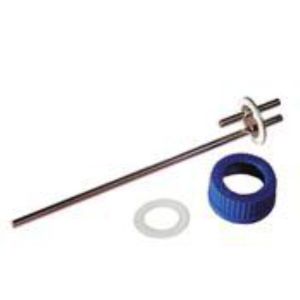

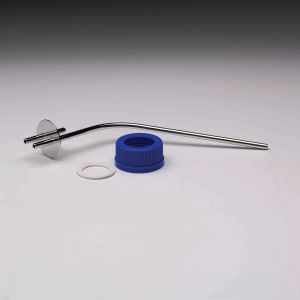

All port assemblies are manufactured from 316l stainless steel and have an electropolish finish. 2- port assemblies have siphon and vent tubes. 3-port assemblies have siphon, fill tube and vent tubes. All port assemblies include a 45mm blue polypropylene cap. (1 per EA )

Probe adapters & compression fittings. Bellco compression fittings are designed using our standard 45 mm blue polypropylene open top caps and white silicone gaskets. A wide variety of fittings are available to allow pH and do monitoring via insertion of these probes into the sidearms of vessels. Bellco probe adapters are designed to allow introduction of threaded probes into vessels through 200 mm stainless steel headplate or a 45 mm vertical sidearm. Probe OD: 11mm Stainless steel fitting w/cap 11mm (1 per EA )

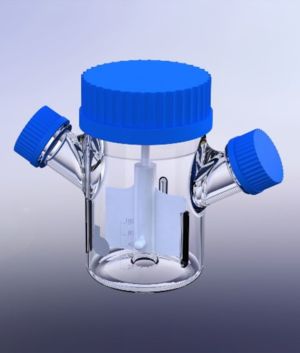

Internal impeller decreases risk of contamination. Impeller has an adjustable shaft to align paddle. The large paddle promotes increased oxygenation. Cap size: 100mm Flask size: 1l Dimensions: 135 x 250mm Sidearm cap: 45mm (1 per EA )

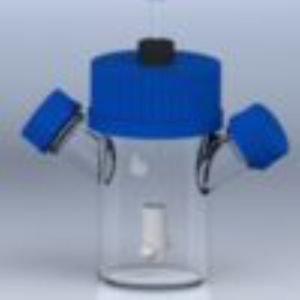

• Designed for the efficient growth of suspension cells at low speeds • Flask Specifications: o 250 mL flat bottom, Type 1 Class A Borosilicate o Dimensions: 85mm OD x 145mm OAH o Two 32mm Sidearms angled 55º offset center o One 70mm Screw thread center neck o Graduations: 50mL to 250mL, every 25mL o Includes two 32mm blue PP screw caps and pouring rings • Impeller Assembly Specifications: o Consists of PTFE coated magnet and white Teflon magnet holder • Glass Shaft Specifications: o Type 1 Class A Borosilicate o Dimensions: 7mm OD x 155mm long • Cap Assembly Specifications: o Consists of one 70mm blue PP screw cap with 16.2 mm hole for black compression fitting, 70mm white silicone liner with 15.8mm hole, 7mm black compression fitting (1 per EA )

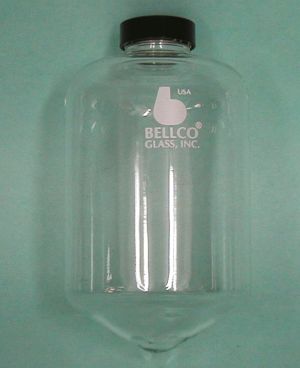

Manufactured from type 1 class a Borosilicate glass. Supplied with a 38-400 black phenolic rubber lined screw cap. Dimensions: 96x173mm Size: 590ml (4 per CS )
