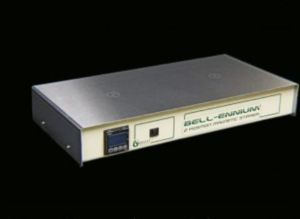

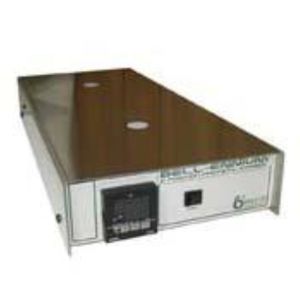

Bell-ennium Process Magnetic Stirrers are designed for both cell cultures in spinner flasks as well as for general laboratory procedures requiring the use of magnetic stirring equipment. The Front-End models are designed to position so that one flask is positioned behind the other, minimizing the width of the stirrer for limited space work areas. Bell-ennium stirrers feature brushless maintenance free DC motors with drive assemblies designed for quiet operation. Stainless steel covers are stamped to show the vessel positions for accurate placement and optimum performance. Heavy duty magnet assemblies provide the best magnetic coupling while timing belts on all positions insure smooth even stirring of vessel contents. The low profile chassis measure 11 x 20 x 3 3/8” and are designed to fit side-by-side in Bellco incubators. The PID process controller provides RS-485 communication with your existing lab network (software not included), as well as two alarm outputs for the optional Motion Alarm. Units are powered by standard 24V in-line power supplies and are CE compliant. (1 per EA )

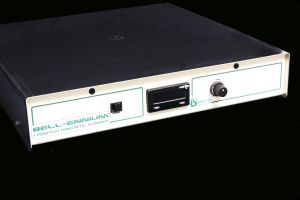

Bell-ennium Magnetic Stirrers are designed for both cell cultures in spinner flasks as well as for general laboratory procedures requiring the use of magnetic stirring equipment. Bell-ennium stirrers offer the laboratory researcher a wide range of capabilities and the latest innovations in stirring technology. Bell-ennium stirrers feature brushless maintenance free DC motors with drive assemblies designed for quiet operation. Stainless steel covers are stamped to show the vessel positions for accurate placement and optimum performance. The Bell-ennium single position low profile chassis measure 10 x 11 x 3 3/8” and are designed to fit side-by-side in Bellco incubators. Units are powered by standard 24V in-line power supplies and are CE compliant. (1 per EA )

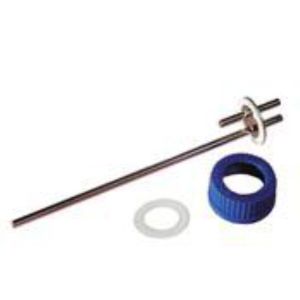

2-port 45mm cap assembly, 36l For 15l 1964 style Over Head Drive vessels Long tube: 1/4"od x 18 1/4" Short tube: 1/4"od x 2.156" All tubes extended up 1.0" above the cap slug Supply 45mm s/cap & white silicone liner (1 per EA )

Bellco Control System, Flat Bottom. The Bellco Stainless Steel Shaft Conversion Kit is designed to convert your standard glass shaft to stainless steel on 1967 and 1965 Spinner Flasks. Sizes range from: --100 mL to 36 liters for 1965 spinners --100 to 3000 mL for 1967 spinner flasks Material: --316L Stainless Steel 1965 & 1967 Series Micro-Carrier Spinner Flask 36L 36L BCS Flat Bottom System 115v (1 per EA )

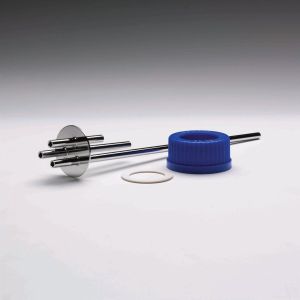

Ideal For Use With Over Head Drive Vessels. Manufactured From 316L Electropolished Stainless Steel With 32Ra Finish Or Better. 3-Port Cap Assy For 36L Ohd Vessel. With 3 Sst 1/4" Od Tubes. Longest Tube Over 18". Medium Tube:3 3/16". Vent Tube: 2 5/32". All Tubes Extended 1.0" Above The Cap Slug. Supply With A523-599 (S/Cap) & A523-600 (Liner) (1 per EA )

The Anaerobic Culture Bottle is designed for the growth of anaerobic bacteria and maintaining anaerobic conditions. The bottle features a 45 GL screw cap with silicone o-ring and blue butyl rubber stopper. This allows for easy access of contents and eliminates the use of the traditional aluminum seal. Butyl rubber stopper allows for multiple punctures with a needle. Specifications: Type 1 Class A Borosilicate Glass Dimensions: 56mm OD X 100mm OAH Polypropylene Screw Cap With Silicone Gasket And Butyl Rubber Stopper Components Are Fully Autoclavable @ 121° C Case Quantity: 12 (12 per CS )

Will not rust or deteriorate in water baths or co2 atmospheres. Manufactured from 303 stainless steel with electropolish finish. Each opening rack 1 9/16" (39.6mm) Tube size: 38mm Spacing: 4x6 holds 24 tubes Dimensions: 10" x 6 3/4" x 5" WIRE SPECIFICATIONS: SIDE & UPRIGHTS: .162"OD WIRE, CROSS WIRE: 0.063" OD WIRE, BTTM MESH: 1/4" Minimum order requirement: 5 each (1 per EA )

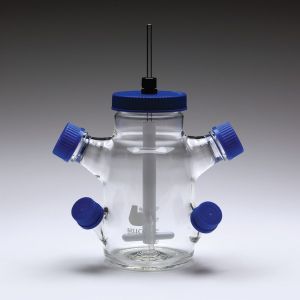

Description: Bio-Probe Vessel, 500mL Flask Specifications: Material: Type 1 Class A Borosilicate Glass Dimensions: 110mm OD x 170mm Overall Height Two 45mm Side arms angled 60° off center Two 32mm Side arms angled 35° off center One 100mm Screw Thread Center Neck Indented bottom Graduations: 50mL to 500mL, every 50mL – White Ink (Approx Volumes) Supply with: Two 45mm PP Blue Screw Caps, two PP Blue Pouring Rings, two 32mm blue screw caps, and two o-rings (1 per EA )

316-l stainless steel ra32 or better finish .040" drilled holes sparger for low profile vertical side arm vessels. Threaded end is removable for cleaning. Comes with 45mm blue polypropylene open top cap and silicone gasket. Triple tube configuration With Vent, Fill/Sample And Sparge. (1 per EA )

Heavy gauge rectangular construction for easy stacking and storage. These pipette cans can be sterilized by autoclave or dry heat. (do not exceed 400 degrees F). Includes silicone pad on the inside of top and bottom to protect pipette tips. --Satin finish surface of entire can for convenient marking or coding. --Silicone pads on inside of top and bottom protect pipette tips. --Material: 304 stainless steel .031” thick (1 per EA )

Thermowell assembly is manufactured from 316l stainless steel with 32ra finish or better. It can be used with rtd temperature sensor. Includes polypropylene screw cap and silicone gasket. There are also tubes for addition media and vent. Thermowell assemblies attach to the sidearms with a screw cap assembly. 3-PORT THERMOWELL ASSY - 45mm FOR 1964 VERTICAL OHD VESSELS WELDED - ELECTROPOLISH FINISH ALL MATERIAL IS: 316L SST CONSIST OF: 1 - SST 5/16"OD X .225"ID X 17 3/32" LONG 1.0" above x 17 3/32" insertion 1- SST FILL TUBE; .250"OD X .152" ID (SAME DIMESIONS AS THERMOWELL TUBE) 1- SST VENT TUBE: .250" OD X .152" ID X 2 5/32" LONG SUPPLY WITH CAP ( A523-599) & A523-600 (LINER) (1 per EA )

The 4-45 bioreactor vessel is manufactured from Type 1 Class A Borosilicate Glass. This vessel has 4 sidearms around 100mm center neck. The stainless steel cap seal has 5 ports for insertion of 12mm probes and 1/4" tubes. The vessel has an internal impeller assembly with stainless steel ball bearings and PTFE paddle. Specifications: Accepts All Standard Fittings And Probes 316L Stainless Steel Cap Seal with compression fittings for probes/tube insertion. 4 sidearms positioned 90° for increased capabilities. Accessories: 1965-11400 Flask Only, 1L 1965-60014 SST Cap seal, 1L, 5 port with IOB 1965-13400 Flask Only, 3L 1965-60034 SST Cap seal, 3L, 5 port with IOB 1965-45200 45mm Plug w/Compression Fitting & Hose Barb. (1 per EA )

The 4-45 bioreactor vessel is manufactured from Type 1 Class A Borosilicate Glass. This vessel has 4 sidearms around 100mm center neck. The stainless steel cap seal has 5 ports for insertion of 12mm probes and 1/4" tubes. The vessel has an internal impeller assembly with stainless steel ball bearings and PTFE paddle. Specifications: Accepts All Standard Fittings And Probes 316L Stainless Steel Cap Seal with compression fittings for probes/tube insertion. 4 sidearms positioned 90° for increased capabilities. Accessories: 1965-11400 Flask Only, 1L 1965-60014 SST Cap seal, 1L, 5 port with IOB 1965-13400 Flask Only, 3L 1965-60034 SST Cap seal, 3L, 5 port with IOB 1965-45200 45mm Plug w/Compression Fitting & Hose Barb. (1 per EA )

Will not rust or deteriorate in water baths or co2 atmospheres. Manufactured from 303 stainless steel with electropolish finish. Each opening rack 11/16" (17.5mm) Tube size: 16mm Spacing: 6x25 holds 150 tubes Dimensions: 19" x 4 3/4" x 3" WIRE SPECIFICATIONS: SIDE & UPRIGHTS: .135"OD WIRE, CROSS WIRE: 0.063" OD WIRE, BTTM MESH: 1/4" Minimum order requirement: 5 each (1 per EA )

Manufactured from Type 1 Class A Borosilicate Glass. Shake flasks are the basic tool for growth studies of aerobic microbial cultures. They have rigidly controlled baffle angles and depths to promote optimal oxygen transfer while reducing vortex formation. Designed for all orbital shakers. Break resistant lip to prevent chipping. Specifications: Type 1 Class A Borosilicate Glass Size: 2L Dimensions: 158x290mm Case Quantity: 12 Baffle Dimensions: 6mm x35° (3 per CS )

Flask only. For use circulating water bath or chiller and magnetic stir plate. Hose connection accepts 3/8" ID silicone tubing (Bellco M7965037) Available complete with micro-carrier impeller assembly or as components. Specifications: Jacket Volume (mL): 1300ml Cap Size: 100mm Sidearm Cap Size (mm): 45 OD x OAH: 200x330mm (1 per EA )

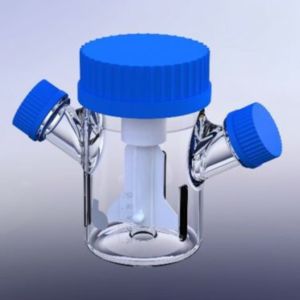

Manufactured from type 1 class a Borosilicate glass. Bottom indent and 3 vertical baffles for optimal mixing. Sidearm cap: 32mm Center cap: 70mm Dimensions: 140" x 85" Flask size: 250ml (1 per EA )

Bell-Flo IOB assembly was designed to be used with the Bell-Flo vessel with bottom indents and 3 vertical baffles for optimal mixing. Rugged stainless steel PTFE internal bearing impeller assemblies utilize a wing style impeller blade that increases mixing and oxygenation to your cell culture. Specifications: Cap Size: 70mm Vessel: 100mL (1 per EA )

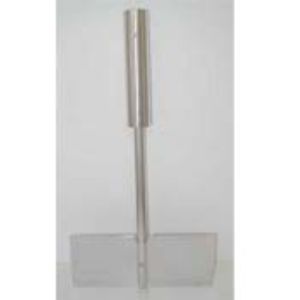

Short width stainless steel folding impeller assembly for standard bioreactor vessels 8l 316 l stainless steel Ra finish 32 micro inch or better (wxl) 3" x 6" (1 per EA )

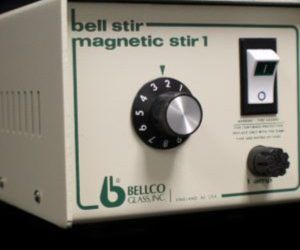

Bellco Magnetic Stirrers are specifically designed for growing both mammalian and bacterial cultures where minimal heat transfer from the magnetic stirrer to the culture vessel is essential. They are ideal for tissue cultures grown in spinner flasks. Bellco incorporates low wattage DC motors to reduce stirrer heat up. Independent power and speed controls allow unit to maintain a speed setting when switched on and off. Powerful magnets rotate on ball bearing shafts for increased coupling and continuous maintenance free service. Polyurethane drive belts resist humidity and temperature. The 100V, 115V & 230V models feature a convenience outlet that allows daisy chaining of up to ten stirrers. Speed range: 30 - 1000 rpm +/- 5% (1 per EA )

316-l stainless steel ra32 or better finish 10 micron porosity stainless steel frit for low profile vertical side arm vessels. Frit is removable for cleaning. Comes with 45mm blue polypropylene open top cap and silicone gasket Triple tube configuration With Vent, Fill/Sample And Sparge. (1 per EA )

Low profile IOB assembly 6l. DIMENSIONS (IN): 3 X 5 1/4. (1 per EA )

Bell-ennium Magnetic Stirrers are designed for both cell cultures in spinner flasks as well as for general laboratory procedures requiring the use of magnetic stirring equipment. Bell-ennium stirrers offer the laboratory researcher a wide range of capabilities and the latest innovations in stirring technology. Bell-ennium stirrers feature brushless maintenance free DC motors with drive assemblies designed for quiet operation. Stainless steel covers are stamped to show the vessel positions for accurate placement and optimum performance. The Bell-ennium single position low profile chassis measure 10 x 11 x 3 3/8” and are designed to fit side-by-side in Bellco incubators. Units are powered by standard 24V in-line power supplies and are CE compliant. (1 per EA )

Manufactured from Type 1 Class A Borosilicate Glass. Shake flasks are the basic tool for growth studies of aerobic microbial cultures. They have rigidly controlled baffle angles and depths to promote optimal oxygen transfer while reducing vortex formation. Designed for all orbital shakers. Specifications: Type 1 Class A Borosilicate Glass Sizes: 300mL Closure Sizes: 38mm OD x OAH: 88 x 170mm DeLong Style Neck Case Quantity: 2543-00300: 12 (12 per CS )
