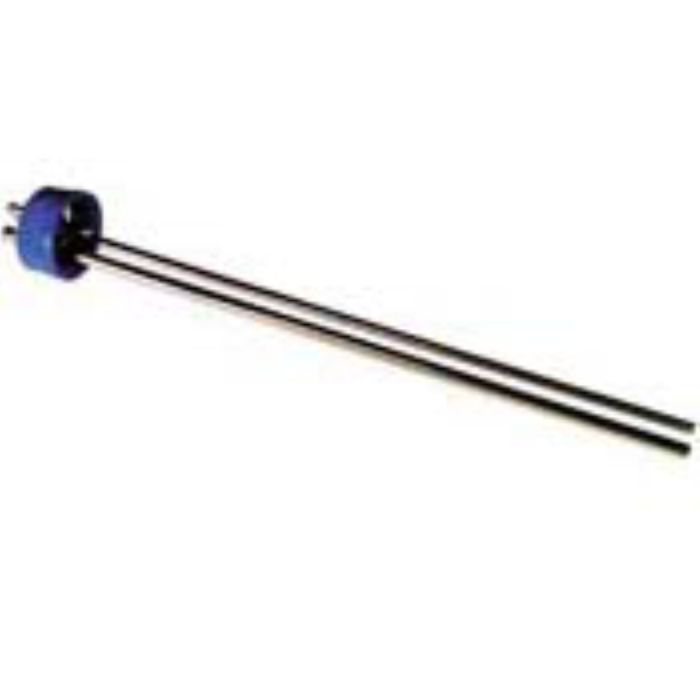

Thermowell Assembly 36L For Vertical Overhead Drive Vessels

Thermowell assembly is manufactured from 316l stainless steel with 32ra finish or better. It can be used with rtd temperature sensor. Includes polypropylene screw cap and silicone gasket. There are also tubes for addition media and vent. Thermowell assemblies attach to the sidearms with a screw cap assembly. 3-PORT THERMOWELL ASSY - 45mm FOR 1964 VERTICAL OHD VESSELS WELDED - ELECTROPOLISH FINISH ALL MATERIAL IS: 316L SST CONSIST OF: 1 - SST 5/16"OD X .225"ID X 17 3/32" LONG 1.0" above x 17 3/32" insertion 1- SST FILL TUBE; .250"OD X .152" ID (SAME DIMESIONS AS THERMOWELL TUBE) 1- SST VENT TUBE: .250" OD X .152" ID X 2 5/32" LONG SUPPLY WITH CAP ( A523-599) & A523-600 (LINER) (1 per EA )
