Bell-ennium Process Magnetic Stirrers are designed for both cell cultures in spinner flasks as well as for general laboratory procedures requiring the use of magnetic stirring equipment. The Front-End models are designed to position so that one flask is positioned behind the other, minimizing the width of the stirrer for limited space work areas. Bell-ennium stirrers feature brushless maintenance free DC motors with drive assemblies designed for quiet operation. Stainless steel covers are stamped to show the vessel positions for accurate placement and optimum performance. Heavy duty magnet assemblies provide the best magnetic coupling while timing belts on all positions insure smooth even stirring of vessel contents. The low profile chassis measure 11 x 20 x 3 3/8” and are designed to fit side-by-side in Bellco incubators. The PID process controller provides RS-485 communication with your existing lab network (software not included), as well as two alarm outputs for the optional Motion Alarm. Units are powered by standard 24V in-line power supplies and are CE compliant. (1 per EA )

Will not rust or deteriorate in water baths or co2 atmospheres. Manufactured from 303 stainless steel with electropolish finish. Each opening rack 11/16" (17.5mm) Tube size: 16mm Spacing: 4x6 holds 24 tubes Dimensions: 4 3/4" x 3 1/4" x 3" WIRE SPECIFICATIONS: SIDE & UPRIGHTS: .135"OD WIRE, CROSS WIRE: 0.063" OD WIRE, BTTM MESH: 1/4" Minimum order requirement: 5 each (1 per EA )

Low Profile Impeller Assembly. Size: for 6l low profile over head drive vessel Dimensions: 14" oal with compression fitting & cap Paddle size: 3" tall x 7" wide (1 per EA )

Promotes optimal growth of suspension and micro-carrier culture. Impeller height adjust through compression fitting center cap. The indented bottom prevents accumulation of micro-carrier beads under impeller. Size: 6l Sidearm cap: 45mm (included) (1 per EA )

• For use with Bellco BioProbe™ Spinner Flask Assemblies • Compression fitting accepts a 12mm OD probe • Monitoring of dissolved oxygen and pH can be achieved without interference from stirring paddles or port and thermowell assemblies • Includes o 316L SST Compression Nut o 316L SST Compression Body o 12mm Teflon Ferrule o 316L SST Hex Nut o 316L SST Washer o 32mm White Silicone Washer o 32mm blue PP screw cap w/ 13/16 hole for compression fitting (1 per EA )

Manufactured from Type 1 Class A Borosilicate Glass. Non-corressive borosilicate glass to prevent etching. Accepts Bellco stainless steel closures and KAPUT closures. Specifications: Borosilicate Glass Round Bottom Sizes: 13x100mm Volume: 8.7ml’ Case Quantity: 288 (288 per CS )

Manufactured from Type 1 Class A Borosilicate Glass. Ideal for use of filling other glass vessels. Receiving vessel is placed under bell to maintain aseptic conditions during filling. Attaches to reservoir with rubber tubing. Specifications: Type 1 Class A Borosilicate Glass Dimensions: 49x100mm Tubing Size: 1/2" 2 per case (2 per CS )

Bellco manufactures all precision pipettes from type 1 class a Borosilicate glass. All bellco pipettes feature tempered tips and permanent silk screened graduations to withstand repeated usage and alkali washings. Color code: 1ml - yellow 5ml - blue 10ml (250 per CS )

The Bellco Cell Production Roller Apparatus has been designed for production of animal cells, viruses, and cell products. Modular units are available from 5 to 45 bottle positions and allow easy expansion with modular add-on decks. Non-modular production units come in 45 and 50 bottle positions with over 80,000 cm2 of surface area. Rollers have a key design to eliminate slipping and are easily removable for servicing of bearings. Rollers are formulated from a chemical-resistant non-slip EDPM. All units feature a solid state control with heavy-duty DC motor and digital display. All Position Drives are for use with plastic roller bottles to prevent slipping of the light-weight bottles. Roller Shaft Construction: Non-transferring chemical-resistant rubber rollers with key-shape. Clearance between Decks for Bottle Placement: 134 mm. Construction Material: Aluminum, enamel finish. Usable Roller Length: 51 cm. Brushless motor with controller for smooth operation and no maintenance. Easy-to-remove roller bar assembly (tool provided). Digital LCD display. Locking speed control knob. All position drives. Accepts all Bellco Roller Bottles (glass or plastic* in 110mm or 120mm diameter). Battery backup provides 18 hour service (typical at 2 RPM). Battery backup includes both audible and visual indicators. Motion Alarm (1 per EA )

Flask only. For use circulating water bath or chiller and magnetic stir plate. Hose connection accepts 3/8" ID silicone tubing (Bellco M7965037) Available complete with micro-carrier impeller assembly or as components. Specifications: Jacket Volume (mL): 3700ml Cap Size: 100mm Sidearm Cap Size (mm): 45 OD x OAH: 200x445mm (1 per EA )

Manufactured from type 1 class a Borosilicate glass. Ideal for growing, storing and mixing of aerobic and anaerobic cultures. Graduated to approximate volumes Size: 2l Closure: 38 Dimensions: 158x295mm (3 per CS )

All port assemblies are manufactured from 316l stainless steel and have an electropolish finish. 2- port assemblies have siphon and vent tubes. 3-port assemblies have siphon, fill tube and vent tubes. All port assemblies include a 45mm blue polypropylene cap. (1 per EA )

The Bellco Bench Top Incubator was designed for the incubation of cell cultures and bacteria within laboratories where space is a premium. The instrument panel is mounted on top for easy viewing and manipulation. Glass door models allow the viewing of cultures without having to open the door limiting possible contamination problems and temperature fluctuations. The convenient interior accessory outlet allows the use of Bellco 4 and 10 Position Roller Apparatus, Rockers, Shakers and Magnetic Stirrers. Optional stainless steel shelf creates additional space for storing cell culture plates and flasks. (1 per EA )

Manufactured from Type 1 Class A Borosilicate Glass. Ideal for use of filling other glass vessels. Receiving vessel is placed under bell to maintain aseptic conditions during filling. Attaches to reservoir with rubber tubing. Specifications: Type 1 Class A Borosilicate Glass Dimensions: 22x75mm Tubing Size: 1/4" Size: 20mm (2 per CS )

Bellco Control System, Flat Bottom. The Bellco Stainless Steel Shaft Conversion Kit is designed to convert your standard glass shaft to stainless steel on 1967 and 1965 Spinner Flasks. Sizes range from: --100 mL to 36 liters for 1965 spinners --100 to 3000 mL for 1967 spinner flasks Material: --316L Stainless Steel 1965 & 1967 Series Micro-Carrier Spinner Flask 8L 8L BCS Flat Bottom System 230v (1 per EA )

Manufactured from medium wall Borosilicate Glass Type 1 Class A, with permanent graduations designed for DNA/RNA protocols. Includes high temperature red PBT cap with PTFE faced silicone liner. Replacement cap 5639-90045 (2 per CS )

Manufactured from Type 1 Class A Borosilicate Glass. Shake flasks are the basic tool for growth studies of aerobic microbial cultures. They have rigidly controlled baffle angles and depths to promote optimal oxygen transfer while reducing vortex formation. Designed for all orbital shakers. Specifications: Type 1 Class A Borosilicate Glass Sizes: 2L Closure Sizes: 38mm OD x OAH: 158 x 295mm DeLong Style Neck Case Quantity: 2543-02000: 3 (3 per CS )

The Bellco Economy Roller Apparatus is a variable speed two or four bottle roller apparatus used for the purpose of producing animal cells or cell products. This small sized unit is ideal for experimental and pilot-scale cell culture. Methods developed on this unit can easily be scaled up using the same technology to production sized units with a capacity of 90, 100 or 172 bottles. Bellco’s full size modular units can be increased in capacity in 10 bottle increments as well. The unit features a heavy-duty DC motor and solid-state electronics for reliable operation. The unit includes All-Position Drive belts so that every roller rotates, thus preventing slippage of light-weight plastic bottles. An analog tachometer displays bottle speed. Bellco’s unique hex-shaped shafts prevent roller slippage and produce positive drive. (1 per EA )

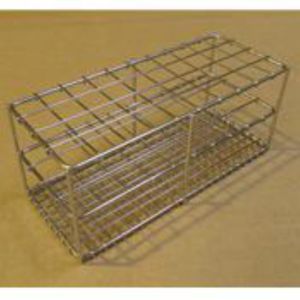

Will not rust or deteriorate in water baths or co2 atmospheres. Manufactured from 303 stainless steel with electropolish finish. Each opening rack 13/16" (20.6mm) Tube size: 18mm Spacing: 4x10 holds 40 tubes Dimensions: 5 1/2" x 3 3/4" x 3 11/16" WIRE SPECIFICATIONS: SIDE & UPRIGHTS: .135"OD WIRE, CROSS WIRE: 0.063" OD WIRE, BTTM MESH: 1/4" Minimum order requirement: 5 each (1 per EA )

The Bellco Bench Top Incubator was designed for the incubation of cell cultures and bacteria within laboratories where space is a premium. The instrument panel is mounted on top for easy viewing and manipulation. Glass door models allow the viewing of cultures without having to open the door limiting possible contamination problems and temperature fluctuations. The convenient interior accessory outlet allows the use of Bellco 4 and 10 Position Roller Apparatus, Rockers, Shakers and Magnetic Stirrers. Optional stainless steel shelf creates additional space for storing cell culture plates and flasks. (1 per EA )

Manufactured from type 1 class a Borosilicate glass. Designed for the measurement of microbial co2 production over time. Ideal for bio-remediation studies. All components are autoclaveable. Complete 250mL, 1 each. (1 per EA )

Bellco manufactures all precision pipettes from type 1 class a Borosilicate glass. All bellco pipettes feature tempered tips and permanent silk screened graduations to withstand repeated usage and alkali washings. Shorter length facilitates use under biological hood (18 per CS )

Black Phenolic Screw Cap Assembly For Adjustable Hanging Bar Spinner Flask Black phenolic screw caps are manufactured from specially formulated phenolic resin to resist the effects of temperature and steam autoclaving. They have a non-toxic white rubber liner for all general culture applications. Consists of screw cap liner and stopper or compression fitting. 38mm. (1 per EA )

This Bellco CO2 Incubator has 28 cubic feet of volume and is designed for use with Bellco’s Cell Production Roller Apparatus. Multiple internal convenience outlets allow simple connection to internally placed appliances such as CPRA, Roller Drums, Magnetic Stirrers, etc. A fan takes air from the chamber top, passes it over a 1100 watt heater and re-injects it into the chamber on the back wall. A touchscreen temperature and CO2 controller allows simple setting and monitoring of chamber temperature. A safety thermostat is included to prevent over-temperature failures. Shelf brackets are included for mounting of optional shelves. (1 per EA )
