Flask clamps and universal platforms for shakers. Fits onto standard platforms. Purchase individual pieces to build various configurations. 25x25cm tray accepts 5 51x51cm tray accepts 16 (1 per EA )

Bellco Mini Roll-In Incubators have 21 cubic feet of volume and are designed for use with Bellco's Cell Production Roller Apparatus (CPRA). The flush-to-floor design allows easy movement of the CPRA in and out of the chamber. Two internal convenience outlets. (1 per EA )

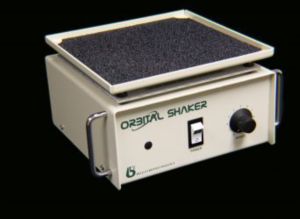

The Bellco Benchtop Orbital Shakers are ideal for staining and washing electrophoresis gels or for any applications requiring mixing or agitation of solutions. They are engineered to operate between the limits of 30 and approximately 350 revolutions per minute, and to hold their speed at any selected setting to approximately plus or minus five percent. --Speed range: 30 - 350 rpm +/- 5% --Circular orbit: 2.5 cm (1" ) orbit --Load: 11 kg (25 lbs) maximum --Weight: 7.6 kg (17 lbs) --7744-01010, 7744-10220 & 7744-01100 units have a platform deck of 25 x 25 cm --7744-02020, 7744-20220 & 7744-02200 units have a platform deck 50 x 50 cm (1 per EA )

For low profile base unit only. Roller drum accepts 18mm tube 106 tubes per drum (1 per EA )

The Bellco Benchtop Mini Orbital Shakers are ideal for both rigid polystyrene and flexible polyvinyl 96-well micro tube plates commonly used in cell culture, virology, immunology and serology. They are engineered to operate between the speed range of 50 to 1550 rpm and have a 100 second timer for reproducing mixing times or can be used in continuous operation. The true orbital motion results in increased mixture homogeneity compared with oscillating or vibrating shakers. The cast iron ballast eliminates walking of unit and handles allow easy movement within the laboratory. (1 per EA )

Thermowell Assemblies are used to hold inside one tube the RTD temperature sensor that monitors the temperature within the vessel in conjunction with a temperature controller. There are also tubes for addition of media and vent tube. Fit through a A 5/16" FITTING ON THE STAINLESS STEEL HEADPLATE. (1 per EA )

The Bellco Digital CTII Hi-Torque Overhead Drive is a versatile direct-drive agitator for cell culture and most aseptic mixing applications. The Overhead Drives were developed to eliminate the problem of magnetic agitator decoupling often observed in large volume mixing and the stirring of solutions with a viscosity greater than water. Hi-Torque Overhead Drive with interface for use with CellTrol II controller. Having speed capability user can monitor (but not control) rpm of OHD from the controller display and set alarm for rpm setpoints. Includes speed cable and power supply. (1 per EA )

Bioreactor Stand w/ 6 Bolts for 3L bioreactor (1 per EA )

The Bellco Cell Production Roller Apparatus has been designed for production of animal cells, viruses and cell products. Modular units are available from 5 to 45 bottle positions and allow easy expansion with modular add-on decks. Non-modular production units come in 45 and 50 bottle positions with over 80,000 cm2 of surface area. Rollers have a key design to eliminate slipping and are easily removable for servicing of bearings. Rollers are formulated from a chemical-resistant non-slip EDPM. All units feature a solid state control with heavy-duty DC motor and analog tachometer. Non-modular production models feature rubber bumpers, handles and a slotted rear guard. (1 per EA )

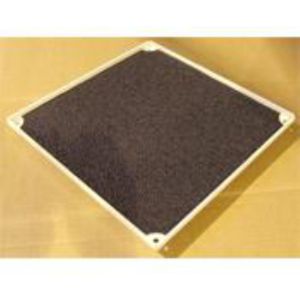

Standard tray with pegs, *NOT* a stacking tray. Trays fit 7740 and 7743 series rocker & 7777 series 12v rocker. The "peg and grommet" design permits rapid platform changing. REPLACEMENT LINER: A502-193 SIZE: 30x30cm (1 per EA )

The Bellco Sci/ERA Cell Production Roller Apparatus has been designed for production of mammalian cells, viruses and cell products. Non-modular production units come in 45 and 50 bottle positions with over 80,000 cm2 of surface area. All units feature a solid state control with heavy-duty DC motor and digital tachometer. All Position Drives are for use with plastic roller bottles to prevent slipping of the light-weight bottles. A Stand-By Drive and Alarm System provides motion and power failure alarms and has a backup drive system that automatically drives the unit should the original fail. (1 per EA )

This tray only fits the back-to-basics II reciprocating shaker units. Includes rubber mat with peg and grommet design. Customer must use this tray or stainless steel tray 7677-32010 for reciprocating shaker units. Size: 10"x10" (1 per EA )

The Bellco Sci/ERA Cell Production Roller Apparatus has been designed for production of mammalian cells, viruses and cell products. Non-modular production units come in 45 and 50 bottle positions with over 80,000 cm2 of surface area. All units feature a solid state control with heavy-duty DC motor and digital tachometer. All Position Drives are for use with plastic roller bottles to prevent slipping of the light-weight bottles. A Stand-By Drive and Alarm System provides motion and power failure alarms and has a backup drive system that automatically drives the unit should the original fail. (1 per EA )

The Bellco Benchtop Orbital Shakers are ideal for staining and washing electrophoresis gels or for any applications requiring mixing or agitation of solutions. They are engineered to operate between the limits of 30 and approximately 350 revolutions per minute, and to hold their speed at any selected setting to approximately plus or minus five percent. --Speed range: 30 - 350 rpm +/- 5% --Circular orbit: 2.5 cm (1" ) orbit --Load: 11 kg (25 lbs) maximum --Weight: 7.6 kg (17 lbs) --7744-01010, 7744-10220 & 7744-01100 units have a platform deck of 25 x 25 cm --7744-02020, 7744-20220 & 7744-02200 units have a platform deck 50 x 50 cm (1 per EA )

For transfer of all infectious materials culture media, and routine sampling. Bellco manufactures all precision pipettes from type 1 class a Borosilicate glass. All bellco pipettes feature tempered tips and permanent silk screened graduations to withstand repeated usage and alkali washings. Case qty-1000 (1000 per CS )

Bellco manufactures all precision pipettes from type 1 class a Borosilicate glass. All bellco pipettes feature tempered tips and permanent silk screened graduations to withstand repeated usage and alkali washings. Constricted top for cotton plugging. (18 per CS )

The Bellco Process Controlled Bottom Drive Roller Apparatus holds up to 50 (see specifications below) full size glass or plastic roller bottles (110 to 120 mm diameter and up to 510 mm in length). The unit features a brushless DC motor and controller that operate at bottle speeds ranging from 0.3 to 9.0 rpm with the ability to select clockwise or counter clockwise direction. Units feature brushless, maintenance-free DC motors with drive assemblies designed for quiet operation. Four corner bumpers and two locking castors (on the front wheel positions) are also provided. Rollers are easily removed for replacement by using the special tool provided with each unit. All-Position Drive facilitates the use of lightweight plastic roller bottles by ensuring rotation at each bottle station, independent of any load configurations. (1 per EA )

Bellco manufactures all precision pipettes from type 1 class a Borosilicate glass. All bellco pipettes feature tempered tips and permanent silk screened graduations to withstand repeated usage and alkali washings. Shorter length facilitates use under biological hood. Case qty-18 (18 per CS )

Bellco manufactures all precision pipettes from type 1 class a Borosilicate glass. All bellco pipettes feature tempered tips and permanent silk screened graduations to withstand repeated usage and alkali washings. Shorter length facilitates use use under biological hoods. (150 per CS )

Stainless steel blade holder mounted on plastic covered stainless steel handle and is fully autoclavable. 5/8 X 1/4" BLADE X 7 3/4" HANDLE. Size: small (10 per CS )

316L stainless steel port assemblies are designed for use with media storage bottles for adding and withdrawing media. 3-port models feature siphon, fill and vent tubes and is supplied with a 45mm polypropylene blue open top screw cap and white silicone gasket. (1 per EA )

The Bellco Digital Bench-top Roller Apparatus holds 10 glass or plastic roller bottles (110 to 120 mm diameter and up to 22.5 cm in length). The unit features a heavy-duty DC motor and solid-state electronics that operate at bottle speeds ranging from 0.30 to 10.0 rpm with the ability to select clockwise or counter clockwise direction. The digital display panel has a 0.55” LED for easy reading and the apparatus has a locking speed knob. Rollers are easily removed for replacement by using the special tool provided with each unit. All-Position Drive facilitates the use of lightweight plastic roller bottles by ensuring rotation at each bottle station, independent of any load configurations. Bellco’s unique hex-shaped shafts prevent roller slippage for positive drive. Use of this equipment is limited to conventional laboratory mixing of roller bottles. (1 per EA )

The Bellco Economy Roller Apparatus is a variable speed two or four bottle roller apparatus used for the purpose of producing animal cells or cell products. This small sized unit is ideal for experimental and pilot-scale cell culture. Methods developed on this unit can easily be scaled up using the same technology to production sized units with a capacity of 90, 100 or 172 bottles. Bellco’s full size modular units can be increased in capacity in 10 bottle increments as well. The unit features a heavy-duty DC motor and solid-state electronics for reliable operation. The unit includes All-Position Drive belts so that every roller rotates, thus preventing slippage of light-weight plastic bottles. An analog tachometer displays bottle speed. Bellco’s unique hex-shaped shafts prevent roller slippage and produce positive drive. (1 per EA )

The Bellco btbTM12 Volt Orbital Shaker is a compact unit designed for continuous duty shaking using intrinsically safe low voltage electronics. The one-inch orbital motion provides even mixing. The rubber suction cup feet keep the unit firmly attached to surface. Counterbalanced drive shafts for precise orbital motion. Includes 25x25cm (10x10" ) tray. Dims: 11x11x5" (28x28x14cm) (1 per EA )
