Equipment

10L Bioreactor Stand (1 per EA )

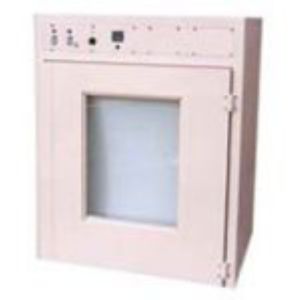

Bellco Mini Roll-In Incubators have 21 cubic feet of volume and are designed for use with Bellco's Cell Production Roller Apparatus (CPRA). The flush-to-floor design allows easy movement of the CPRA in and out of the chamber. Two internal convenience outlets. (1 per EA )

Round bottom bioreactor vessel is manufactured of type 1 class a Borosilicate glass. Graduations are 500ml to 2500ml every 500ml. Vessel dimensions are 240mm od x 445mm oah. A full range of accessories are available for this vessel. 15L. (1 per EA )

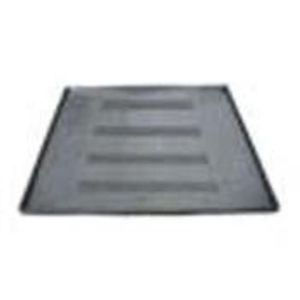

For use with sticky matt tape (7740-40000). Dimensions: 12"x12", .050" thick w/ 1/2" lip with pegs. Will fit any Bellco rocker or shaker. Plain tray - no rubber matt. (1 per EA )

Flask clamps and universal platforms for shakers. Fits onto standard platforms. Purchase individual pieces to build various configurations. 25x25cm tray accepts 16 51x51cm tray accepts 49 (1 per EA )

The Bellco Orbital Shaker is a compact, heavy-duty variable speed shaker. It is used for the agitation of electrophoretic gels and filter assay media for staining, destaining and assay development. The Shaker accommodates a variety of vessels. It is continuously adjustable from 30 to 350 RPM. This Bellco design incorporates an orbital platform that accepts a variety of optional trays. A variety of tray models are available, including three equipped with flask clamps for common sizes of flasks. Peg and Grommet style trays make changing convenient. (1 per EA )

The Bellco btbTM12 Volt Orbital Shaker is a compact unit designed for continuous duty shaking using intrinsically safe low voltage electronics. The one-inch orbital motion provides even mixing. The rubber suction cup feet keep the unit firmly attached to surface. Counterbalanced drive shafts for precise orbital motion. Includes 25x25cm (10x10" ) tray. Dims: 11x11x5" (28x28x14cm). NOTE: CAN USE THE UNIVERSAL TRAYS WITH CLAMPS BUT ONLY THE SMALL TRAYS - 25X25 (1 per EA )

Provides automatic switching from the main tank to auxiliary tank.. Rear panel hose barbs are for gas connection. Alarm will sound when tank pressure drops below 5psi. Manual switching is done via the button labeled tank switch. Mounts on top of any stand (1 per EA )

For transfer of all infectious materials culture media, and routine sampling. Bellco manufactures all precision pipettes from type 1 class a Borosilicate glass. All bellco pipettes feature tempered tips and permanent silk screened graduations to withstand repeated usage and alkali washings. Case qty-1000 (1000 per CS )

The Bellco Roll-in Shelf cart is a mobile unit designed for transporting glass-ware & equipment from one location to another or as an easy method of loading the Bellco Roll-in Incubator. The cart is mounted on four (4) heavy duty bearing swivel castors able to support approx. 750lbs. The loaded cart can easily be rolled in the Bellco Roll-in Incubator via the castor guides located on the incubator interior floor. The cart comes with two (2) vented shelves which are adjustable & may be mounted at 6 1/8" intervals along the corner support posts. Additional shelves may be ordered under part number D504-1. The cart is capable of supporting two (2) 36 liter & two (2) 15 liter spinner flasks complete with OHD drives or a variety of smaller flasks & other assorted laboratory equipment. The cart is constructed of 1/8" aluminum & is finished with an Olivetti white textured paint. The unit is shipped un-assembled in a flat carton & is easily assembled with ordinary had tools. (not supplied). HEIGHT: 55 1/2" (141cm) WIDTH: 32 3/34" (83.2cm) (1 per EA )

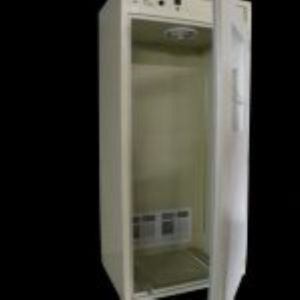

Bellco Roll-In Incubators have 40 cubic feet of volume and are designed for use with Bellco’s Cell Production Roller Apparatus (CPRA). The flush-to-floor design allows easy movement of the CPRA in and out of the chamber. Four internal convenience outlets allow simple connection to internally placed appliances such as CPRA, Roller Drums, Magnetic Stirrers, etc. Fans take air from the chamber top, pass it over the 1100 watt heater and re-inject it into the chamber on the bottom back wall. A microprocessor temperature controller and membrane keypad allows simple setting and monitoring of chamber temperature. A safety thermostat is included to prevent over-temperature failures. Shelf brackets are included for mounting of optional shelves. The control panel features indicating lights and dials for automatic control of temperature. (1 per EA )

Dimensions: 14 1/2"W x 29 3/16"L. Open Stand for SI9/SI9R,24 ". Slotted Holes; 4 rows of 28, hole size; 3/8" x 1 3/4". Supply with 4 clips ( A512-42) (1 per EA )

Provides automatic switching from the main tank to auxiliary tank.. Rear panel hose barbs are for gas connection. Alarm will sound when tank pressure drops below 5psi. Manual switching is done via the button labeled tank switch. Mounts on top of any stand (1 per EA )

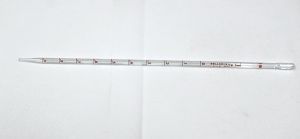

Bellco manufactures all precision pipettes from type 1 class a Borosilicate glass. All bellco pipettes feature tempered tips and permanent silk screened graduations to withstand repeated usage and alkali washings. Constricted top for cotton plugging. (18 per CS )

Bellco Roll-In Incubators have 40 cubic feet of volume and are designed for use with Bellco’s Cell Production Roller Apparatus (CPRA). The flush-to-floor design allows easy movement of the CPRA in and out of the chamber. Four internal convenience outlets allow simple connection to internally placed appliances such as CPRA, Roller Drums, Magnetic Stirrers, etc. Fans take air from the chamber top, pass it over the 1100 watt heater and re-inject it into the chamber on the bottom back wall. A microprocessor temperature controller and membrane keypad allows simple setting and monitoring of chamber temperature. A safety thermostat is included to prevent over-temperature failures. Shelf brackets are included for mounting of optional shelves. The control panel features indicating lights and dials for automatic control of temperature. (1 per EA )

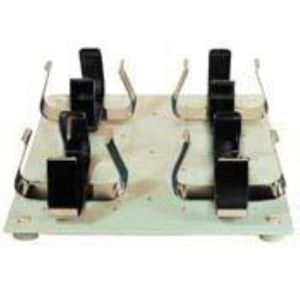

Pre-mounted stainless steel clamps for bellco Erlenmeyer flask. Flask tray fits on top of the standard tray platform. Includes clamps. Flask positions: 4 Dimensions: 25x25cm Size: 500ml (1 per EA )

Bellco manufactures all precision pipettes from type 1 class a Borosilicate glass. All bellco pipettes feature tempered tips and permanent silk screened graduations to withstand repeated usage and alkali washings. Constricted top for cotton plugging. (18 per CS )

The Bellco Digital Rocker is a slow speed rocker for general laboratory cell culture experimentation. This Bellco design incorporates a rocking platform that accepts a variety of optional trays. Eight tray models are available, including three equipped with flask clamps for common sizes of flasks. Peg and Grommet style trays make changing convenient. The timer circuit permits automatic shutoff after 3-120 minutes. (1 per EA )

The Bellco Mini Refrigerated Roll-In Incubator has 21 cubic feet of volume and is designed for use with Bellco’s Cell Production Roller Apparatus (CPRA) up to 2 decks high. The flush-to-floor design allows easy movement of the CPRA in and out of the chamber. Two internal convenience outlets allow simple connection for internally placed appliances such as CPRA, Roller Drums, Magnetic Stirrers, etc. Shelf brackets are included for mounting optional shelves to hold these appliances. Fans take air from the chamber top, pass it over the 1100 watt heater and inject it into the chamber on the bottom back wall. When the refrigeration mode is active, the air is cooled using a thermoelectric cooler. A microprocessor temperature controller and membrane keypad allows simple setting and monitoring of chamber temperature. The control panel contains indicator lights and dials for controlling temperature. A safety thermostat is included to prevent over-temperature failures. The unit is not intended for use with CO2 environments. (1 per EA )

Accessory That Fits Thru A Headplate And Holds The Rtd Sensor Which Monitors The Temperature In A Bioreactor. These Thermowells Are Designed Specifically For The Bellco Control Systems And Fit Through A 5/16" Fitting On The Stainless Steel Headplate. (1 per EA )

The Bellco Sci-ERA Hot Shaker is a slow speed, large orbit shaker for incubation of electrophoretic gels and filter hybridization media. Stringent temperature control with a sensitivity of +/-0.1°C is useful for many biochemical assays. This Bellco design incorporates a seamless stainless steel lined temperature controlled water bath mounted on a low-profile one inch orbiting platform. The unique chamber design offers simple containment of potential spills. The chamber is completely isolated from electromechanical components. The Sci-ERA Hot Shaker has audible over-temperature alarms and built-in safety features to prevent heater burn-out. An easy-to-use microprocessor controller offers stringent temperature control. (1 per EA )

The Bellco Benchtop Orbital Shakers are ideal for staining and washing electrophoresis gels or for any applications requiring mixing or agitation of solutions. They are engineered to operate between the limits of 30 and approximately 350 revolutions per minute, and to hold their speed at any selected setting to approximately plus or minus five percent. --Speed range: 30 - 350 rpm +/- 5% --Circular orbit: 2.5 cm (1" ) orbit --Load: 11 kg (25 lbs) maximum --Weight: 7.6 kg (17 lbs) --7744-01010, 7744-10220 & 7744-01100 units have a platform deck of 25 x 25 cm --7744-02020, 7744-20220 & 7744-02200 units have a platform deck 50 x 50 cm (1 per EA )

Round bottom bioreactor vessel is manufactured of type 1 class a Borosilicate glass. Graduations are 500ml to 2500ml every 500ml. Vessel dimensions are 300mm OD x 415mm OAL. A full range of accessories are available for this vessel. 15L. (1 per EA )

For use with sticky matt tape (7740-40000). Dimensions: 20"x20", .050" thick w/ 1/2" lip with pegs. Will fit any Bellco rocker or shaker. Plain tray - no rubber matt. (1 per EA )
