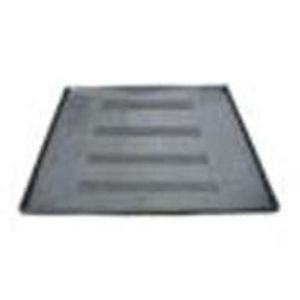

For use with sticky matt tape (7740-40000). Dimensions: 10"x10", .050" thick w/ 1/2" lip with pegs. Will fit any Bellco rocker or shaker. Plain tray - no rubber matt. (1 per EA )

The Bellco Refrigerated Roll-In Incubators have 40 cubic feet of volume. Refrigerated roll-in incubator ideal for insect cell incubations performed at 27 degrees c. Microprocessor PID temperature controller accommodates up to 9-deck fixed frame or base +7 modular Bellco cell production roller apparatus. Accessory power outlets (4) in chamber provided for supplemental equipment. Forced air circulation facilitates even temperature distribution. Control panel w/power switch, convenience outlet, safety thermostat refrigeration switch, temperature controller. "flush to floor' design allows easy loading of Bellco roller apparatus. Btu/hr: 5,120 max. (1 per EA )

Roller bottle brush for 110 mm od roller bottles w/51 mm opening. Nylon bristles for easy cleaning of hard-to0-reach surfaces. Useable length: 690 MM NOTE: to keep nylon bristles straight & effective dip flattened brush in hot water - then shake out MATERIAL: •Plastic handle •Plastic tube covering shaft •#8 wire - nylon (2 per CS )

The Bellco Mini Refrigerated Roll-In Incubator has 21 cubic feet of volume and is designed for use with Bellco’s Cell Production Roller Apparatus (CPRA) up to 2 decks high. The flush-to-floor design allows easy movement of the CPRA in and out of the chamber. Two internal convenience outlets allow simple connection for internally placed appliances such as CPRA, Roller Drums, Magnetic Stirrers, etc. Shelf brackets are included for mounting optional shelves to hold these appliances. Fans take air from the chamber top, pass it over the 1100 watt heater and inject it into the chamber on the bottom back wall. When the refrigeration mode is active, the air is cooled using a thermoelectric cooler. A microprocessor temperature controller and membrane keypad allows simple setting and monitoring of chamber temperature. The control panel contains indicator lights and dials for controlling temperature. A safety thermostat is included to prevent over-temperature failures. The unit is not intended for use with CO2 environments. (1 per EA )

Pre-mounted stainless steel clamps for bellco Erlenmeyer flask. Flask tray fits on top of the standard tray platform. Includes clamps. Flask positions: 9 Size:1l (1 per EA )

The Bellco Top Drive Roller Apparatus has been designed for production of animal cells, viruses and cell products. The unit accommodates 53 bottle positions with over 85,000 cm2 of surface area. Rollers have a key design to eliminate slipping and are easily removable for servicing of bearings. Rollers are formulated from a chemical-resistant non-slip EDPM. All units incorporate a solid state control with a brushless motor and controller, providing smooth operation and easy maintenance. All units feature rubber bumpers, handles, a slotted rear guard, and All Position Drive. The All Position Drive is designed to accommodate plastic roller bottles by preventing the slipping of the light-weight bottles. An optional Motion Alarm System provides audible and visual alarms should the primary fail. (1 per EA )

316L stainless steel port assemblies are designed for use with media storage bottles for adding and withdrawing media. 3-port models feature siphon, fill and vent tubes and is supplied with a 45mm polypropylene blue open top screw cap and white silicone gasket. (1 per EA )

The Bellco Rocker Platforms provide a gentle uniform rocking motion, required for even coverage of media over mono-layer cell cultures, thereby maximizing cellular health and viability. Viral suspensions introduced onto a mono-layer of cells will yield higher virus titers. Additionally, rocker platforms are ideal for performing staining and destaining of gel and filter assays. They are engineered to operate between 0 to 12 oscillations per minute. Additional interchangeable trays are also available. --Speed range: 0 to 12 oscillations per minute --Platform tilt: 7 fixed (1 per EA )

Flask clamps and universal platforms for shakers. Fits onto standard platforms. Purchase individual pieces to build various configurations. 25x25cm tray accepts 9 51x51cm tray accepts 25 (1 per EA )

2-Port Assembly 32mm is for use on small ID 32mm side arms for spinner flask vessels. Attaches to side arms with polypropylene screw cap and silicone liner. 316 l stainless steel construction Polypropylene screw cap White silicone gasket BOTH TUBES: .187"OD X .117" ID, SUPPLY WITH 32mm S/CAP & WHITE SILIONE LINER, NOTE: THIS PORT ASSY WILL FIT ANY 50ml SCHOTT BOTTLE OR ANY 32mm SCREW (1 per EA )

The Bellco Rocker Platforms provide a gentle uniform rocking motion, required for even coverage of media over mono-layer cell cultures, thereby maximizing cellular health and viability. Viral suspensions introduced onto a mono-layer of cells will yield higher virus titers. Additionally, rocker platforms are ideal for performing staining and destaining of gel and filter assays. They are engineered to operate between 0 to 12 oscillations per minute. Units are delivered with either a 25 x 25 cm or 51 x 51 cm tray. Additional interchangeable trays are also available. --Speed range: 0 to 12 oscillations per minute --Platform tilt: 7 fixed (1 per EA )

Universal port assembly for 32mm sidearms 2 -port sampler assembly, 316l sst material Both tubes: .187"od x .117" id Supplied with 32mm s/cap & silicone liner This port cap assembly can be used on any usage of 32mm sidearms (1 per EA )

For use with all vessels having 45mm sidearms. Inner tubes extent 1" into vessel and assembly includes a 45mm blue polypropylene open top cap and white silicone gasket. 316L stainless steel tubes Ra 32 finish or better Polypropylene screw cap (1 per EA )

The Bellco Cell Production Roller Apparatus has been designed for production of animal cells, viruses and cell products. Modular units are available from 5 to 45 bottle positions and allow easy expansion with modular add-on decks. Non-modular production units come in 45 and 50 bottle positions with over 80,000 cm2 of surface area. Rollers have a key design to eliminate slipping and are easily removable for servicing of bearings. Rollers are formulated from a chemical-resistant non-slip EDPM. All units feature a solid state control with heavy-duty DC motor and analog tachometer. Non-modular production models feature rubber bumpers, handles and a slotted rear guard. Optional All Position Drives are available for use with plastic roller bottles to prevent slipping of the light-weight bottles. An optional Stand By Drive and Alarm System provides motion and power failure alarms and has a redundant drive system that automatically drives the unit should the primary fail. (1 per EA )

Manufactured from Type 1 Class A Borosilicate Glass. 38 mm deep-skirt, nontoxic, rubber lined phenolic screw cap Replacement cap: 2029-0038a Area (cm2): 670 Replacement caps: 2029 series Dimensions: 110x285mm (2 per CS )

The Bellco Economy Roller Apparatus is a variable speed two or four bottle roller apparatus used for the purpose of producing animal cells or cell products. This small sized unit is ideal for experimental and pilot-scale cell culture. Methods developed on this unit can easily be scaled up using the same technology to production sized units with a capacity of 90, 100 or 172 bottles. Bellco’s full size modular units can be increased in capacity in 10 bottle increments as well. The unit features a heavy-duty DC motor and solid-state electronics for reliable operation. The unit includes All-Position Drive belts so that every roller rotates, thus preventing slippage of light-weight plastic bottles. An analog tachometer displays bottle speed. Bellco’s unique hex-shaped shafts prevent roller slippage and produce positive drive. (1 per EA )

316L stainless steel port assemblies are designed for use with media storage bottles for adding and withdrawing media. 3-port models feature siphon, fill and vent tubes and is supplied with a 45mm polypropylene blue open top screw cap and white silicone gasket. (1 per EA )

Borosilicate glass, type 1, class a 45 mm polypropylene screw cap provides secure seal Polypropylene pouring ring allows drip free pouring and protects rim Replacement cap: 5637-00045; pouring ring: 5637-10045 Area (cm2): 1585, OD x OAL: 110 x 570mm (1 per EA )

Stainless steel bottom base for extra strength includes four rubber feet for added stability. Carriers are dishwasher and oven safe. For use with 6L or 9L vessels or carboys. Material: stainless steel Dimensions: 17x13" Size: 36l (1 per EA )

The Bellco Mini Tube Roller is a variable speed roller unit for general laboratory usage. The compact size is ideal for experimental and pilot-scale operations. Methods developed on this unit can easily be scaled up. Robustly constructed and designed for easy cleaning, with EPDM rubber rollers to assure safe positive rotating motion. The unit has 11 rollers, five of which can be removed to accommodate various bottle dimensions. When using hybridization tubes, an o-ring (A12-1067) must be fitted on the lower end to equalize the diameter of the screw cap. When alternate rollers are removed, 3 roller bottles up to 120 mm can rotate at a maximum speed of 4 rpm. (1 per EA )

For use with sticky matt tape (7740-40000). Dimensions: 10"x14", .050" thick w/ 1/2" lip with pegs. Will fit any Bellco rocker or shaker. Plain tray - no rubber matt. (1 per EA )

316L stainless steel port assemblies are designed for use with media storage bottles for adding and withdrawing media. 3-port models feature siphon, fill and vent tubes and is supplied with a 45mm polypropylene blue open top screw cap and white silicone gasket. (1 per EA )

Bell-ennium Magnetic Stirrers are designed for both cell cultures in spinner flasks as well as for general laboratory procedures requiring the use of magnetic stirring equipment. Bell-ennium stirrers offer the laboratory researcher a wide range of capabilities and the latest innovations in stirring technology. Bell-ennium stirrers feature brushless maintenance free DC motors with drive assemblies designed for quiet operation. Stainless steel covers are stamped to show the vessel positions for accurate placement and optimum performance. The Bell-ennium single position low profile chassis measure 10 x 11 x 3 3/8” and are designed to fit side-by-side in Bellco incubators. Units are powered by standard 24V in-line power supplies and are CE compliant. (1 per EA )

Stainless steel bottom base for extra strength includes four rubber feet for added stability. Carriers are dishwasher and oven safe. For use with 6L or 9L vessels or carboys. Material: stainless steel Dimensions: 2x11" Size: 15l (1 per EA )
