Manufactured from type 1 class a Borosilicate glass. Ideal for culture aerobic & anaerobic organisms, media storage and mixing. Deep skirted screw caps protect against contamination. Supplied with rubber line black phenolic caps and graduated to approximate volumes. Size: 1L Cap: 38-415 Dimensions: 128x220mm (6 per CS )

For use circulating water bath or chiller and magnetic stir plate. Hose connection accepts 3/8" ID silicone tubing (Bellco M7965037) Available complete with micro-carrier impeller assembly or as components. Specifications: Jacket Volume (mL): 75ml Cap Size: 70mm Sidearm Cap Size (mm): 18 OD x OAH: 75x160mm (1 per EA )

Stainless steel shaft design prevents cell damage and minimizes magnetic decoupling. Sealed internal assembly requires less incubator space. For use with Bellco 1965-series Standard and Water Jacketed Spinner Flasks. Specifications: Cap Size: 70mm Flask Size: 100mL – 250mL Paddle: 2" x 1.5" (1 per EA )

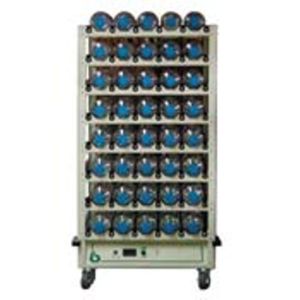

The Bellco Process Controlled Bottom Drive Roller Apparatus holds up to 50 (see specifications below) full size glass or plastic roller bottles (110 to 120 mm diameter and up to 510 mm in length). The unit features a brushless DC motor and controller that operate at bottle speeds ranging from 0.3 to 9.0 rpm with the ability to select clockwise or counter clockwise direction. Units feature brushless, maintenance-free DC motors with drive assemblies designed for quiet operation. Four corner bumpers and two locking castors (on the front wheel positions) are also provided. Rollers are easily removed for replacement by using the special tool provided with each unit. All-Position Drive facilitates the use of lightweight plastic roller bottles by ensuring rotation at each bottle station, independent of any load configurations. (1 per EA )

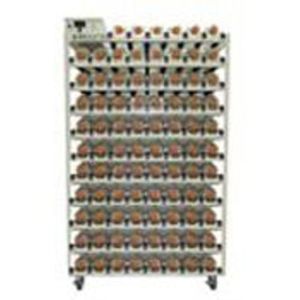

The Bellco Top Drive Roller Apparatus has been designed for production of animal cells, viruses and cell products. The unit accommodates 53 bottle positions with over 85,000 cm2 of surface area. Rollers have a key design to eliminate slipping and are easily removable for servicing of bearings. Rollers are formulated from a chemical-resistant non-slip EDPM. All units incorporate a solid state control with a brushless motor and controller, providing smooth operation and easy maintenance. All units feature rubber bumpers, handles, a slotted rear guard, and All Position Drive. The All Position Drive is designed to accommodate plastic roller bottles by preventing the slipping of the light-weight bottles. An optional Motion Alarm System provides audible and visual alarms should the primary fail. (1 per EA )

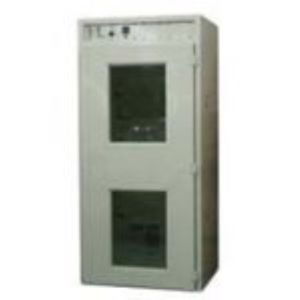

The Bellco Refrigerated Roll-In Incubators have 40 cubic feet of volume and are designed for use with Bellco’s Cell Production Roller Apparatus (CPRA). The flush-to-floor design allows easy movement of the CPRA in and out of the chamber. Four internal convenience outlets allow simple connection for internally placed appliances such as CPRA, Roller Drums, Magnetic Stirrers, etc. Shelf brackets are included for mounting optional shelves to hold these appliances. Fans take air from the chamber top, pass it over the 1100 watt heater and inject it into the chamber on the bottom back wall. When the refrigeration mode is active, the air is cooled using a thermoelectric cooler. A microprocessor temperature controller and membrane keypad allows simple setting and monitoring of chamber temperature. The control panel contains indicator lights and dials for controlling temperature. A safety thermostat is included to prevent over-temperature failures. The unit is not intended for use with CO2 environments. (1 per EA )

Manufactured from type 1 class a Borosilicate glass. Ideal for culture aerobic & anaerobic organisms, media storage and mixing. Deep skirted screw caps protect against contamination. Supplied with rubber line black phenolic caps and graduated to approximate volumes. Size: 50mL Cap: 24-415 Dimensions: 50x85mm (12 per CS )

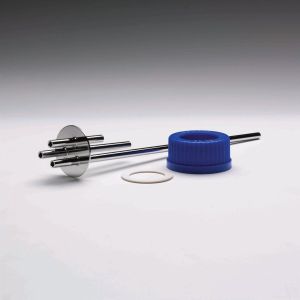

Low profile 45mm 3-port assembly for vertical low profile3L vessels Seam welded - electropolish 316l stainless steel material All tubes .250"od x .152"id Siphon tube: (long tube) 9 1/2", FILL TUBE: 3 13/16", VENT TUBE:2 5/32". SUPPLY WITH S/CAP (A523-599) & WHITE SILICONE LINER (A523-600) (1 per EA )

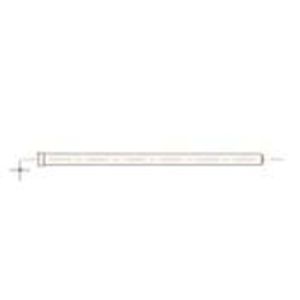

Manufactured from type 1 class a Borosilicate glass. For spinner flasks 6l to 8l Dimensions: 9mm x 400mm long (1 per EA )

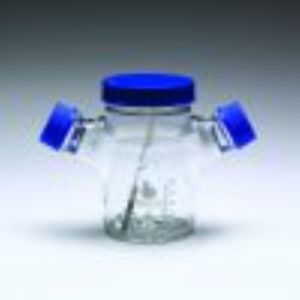

Description: Glass Ball Spinner Comp, 8000mL Size: 8000mL Material: Type 1 Class A Borosilicate Glass Flask Dimensions: 238mm OD x 420mm OAH, two 45mm sidearms offset at 30º, 100mm center neck Includes two 45mm blue PP screw caps & two 45mm blue PP pouring rings Impeller Assembly: one 100mm blue PP screw cap, 100mm Teflon cap seal, 100mm blue silicone sealing gasket, soft silicone flex tube, glass ball magnet tube, and magnet Specially Formed Bottom Indent Prevents Accumulation under impeller Glass ball houses a magnet for gentle agitation of Micro carrier Beads (1 per EA )

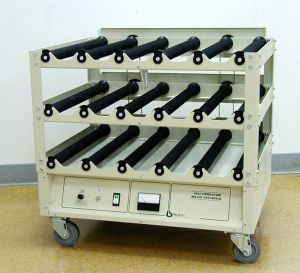

The Bellco Cell Production Roller Apparatus has been designed for production of animal cells, viruses and cell products. Modular units are available from 5 to 45 bottle positions and allow easy expansion with modular add-on decks. Non-modular production units come in 45 and 50 bottle positions with over 80,000 cm2 of surface area. Rollers have a key design to eliminate slipping and are easily removable for servicing of bearings. Rollers are formulated from a chemical-resistant non-slip EDPM. All units feature a solid state control with heavy-duty DC motor and analog tachometer. Non-modular production models feature rubber bumpers, handles and a slotted rear guard. (1 per EA )

Manufactured from Type 1 Class A Borosilicate Glass. Designed for culturing organisms that require a large surface area to volume ratio. Flask is supplied with a GL45 blue polypropylene linerless screw cap and pouring ring. WITHOUT BAFFLES Specifications: Type 1 Class A Borosilicate Glass Sizes: 2800ml OD X OAH (MM):210 X 225 Case Quantity: 1 (1 per EA )

Manufactured from type 1 class a Borosilicate glass. Screw cap sold separately Size: 16 x 150mm Replacement cap: 2029-00016 (144 per CS )

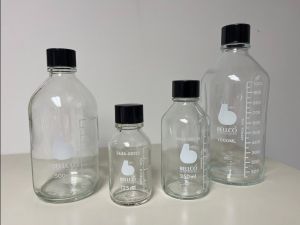

Manufactured from Type1 Class B Borosilicate Glass. Large opening and sloping shoulders facilitate pouring and cleaning. Heavier walls prevent breakage of glass. Media storage bottles have white graduations and a marking area. They are supplied with rubber lined black phenolic screw cap. Specifications: Type 1 Class B Borosilicate Glass Sizes: 1L (33)mm Cap OD x OAH: 103 x 231 Case Quantity: 6 (6 per CS )

The Bellco Orbital Shaker is a compact, heavy-duty variable speed shaker. It is used for the agitation of electrophoretic gels and filter assay media for staining, destaining and assay development. The Shaker accommodates a variety of vessels. It is continuously adjustable from 30 to 350 RPM. This Bellco design incorporates an orbital platform that accepts a variety of optional trays. A variety of tray models are available, including three equipped with flask clamps for common sizes of flasks. Peg and Grommet style trays make changing convenient. (1 per EA )

Ideal for growing, storing and mixing or aerobic and anaerobic cultures. The 3 bottom baffles increase culture oxygenation. Includes 25mm Bellco stainless steel closure (2005 series) Specifications: Type 1 Class A Borosilicate Glass Sizes: 300ml Includes: Bellco Stainless Steel Closure (2005 Series) Sidearm Dimensions: 14x130mm Case Quantity: 4 (4 per CS )

Manufactured from type 1 class a Borosilicate glass. For spinner flasks 15l to 36l Dimensions: 9mm x 500mm long (1 per EA )

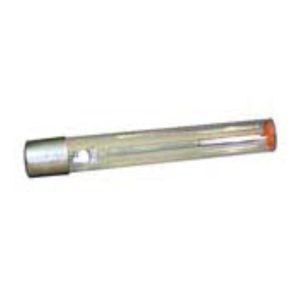

Manufactured from type 1 class a Borosilicate glass. Bottom pad prevents chipping and breaking of pipette tips. All components can and will withstand repeated dry or steam heat serialization. Supplied stainless steel closure. Case qty-7 (6 per CS )

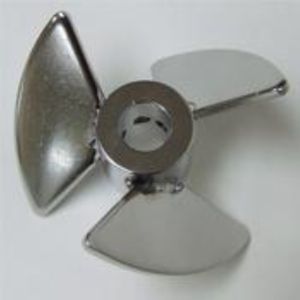

Stainless steel pitch blade for 10l bioreactor systems . Right hand upward. Material: 316L SST with Electropolish finish OD: 3/1/4" (1 per EA )

45mm 3-port assembly for 1964 style over head drive vessels, 36l Sealed weld – electropolish finish Supplied with 45mm s/cap & white silicone liner 316l SST material, ra 32 finish or better 1 – siphon tube; 18" long 1 – fill tube; 3 3/16" 1 - VENT TUBE; 1" LONG. LENGTHS ARE MEASURED FROM TOP OF S/A TO BTTM OF TUBE (1 per EA )

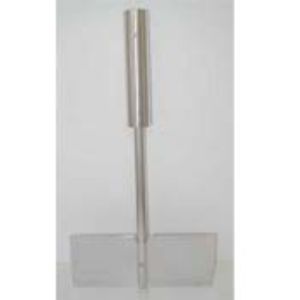

Short width stainless steel folding impeller assembly for standard bioreactor vessels 6l 316 l stainless steel Ra finish 32 micro inch or better (wxl) 3" x 5 1/4" (1 per EA )

The Bellco Cell Production Roller Apparatus has been designed for production of animal cells, viruses and cell products. Modular units are available from 5 to 45 bottle positions and allow easy expansion with modular add-on decks. Non-modular production units come in 45 and 50 bottle positions with over 80,000 cm2 of surface area. Rollers have a key design to eliminate slipping and are easily removable for servicing of bearings. Rollers are formulated from a chemical-resistant non-slip EDPM. All units feature a solid state control with heavy-duty DC motor and analog tachometer. Non-modular production models feature rubber bumpers, handles and a slotted rear guard. (1 per EA )

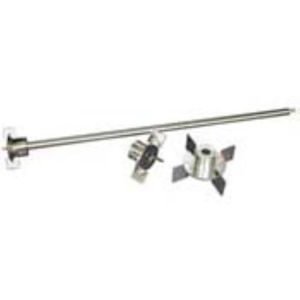

H/S Vertical Lift Impeller-8L Complete. Consist Of: 7764-75008 & 7764-76008. Dimensions: (Shaft) ; 5/8"OD X 18 3/4" Long, (Disk); 3" OD. 316L Sst (1 per EA )

Seam welded with electropolished finish 3-port with siphon, fill and vent tubes Includes 45mm pp cap and silicone gasket 500ml with 100mm cap Longest tube: 1.5" (1 per EA )
