Containers

The Bellco Bench Top Incubator was designed for the incubation of cell cultures and bacteria within laboratories where space is a premium. The instrument panel is mounted on top for easy viewing and manipulation. Glass door models allow the viewing of cultures without having to open the door limiting possible contamination problems and temperature fluctuations. The convenient interior accessory outlet allows the use of Bellco 4 and 10 Position Roller Apparatus, Rockers, Shakers and Magnetic Stirrers. Optional stainless steel shelf creates additional space for storing cell culture plates and flasks. (1 per EA )

Manufactured from type 1 class a Borosilicate glass. Media storage and dispensing flask with bottom hose connection, accepts 1/2" tubing. Graduated to approximate volumes and the heavy duty break resistant neck provides an excellent fit for rubber stoppers. Not for vacuum use. Size: 6L Dimensions:250x394mm (2 per CS )

Shake Flask W/3 Baffles. -Ideal For Preliminary Fermentation And Bacterial Growth Studies -Delong Style Neck And Three Side Baffles Borosilicate Glass Type 1, Class A -Closures Sold Seperately Baffle Dimensions: 4Mm Dp X 35° Case Qty: 12 (12 per CS )

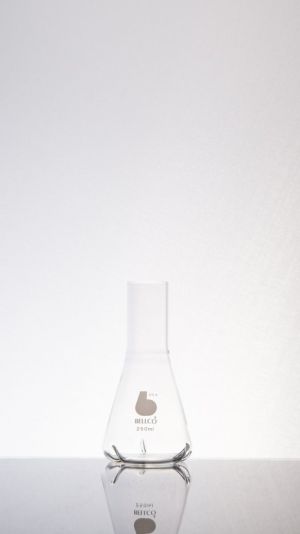

Manufactured from Type 1 Class A Borosilicate Glass. The 3 side and bottom baffles are used for optimal agitation. 38mm DeLong style neck. Specifications: Type 1 Class A Borosilicate Glass Sizes: 250ml Dimensions: 80x160mm Closure Sizes: 38 Case Quantity: 12 (12 per CS )

Fits in adjustable clips inside the incubator. Has 1.75" x 0.375" holes for air flow Material: 304 stainless steel Loads: 120lbs. Supply with 4 shelf brackets Dimensions: 25"x34" (1 per EA )

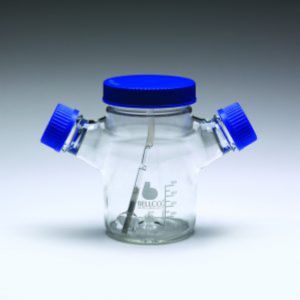

Description: Glass Ball Spinner Flask Only Size: 8000mL Material: Type 1 Class A Borosilicate Glass Dimensions: 238mm OD x 420mm Overall Height, 270mm across sidearms Two 45mm Sidearms angled 30° offset center 100mm Screw Thread Center Neck Dimpled Bottom Graduations: 500mL to 8000mL, every 500mL – White Ink (Approx Volumes) Supply with: Two 45mm PP Blue Screw Caps & PP Blue Pouring Rings (1 per EA )

Manufactured from type 1 class a Borosilicate glass. Ideal for culture aerobic & anaerobic organisms, media storage and mixing. Deep skirted screw caps protect against contamination. Supplied with rubber line black phenolic caps and graduated to approximate volumes. Size: 300mL Cap: 38-415 Dimensions: 88x150mm (12 per CS )

Manufactured from type 1 class a Borosilicate glass. Ideal for all cell culture and media storage purposes. Provides flexible secure seal without a liner. Supplied with gl45 liner-less screw cap and pouring rings. Graduated to approximate volumes. Size: 4L Dimensions: 205x325mm (1 per EA )

Manufactured from Type 1 Class A Borosilicate Glass. Ideal for culturing organisms requiring a large surface to volume. DeLong style neck and uses 38mm stainless steel closure (sold separately) Specifications: Type 1 Class A Borosilicate Glass Sizes: 2800ml OD x OAH: 205 x 250mm Case Quantity: 3 (3 per CS )

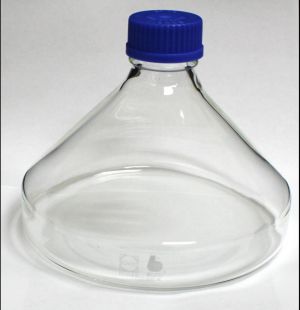

Manufactured from Type 1 Class A Borosilicate Glass. Designed for culturing organisms that require a large surface area to volume ratio. Flask is supplied with a GL45 blue polypropylene linerless screw cap and pouring ring. Specifications: Type 1 Class A Borosilicate Glass Sizes: 2800ml OD X OAH (MM):210 X 225 Case Quantity: 1 (1 per EA )

Type 1 class a Borosilicate glass ideal for freeze drying or cryogenic storage. Tubular firing off constriction on the neck. Rigidly controller bottom to withstand pressure at low temperature. Tubular round bottom Length:145mm Neck od: 8mm Capacity: 2ml (144 per CS )

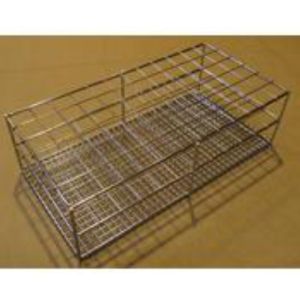

Will not rust or deteriorate in water baths or co2 atmospheres. Manufactured from 303 stainless steel with electropolish finish. Each opening rack 1 1/16" (26.9mm) Tube size: 25mm Spacing: 6x12 holds 72 tubes Dimensions: 13 3/4" x 7" x 3 15/16" WIRE SPECIFICATIONS: SIDE & UPRIGHTS: .162"OD WIRE, CROSS WIRE: 0.063" OD WIRE, BTTM MESH: 1/4" Minimum order requirement: 5 each (1 per EA )

3000mL Bell-Flo™ Spinner Flask Flask Specifications: Material: Type 1 Class A Borosilicate Glass Dimensions: 165mm OD x 290mm Overall Height, 252.7mm across sidearms Two 45mm sidearms angled 53° off the centerline One 100mm Screw Thread Center Neck Indented Bottom: Prevents dead spot under impeller Side Baffles: Three equally spaced baffles, 100mm long x 9mm deep Supply with: Two 45mm PP Blue Screw Caps & PP Blue Pouring Rings (1 per EA )

Description: Glass Ball Impeller Assembly Only Size: 500mL Screw Cap: Blue PP, 100mm OD x 22.4mm T Cap Seal: Teflon, 95.3mm OD x 10.4mm T Sealing Ring: Blue silicone rubber, 91.4mm OD x 76.2mm ID x 6.1mm T Flex Tube: Soft silicone, 57.2mm OAL, 0.312” OD x 0.248” ID Magnet Tube: Type 1 Class A Borosilicate Glass, 110mm OAL, 28mm OD ball, houses one cast alnico magnet (1 per EA )

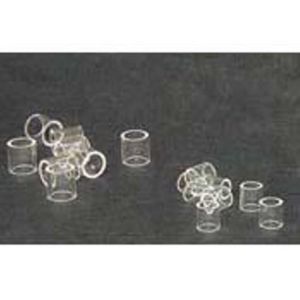

For use in the disinfectant testing procedure as described in aqac manual. Cylinder ends are lightly glazed. Hard surface carrier test for efficacy of testing of disinfectants. Sizes: 8x10mm (125 per CS )

Manufactured from type 1 class a Borosilicate glass. Ideal for growing, storing and mixing of aerobic and anaerobic cultures. Graduated to approximate volumes Size: 4l Closure: 38 Dimensions: 205x370mm (3 per CS )

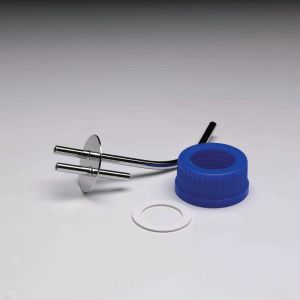

Thermowell assemblies are used to hold inside one tube the rtd temperature sensor that monitors the temperature within the vessel in conjunction with a temperature controller. There are also tubes for addition of media and vent tube. • Thermowell assemblies for 1965 and 1967-style angled sidearm flasks, 3-port • 5/16" od thermowell tube,1/4" siphon and vent tubes • Includes 45mm pp cap and silicone gasket • Seam welded and electropolished • Longest tube length: 12 1/2" (1 per EA )

Bell-Flo iob assembly was designed to be used with the bell-flo vessel with bottom indents and 3 vertical baffles for optimal mixing. Rugged stainless steel ptfe internal bearing impeller assemblies utilize a wing style impeller blade that increases mixing. 1000mL Bell-Flo™ Internal Overhead Bearing Assembly Internal Overhead Bearing Assembly Specifications: Consists of screw cap, cap seal, sealing ring, compression washer, ball bearing spacer, ball bearing, bearing thimble, magnet, o-ring, magnet holder, shaft, & paddle 100mm PP Blue Screw Cap: 82.6mm OD x 22.4mm tall PTFE Cap Seal: 95.3mm OD x 25mm long Red Silicone Sealing Ring: 86mm OD x 76.2mm ID x 6.1mm thick White Silicone Compression Washer: 27.0mm OD x 12.7mm ID x 1.6mm thick PTFE Ball Bearing Spacer: 19.1mm OD x 12.7mm ID x 22.4mm deep PBT & SST Ball Bearing: 19.1mm OD x 6.4mm ID x 7.1mm deep PTFE Bearing Thimble: 31.8mm OD x 19.1mm ID x 38.1mm long PTFE Magnet: 9.5mm OD x 41.3mm long Silicone O-ring: 7.9mm OD x 4.8mm ID PTFE Magnet Holder: 19.1mm OD x 127mm long 316L SST Shaft: 6.4mm OD x 174.6mm long PTFE Paddle: 82.6mm wide x 127mm long x 1.6mm thick (1 per EA )

Manufactured from type 1 class a Borosilicate glass. Ideal for culture aerobic & anaerobic organisms, media storage and mixing. Deep skirted screw caps protect against contamination. Supplied with rubber line black phenolic caps and graduated to approximate volumes. Size: 500mL Cap: 38-415 Dimensions: 100x190mm (12 per CS )

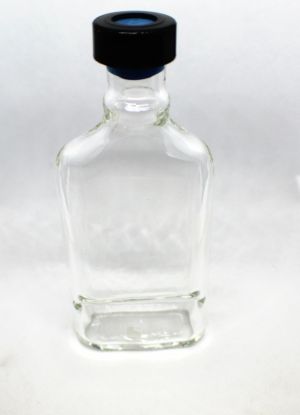

Manufactured from type 1 class a Borosilicate glass. Specifications: Capacity: 80ml Dimensions: 55mm wide x 135mm long x 30mm deep Dam in bottle,, 25mm from bottom Neck size; 25mm Supplied with 25mm screw cap(2535-00025)& stopper (2048-11800) (1 per EA )

Ideal for growing, storing and mixing or aerobic and anaerobic cultures. Threaded neck and sidearm with clean-out port. Supplied with 38mm and 18mm rubber lined black phenolic screw caps. Specifications: Type 1 Class A Borosilicate Glass Sizes: 300mL Includes: 38mm And 18mm Black Phenolic Screw Caps Sidearm Dimensions: 14x130mm Case Quantity: 4 (4 per CS )

Ideal for growing, storing and mixing or aerobic and anaerobic cultures. Threaded neck and sidearm with clean-out port. Supplied with 38mm and 18mm rubber lined black phenolic screw caps. Specifications: Type 1 Class A Borosilicate Glass Sizes: 300mL Includes: 38mm And 18mm Black Phenolic Screw Caps Sidearm Dimensions: 19x130mm Case Quantity: 4 (4 per CS )

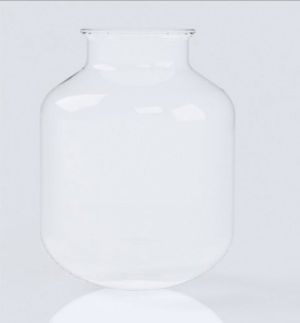

15L round bottom omni vessel 292 x 500mm Heavy walled construction for cell culture and fermentation applications. Heavy duty o-ring flange creates positive seal for stainless steel head-plate. For use with stainless steel head-plate, o-ring, and locking clamp. Use with series 500 controllers or with CellTrol (no speed) and OHD or high speed motor system. Use with 200mm large flange headplate (1 per EA )

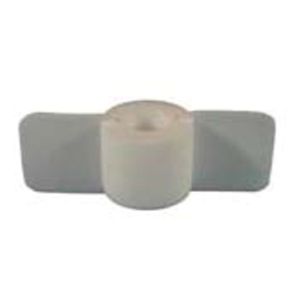

Adjustable PTFE Microcarrier paddle blades only , 15-36L Paddle dimensions: 1 1/2" x 3 3/8" (1 per EA )
