This category holds impellers, shafts and stand hardware for laboratory overhead stirrers. Impeller styles include anchor, cross, paddle, straight, plain and square blades, centrifugal blades, screw and two-blade propellers, turbines and U-shaped blades. Materials are solid PTFE, PTFE-coated, 316L stainless steel (including an electropolished anchor on a 914 mm shaft) and polypropylene, with most shafts from 400 mm to 650 mm long and blade sizes from about 50 mm to 150 mm. Support parts include boss heads, a mixing stand and a universal-joint stir adapter.

Choose the impeller for the fluid and vessel. Propellers and turbines suit lower-viscosity liquids, anchors sweep near the vessel walls for thicker materials, and centrifugal blades fold to pass through narrow flask necks. Make sure the shaft diameter fits your stirrer's chuck and the length reaches the bottom of your vessel. Use PTFE or PTFE-coated parts for corrosive chemicals and 316L stainless for strength, and check model-specific listings, such as the propeller for LT/LR-400/500.

Overhead Stirrer Parts: common questions

What is an overhead stirrer impeller?

The impeller is the blade or paddle on the end of the shaft that moves the liquid. The overhead stirrer motor turns the shaft, and the impeller's shape sets the flow pattern: propellers push liquid mostly up and down along the shaft, turbines and flat blades push it outward, and anchors sweep close to the vessel wall. Impellers are interchangeable as long as the shaft fits the chuck.

Which impeller should I use for viscous samples?

For thick materials, anchor and paddle impellers are common choices because their large blades move bulk material and sweep near the vessel walls at low speed. Propellers and turbines work best in lower-viscosity liquids at higher speeds. Check that your stirrer has enough torque for the viscosity and volume, and follow the impeller maker's speed limits.

How does a centrifugal stirrer fit through a flask neck?

Centrifugal stirrers have hinged blades that hang down along the shaft when stopped, so they slide through narrow openings such as a round-bottom flask neck. As the shaft spins, the blades swing outward and mix the contents. When the stirrer stops, the blades fold back so the shaft can be removed.

Are PTFE or stainless steel stirrer blades better?

PTFE and PTFE-coated impellers resist most acids, bases and solvents and are a common choice for corrosive mixtures, but they are softer and less rigid. 316L stainless steel is stronger and handles heavier loads and higher torque, but it can be attacked by some acids and halide solutions. Check chemical compatibility for your materials before choosing.

Overhead Stirrer Parts

Filters
Set Descending Direction

76 items

Page
per page
View as List Grid
  1. Stirrer Centrifugal, PTFE 400mm
    Manufacturer: Dynalon
    Stirrer Centrifugal, PTFE 400mm (1 per EA)
    Learn More
    was $141.64 Special Price $114.77
  2. Stirrer Anchor, PTFE 550mm
    Manufacturer: Dynalon
    Stirrer Anchor, PTFE 550mm (1 per EA)
    Learn More
    was $217.32 Special Price $176.07
  3. Stirrer Blades Square, PTFE 90mm
    Manufacturer: Dynalon
    Stirrer Blades Square, PTFE 90mm (1 per EA)
    Learn More
    was $21.82 Special Price $17.67
  4. Stirrer Shaft 40x0.7 cm Propeller
    Manufacturer: Ohaus Corporation
    Stirrer Shaft 40x0.7 cm Propeller (1 per EA)
    Learn More
    was $184.95 Special Price $149.43
  5. Shaft Only for Blades, PTFE 550mm
    Manufacturer: Dynalon
    Shaft Only for Blades, PTFE 550mm (1 per EA)
    Learn More
    was $146.71 Special Price $118.86
  6. Stirrer Anchor, PTFE 500mm
    Manufacturer: Dynalon
    Stirrer Anchor, PTFE 500mm (1 per EA)
    Learn More
    was $141.64 Special Price $114.77
  7. Stirrer Shaft 40x0.7 cm Folding Blade
    Manufacturer: Ohaus Corporation
    Stirrer Shaft 40x0.7 cm Folding Blade (1 per EA)
    Learn More
    was $184.95 Special Price $149.43
  8. Stirrer Centrifugal, PTFE 550mm
    Manufacturer: Dynalon
    Stirrer Centrifugal, PTFE 550mm (1 per EA)
    Learn More
    was $189.54 Special Price $153.57
  9. Stirrer Blades Plain, PTFE 65mm
    Manufacturer: Dynalon
    Stirrer Blades Plain, PTFE 65mm (1 per EA)
    Learn More
    was $17.61 Special Price $14.27
  10. 2-blade propeller , DIA28mm for LT/LR-400/500
    Manufacturer: Yamato Scientific America
    2-Blade Propeller for LR, LT400, 500 Lab Stirrers, 1.10" dia. (1 per EA )
    Learn More
    was $55.00 Special Price $51.83
  11. Shaft Only for Blades, PTFE 500mm
    Manufacturer: Dynalon
    Shaft Only for Blades, PTFE 500mm (1 per EA)
    Learn More
    was $130.14 Special Price $105.45
  12. Centrifrugal stirrer, PTFE coated. Shaft 300mm long x 6mm diameter. Impeller width 90mm.
    Manufacturer: Scilogex
    Centrifugal stirrer,PTFE-coated (1 per EA)
    Learn More
    was $108.00 Special Price $85.05
  13. Straight stirrer, PTFE coated. Shaft 300mm long x 6mm diameter. Impeller width 70mm.
    Manufacturer: Scilogex
    Straight stirrer,PTFE-coated (1 per EA)
    Learn More
    was $108.00 Special Price $85.05

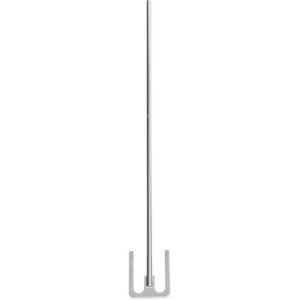

  14. Stirrer Shaft 40x0.7 cm Anchor Blade
    Manufacturer: Ohaus Corporation
    Stirrer Shaft 40x0.7 cm Anchor Blade (1 per EA)
    Learn More
    was $177.95 Special Price $143.77
  15. Paddle stirrer, PTFE coated. Shaft 300mm long x 6mm diameter. Impeller 67mm width x 67mm height.
    Manufacturer: Scilogex
    Blade stirrer,PTFE-coated (1 per EA)
    Learn More
    was $108.00 Special Price $85.05

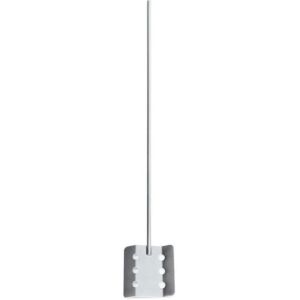

  16. Stirrer Shaft 51x0.7 cm Paddle 6 Holes
    Manufacturer: Ohaus Corporation
    Stirrer Shaft 51x0.7 cm Paddle 6 Holes (1 per EA)
    Learn More
    was $184.95 Special Price $149.43
  17. Stirrer Shaft 40x0.7 cm Floating Blade
    Manufacturer: Ohaus Corporation
    Stirrer Shaft 40x0.7 cm Floating Blade (1 per EA)
    Learn More
    was $184.95 Special Price $149.43
  18. Stirrer Blades Square, PTFE 76mm
    Manufacturer: Dynalon
    Stirrer Blades Square, PTFE 76mm (1 per EA)
    Learn More
    was $18.60 Special Price $15.08
  19. Stirrer Blades Plain, PTFE 75mm
    Manufacturer: Dynalon
    Stirrer Blades Plain, PTFE 75mm (1 per EA)
    Learn More
    was $18.60 Special Price $15.08
  20. Stirrer Adapter Size 21
    Manufacturer: Kimble Chase
    Stirrer Assembly Adapters for Connecting Shafts to Stirrer Motors For use with stirrer motors. Aluminum. Fits 8-10mm diameter shaft. (1 per EA)
    Learn More
    $57.81
  21. Stirrer Blades Plain, PTFE 125mm
    Manufacturer: Dynalon
    Stirrer Blades Plain, PTFE 125mm (1 per EA)
    Learn More
    was $22.85 Special Price $18.52
  22. Shaft Only for Blades, PTFE 650mm
    Manufacturer: Dynalon
    Shaft Only for Blades, PTFE 650mm (1 per EA)
    Learn More
    was $189.54 Special Price $153.57
  23. Support Stand Telescopic-H
    Manufacturer: Ohaus Corporation
    Support Stand Telescopic-H (1 per EA)
    Learn More
    was $814.95 Special Price $658.27
  24. 2-blade propeller , DIA100mm for LT/LR-400/500
    Manufacturer: Yamato Scientific America
    2-Blade Propeller for LR, LT400, 500 Lab Stirrers, 3.93" dia. (1 per EA )
    Learn More
    was $55.00 Special Price $51.83
