Equipment

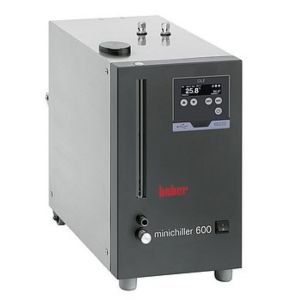

Minichiller 600 OLÉ with new controller "OLÉ" Chiller Temperature range: -20 ... 40 (80)°C Cooling capacity 15°C: 0,6 kW Cooling capacity 0°C: 0,5 kW Pressure pump max.: 24 l/min / 0,7 bar Suction pump max. : 18 l/min / 0,4 bar Pump connection: M16x1 male Power supply: 208-240V 1~/2~ 50/60Hz - with refrigerant R-290 - RS232/serial with the LAI commands G,v,L; (SpyLight compatible) (1 per EA )

HB960 with controller "Pilot ONE" Heating Circulator Temperature range: 60 ... 250 °C Heating capacity: 96 kW Pressure pump max.: 200 l/min / 5,5 bar Pump connection: M38x1,5 male Power supply: 460V 3~ 60Hz (1 per EA )

Minichiller 600w-H with controller "Pilot ONE" Chiller Temperature range: -20 ... 100 °C Cooling capacity (15°C): 0,6 kW Cooling capacity (0°C): 0,5 kW Heating capacity: 1,6 - 2,1 kW Pressure pump max.: 24 l/min / 0,7 bar Suction pump max. : 18 l/min / 0,4 bar Pump connection: M16x1 male Power supply: 208-240V 1~/2~ 50/60Hz - with natural refrigerant (1 per EA )

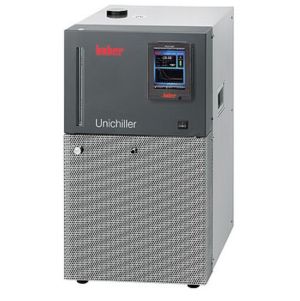

Unichiller P007 with controller "Pilot ONE" Chiller Temperature range: -20 ... 40 °C Cooling capacity (15°C): 0,7 kW Cooling capacity (0°C): 0,55 kW Pressure pump max.: 25 l/min / 2,5 bar Pump connection: G3/4 male Power supply: 208-240V 1~/2~ 50/60Hz - with natural refrigerant Unichiller „P“ Models: Circulating pumps with a high discharge pressure for applications with high pressure drops. (1 per EA )

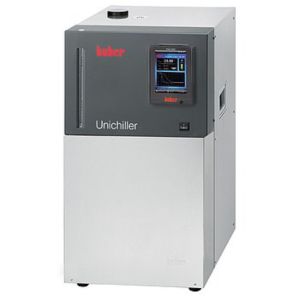

Unichiller P007w with controller "Pilot ONE" Chiller Temperature range: -20 ... 40 °C Cooling capacity (15°C): 0,7 kW Cooling capacity (0°C): 0,55 kW Pressure pump max.: 25 l/min / 2,5 bar Pump connection: G3/4 male Power supply: 208-240V 1~/2~ 50/60Hz - with natural refrigerant Unichiller „P“ Models: Circulating pumps with a high discharge pressure for applications with high pressure drops. (1 per EA )

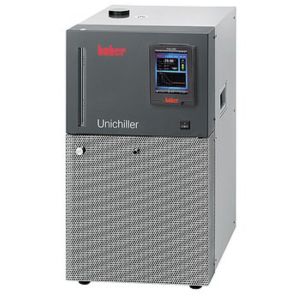

Unichiller 015-H with controller "Pilot ONE" Chiller Temperature range: -20 ... 100 °C Cooling capacity (15°C): 1,5 kW Cooling capacity (0°C): 1 kW Heating capacity: 1,6 - 2 kW Pressure pump max.: 29 l/min / 1 bar Pump connection: G3/4 male Power supply: 208-230V 1~/2~ 60Hz - with refrigerant R-290 (1 per EA )

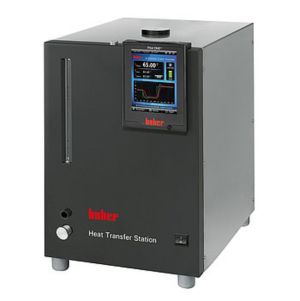

HTS 50 with controller "Pilot ONE" Heat Exchanger Unit Temperature range: (3) ... (95) °C Cooling power at 20°C: 50 kW max. delivery pressure 4,7 bar max. delivery 240 l/min Pump connection: G1 1/4 male Power supply: 460V 3~ 60Hz (1 per EA )

HB240 with controller "Pilot ONE" Heating Circulator Temperature range: 60 ... 250 °C Heating capacity: 24 kW Pressure pump max.: 100 l/min / 3,5 bar Pump connection: M30x1,5 male Power supply: 460V 3~ 60Hz (1 per EA )

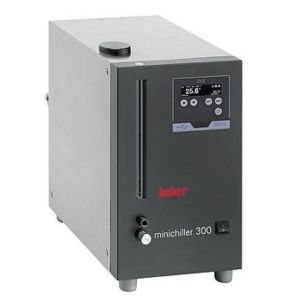

Minichiller 300 OLÉ with new controller "OLÉ" Chiller Temperature range: -20 ... 40 (80)°C Cooling capacity 15°C: 0,3 kW Cooling capacity 0°C: 0,2 kW Pressure pump max.: 14 l/min / 0,25 bar Suction pump max. : 10,5 l/min / 0,17 bar Pump connection: M16x1 male Power supply: 110-120V 1~ 60Hz - with natural refrigerant - RS232/serial with the LAI commands G,v,L; (SpyLight compatible) (1 per EA )

Ministat 240 with controller "Pilot ONE" Refrigerated Heating Circulator Bath Temperature range: -45 ... 200 °C Cooling capacity (20°C): 0,6 kW Cooling capacity (0°C): 0,55 kW Cooling capacity (-40°C): 0,05 kW Heating capacity: 1,6 kW Pressure pump max.: 22 l/min / 0,7 bar Suction pump max. : 16 l/min / 0,4 bar Pump connection: M16x1 male Bath volume: 5,5 l Power supply: 208V 2~ 60Hz - with natural refrigerant (1 per EA )
