Equipment

CC-E with controller "Pilot ONE" Immersion Circulator Temperature Range: (-30) 25 ... 200 °C Heating capacity: 1-1,5 kW Pressure pump max.: 27 l/min / 0,7 bar Suction pump max.: 22 l/min / 0,4 bar Power supply: 100-115V 1~ 50/60Hz optional: Pump connection: M16x1 male (1 per EA )

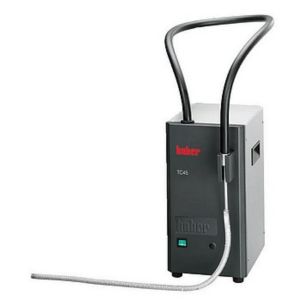

TC45-F Immersion Cooler Temperature range: -45 ... 100 °C Cooling capacity (0°C): 0,24 kW Cooling capacity (-40°C): 0,05 kW Power supply: 110-120V 1~ 50/60Hz with flexible evaporator coil and natural refrigerant (1 per EA )

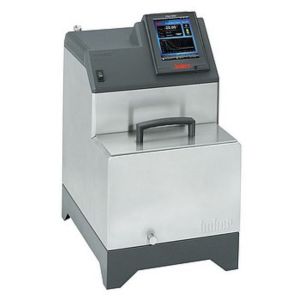

Ministat 240w with controller "Pilot ONE" Refrigerated Heating Circulator Bath Temperature range: -45 ... 200 °C Cooling capacity (20°C): 0,6 kW Cooling capacity (0°C): 0,55 kW Cooling capacity (-40°C): 0,05 kW Heating capacity: 1,6 kW Pressure pump max.: 22 l/min / 0,7 bar Suction pump max. : 16 l/min / 0,4 bar Pump connection: M16x1 male Bath volume: 5,5 l Power supply: 208V 2~ 60Hz - with natural refrigerant (1 per EA )

Minichiller 600 with controller "Pilot ONE" Chiller Temperature range: -20 ... 40 (80)°C Cooling capacity (15°C): 0,6 kW Cooling capacity (0°C): 0,5 kW Pressure pump max.: 24 l/min / 0,7 bar Suction pump max. : 18 l/min / 0,4 bar Pump connection: M16x1 male Power supply: 110-120V 1~ 60Hz - with natural refrigerant (R-290) (1 per EA )

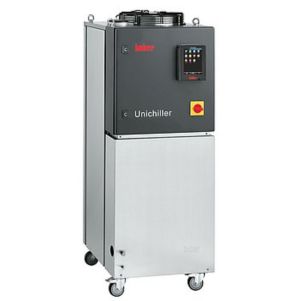

Unichiller 040T with controller "Pilot ONE" Chiller Temperature range: -10 ... 40 °C Cooling capacity (15°C): 4 kW Cooling capacity (0°C): 2,5 kW Pressure pump max.: 31 l/min / 4 bar Pump connection: G3/4 male Power supply: 460V 3~ 60Hz - with natural refrigerant (R-290) (1 per EA )

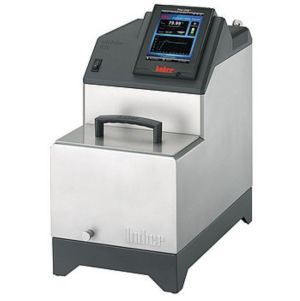

Ministat 230w with controller "Pilot ONE" Refrigerated Heating Circulator Bath Temperature range: -40 ... 200 °C Cooling capacity (20°C): 0,42 kW Cooling capacity (0°C): 0,38 kW Cooling capacity (-40°C): 0,05 kW Heating capacity: 1,5 kW Pressure pump max.: 22 l/min / 0,7 bar Suction pump max. : 16 l/min / 0,4 bar Pump connection: M16x1 male Bath volume: 3,5 l Power supply: 110-120V 1~ 60Hz - with natural refrigerant (R-290) (1 per EA )

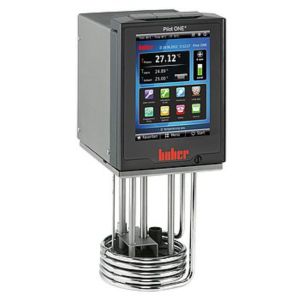

CC-E xd with controller "Pilot ONE" Immersion Circulator Temperature Range: (-30) 25 ... 200 °C Heating capacity: 1-1,5 kW Pressure pump max.: 22 l/min / 0,4 bar Suction pump max.: 17 l/min / 0,25 bar Power supply: 100-115V 1~ 50/60Hz optional: Pump connection: M16x1 male - Depth of immersion 195mm (1 per EA )

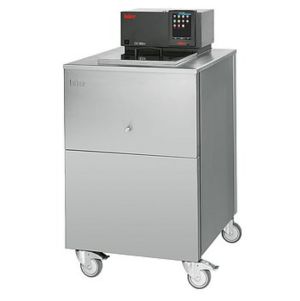

CC-906w with controller "Pilot ONE" Refrigerated Heating Circulator Bath Temperature range: -90 ... 200 °C Cooling capacity (20°C): 3 kW Cooling capacity (0°C): 3 kW Cooling capacity (-40°C): 2,4 kW Cooling capacity (-80°C): 0,55 kW Heating capacity: 3 kW Pressure pump max.: 25 l/min / 0,7 bar Suction pump max. : 18,5 l/min / 0,4 bar Pump connection: M16x1 male Bath volume: 30 l Power supply: 460V 3~ 60Hz - with natural refrigerant (R-1270) - with natural refrigerant (R-170) (1 per EA )

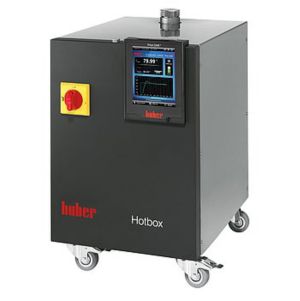

HB720 with controller "Pilot ONE" Heating Circulator Temperature range: 60 ... 250 °C Heating capacity: 72 kW Pressure pump max.: 200 l/min / 5,5 bar Pump connection: M38x1,5 male Power supply: 460V 3~ 60Hz (1 per EA )

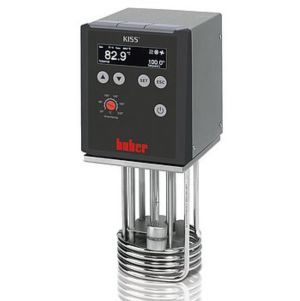

KISS E with controller "KISS" Immersion Circulator Temperature Range: (-30) 25 ... 200 °C Heating capacity: 1-1,5 kW Pressure pump max.: 14 l/min / 0,25 bar Suction pump max.: 10,5 l/min / 0,17 bar Power supply: 100-115V 1~ 50/60Hz optional: Pump connection: M16x1 male - RS232/serial with the LAI commands G,v,L; (SpyLight compatible) (1 per EA )

CC-906w with controller "Pilot ONE" Refrigerated Heating Circulator Bath Temperature range: -90 ... 200 °C Cooling capacity (20°C): 3 kW Cooling capacity (0°C): 3 kW Cooling capacity (-40°C): 2,4 kW Cooling capacity (-80°C): 0,55 kW Heating capacity: 3 kW Pressure pump max.: 25 l/min / 0,7 bar Suction pump max. : 18,5 l/min / 0,4 bar Pump connection: M16x1 male Bath volume: 30 l Power supply: 460V 3~ 60Hz - with refrigerant R-507 - with refrigerant R-23 (1 per EA )

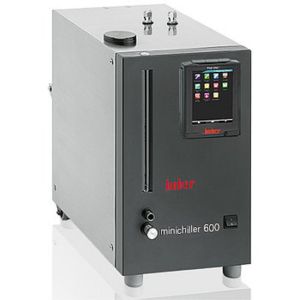

Minichiller 600 with controller "Pilot ONE" Chiller Temperature range: -20 ... 40 (80)°C Cooling capacity (15°C): 0,6 kW Cooling capacity (0°C): 0,5 kW Pressure pump max.: 24 l/min / 0,7 bar Suction pump max. : 18 l/min / 0,4 bar Pump connection: M16x1 male Power supply: 208-240V 1~/2~ 50/60Hz - with natural refrigerant (R-290) (1 per EA )

Unichiller 040T-H with controller "Pilot ONE" Chiller Temperature range: -10 ... 100 °C Cooling capacity (15°C): 4 kW Cooling capacity (0°C): 2,5 kW Heating capacity: 2 kW Pressure pump max.: 31 l/min / 4 bar Pump connection: G3/4 male Power supply: 460V 3~ 60Hz - with natural refrigerant (R-290) (1 per EA )

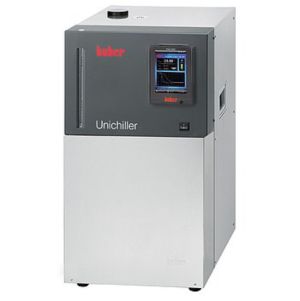

Unichiller P007w-H with controller "Pilot ONE" Chiller Temperature range: -20 ... 100 °C Cooling capacity (15°C): 0,7 kW Cooling capacity (0°C): 0,55 kW Heating capacity: 1,8-2,1 kW Pressure pump max.: 25 l/min / 2,5 bar Pump connection: G3/4 male Power supply: 208-240V 1~/2~ 50/60Hz - with natural refrigerant Unichiller „P“ Models: Circulating pumps with a high discharge pressure for applications with high pressure drops. (1 per EA )

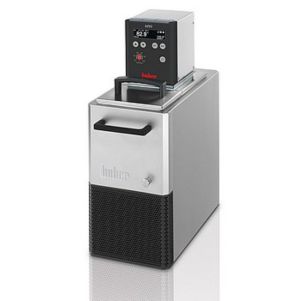

KISS K6 with new controller "KISS" Refrigerated Heating Bath Temperature Range: -25 ... 200 °C Cooling capacity 20°C: 0,2 kW Cooling capacity 0°C: 0,15 kW Cooling capacity -20°C: 0,05 kW Heating capacity: 1,5 kW Pressure pump max.: 14 l/min / 0,25 bar Suction pump max.: 10,5 l/min / 0,17 bar Pump connection: M16x1 male Bath volume: 4,5 l Power supply: 110-120V 1~ 50/60Hz - with natural refrigerant - RS232/serial with the LAI commands G,v,L; (SpyLight compatible) (1 per EA )

KISS K25 with new controller "KISS" Refrigerated Heating Bath Temperature Range: -30 ... 200 °C Cooling capacity 20°C: 0,4 kW Cooling capacity 0°C: 0,35 kW Cooling capacity -20°C: 0,16 kW Heating capacity: 1,5 kW Pressure pump max.: 14 l/min / 0,25 bar Suction pump max.: 10,5 l/min / 0,17 bar Bath volume: 23,5 l Power supply: 110-120V 1~ 50/60Hz optional: Pump connection: M16x1 male - with natural refrigerant - RS232/serial with the LAI commands G,v,L; (SpyLight compatible) (1 per EA )

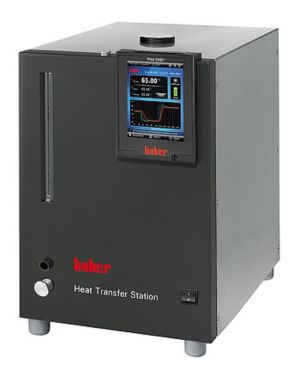

HTS 30 with controller "Pilot ONE" Heat Exchanger Unit Temperature range: (3) ... (95) °C Cooling power at 20°C: 30 kW max. delivery pressure 4,7 bar max. delivery 240 l/min Pump connection: G1 1/4 male Power supply: 460V 3~ 60Hz Thermal fluid- primary circuit water 3/20°C (max. 6 bar) Thermal fluid - secondary circuit water 3°C to 95°C (1 per EA )

Ministat 230 with controller "Pilot ONE" Refrigerated Heating Circulator Bath Temperature range: -40 ... 200 °C Cooling capacity (20°C): 0,42 kW Cooling capacity (0°C): 0,38 kW Cooling capacity (-40°C): 0,05 kW Heating capacity: 1,6 - 2,1 kW Pressure pump max.: 22 l/min / 0,7 bar Suction pump max. : 16 l/min / 0,4 bar Pump connection: M16x1 male Bath volume: 3,5 l Power supply: 208-240V 1~/2~ 50/60Hz - with natural refrigerant (1 per EA )

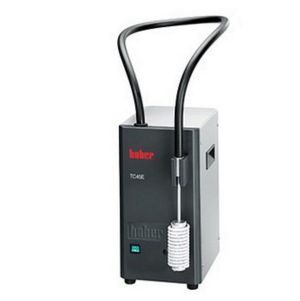

TC45 Immersion Cooler Temperature range: -45 ... 100 °C Cooling capacity (0°C): 0,24 kW Cooling capacity (-40°C): 0,05 kW Power supply: 110-120V 1~ 50/60Hz - with natural refrigerant (1 per EA )

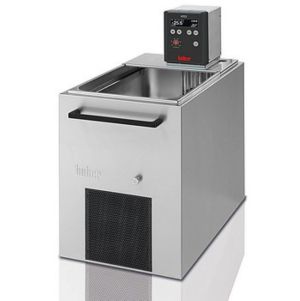

KISS K20 with new controller "KISS" Refrigerated Heating Bath Temperature Range: -30 ... 200 °C Cooling capacity 20°C: 0,4 kW Cooling capacity 0°C: 0,35 kW Cooling capacity -20°C: 0,16 kW Heating capacity: 1,5 kW Pressure pump max.: 14 l/min / 0,25 bar Suction pump max.: 10,5 l/min / 0,17 bar Bath volume: 17 l Power supply: 110-120V 1~ 50/60Hz optional: Pump connection: M16x1 male - with natural refrigerant - RS232/serial with the LAI commands G,v,L; (SpyLight compatible) (1 per EA )

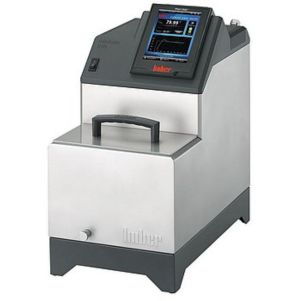

Ministat 230 with controller "Pilot ONE" Refrigerated Heating Circulator Bath Temperature range: -40 ... 200 °C Cooling capacity (20°C): 0,42 kW Cooling capacity (0°C): 0,38 kW Cooling capacity (-40°C): 0,05 kW Heating capacity: 1,5 kW Pressure pump max.: 22 l/min / 0,7 bar Suction pump max. : 16 l/min / 0,4 bar Pump connection: M16x1 male Bath volume: 3,5 l Power supply: 110-120V 1~ 60Hz - with natural refrigerant (1 per EA )

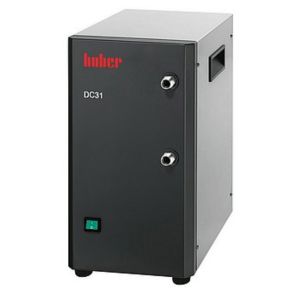

DC31 Flowcooler Temperature range: -30 ... 50 °C Cooling capacity (15°C): 0,4 kW Cooling capacity (0°C): 0,35 kW Pump connection: M16x1 male Power supply: 110-120V 1~ 50/60Hz - with natural refrigerant (1 per EA )

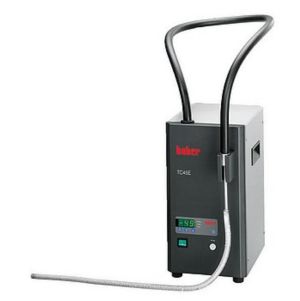

TC45E-F Immersion Cooler Temperature range: -45 ... 100 °C Cooling capacity (0°C): 0,24 kW Cooling capacity (-40°C): 0,05 kW Power supply: 110-120V 1~ 50/60Hz with flexible evaporator coil and natural refrigerant (1 per EA )

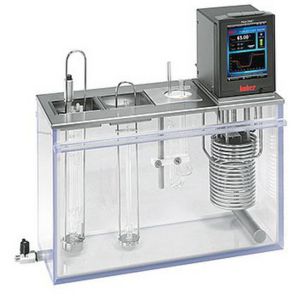

CC-130A Visco 3 with controller "Pilot ONE" Clear View Circulator Bath Temperature Range: (15) 28 ... 100 °C Heating capacity: 1-1,5 kW Pressure pump max.: 27 l/min / 0,7 bar Pump connection: M16x1 male Bath volume: 30 l Power supply: 100-115V 1~ 50/60Hz (1 per EA )
