Chillers

TC45-F Immersion Cooler Temperature range: -45 ... 100 °C Cooling capacity (0°C): 0,24 kW Cooling capacity (-40°C): 0,05 kW Power supply: 110-120V 1~ 50/60Hz with flexible evaporator coil and natural refrigerant (1 per EA )

Minichiller 600 with controller "Pilot ONE" Chiller Temperature range: -20 ... 40 (80)°C Cooling capacity (15°C): 0,6 kW Cooling capacity (0°C): 0,5 kW Pressure pump max.: 24 l/min / 0,7 bar Suction pump max. : 18 l/min / 0,4 bar Pump connection: M16x1 male Power supply: 110-120V 1~ 60Hz - with natural refrigerant (R-290) (1 per EA )

Unichiller 040T with controller "Pilot ONE" Chiller Temperature range: -10 ... 40 °C Cooling capacity (15°C): 4 kW Cooling capacity (0°C): 2,5 kW Pressure pump max.: 31 l/min / 4 bar Pump connection: G3/4 male Power supply: 460V 3~ 60Hz - with natural refrigerant (R-290) (1 per EA )

Minichiller 600 with controller "Pilot ONE" Chiller Temperature range: -20 ... 40 (80)°C Cooling capacity (15°C): 0,6 kW Cooling capacity (0°C): 0,5 kW Pressure pump max.: 24 l/min / 0,7 bar Suction pump max. : 18 l/min / 0,4 bar Pump connection: M16x1 male Power supply: 208-240V 1~/2~ 50/60Hz - with natural refrigerant (R-290) (1 per EA )

Unichiller 040T-H with controller "Pilot ONE" Chiller Temperature range: -10 ... 100 °C Cooling capacity (15°C): 4 kW Cooling capacity (0°C): 2,5 kW Heating capacity: 2 kW Pressure pump max.: 31 l/min / 4 bar Pump connection: G3/4 male Power supply: 460V 3~ 60Hz - with natural refrigerant (R-290) (1 per EA )

Unichiller P007w-H with controller "Pilot ONE" Chiller Temperature range: -20 ... 100 °C Cooling capacity (15°C): 0,7 kW Cooling capacity (0°C): 0,55 kW Heating capacity: 1,8-2,1 kW Pressure pump max.: 25 l/min / 2,5 bar Pump connection: G3/4 male Power supply: 208-240V 1~/2~ 50/60Hz - with natural refrigerant Unichiller „P“ Models: Circulating pumps with a high discharge pressure for applications with high pressure drops. (1 per EA )

HTS 30 with controller "Pilot ONE" Heat Exchanger Unit Temperature range: (3) ... (95) °C Cooling power at 20°C: 30 kW max. delivery pressure 4,7 bar max. delivery 240 l/min Pump connection: G1 1/4 male Power supply: 460V 3~ 60Hz Thermal fluid- primary circuit water 3/20°C (max. 6 bar) Thermal fluid - secondary circuit water 3°C to 95°C (1 per EA )

TC45 Immersion Cooler Temperature range: -45 ... 100 °C Cooling capacity (0°C): 0,24 kW Cooling capacity (-40°C): 0,05 kW Power supply: 110-120V 1~ 50/60Hz - with natural refrigerant (1 per EA )

DC31 Flowcooler Temperature range: -30 ... 50 °C Cooling capacity (15°C): 0,4 kW Cooling capacity (0°C): 0,35 kW Pump connection: M16x1 male Power supply: 110-120V 1~ 50/60Hz - with natural refrigerant (1 per EA )

TC45E-F Immersion Cooler Temperature range: -45 ... 100 °C Cooling capacity (0°C): 0,24 kW Cooling capacity (-40°C): 0,05 kW Power supply: 110-120V 1~ 50/60Hz with flexible evaporator coil and natural refrigerant (1 per EA )

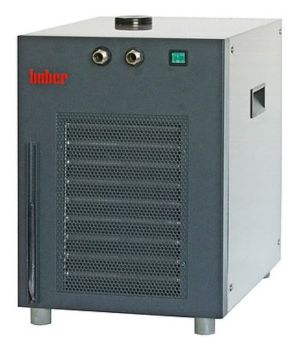

HTS 15 with controller "Pilot ONE" Heat Exchanger Unit Temperature range: (3) ... (95) °C Cooling power at 20°C: 15 kW max. delivery pressure 2,5 bar max. delivery 25 l/min Pump connection: G3/4 male Power supply: 200-240V 1~/2~ 50/60Hz Thermal fluid- primary circuit water 3/20°C (max. 6 bar) Thermal fluid - secondary circuit water 3°C to 95°C (1 per EA )

DC30 Flowcooler Temperature range: -30 ... 50 °C Cooling capacity (15°C): 0,2 kW Cooling capacity (0°C): 0,15 kW Pump connection: M16x1 male Power supply: 110-120V 1~ 50/60Hz - with natural refrigerant (1 per EA )

DC32 Flowcooler Temperature range: -30 ... 50 °C Cooling capacity (15°C): 0,6 kW Cooling capacity (0°C): 0,47 kW Pump connection: M16x1 male Power supply: 110-120V 1~ 50/60Hz - with natural refrigerant (1 per EA )

TC45E Immersion Cooler Temperature range: -45 ... 100 °C Cooling capacity (0°C): 0,24 kW Cooling capacity (-40°C): 0,05 kW Power supply: 110-120V 1~ 50/60Hz with natural refrigerant (1 per EA )

TC45 Immersion Cooler Temperature range: -45 ... 100 °C Cooling capacity (0°C): 0,24 kW Cooling capacity (-40°C): 0,05 kW Power supply: 208-240V 1~/2~ 50/60Hz - with natural refrigerant (1 per EA )

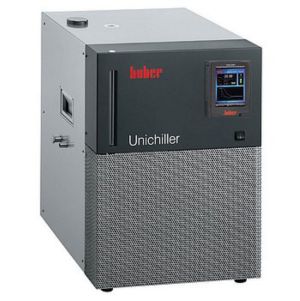

Unichiller P015 with controller "Pilot ONE" Chiller Temperature range: -20 ... 40 °C Cooling capacity (15°C): 1,5 kW Cooling capacity (0°C): 1 kW Pressure pump max.: 25 l/min / 2,5 bar Pump connection: G3/4 male Power supply: 208-230V 1~/2~ 60Hz - with natural refrigerant (R-290) Unichiller „P“ Models: Circulating pumps with a high discharge pressure for applications with high pressure drops. (1 per EA )

TC50E Immersion Cooler Temperature range: -50 ... 50 °C Cooling capacity (0°C): 0,3 kW Power supply: 110-120V 1~ 50/60Hz - with natural refrigerant (1 per EA )

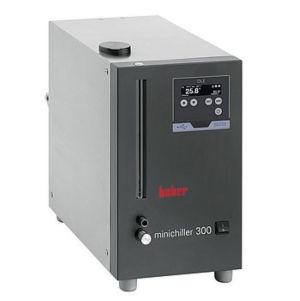

Minichiller 300w OLÉ with new controller "OLÉ" Chiller Temperature range: -20 ... 40 (80)°C Cooling capacity 15°C: 0,3 kW Cooling capacity 0°C: 0,2 kW Pressure pump max.: 14 l/min / 0,25 bar Suction pump max. : 10,5 l/min / 0,17 bar Pump connection: M16x1 male Cooling water connection: G1/2 male Power supply: 110-120V 1~ 60Hz - with natural refrigerant - RS232/serial with the LAI commands G,v,L; (SpyLight compatible) (1 per EA )

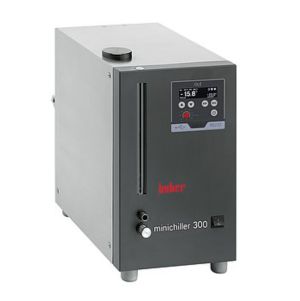

Minichiller 300w-H OLÉ with new controller "OLÉ" Chiller Temperature range: -20 ... 100 °C Cooling capacity 15°C: 0,3 kW Cooling capacity 0°C: 0,2 kW Heating capacity: 1 kW Pressure pump max.: 14 l/min / 0,25 bar Suction pump max. : 10,5 l/min / 0,17 bar Pump connection: M16x1 male Cooling water connection: G1/2 male Power supply: 110-120V 1~ 60Hz - with natural refrigerant - RS232/serial with the LAI commands G,v,L; (SpyLight compatible) (1 per EA )

Unichiller P007-H OLÉ with new controller "OLÉ" Chiller Temperature range: -20 ... 100 °C Cooling capacity 15°C: 0,7 kW Cooling capacity 0°C: 0,55 kW Heating capacity: 1,6 - 2,1 kW Pressure pump max.: 25 l/min / 2,5 bar Pump connection: G3/4 male Power supply: 208-240V 1~/2~ 50/60Hz - with natural refrigerant Unichiller „P“ Models: Circulating pumps with a high discharge pressure for applications with high pressure drops. (1 per EA )

Piccolo 280 OLÉ with new controller "OLÉ" Refrigerated Heating Circulator Temperature range: 4 ... 70 °C Cooling capacity: at 20°C: 0,28 kW at 4°C: 0,03 kW Heating capacity: at 70°C: 0,1 kW at 4°C: 0,7 kW Pressure pump max.: 1,85 l/min / 0,95 bar Pump connection: Connector with hose barb Power supply: 100-240V 1~/2~ 50/60Hz (1 per EA )

Unichiller 015-H OLÉ with new controller "OLÉ" Chiller Temperature range: -20 ... 100 °C Cooling capacity 15°C: 1,5 kW Cooling capacity 0°C: 1 kW Heating capacity: 1,6 - 2 kW Pressure pump max.: 29 l/min / 1 bar Pump connection: G3/4 male Power supply: 208-230V 1~/2~ 60Hz - with natural refrigerant (R-290) (1 per EA )

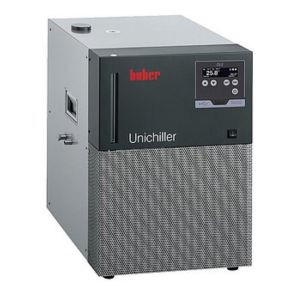

Unichiller P015 OLÉ with new controller "OLÉ" Chiller Temperature range: -20 ... 40 °C Cooling capacity 15°C: 1,5 kW Cooling capacity 0°C: 1 kW Pressure pump max.: 25 l/min / 2,5 bar Pump connection: G3/4 male Power supply: 208-230V 1~/2~ 60Hz - with natural refrigerant (R-290) Unichiller „P“ Models: Circulating pumps with a high discharge pressure for applications with high pressure drops. (1 per EA )

Unichiller P015-H OLÉ with new controller "OLÉ" Chiller Temperature range: -20 ... 100 °C Cooling capacity 15°C: 1,5 kW Cooling capacity 0°C: 1 kW Heating capacity: 1,6 - 2 kW Pressure pump max.: 25 l/min / 2,5 bar Pump connection: G3/4 male Power supply: 208-230V 1~/2~ 60Hz - with natural refrigerant (R-290) Unichiller „P“ Models: Circulating pumps with a high discharge pressure for applications with high pressure drops. (1 per EA )
