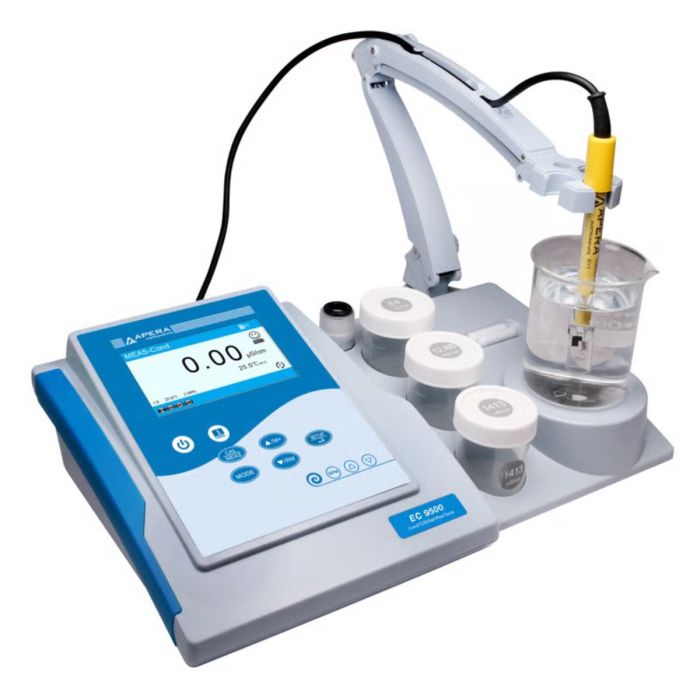

Premium Series Research-grade GLP Benchtop Cond./TDS/Salinity/Resistivity Meter Kit with TestBench (printer sold separately)

• Instrument Features

  • Advanced, Intuitive Interface — Plain-language menus and graphic screen prompts eliminate the need for extensive manual reading or training. Multi-language support includes English, German, Spanish, and Chinese.

  • Powerful Data Management —Manual/automatic data logger with 2000 sets of GLP-compliant data storage, including electrode ID, user ID, sample ID, company name, and optional calibration password protection.

    Export data via USB to PC or a mini-printer (sold separately).

  • i-Guide On-Screen Tutorials — Press the “i” key at any time for step-by-step setup and calibration instructions displayed directly on the screen.

  • Apera TestBench Included — Integrated workstation with a flexible electrode holder, intelligent magnetic stirrer, and buffer organizers — dramatically streamlines calibration and measurement workflows.

  Conductivity/TDS/Salinity/Resistivity Measurement

  • 2401T-F Conductivity Electrode (Included) — Glass-body delivers high-accuracy measurements from 0 to 200 mS/cm at ±0.5% F.S accuracy.

  • Flexible Conductivity Calibration — 1 to 4 point auto. calibration with standard solutions (84 µS/cm, 1413 µS/cm, 12.88 mS/cm, 111.8 mS/cm) or user-defined standards.

  • Quick Parameter Switching — One-tap conversion among conductivity, TDS, salinity, and resistivity.

  • Multiple Salinity Modes — Select from general salinity, saltwater salinity, or NaCl salinity.

  • Broad Compatibility — Standard BNC conductivity connector; compatible with 2310T-F (up to 2000 mS/cm) and DJS-0.1-F for high-purity water. Uses RCA temperature connector (NTC 30KΩ).

  Parameter Settings Menu

  Menu	Parameter	Options	Default
  Conductivity / TDS / Salinity	Cell Constant	10 / 1.0 / 0.1	1.0
  	Calibration Standard	Standard / CH / User	Standard
  	Calibration Info	Check / Print	Check
  	Calibration Reminder	Off / Hour / Day	Off
  	Reference Temp.	15–30°C	25°C
  	Temp. Compensation Coefficient	0.00–10.00%	2.00%
  	TDS Factor	0.40–1.00	0.71
  	Salinity Type	Linear / NaCl / Saltwater (Seawater)	Linear
  	Electrode ID	Custom Input	---
  	Back to Factory Default	No / Yes	No
  Data Management	Logging Destination	Memory / Printer / PC	Memory
  	Logging Mode	Manual / Auto	Manual
  	Printing Format	Simple / Complete	Simple
  	Delete Data	Yes / No	No
  General Settings	Sample ID	Custom Input	---
  	User ID	Custom Input	---
  	Company Name	Custom Input	---
  	Calibration Password	Custom Input	None
  	Display Info	Simple / Complete	Simple
  	Auto Hold	On / Off	Off
  	Temperature Unit	°C / °F	°C
  	Date Format	YYYY-MM-DD / MM-DD-YYYY / DD-MM-YYYY	YYYY-MM-DD
  	Language	English / German / Spanish / French / Italian / Chinese / Japanese	English




  What's in the Kit?

  Item	Quantity
  EC9500 pH/Conductivity Meter	1
  606 Test-Bench (with flexible electrode holder)	1
  2401T-F Conductivity Electrode (ATC, K=1.0)	1
  Conductivity Calibration Solutions (84 µS / 1413 µS / 12.88 mS, 50mL each)	3
  Stirrer Power Cable	1
  USB Cable	1
  PC-Link 9500 Flash Drive	1
  9V Adapter	1
  Calibration Vials	3
  L200 Stir Beads	3
  User Manual	1

  onductivity	Range	0~2000 mS/cm, divided into five ranges, automatically switch measuring range. (0 to 19.99) μS/cm; (20.0 to 199.9) μS/cm;  (200 to 1999) μS/cm; (2.00 to 19.99) mS/cm; (20.0 to 199.9) mS/cm (200.0 to 2000) mS/cm
  	Resolution	0.01/0.1/1μ/cm; 0.01/0.1/1 mS/cm
  	Accuracy	±0.5% F.S ± digit
  	Temp. Compensation Range	0 to 50°C (auto. or manual)
  	Cell Constant	0.1/1/10 cm-1
  	Reference Temp.	15 to 30°C (adjustable)
  	Temp. Compensation Coefficient	0.00 to 10.00% (adjustable)
  	Calibration Points	1 to 4 points
  	Standard Series Options	Standard, CH, User-Define
  TDS	Range	0.00 mg/L to 1000 g/L
  	Resolution	0.01/0.1/1mg/L; 0.01/0.1/1 g/L
  	Accuracy	±0.5% F.S
  	Temp. Compensation Range	0 to 50°C (auto. or manual)
  	TDS Factor	0.40 to 1.00 (adjustable)
  Salinity	Range	0.00 to 100 ppt
  	Resolution	0.01/0.1 ppt
  	Accuracy	±0.5% F.S
  	Temp. Compensation Range	0 to 50°C (auto. or manual)
  	Salinity Type	Linear / NaCl / Saltwater
  Resistivity	Range	0.00 Ω·m to 100MΩ·m
  	Resolution	0.1/1 Ω·m; 0.01/0.1/1KΩ·m; 0.1 MΩ·m
  	Accuracy	±0.5% F.S
  	Temp. Compensation Range	0 to 50°C (auto. or manual)
  Temperature	Range	-10.0 to 110.0°C
  	Resolution	0.1°; 0.1/1°
  	Accuracy	±.5°

Manufacturer Part Number/SKU: EC9500-EA

Tags: Apera Instruments
