High Precision Benchtop Conductivity/TDS/Salinity/Resistivity Meter Kit
Manufacturer: Apera Instruments
Product Details
- Highest conductivity accuracy: ±0.5% F.S.
- The BPB Glass Conductivity Electrode ensure Quick & Accurate EC measurements in wide ranges (0 to 2000 mS/cm)
- The large backlit LCD displays conductivity and temperature simultaneously along with icons of stable readings and finished calibrations.
- Quick and Easy 1 to 4 points auto calibration with calibration guide and reminder function (premixed standard solutions included)
- GLP Data management (500 groups of data storage)
- USB data output and software support
The Apera Instruments EC820 Precision Benchtop Conductivity Meter provides reliable conductivity measurements with various intelligent functions and a durable structure. Equipped with Apera's high-precision BPB (Brush-Resistant Platinum Black) glass conductivity/Temp. electrode (2401T-F), the meter measures Conductivity (EC)/TDS/Salinity/Resistivity/Temperature in a stable and accurate manner in wide ranges (0 to 2000 mS); Accuracy: ±0.5% F.S.
Intelligent Functions:
Quick & Easy 1 to 4 Points Auto Calibration (84μS/cm, 1413μS/cm, 12.88mS/cm, 111.8mS/cm). The Smart Self-Diagnosis helps you conduct proper calibrations and monitor the condition of your probes with electrode's slope data display. The large clear LCD displays EC/TDS/Salinity/Resistivity and temperature simultaneously along with icons of stable readings and finished calibrations.
GLP Data management (500 groups of data storage), USB data output and PC software support. Timing measurement/data logging mode and Smart calibration reminder function available.
Reliable Structure:

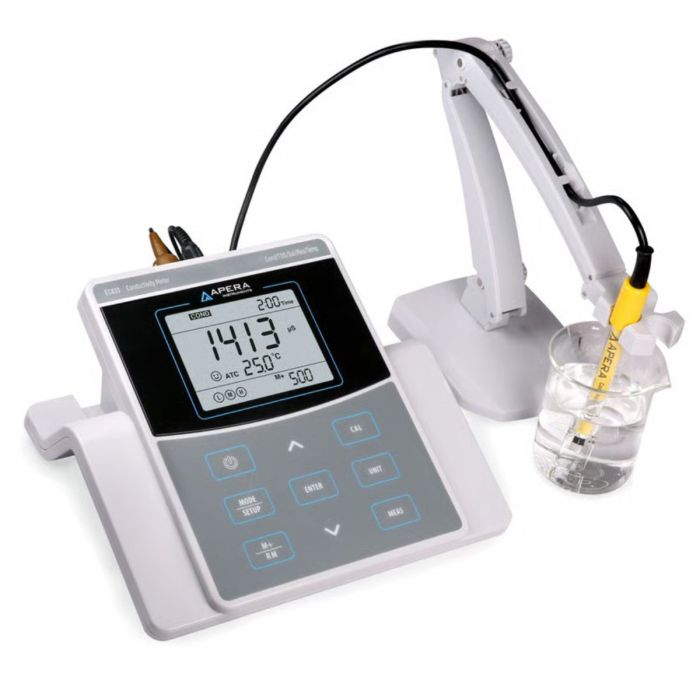

IP54 Water-resistant. It comes with a complete test kit including an EC820 Precision Benchtop Conductivity Meter, a Conductivity/Temp. Electrode, a flexible electrode arm and holder, a USB cable, a PC-Link Software flash drive (Windows-based system only), a power adaptor (input: 120V AC 60Hz; Output: 9V--300mA), and 3 bottles of calibration solutions (84μS/cm, 1413μS/cm, 12.88mS/cm). The product is CE certified and comes with a Three-Year Warranty for the meter, and a 6-Month warranty for the electrodes.
| Parameter | Model | EC820 |
| Conductivity | Electrode | 2401T-F Glass Conductivity Electrode |
| Measuring Range | 0 to 2000 mS/cm, include: | |
| TDS: (0 to 100) g/L | ||
| Salinity: (0 to 100) ppt | ||
| Resistivity: (0 to 100) MΩ?cm | ||
| Resolution | 0.01/0.1/1μS/cm; | |
| Accuracy | ±0.5% F.S. | |
| Temp. Compensation Range | 0 to 50°C (32 to 122°F) Auto or Manual | |
| Electrode Constant | 0.01/0.1/1/10 cm-1 | |
| Temperature | Measuring Range | -10 to 110°C (14 to 230°F) |
| Resolution | 0.1°C | |
| Accuracy | ±0.4°C ±1 digit | |
| Others | Data Storage | 500 Groups |
| Storage Content | Numberings, Date, Time, | |
| Data Output | USB | |
| Power Supply | Input: 120V AC 60Hz; Output: DC9V/300mA, 2.7VA | |
| IP Rating | IP54 splash-proof and dust-proof | |
| Dimensions and Weight | (**) inches / pounds With box: (10*10*7) inches / 6.5 pounds approx. |
Manufacturer Part Number/SKU: EC820-EA
