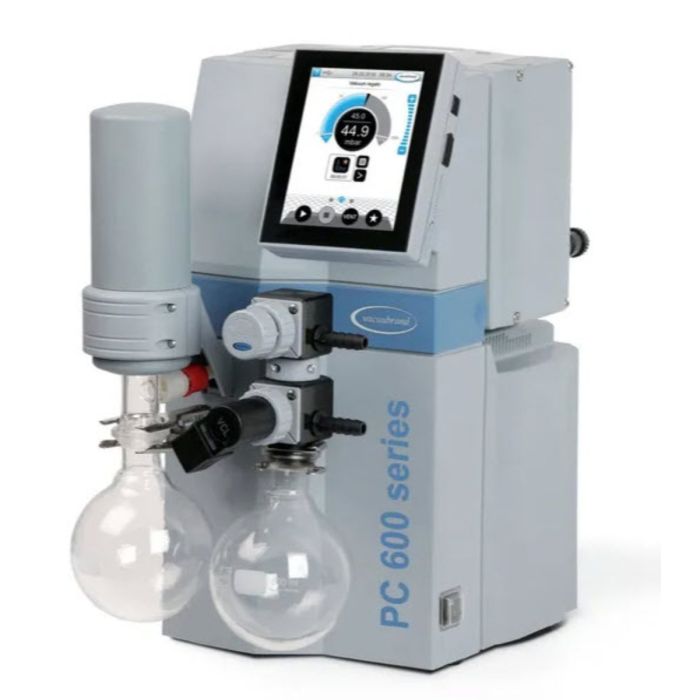

PC 611 select, 100-115 V, 50-60 Hz, 120 V, 60 Hz
$18,140.00
PC 611 select, 100-115 V, 50-60 Hz, 120 V, 60 Hz (1 per EA)
Manufacturer: Brandtech Scientific
SKU
20737253-EA
PC 611 select, 100-115 V, 50-60 Hz, 120 V, 60 Hz is available to buy in increments of 1
Product Details
Technical data and graphs
•
| Max. pumping speed 50 Hz | 3.4 m3/h | Select diagram |
| Max. pumping speed 60 Hz | 2.2 cfm | Select diagram |
| Ultimate vacuum | 1.5 mbar / 1.1 torr | |
| Ultimate vacuum with gas ballast | 3 mbar / 2.2 torr | |
| Number of heads | 4 | |
| Number of stages | 3 | |
| Vacuum controller | VACUU·SELECT | |
| Lower ambient temperature (operation) | 10 °C | |
| Upper ambient temperature (operation) | 40 °C | |
| Lower ambient temperature (storage) | -10 °C | |
| Upper ambient temperature (storage) | 60 °C | |
| Max. back pressure (abs.) | 1.1 bar | |
| Inlet connection | 2 x hose nozzle DN 8-10 mm | |
| Outlet connection | Hose nozzle DN 8-10 mm |
