Bottle top filters screw onto the neck of a receiving bottle and use vacuum to pull liquid through a membrane, a fast way to sterilize or clarify media, buffers and reagents. This category includes sterile, disposable PES units of 150 to 1000 mL with 0.1, 0.2/0.22 and 0.45 µm membranes, among them the Autofil and Diamond PureFlow lines. It also has non-sterile polypropylene units with nylon or PTFE membranes for solvent filtration, 50 mL filter top tubes, matching sterile solution bottles, and a vacuum pedestal. Brands include Foxx Life Sciences, CELLTREAT and Globe Scientific.

Choose the pore size by purpose: 0.2 or 0.22 µm for sterile filtration, 0.45 µm for clarification or prefiltration, and 0.1 µm where mycoplasma removal is the goal. Pick the membrane for the liquid: PES for culture media and aqueous solutions, nylon for general aqueous and some solvents, and PTFE for organic solvents. Then match the funnel volume and membrane diameter to your batch size, confirm the thread (for example GL45) fits your bottles, and choose sterile units for cell culture.

Bottle Top Filters: common questions

What is a bottle top filter?

A bottle top filter is a filter funnel with a built-in membrane that attaches to the neck of a storage bottle. When a vacuum is applied through the side port, liquid in the funnel is drawn through the membrane into the bottle. It is used to sterilize or clarify culture media, buffers and other solutions in volumes of about 150 mL to 1 L, and disposable sterile units go straight from package to use.

Should I use a 0.2 µm or 0.45 µm bottle top filter?

Use 0.2 or 0.22 µm when you need a sterile filtrate, such as for cell culture media or buffers, because these membranes are rated to retain bacteria. Use 0.45 µm to clarify a solution or prefilter it, for example to remove particles before HPLC or before a final 0.2 µm step. For solutions that clog filters quickly, prefiltering through 0.45 µm can make the sterile filtration faster.

Which bottle top filter membrane is best for tissue culture media and serum?

PES (polyethersulfone) is widely used for culture media, serum-containing solutions and other aqueous biological liquids, because it has low protein binding and fast flow rates. Cellulose acetate is another low-binding option. For serum or other heavily loaded solutions, a larger membrane diameter or a prefilter helps prevent clogging. Use sterile, individually wrapped or case-packed units for culture work.

What is a PTFE bottle top filter used for?

PTFE membranes are chemically resistant and naturally hydrophobic, so PTFE bottle top filters are used mainly for organic solvents, such as filtering HPLC mobile phases. They usually come in a non-sterile polypropylene housing. For aqueous solutions, a hydrophilic membrane such as PES or nylon is normally a better choice, because hydrophobic PTFE resists water flow unless it is prewetted.

Bottle Top Filters

Filters
Set Descending Direction

70 items

Page
per page
View as List Grid

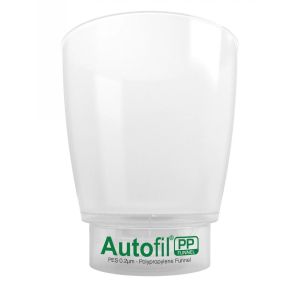

  1. Autofil PP - Disposable Vacuum Bottle Top Filters for Solvent Filtration, with 0.2um Sterilizing PES Membrane, 1L (1000mL), GL45 Thread, Polypropylene Housing, Non-Sterile, 12/CS
    Manufacturer: Foxx Life Sciences
    Autofil PP - Disposable Vacuum Bottle Top Filters for Solvent Filtration, with 0.2um Sterilizing PES Membrane, 1L (1000mL), GL45 Thread, Polypropylene Housing, Non-Sterile, 12/CS (12 per CS )
    Learn More
    was $209.27 Special Price $180.60
  2. EZBio®pure Feed Systems, 250mL Bottle Top Filter, 0.10µm Membrane, PP Natur
    Manufacturer: Foxx Life Sciences
    EZBio®pure Feed Systems, 250mL Bottle Top Filter, 0.10µm Membrane, PP Natur (4 per CS )
    Learn More
    was $704.90 Special Price $608.34
  3. EZBio®pure Feed Systems, 250mL Bottle Top Filter, 0.22µm Membrane, PP Natur
    Manufacturer: Foxx Life Sciences
    EZBio®pure Feed Systems, 250mL Bottle Top Filter, 0.22µm Membrane, PP Natur (4 per CS )
    Learn More
    was $704.23 Special Price $607.76
  4. EZBio®pure Feed Systems, 1L Bottle Top Filter, 0.22µm Membrane, PP Natural
    Manufacturer: Foxx Life Sciences
    EZBio®pure Feed Systems, 1L Bottle Top Filter, 0.22µm Membrane, PP Natural (4 per CS )
    Learn More
    was $789.66 Special Price $681.49

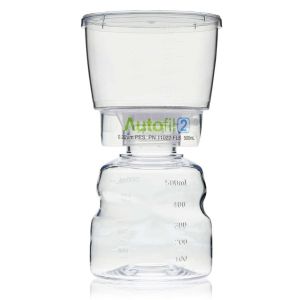

  5. Autofil® 2 Bottle Top Filtration Device Full Assembly, 500 mL, 0.22 µm PES Unit, Sterile
    Manufacturer: Foxx Life Sciences
    Autofil® 2 Bottle Top Filtration Device Full Assembly, 500 mL, 0.22 µm PES Unit, Sterile (12 per CS )
    Learn More
    was $195.24 Special Price $182.54

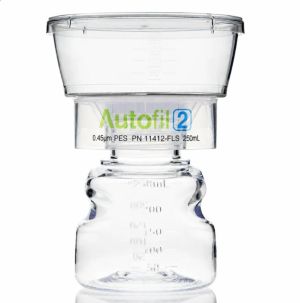

  6. Autofil® 2 Bottle Top Filtration Device Full Assembly, 250 mL, 0.45 µm PES Unit, Sterile
    Manufacturer: Foxx Life Sciences
    Autofil® 2 Bottle Top Filtration Device Full Assembly, 250 mL, 0.45 µm PES Unit, Sterile (12 per CS )
    Learn More
    was $180.90 Special Price $169.12
  7. Autofil® 2 Bottle Top Filtration DeviceFull Assembly, 500 mL, 0.45 µm PES Unit, Sterile
    Manufacturer: Foxx Life Sciences
    Autofil® 2 Bottle Top Filtration DeviceFull Assembly, 500 mL, 0.45 µm PES Unit, Sterile (12 per CS )
    Learn More
    was $195.24 Special Price $182.54
  8. Autofil PP - Disposable Vacuum Bottle Top Filters for Solvent Filtration, with 0.2um Sterilizing Nylon Membrane, 500mL, GL45 Thread, Polypropylene Housing, Non-Sterile, 12/CS
    Manufacturer: Foxx Life Sciences
    Autofil PP - Disposable Vacuum Bottle Top Filters for Solvent Filtration, with 0.2um Sterilizing Nylon Membrane, 500mL, GL45 Thread, Polypropylene Housing, Non-Sterile, 12/CS (12 per CS )
    Learn More
    was $181.78 Special Price $156.88
  9. Autofil PP - Disposable Vacuum Bottle Top Filters for Solvent Filtration, with 0.2um Sterilizing PES Membrane, 500mL, GL45 Thread, Polypropylene Housing, Non-Sterile, 12/CS
    Manufacturer: Foxx Life Sciences
    Autofil PP - Disposable Vacuum Bottle Top Filters for Solvent Filtration, with 0.2um Sterilizing PES Membrane, 500mL, GL45 Thread, Polypropylene Housing, Non-Sterile, 12/CS (12 per CS )
    Learn More
    was $194.64 Special Price $167.99
  10. Autofil PP - Disposable Vacuum Bottle Top Filters for Solvent Filtration, with 0.45um Nylon Membrane for Clarification and Prefiltration, 500mL, GL45 Thread, Polypropylene Housing, Non-Sterile, 12/CS
    Manufacturer: Foxx Life Sciences
    Autofil PP - Disposable Vacuum Bottle Top Filters for Solvent Filtration, with 0.45um Nylon Membrane for Clarification and Prefiltration, 500mL, GL45 Thread, Polypropylene Housing, Non-Sterile, 12/CS (12 per CS )
    Learn More
    was $181.78 Special Price $156.88
  11. Autofil PP - Disposable Vacuum Bottle Top Filters for Solvent Filtration, with 0.45um PTFE Membrane for Clarification and Prefiltration, 500mL, GL45 Thread, Polypropylene Housing, Non-Sterile, 12/CS
    Manufacturer: Foxx Life Sciences
    Autofil PP - Disposable Vacuum Bottle Top Filters for Solvent Filtration, with 0.45um PTFE Membrane for Clarification and Prefiltration, 500mL, GL45 Thread, Polypropylene Housing, Non-Sterile, 12/CS (12 per CS )
    Learn More
    was $196.55 Special Price $169.63
  12. Autofil PP - Disposable Vacuum Bottle Top Filters for Solvent Filtration, with 0.2um Sterilizing Nylon Membrane, 1L (1000mL), GL45 Thread, Polypropylene Housing, Non-Sterile, 12/CS
    Manufacturer: Foxx Life Sciences
    Autofil PP - Disposable Vacuum Bottle Top Filters for Solvent Filtration, with 0.2um Sterilizing Nylon Membrane, 1L (1000mL), GL45 Thread, Polypropylene Housing, Non-Sterile, 12/CS (12 per CS )
    Learn More
    was $196.39 Special Price $169.49
  13. Autofil PP - Disposable Vacuum Bottle Top Filters for Solvent Filtration, with 0.45um Nylon Membrane for Clarification and Prefiltration, 1L (1000mL), GL45 Thread, Polypropylene Housing, Non-Sterile, 12/CS
    Manufacturer: Foxx Life Sciences
    Autofil PP - Disposable Vacuum Bottle Top Filters for Solvent Filtration, with 0.45um Nylon Membrane for Clarification and Prefiltration, 1L (1000mL), GL45 Thread, Polypropylene Housing, Non-Sterile, 12/CS (12 per CS )
    Learn More
    was $196.39 Special Price $169.49
  14. Autofil® 2 Bottle Top Filtration Device Funnel Only, 1,000 mL, 0.22 µm PES, Sterile
    Manufacturer: Foxx Life Sciences
    Autofil® 2 Bottle Top Filtration Device Funnel Only, 1,000 mL, 0.22 µm PES, Sterile (12 per CS )
    Learn More
    was $308.13 Special Price $288.09
  15. Autofil® 2 Bottle Top Filtration Device Funnel Only, 250 mL, 0.45 µm PES, Sterile
    Manufacturer: Foxx Life Sciences
    Autofil® 2 Bottle Top Filtration Device Funnel Only, 250 mL, 0.45 µm PES, Sterile (12 per CS )
    Learn More
    was $254.66 Special Price $238.09
  16. Autofil® 2 Bottle Top Filtration Device Full Assembly, 1,000 mL, 0.10 µm PES Unit, Sterile
    Manufacturer: Foxx Life Sciences
    Autofil® 2 Bottle Top Filtration Device Full Assembly, 1,000 mL, 0.10 µm PES Unit, Sterile (12 per CS )
    Learn More
    was $278.69 Special Price $220.47
  17. EZBio®pure Feed Systems, 250mL Bottle Top Filter, 0.45µm Membrane, PP Natur
    Manufacturer: Foxx Life Sciences
    EZBio®pure Feed Systems, 250mL Bottle Top Filter, 0.45µm Membrane, PP Natur (4 per CS )
    Learn More
    was $705.36 Special Price $608.74
  18. EZBio®pure Feed Systems, 500mL Bottle Top Filter, 0.10µm Membrane, PP Natur
    Manufacturer: Foxx Life Sciences
    EZBio®pure Feed Systems, 500mL Bottle Top Filter, 0.10µm Membrane, PP Natur (4 per CS )
    Learn More
    was $729.70 Special Price $629.74
  19. EZBio®pure Feed Systems, 500mL Bottle Top Filter, 0.22µm Membrane, PP Natur
    Manufacturer: Foxx Life Sciences
    EZBio®pure Feed Systems, 500mL Bottle Top Filter, 0.22µm Membrane, PP Natur (4 per CS )
    Learn More
    was $729.04 Special Price $629.17
  20. EZBio®pure Feed Systems, 500mL Bottle Top Filter, 0.45µm Membrane, PP Natur
    Manufacturer: Foxx Life Sciences
    EZBio®pure Feed Systems, 500mL Bottle Top Filter, 0.45µm Membrane, PP Natur (4 per CS )
    Learn More
    was $730.16 Special Price $630.15
  21. EZBio®pure Feed Systems, 1L Bottle Top Filter, 0.10µm Membrane, PP Natural
    Manufacturer: Foxx Life Sciences
    EZBio®pure Feed Systems, 1L Bottle Top Filter, 0.10µm Membrane, PP Natural (4 per CS )
    Learn More
    was $790.33 Special Price $682.07
  22. EZBio®pure Feed Systems, 1L Bottle Top Filter, 0.45µm Membrane, PP Natural
    Manufacturer: Foxx Life Sciences
    EZBio®pure Feed Systems, 1L Bottle Top Filter, 0.45µm Membrane, PP Natural (4 per CS )
    Learn More
    was $790.79 Special Price $682.46
