Media Bottles

Type 1 Class A Borosilicate Glass 20L #12 Stopper Neck 298mm OD x 513mm OAH (1 per EA )

• Type 1 Class A Borosilicate Glass • Dimensions: 187mm OD x 470mm overall height • #12 Stopper Neck • Volume: 9.5 L (1 per EA )

Will not rust or deteriorate in water baths or co2 atmospheres. Manufactured from 303 stainless steel with electropolish finish. Each opening rack 1 1/16" (26.9mm) Tube size: 25mm Spacing: 3x4 holds 12 tubes Dimensions: 4 3/4" x 3 9/16" x 3 15/16" WIRE SPECIFICATIONS: SIDE & UPRIGHTS: .162"OD WIRE, CROSS WIRE: 0.063" OD WIRE, BTTM MESH: 1/4" Minimum order requirement: 5 each (1 per EA )

Will not rust or deteriorate in water baths or co2 atmospheres. Manufactured from 303 stainless steel with electropolish finish. Each opening rack 15/16" (23.8mm) Tube size: 20-22mm Spacing: 3x4 holds 12 tubes Dimensions: 4 5/16" X 3 1/4" X 3 15/16" WIRE SPECIFICATIONS: SIDE & UPRIGHTS: .135"OD WIRE, CROSS WIRE: 0.063" OD WIRE, BTTM MESH: 1/4" Minimum order requirement: 5 each (1 per EA )

Manufactured from Type 1 Class A Borosilicate Glass. Ideal for use of filling other glass vessels. Receiving vessel is placed under bell to maintain aseptic conditions during filling. Attaches to reservoir with rubber tubing. Specifications: Type 1 Class A Borosilicate Glass Dimensions: 49x100mm Tubing Size: 1/2" 2 per case (2 per CS )

Manufactured from Type 1 Class A Borosilicate Glass. Ideal for use of filling other glass vessels. Receiving vessel is placed under bell to maintain aseptic conditions during filling. Attaches to reservoir with rubber tubing. Specifications: Type 1 Class A Borosilicate Glass Dimensions: 22x75mm Tubing Size: 1/4" Size: 20mm (2 per CS )

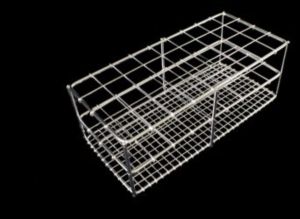

Will not rust or deteriorate in water baths or co2 atmospheres. Manufactured from 303 stainless steel with electropolish finish. Each opening rack 1 1/16" (26.9mm) Tube size: 25mm Spacing:4x10 holds 40 tubes Dimensions: 11 1/2" x 4 3/4" x 4" WIRE SPECIFICATIONS: SIDE & UPRIGHTS: .162"OD WIRE, CROSS WIRE: 0.063" OD WIRE, BTTM MESH: 1/4" Minimum order requirement: 5 each (1 per EA )

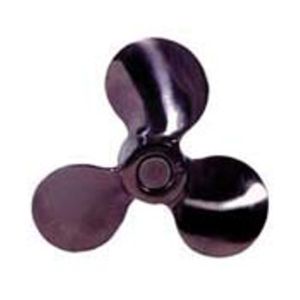

4" od 316l stainless steel, ra32 finish or better Marine impeller with 1/2" bore & set screw. (1 per EA )

Manufactured from Type 1 Class A Borosilicate Glass. Ideal for use of filling other glass vessels. Receiving vessel is placed under bell to maintain aseptic conditions during filling. Attaches to reservoir with rubber tubing. Specifications: Type 1 Class A Borosilicate Glass Dimensions: 41x95mm Tubing Size: 1/4" 2 per case (2 per CS )

Will not rust or deteriorate in water baths or co2 atmospheres. Manufactured from 303 stainless steel with electropolish finish. Each opening rack 15/16" (23.8mm) Tube size: 20-22mm Spacing:4x10holds 40 tubes Dimensions: 9 11/16" X 3 15/16" X 3 1/8" WIRE SPECIFICATIONS: SIDE & UPRIGHTS: .135"OD WIRE, CROSS WIRE: 0.063" OD WIRE, BTTM MESH: 1/4" Minimum order requirement: 5 each (1 per EA )

Thermowell assemblies are used to hold inside one tube the rtd temperature sensor that monitors the temperature within the vessel in conjunction with a temperature controller. There are also tubes for addition of media and vent tube. For OHD 36L Vessel Material: 316L SST with Ra 32 or better - inside & out One Vent port; .250"OD x .152" ID x 1.0"above & below cap slug One Addition port: .250"OD x .152"ID x 17 1/8" insertion length One Thermowell port: .375"OD x .305"ID x 17 1/8" insertion length All tubes seam weld in to cap slug - bottom side only Supply with 45mm PP blue open top screw cap & white silicone gasket (1 per EA )

Will not rust or deteriorate in water baths or co2 atmospheres. Manufactured from 303 stainless steel with electropolish finish. Each opening rack 1 1/16" (26.9mm) Tube size: 25mm Spacing: 4x9 holds 36 tubes Dimensions: 10 9/16" x 4 3/4" x 3 15/16" WIRE SPECIFICATIONS: SIDE & UPRIGHTS: .162"OD WIRE, CROSS WIRE: 0.063" OD WIRE, BTTM MESH: 1/4" Minimum order requirement: 5 each (1 per EA )
