Funnels

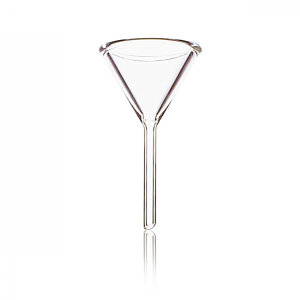

KIMAX brand Chemical Funnel Short Stem 58[degree] Angle Top I.D. 25mm. Stem O.D. 6mm. Stem Length: 40mm. Fits Paper Diameter: 42.5mm. Fast-filtering glass funnel. Design permits the filter paper to seal itself around the top. ASTM specification E1095 Type 1 Class A. (24 per CS )

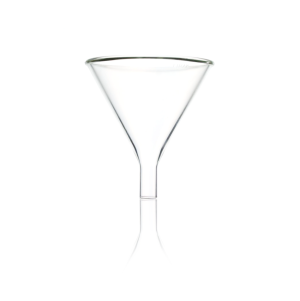

KIMAX brand Powder Funnel Top I.D. 60mm. Stem O.D. 13mm. Short wide stem and fire-polished top and stem. Designed from ASTM specification E1095 Type 4 requirements. (24 per CS )

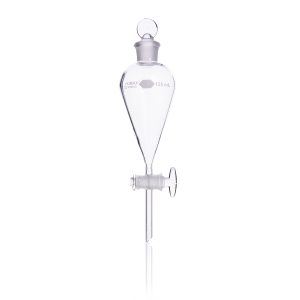

KIMAX brand Separatory Funnel Squibb Pear-Shape [Standard Taper] Glass Stopcock [Standard Taper Capacity: 125ml. Stopcock Plug Size: 2. Stopper Number: 22. Designed with large lower stem I.D. for more complete separation. Designed from ASTM specification E1096 Type IV requirements. (6 per CS )

KIMAX brand Buchner Funnel with KIMFLOW Fritted Disc Medium Porosity. 350ml. Disc Diameter: 80mm. Height Above Disc: 75mm. Stem O.D. 20mm. Stem Length: 75mm. Use when filter paper cannot withstand the attack of the filtrate. Heavy walled stem. Beaded top rim. Federal Specification DD-F-776. (3 per CS )

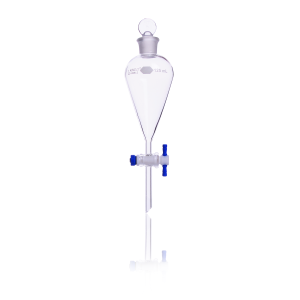

Separatory Funnel Squibb KIMAX 125mL pear-shaped funnel supplied with #22 ground glass stopper and #2 PTFE stopcock. Autoclavable. Lower stem so column of liquid will break with stopcock closed. ASTM Spec E1096 type 4. 60mm stem. (4 per CS )

Funnels Filter Buchner [standard taper] Joint 14/20. Funnel Capacity (mL) 30. Disc Dia. (mm) x Porosity 30 x M. Approx. Overall Height x Width (mm) 130 x 45 Funnel with sealed-in fritted disc and an integral #2 side hose connection. Useful with paper or polymeric filters. (1 per EA)

Labsets kits Organic Chemistry Macroscale [standard taper] 14/20 and [standard taper] 19/22 KEM-KITS No 13 Funnel 125 mL PTFE KEM-KITS contain a selection of basic small scale glassware for extraction reflux reflux with addition fractionation distillation. (1 per EA)

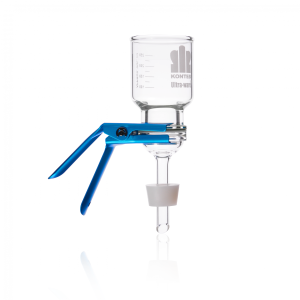

Funnel/Support Assembly Ultra-Ware 47mm PTFE Face Support For use with Millipore filtering manifolds. With PTFE faced fritted-glass support base 300mL graduated funnel aluminum clamp number 8 silicone stopper. Clamp sandwiches filter between funnel and base. Autoclave with filter in place. (1 per EA)

Funnels Filter Buchner [standard taper] Joint 24/40. Funnel Capacity (mL) 15. Disc Dia. (mm) x Porosity 20 x F. Approx. Overall Height x Width (mm) 145 x 50 Funnel with sealed-in fritted disc and an integral #2 side hose connection. Useful with paper or polymeric filters. (1 per EA)

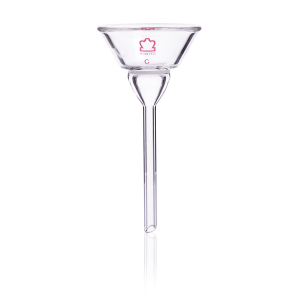

Funnels Filter Fritted Hirsch Top Dia. (mm) 50. Disc Dia. (mm) 20. Porosity C. Stem Length x O.D. (mm) 70 x 8. Approx. Overall Height (mm) 115 For direct filtration. Useful where possible attack may occur with other filter materials. (1 per EA)

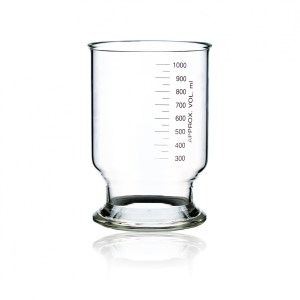

Extraction SPE Disk Glassware and Manifolds SPE Funnel 47 mm 1000 mL capacity All SPE Manifolds are supplied with three-way valves that allow the venting to atmosphere of each station without affecting the vacuum in the rest of the system. (1 per EA)
