Mixing

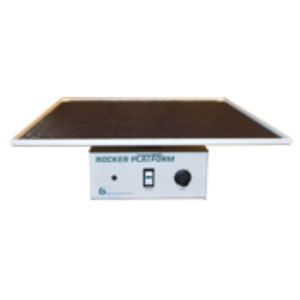

The Bellco Rocker Platforms provide a gentle uniform rocking motion, required for even coverage of media over mono-layer cell cultures, thereby maximizing cellular health and viability. Viral suspensions introduced onto a mono-layer of cells will yield higher virus titers. Additionally, rocker platforms are ideal for performing staining and destaining of gel and filter assays. They are engineered to operate between 0 to 12 oscillations per minute. Units are delivered with either a 25 x 25 cm or 51 x 51 cm tray. Additional interchangeable trays are also available. --Speed range: 0 to 12 oscillations per minute --Platform tilt: 7 fixed (1 per EA )

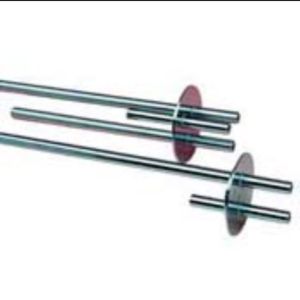

These stainless steel port assemblies are designed for use with media storage bottles for adding and withdrawing media or liquids. The 2- port models feature a siphon vent tube and is supplied with a 45mm polypropylene blue open top screw cap and white silicone gasket. (1 per EA )

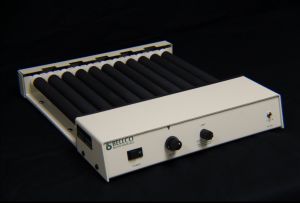

The Bellco Mini Tube Roller is a variable speed roller unit for general laboratory usage. The compact size is ideal for experimental and pilot-scale operations. Methods developed on this unit can easily be scaled up. Robustly constructed and designed for easy cleaning, with EPDM rubber rollers to assure safe positive rotating motion. The unit has 11 rollers, five of which can be removed to accommodate various bottle dimensions. When using hybridization tubes, an o-ring (A12-1067) must be fitted on the lower end to equalize the diameter of the screw cap. When alternate rollers are removed, 3 roller bottles up to 120 mm can rotate at a maximum speed of 4 rpm. (1 per EA )

Flask clamps and universal platforms for shakers. Fits onto standard platforms. Purchase individual pieces to build various configurations. 25x25cm tray accepts 2 51x51cm tray accepts 4 (1 per EA )

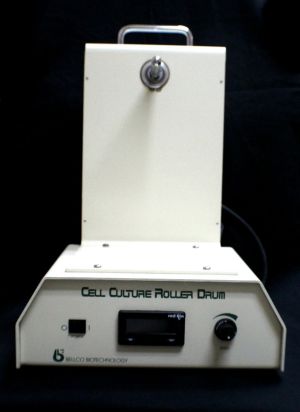

The Bellco Brushless Digital Roller Drum Drive is an all purpose roller drum for blood, tissue culture, cells and virus applications. The standard speed ranges are 0.5 to 15 and 2 to 60 RPM with other speed ranges available as custom items. Four drums are available with capacity of 164 or 351 tubes of 16 mm diameters, 156 tubes of 25 mm diameter or 128 tubes for most 50 ml conical bottom centrifuge tubes. (Drum sold separately) (1 per EA )

Manufactured from Type 1 Class A Borosilicate Glass. 38 mm deep-skirt, nontoxic, rubber lined phenolic screw cap Dimensions: 120x285mm Area (cm2): 835 Replacement caps: 2029 series (2 per CS )

These stainless steel port assemblies are designed for use with media storage bottles for adding and withdrawing media or liquids. The 2- port models feature a siphon vent tube and is supplied with a 45mm polypropylene blue open top screw cap and white silocone liner. DESIGNED FOR 5637 AND 5639 MEDIA STORAGRE BOTTLES. -WELDED, 316L STAINLESS STEEL CONSTRUCTION, 1/4" INCH OD TUBING. -ELECTROPOLISHED FINISH, CONTINUOUS SEAL WELD. -TWO PORT MODEL FEATURES SIPHON AND VENT TUBES. (1 per EA )

Manufactured from Type 1 Class A Borosilicate Glass. 38 mm deep-skirt, nontoxic, rubber lined phenolic screw cap Dimensions: 110x475mm Area (cm2): 670 Replacement caps: 2029 series (2 per CS )

The Bellco Rocker Platforms provide a gentle uniform rocking motion, required for even coverage of media over mono-layer cell cultures, thereby maximizing cellular health and viability. Viral suspensions introduced onto a mono-layer of cells will yield higher virus titers. Additionally, rocker platforms are ideal for performing staining and destaining of gel and filter assays. They are engineered to operate between 0 to 12 oscillations per minute. Units are delivered with either a 25 x 25 cm or 51 x 51 cm tray. Additional interchangeable trays are also available. --Speed range: 0 to 12 oscillations per minute --Platform tilt: 7 fixed (1 per EA )

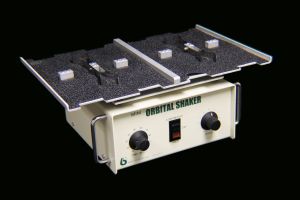

The Bellco Benchtop Mini Orbital Shakers are ideal for both rigid polystyrene and flexible polyvinyl 96-well micro tube plates commonly used in cell culture, virology, immunology and serology. They are engineered to operate between the speed range of 50 to 1550 rpm and have a 100 second timer for reproducing mixing times or can be used in continuous operation. The true orbital motion results in increased mixture homogeneity compared with oscillating or vibrating shakers. The cast iron ballast eliminates walking of unit and handles allow easy movement within the laboratory. (1 per EA )

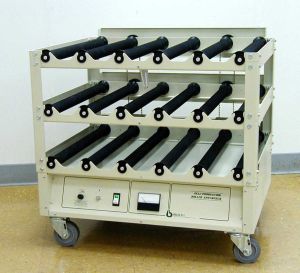

The Bellco Cell Production Roller Apparatus has been designed for production of animal cells, viruses and cell products. Modular units are available from 5 to 45 bottle positions and allow easy expansion with modular add-on decks. Non-modular production units come in 45 and 50 bottle positions with over 80,000 cm2 of surface area. Rollers have a key design to eliminate slipping and are easily removable for servicing of bearings. Rollers are formulated from a chemical-resistant non-slip EDPM. All units feature a solid state control with heavy-duty DC motor and analog tachometer. Non-modular production models feature rubber bumpers, handles and a slotted rear guard. Optional All Position Drives are available for use with plastic roller bottles to prevent slipping of the light-weight bottles. An optional Stand By Drive and Alarm System provides motion and power failure alarms and has a redundant drive system that automatically drives the unit should the primary fail. (1 per EA )

The Bellco Cell Production Roller Apparatus has been designed for production of animal cells, viruses and cell products. Modular units are available from 5 to 45 bottle positions and allow easy expansion with modular add-on decks. Non-modular production units come in 45 and 50 bottle positions with over 80,000 cm2 of surface area. Rollers have a key design to eliminate slipping and are easily removable for servicing of bearings. Rollers are formulated from a chemical-resistant non-slip EDPM. All units feature a solid state control with heavy-duty DC motor and analog tachometer. Non-modular production models feature rubber bumpers, handles and a slotted rear guard. (1 per EA )

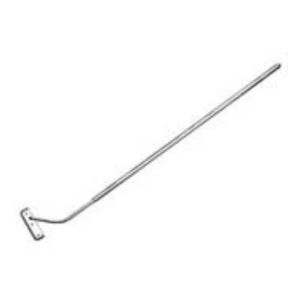

Replacement large blade for 7731-22222 - CELL SCRAPER. (10 per CS )

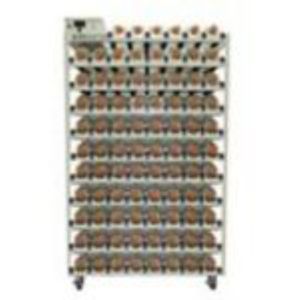

The Bellco Process Controlled Top Drive Roller Apparatus has a capacity of either 53 or 86 full size glass or plastic roller bottles (110 to 120 mm diameter and up to 510 mm in length), depending upon model. The unit features a brushless DC motor and controller that operate at bottle speeds ranging from 0.3 to 9.0 rpm with the ability to select clockwise or counter clockwise direction. Four corner bumpers and two locking castors (on the front wheel positions) are also provided. Rollers are easily removed for replacement by using the special tool provided with each unit. All-Position Drive facilitates the use of lightweight plastic roller bottles by ensuring rotation at each bottle station, independent of any load configurations. A fused power inlet module makes fuse replacement easy and also permits the user to completely disconnect the power cord when the unit is cleaned or relocated. (1 per EA )

The Bellco Cell Production Roller Apparatus has been designed for production of animal cells, viruses and cell products. Modular units are available from 5 to 45 bottle positions and allow easy expansion with modular add-on decks. Non-modular production units come in 45 and 50 bottle positions with over 80,000 cm2 of surface area. Rollers have a key design to eliminate slipping and are easily removable for servicing of bearings. Rollers are formulated from a chemical-resistant non-slip EDPM. All units feature a solid state control with heavy-duty DC motor and analog tachometer. Non-modular production models feature rubber bumpers, handles and a slotted rear guard. Optional All Position Drives are available for use with plastic roller bottles to prevent slipping of the light-weight bottles. An optional Stand By Drive and Alarm System provides motion and power failure alarms and has a redundant drive system that automatically drives the unit should the primary fail. (1 per EA )

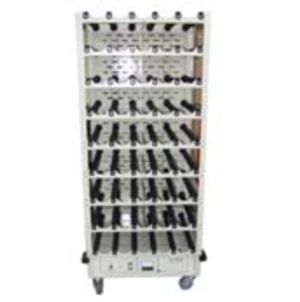

The Bellco Sci/ERA Cell Production Roller Apparatus has been designed for production of mammalian cells, viruses and cell products. Non-modular production units come in 45 and 50 bottle positions with over 80,000 cm2 of surface area. All units feature a solid state control with heavy-duty DC motor and digital tachometer. All Position Drives are for use with plastic roller bottles to prevent slipping of the light-weight bottles. A Stand-By Drive and Alarm System provides motion and power failure alarms and has a backup drive system that automatically drives the unit should the original fail. (1 per EA )

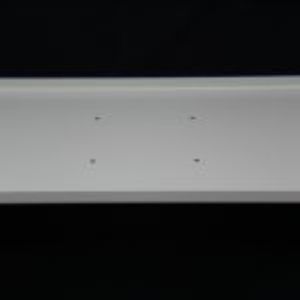

To support 20l plastic bag To be use with 7644-33000 - orbi-cell holding tray Material: .125" alum - painted dimensions: 28" w x 20" d x 1" tall With pegs - for peg & grommet design No rubber mat (1 per EA )

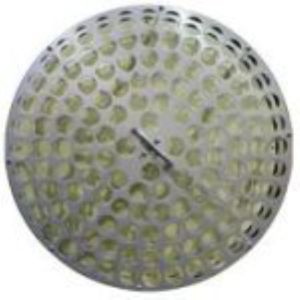

For standard base unit only. Roller drum accepts 30mm tubes, 128 tubes per drum. (1 per EA )

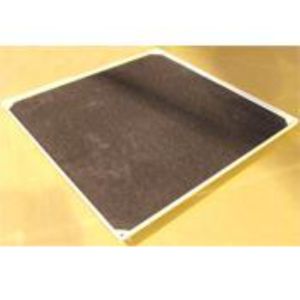

Standard tray with pegs, *NOT* a stacking tray. Trays fit 7740 and 7743 series rocker & 7777 series 12v rocker. The "peg and grommet" design permits rapid platform changing. SIZE: 51x51cm (1 per EA )

The Bellco Process Controlled Top Drive Roller Apparatus has a capacity of either 53 or 86 full size glass or plastic roller bottles (110 to 120 mm diameter and up to 510 mm in length), depending upon model. The unit features a brushless DC motor and controller that operate at bottle speeds ranging from 0.3 to 9.0 rpm with the ability to select clockwise or counter clockwise direction. Four corner bumpers and two locking castors (on the front wheel positions) are also provided. Rollers are easily removed for replacement by using the special tool provided with each unit. All-Position Drive facilitates the use of lightweight plastic roller bottles by ensuring rotation at each bottle station, independent of any load configurations. A fused power inlet module makes fuse replacement easy and also permits the user to completely disconnect the power cord when the unit is cleaned or relocated. (1 per EA )

The Bellco Cell Production Roller Apparatus has been designed for production of animal cells, viruses, and cell products. Modular units are available from 5 to 45 bottle positions and allow easy expansion with modular add-on decks. Non-modular production units come in 45 and 50 bottle positions with over 80,000 cm2 of surface area. Rollers have a key design to eliminate slipping and are easily removable for servicing of bearings. Rollers are formulated from a chemical-resistant non-slip EDPM. All units feature a solid state control with heavy-duty DC motor and digital display. All Position Drives are for use with plastic roller bottles to prevent slipping of the light-weight bottles. Roller Shaft Construction: Non-transferring chemical-resistant rubber rollers with key-shape. Clearance between Decks for Bottle Placement: 134 mm. Construction Material: Aluminum, enamel finish. Usable Roller Length: 51 cm. Brushless motor with controller for smooth operation and no maintenance. Easy-to-remove roller bar assembly (tool provided). Digital LCD display. Locking speed control knob. All position drives. Accepts all Bellco Roller Bottles (glass or plastic* in 110mm or 120mm diameter). Battery backup provides 18 hour service (typical at 2 RPM). Battery backup includes both audible and visual indicators. Motion Alarm (1 per EA )

Pre-mounted stainless steel clamps for bellco Erlenmeyer flask. Flask tray fits on top of the standard tray platform. Includes clamps. Flask positions: 9 Dimensions: 25x25cm Size: 125ml (1 per EA )

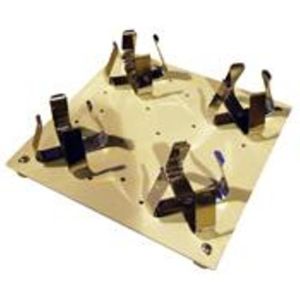

Pre-mounted stainless steel clamps for bellco Erlenmeyer flask. Flask tray fits on top of the standard tray platform. Includes clamps. Flask position: 5 Dimensions:25x25cm Size: 250ml (1 per EA )

Replacement small blade for 7731-22000 - CELL SCRAPER. (10 per CS )
