Humidity Test Chambers

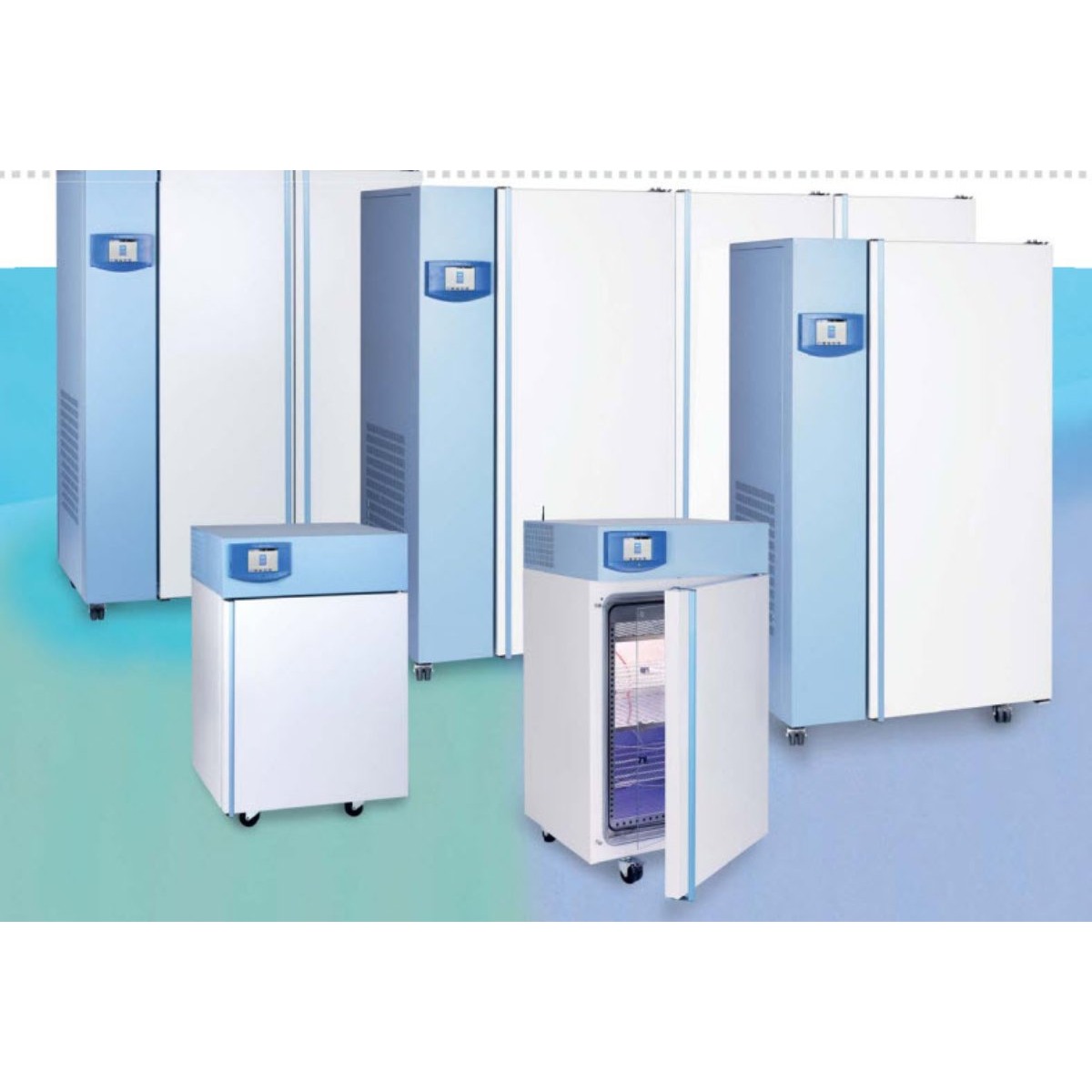

The Climacell ECO patented air movement system directs air both vertically & horizontally. This leads to an excpetional uniform temperature profile throughout the chamber and short heating times. When precise temperature and humidity control is required the Climacell ECO's design delivers uniform distribution of both tempeture and humidity. The Climacell ECO conforms to both ICH Q1A and Q1B stability and photostability standards as well as other application such as shelf life, materials testing and insect rearing. Volumes: 111, 222, 404, 707, 1212 litres. Working temperature: 0 degC above ambient temperature up to 100 degC. Humidity Range 10 - 98 percent from 10degC ( - 10degC option available) Interior: 540 x 520 x 760 mm 21.2 x 20.3 x 29.9" Exterior: 760 x 900 x 1370 mm 29.9 x 35.4 x 42.9" -Microprocessor control Fuzzy Logic -3-conductors PT-100 control sensor -Integrated RS 232 for Warmcomm or print -3 inch transreflective LCD COG display -Keyboard block of unauthorized access -Integrated USB Device for Warmcomm -Electronical security device type 2 -Galvanized sheet metal painted exterior -Inner walls from stainless steel -Exhaust duct -Click out inner walls -Up to 2 segments, up to 99 cycles -2 chrome plated trays included -9 programs -Acoustic and visual alarm -Real time feature (1 per EA )

The Climacell EVO stability & photostability chamber provides exact and reproducible simulation of various conditions. The wide range of adjustable parameters includes the optional, 160°C sterilization cycle. Patented features such as the bi-directonal air flow allow for precise temperature & humidity uniformity make the Climacell EVO ideal for the simulation of numerous conditions for application in many fields of testing and research. Control is simple via the color LCD touch screen, with the fuzzy logic microprocessor combined with a variety of data output options and 30 day data logging meet the most demanding conditions of pharmaceutical, cosmetic, electronic, industrial and food industries. Optional programmable lighting (UV and VIS) for stability and photostability according to ICH Q1A R and Q1B Option 2 is available. Volumes: 111, 222, 404, 707, 1212 litres Working temperature: 0degC up to 100degC Humidity 10percent - 98percent from 10degC ( - 20.0degC to 100degC option available) Interior: 540 x 530 x 765 mm 21.2" x 20.9" x 30.1" Exterior: 780 x 885 x 1450 mm 20.7" x 34.8" x 57.1" -Stainless steel seamless chamber AISI 304 -Removable inner chamber walls -Self-diagnostic 3 wire PT-100-sensors JUMO -Galvanized steel anti-scratch painted housing -Interior hardened glass door -Compressor cooling system w/ R134a or R404a -Effcient silent fan with adjustable rate -Ergonomical door grip with safety locks -Precise temperature control w/ Fuzzy logic microprocessor -5.7 inch color touch screen -Multi-level user dependant functions and user administration -100 programs with up to 100 segments for each program -Programing temperature ramps & delayed start and stop function -Self diagnostic programs for quick troubleshooting -Integrated datalogger, up to 30 days of process data -Acoustic and visual alarms -Digital security device type 3 -Integrated door alarm -USB Host and RS 232 data interface -SD card reader incl. 8 GB SD card -Multi-language communication -Casters, swivel and lock -2 stainless steel shelves included -Steam generator: humidification / dehumidification (1 per EA )

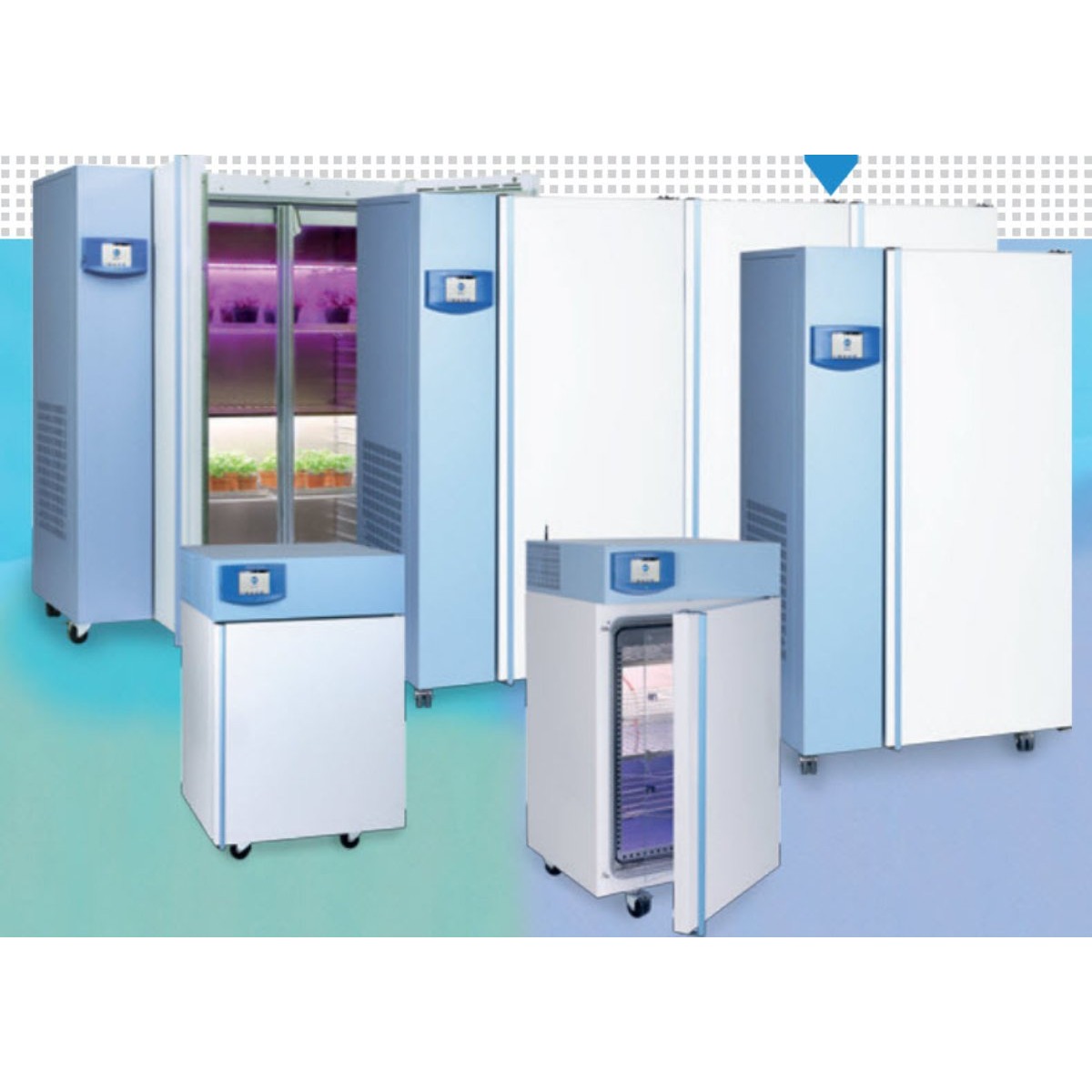

The Friocell EVO cooling tempreature control incubator provides exact and reproducible simulation of various conditions. The wide range of adjustable temperature parameters includes the optional, 160°C sterilization cycle. Patented features such as the bi-directonal air flow allow for precise temperature uniformity make the Friocell EVO an ideal tool for simulation of numerous conditions for application in many fields of testing and research. Control is simple via the color LCD touch screen enabled with fuzzy logic regulation combined with a variety of data output options and 30 day data logging meet the most demanding conditions of pharmaceutical, cosmetic, electronic, industrial and food industries. Optional programmable lighting (UV and VIS) for stability and photostability according to ICH Q1A R and Q1B Option 2 is available. Volumes: 55, 111, 222, 404, 707, 1212 litres Working temperature: 0 degC up to 100 degC Option: -20degC to 100degC Interior: 540 x 530 x 1415 mm 21.2" x 20.9" x 55.7" Exterior: 1100 x 885 x 1890 mm 43.3" x 34.8" x 74.4" -Stainless steel seamless chamber AISI 304 -Removable inner chamber walls -Self-diagnostic 3 wire PT-100-sensors JUMO -Galvanized steel anti-scratch painted housing -Interior hardened glass door -Compressor cooling system w/ R134a or R404a -Effcient silent fan with adjustable rate -Ergonomical door grip with safety locks -Precise temperature control w/ Fuzzy logic microprocessor -5.7 inch color touch screen -Multi-level user dependant functions and user administration -100 programs with up to 100 segments for each program -Programing temperature ramps & delayed start and stop function -Self diagnostic programs for quick troubleshooting -Integrated datalogger, up to 30 days of process data -Acoustic and visual alarms -Digital security device type 3 -Integrated door alarm -USB Host and RS 232 data interface -SD card reader incl. 8 GB SD card -Multi-language communication -Casters, swivel and lock -2 stainless steel shelves included (1 per EA )
