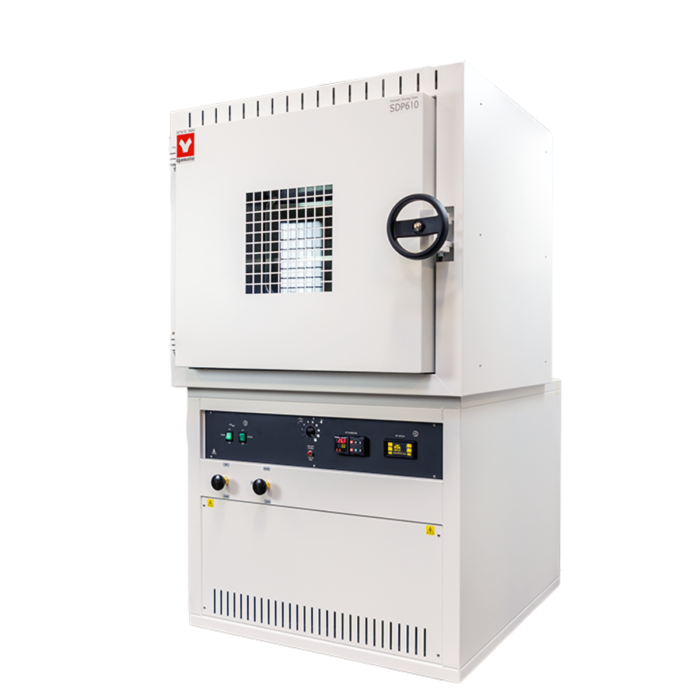

VACUUM OVEN PROGRAMMABLE 264L 230V
was $28,895.00 Special Price $25,788.79
VACUUM OVEN PROGRAMMABLE 264L 230V (1 per EA )
Manufacturer: Yamato Scientific America
SKU
SDP-610-EA
VACUUM OVEN PROGRAMMABLE 264L 230V is available to buy in increments of 1
Product Details
Download Details and SpecificationsFeatures
- Programmable Watlow controller to perform multiple ramp and soak profiles
- Digital vacuum gauge displaying vacuum level of chamber
- Doors with positive latch handles and spring-loaded glass facilitating good vacuum seal
- Tempered glass viewing window for safe, continuous monitoring of samples
- Generous usable shelf area
- Meets TUV safety requirements
| Model | SDP300 SDP310 | SDP400 SDP410 | SDP610 |
|---|---|---|---|
| Operating temperature range | Room temperature +10°C ~220°C | Room temperature +15°C ~220°C | |
| Operating vacuum range | 40-3.0 ~ -29.9 inHg (-10 ~ 101 kPa) | ||
| Vacuum display range | 0.0 ~ -29.9 inHg (5 to -101 kPa) | 760 Torr down to 0 mTorr | |
| Controls | EZ-ZONE Watlow | ||
| Access port | KF25 | ||
| Temperature uniformity - midrange | ± 6.0% of setpoint | ||
| Temperature stability@ 80°C @ 150°C @ 220°C | ± 0.1°C ± 0.20°C ± 0.3°C | ± 0.2°C ± 0.25°C ± 0.3°C | ± 0.2°C ± 0.2°C ± 0.3°C |
| Heat up times@ 80°C (from RT of 20°C for SDP300/400)@ 150°C (from RT of 25°C for SDP610)@ 220°C | 70 mins. 120 mins. 200 mins. | 70 mins. 120 mins. 230 mins. | 80 mins. 130 mins. 180 mins. |
| Cool down timesFrom @ 80°C (time to cool down to 50°C)From @ 150°C From @ 220°C | 110 mins. 188 mins. 233 mins. | 161 mins. 318 mins. 420 mins. | --- --- --- |
| Controller | Digital | ||
| Display resolution | 0.1°C | ||
| Interior material | 300 SST | ||
| Exterior material | Painted cold roll steel | ||
| Standard chamber gasket | Silicone | Viton | |
| Internal dimensions | W304 x D508 x H304 mm 12 × 20 × 12 in. | W457 x D610 x H457 mm 18 × 24 × 18 in | W710 x D609 x H609 mm 28 × 24 × 24 in |
| External dimensions WxDxH | W528 x D795 x H681 mm 20.8 × 31.3 × 26.8 in | W686 x D895 x H833 mm 27.0 × 35.2 × 32.8 in | W965 x D1189 x H1624 mm 38.1 × 46.8 × 63.9 in |
| Internal capacity | 47.2L | 127.4L | 264L |
| Shelf dimensions (WxD) | 287 x 483 mm (11.3” x 19”) | ||
| Shelf capacity by weight per shelf *1 | 15.8 kg | 34 kg | |
| Maximum total load *2 | 47.6 kg. | 102 kg | |
| Shelf rest step number | 3 steps | 6 steps | 3 steps |
| Power source 50/60 Hz | AC110 - 120V 10A AC220 - 240 5.5A | AC110 - 120V 13A AC220 - 240V 7A | AC230V 20A (no plug) |
| Weight | ~83kg | ~144kg | ~223kg |
| Included accessories | 3 shelves (2 tall, 1 short bottom), 1 power cord, 4 leveling feet | 3 shelves, 12 shelf clips, 1 power cord, 4 leveling feet | 3 shelves, 12 shelf clips, 4 leveling feet, oil drain tray |
*1 With weight evenly distributed across the shelf
*2 Exceeding this limit risks damaging chamber liner
Manufacturer Part Number/SKU: SDP-610-EA
Tags: Vacuum oven, programmable vacuum oven, laboratory drying oven
