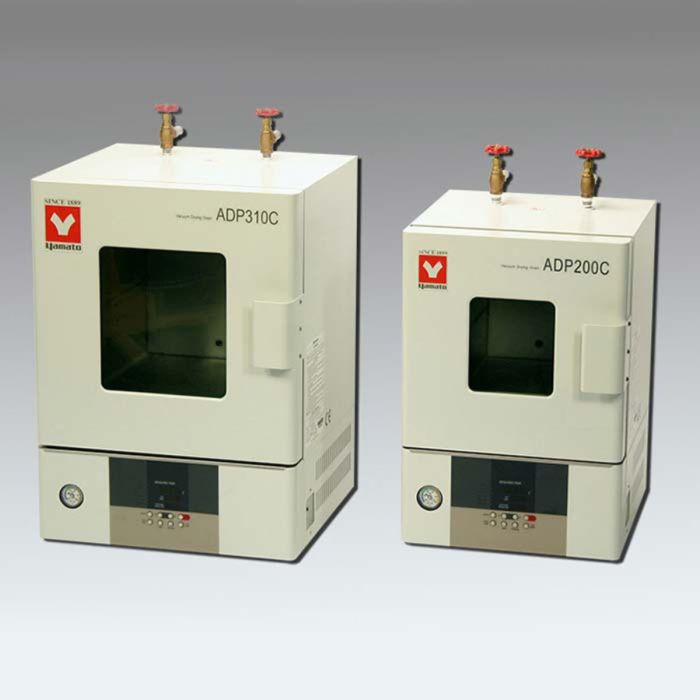

VAC OVEN PROGRAMMABLE 10L 220V 3.5A 50/60Hz
was $3,915.00 Special Price $3,494.14
Standard small size benchtop vacuum drying ovens with enhanced safety features Performance and functions Easy input of parameters and settings Digital PID controller supports fixed temperature, quick auto-stop, auto stop, auto start and program operation (1 per EA )
Manufacturer: Yamato Scientific America
SKU
ADP-210C-EA
VAC OVEN PROGRAMMABLE 10L 220V 3.5A 50/60Hz is available to buy in increments of 1
Product Details
Download Details and Specifications?Performance and functions
- Easy input of parameters and settings
- Digital PID controller supports fixed temperature, quick auto-stop, auto stop, auto start and program operations.
- Self-diagnostic and overheating prevention functions
- Silicon rubber door seal prevents air from leaking
- Independent over heating prevention device for each circuit
- Customizable with N2 gas inlet and communication ports
- Calibration off-set function
- Easy maintenance
Safety features
Sensor trouble detection, SSR, short circuit detection, heater disconnecting detection, memory error, overheating and measurement temperature error.
| Model | ADP200C ADP210C | ADP300C ADP310C |
|---|---|---|
| System | Vacuum drying by decompressed chamber direct heating | |
| Operating temp. range | 40~240°C | |
| Operating pressure range | 101~0.1kPa (760~1 Torr) | |
| Temp. control accuracy | ±1.5°C (at 240°C) | |
| Max. temp. reaching time | ~70min. | ~100min. |
| Interior material | Stainless steel | |
| Temp. control method | PlD control by microprocessor | |
| Sensor | K-thermocouple | |
| Temp. setting method | Digital setting by ?/? keys | |
| Temp. display method | Measurement temp.: Digital display by green LED / Setting temp.: Digital display by red LED | |
| Timer | 1 min. to 99 Hrs. 59 min. and 100 Hrs. to 999 Hrs. and 50 min. / Digital display | |
| Heater | Mica heater / 0.68kW | Mica heater / 1.05kW |
| Heat insulating material | Rock wool | |
| Observation window | Tempered glass (12 mm thickness) and polycarbonate resin plate | |
| Vacuum gauge | Bourdon tube type, 0~0.1 MPa (Gauge pressure) | |
| Safety device | Self diagnostic functions (Heater, Sensor, SSR short circuit, automatic overheat prevention function), over current electric leakage breaker, overheating prevention device | |
| Internal dimensions WxDxH | 200 x 250 x 200mm | 300 x 300 x 300mm |
| External dimensions WxDxH | 400 x 412 x 603mm | 500 x 465 x 705mm |
| Internal capacity | 10L | 27L |
| Shelf loading | ~15kg / pcs | |
| Shelf rest step number | 2 steps | 3 steps |
| Shelf rest pitch | 65mm | 75mm |
| Vacuum port | O.D.18mm | |
| Power source | AC115V 6A (with plug) AC220V 3.5A (no plug, round terminal) | AC115V 9.5A (with plug) AC220V 5A (no plug, round terminal) |
| Weight | ~30kg | ~55kg |
| Included Accessories | Shelf plate (Aluminum perforated metal) 2 pcs. | Shelf plate (Aluminum perforated metal) 3 pcs. |
Manufacturer Part Number/SKU: ADP-210C-EA
Tags: Vacuum oven, programmable vacuum oven, laboratory drying oven
