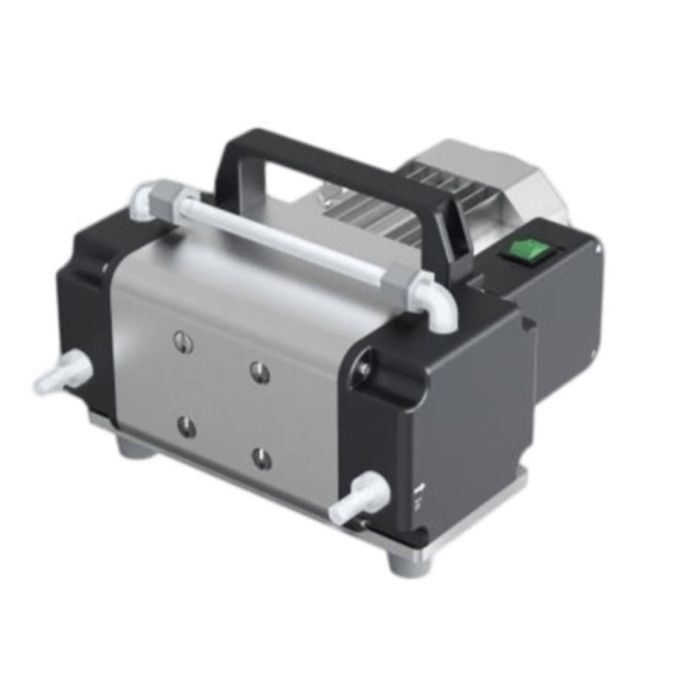

V-65, Diaphragm Vacuum Pumps, 120V/60Hz
Manufacturer: Being Instrument Inc
Product Details
Performance and Features
-
THE BEING V Series pumps are characterized in particular by using corrosion-resistant materials such as all-around PTFE for the pump head, FFPM for the valves, and structured diaphragm with a PTFE coating.
Convenience
-
By providing full solvent recovery, the BEING V series pumps eliminate the chance of dangerous solvents entering the working lab environment.
-
Maintenance Free Operation - The BEING V series pumps are easy to operate and literally maintenance-free. No need to change pump oil or look for a water source.
| Maximum flow (L/min) | 65 |
|---|---|
| Pump Type | Dual-stage Diaphragm |
| Ultimate vacuum level (mbar) | 8 |
| Maximum operating pressure (bar) | 1 |
| Vacuum adjustment | No |
| Clean / Dry valve | Yes |
| Connector size (ID mm) | 12 |
| Pump head material | PTFE |
| Composite diaphragm material | PTFE |
| Valve material | FFPM |
| Working system | Continuous Duty |
| Environmental relative humidity | <80% RH |
| Medium and ambient temperature | 5oC to 40oC |
| Speed (RPM) | 1450 |
| Interior dimension W x D x H (mm) | 240 × 290 × 355 |
| Power consumption (W) | 400 |
| Electrical Plug Type | NEMA 5-15 |
| Electrical requirement | 110VAC / 60Hz |
Manufacturer Part Number/SKU: BDV15106U-EA
Tags: Being Instrument Inc
