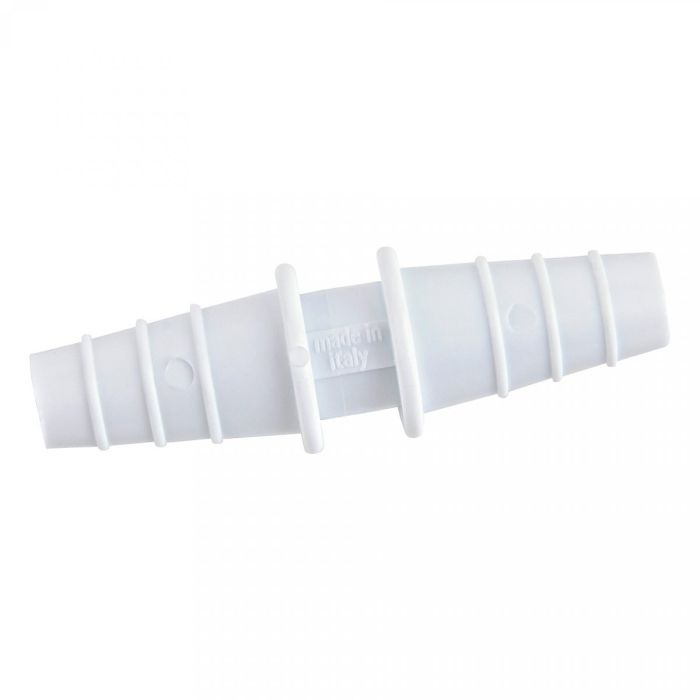

Tubing Connector Straight, PP 12-14mm
was $231.28 Special Price $156.16
Tubing Connector Straight, PP 12-14mm (100 per CS)
Manufacturer: Dynalon
SKU
227275-CS
Tubing Connector Straight, PP 12-14mm is available to buy in increments of 1
Product Details
• Plastic tubing connector and tubing adapters have excellent chemical resistance
• Serrated connecting surfaces to prevent tubing slippage
• Autoclavable Polypropylene
• Adapters allow for connecting different diameter tubing
| Straight Connector | 227235 | 227245 | 227255 | 227265 | 227275 | 227285 |
| Nominal O.D. | 4/5/6 | 6/7/8 | 8/9/10 | 10/11/12 | 12/13/14 | 14/15/16 |
| Crest O.D. mm max/min | 3/4.5/5.5 | 4.5/7/8.2 | 6.3/9/11 | 8.3/10.5/13 | 10/13/15 | 12/14.5/17 |
| Bore mm | 2 | 3.5 | 4.5 | 6.5 | 8.5 | 10.5 |
| Adapter | 227545 | 227555 | 227565 |
| Nominal O.D. | 4/6/8 10/12 | 4/6/8 12/14/16 | 8/10/12 14/16 |
| Crest O.D. mm max/min | 3.7/8.2 7.0/11.8 | 3.7/7.8 1.5/16 | 7.1/12.0 11.3/15.9 |
| Bore mm | 1.6/4.6 | 1.6/7.5 | 4.6/7.5 |
| Length mm | 86 | 86 | 92 |
Manufacturer Part Number/SKU: 227275-CS
Tags: Dynalon
