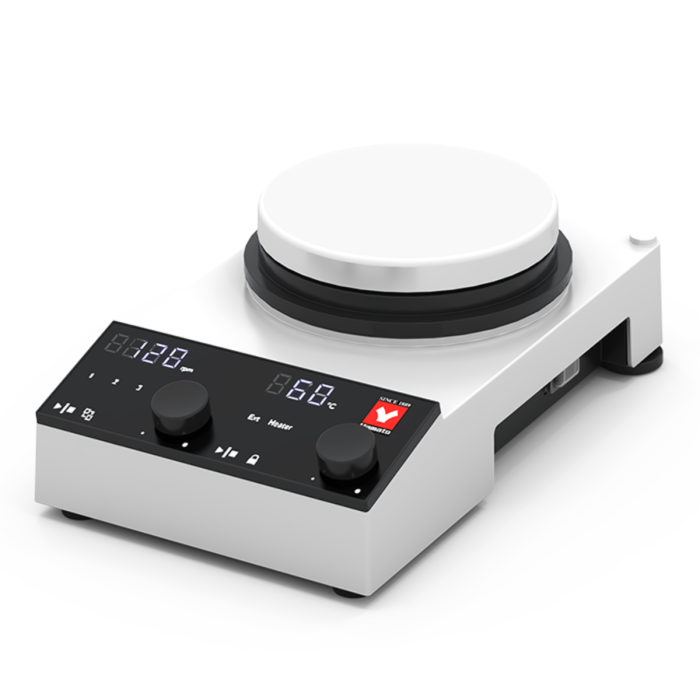

STRONG MAGNETIC STIRRER WITH HOT PLATE 115V, 50 to 1600 rpm
was $1,910.00 Special Price $1,704.68
Strong magnetic stirrer with hot plate for chemical synthesis experiments (1 per EA )
Manufacturer: Yamato Scientific America
SKU
MFH-800-EA
STRONG MAGNETIC STIRRER WITH HOT PLATE 115V, 50 to 1600 rpm is available to buy in increments of 1
Product Details
Download Details and SpecificationsFeatures
- Max. stirring capacity: 20L
- Speed Range: 50 –1600 rpm
- Temperature Range: RT 25°C – 310°C
- Compact, space- saving design
- Automatic stirrer detachment shutoff protects your samples and equipment
- Easy transition to an overhead stirrer without altering your setup
- Strong magnetic force allows continuous stirring even when flask is separated from the stirring plate
- Corrosion-resistant and chemical-resistant ceramic coating stirring plate
- Works perfectly with Yamato BOG and BOS Series oil bath
| Model | MFH800 | MFH810 |
|---|---|---|
| Max. stirring capacity (H2O) | 20L | |
| Plate material | Aluminum die casting (ceramic coating) | |
| Plate dimentions | Ø135 diameter | |
| Speed range | 50 to 1600 rpm (set in 10 rpm increments) | |
| Temperature control range | RT +25°C to 310°C (set in 1°C increments) | |
| Temperature control accuracy | ±1.5°C @ 100°C (internal temperature sensor ) ±1.0°C @ 50°C (external temperature sensor) | |
| Motor | DC brushless motor (31W) | |
| Magnet | Neodymium magnet | |
| Display | White LED digital display | |
| Temperature control method | PID control | |
| Temperature sensor | PT 100 | |
| Heater | 600W mica heater | |
| Exterior parts material | Aluminum die cast | |
| Rotation mode | Constant speed, step out detection, intermittent, auto reverse, slow-up | |
| Safety functions | Overcurrent fuse, temperature upper limit error, overheating prevention (fixed temperature), high temperature warning | |
| Additional features | Service outlet, temperature high limit function, power failure recovery mode selection, calibration offset function | |
| Standard load capacity | 30kg or less | |
| Overcurrnet fuse capacity | For internal circuit: 7A | For internal circuit: 5A |
| For service outlet: 5A | ||
| External dimensions WxDxH | 165 × 275 × 90 mm | |
| Power supply (50/60 Hz) | 115V 6A | 220V 3A |
| Weight | 3kg | |
| Included accessories | 1 heat plate, 1 protective cover, 2 screw caps, 1 power cord, 1 spare fuse (internal circuit, service outlet), 1 external temperature sensor | |
Manufacturer Part Number/SKU: MFH-800-EA
Tags: Hot plate, magnetic stirrer
