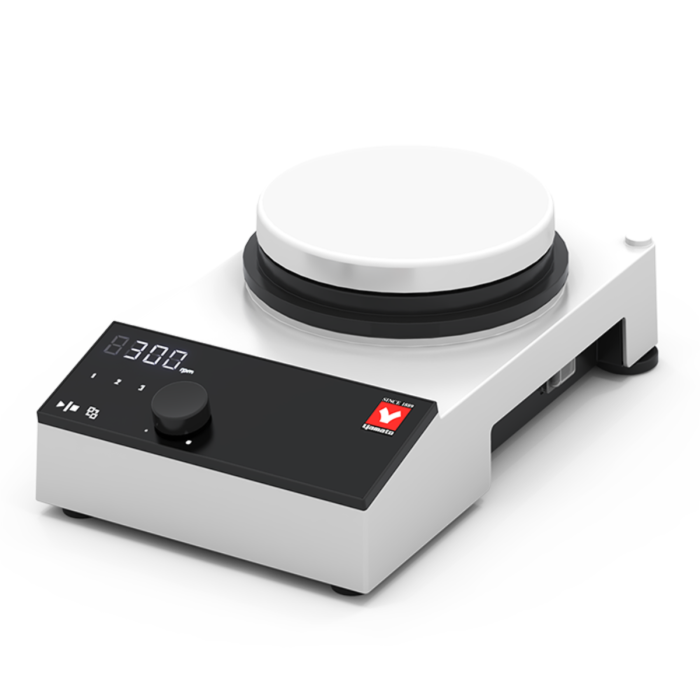

STRONG MAGNETIC STIRRER 220V, 50 to 1600 rpm
was $1,600.00 Special Price $1,428.00
Strong magnetic stirrer for chemical synthesis experiments (1 per EA )
Manufacturer: Yamato Scientific America
SKU
MFD-810-EA
STRONG MAGNETIC STIRRER 220V, 50 to 1600 rpm is available to buy in increments of 1
Product Details
Download Details and SpecificationsFeatures
- Max. stirring capacity: 20L
- Speed Range: 50 –1600 rpm
- Compact, space-saving design
- Automatic stirrer detachment shutoff protects your samples and equipment
- Easy transition to an overhead stirrer without altering your setup
- Strong magnetic force allows continuous stirring even when flask is separated from the stirring plate
- Corrosion-resistant and chemical-resistant ceramic coating stirring plate
- Works perfectly with Yamato BOG and BOS Series oil bath
| Model | MFD800 | MFD810 |
|---|---|---|
| Max. stirring capacity (H2O) | 20L | |
| Plate material | Aluminum die casting | |
| Plate dimentions | Ø135 diameter | |
| Speed range | 50 to 1600 rpm (set in 10 rpm increments) | |
| Operating temperature range | 4°C to 40°C (set in 1°C increments) | |
| Motor | DC brushless motor (31W) | |
| Magnet | Neodymium magnet | |
| Display | White LED digital display | |
| Exterior parts material | Aluminum die cast (ceramic coating) | |
| Rotation mode | Constant speed, step out detection, intermittent, auto reverse, slow-up | |
| Safety functions | Overcurrent fuse | |
| Standard load capacity | 30kg or less | |
| External dimensions WxDxH | 165 × 275 × 90 mm | |
| Power supply (50/60 Hz) | 115V 0.25A | 230V 0.15A |
| Weight | 2.8 kg | |
| Included accessories | 1 heat plate, 1 protective cover, 2 screw caps, 1 power cord, 1 spare fuse (internal circuit, service outlet) | |
Manufacturer Part Number/SKU: MFD-810-EA
Tags: laboratory stirrer, magnetic stirrer
