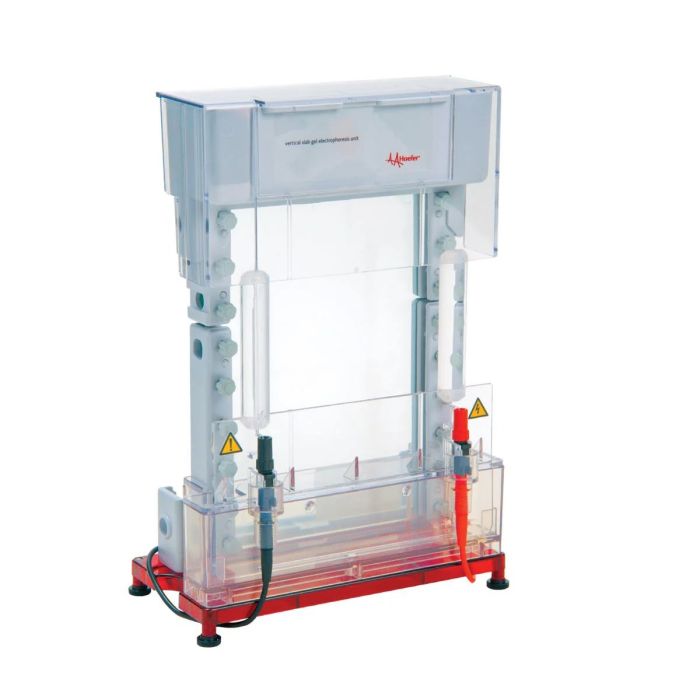

Se410 Tall Vertical Complete

Compact, rugged, and economical units ideal for educational laboratories with multiple users Advantages: Maximum glass plate size 18 x 24 cm The rugged injection molded construction is durable and assembles easily Run two gels with the addition of a divider plate (see page 22) Built-in casting stand seals leak free Choose from a wide variety of accessories (see page 30) Plates, clamps, spacers, and combs are interchangeable with the SE600 Series Complete Unit Includes: Lower Buffer Chamber/Casting; Stand on Leveling Base with High Voltage Leads; Upper Buffer Chamber; Safety Lid with Electrodes; Glass Plates, 18 x 24 cm–2 pcs; Clamp Assemblies, 8 cm–2 pcs; Clamp Assemblies, 16 cm–2 pcs; Cams–2 pcs; Slotted Gasket for Upper Buffer Chamber; Bubble Level; Laminated Gasket for Casting Stand; Spacer-Mate–Alignment Template; Wonder Wedge–Plate Separation Tool; Gel Seal; Comb, 15-well, 1.5 mm thick; Spacers, 1.5 mm thick (2 cm wide)–2 pcs Basic Unit Includes: The same as above without the combs and spacers. Specifications: Glass Plate Size (w x h) . . . . . . . 18 x 24 cm Spacers . . . . . . . . . . . . . . . . . . . 0.75 mm, 1.0 mm, 1.5 mm Maximum Power Settings . . . . . . 500 V, 60 mA, 20 W Maximum Temperature . . . . . . . 45°C Indoor Use . . . . . . . . . . . . . . . . . 4-40°C Humidity . . . . . . . . . . . . . . . . . . Up to 80% Unit Dimensions (w x h x d) . . . . 24 x 36 x 15 cm Safety Certifications . . . . . . . . . . EN61010-1, UL3101-1, CSA C22.2 1010.1, CE (1 per EA)
