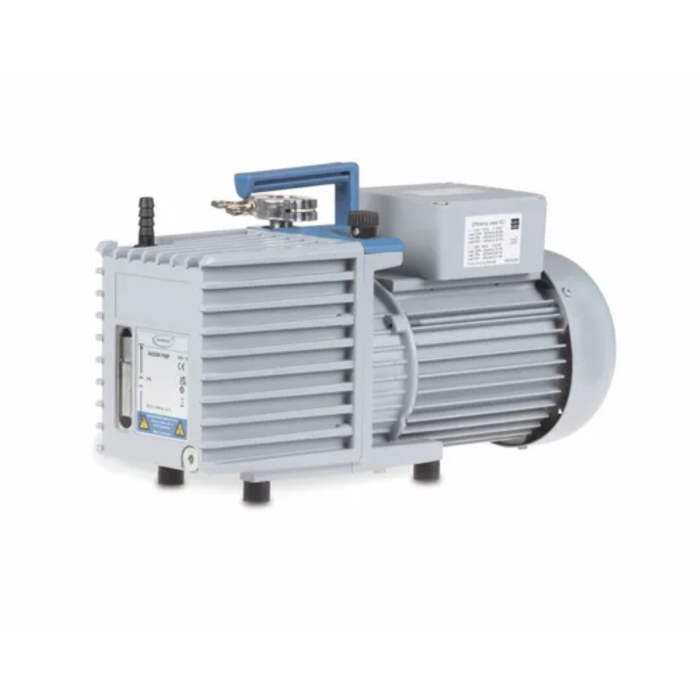

RZ 6, dual voltage, US power cord
$5,050.00
These powerful rotary vane pumps feature a particularly compact design and low weight for pumps of this capacity. They are the ideal solution for a wide range of laboratory and process applications that require low ultimate vacuum at medium to increased gas flow rate. Various packages including pump, oil mist filter, etc. are available. Rotary vane pumps are used when an ultimate vacuum between a few mbar and down to 10-3 mbar has to be attained. Typical applications are degassing, lyophilization, fine vacuum distillation and drying chambers. (1 per EA )
Manufacturer: Brandtech Scientific
SKU
20798136-EA
RZ 6, dual voltage, US power cord is available to buy in increments of 1
Product Details
Download Details and SpecificationsTechnical data and graphs
| Max. pumping speed 50 Hz | 5.7 m3/h |
| Max. pumping speed 60 Hz | 4.0 cfm |
| Ultimate partial vacuum (abs.) without gas ballast | 4 x 10-4 mbar |
| Ultimate vacuum | 2 x 10-3 mbar / 1.5 x 10-3 torr |
| Ultimate vacuum with gas ballast | 1 x 10-2 mbar / 0.75 x 10-2 torr |
| Number of stages | 2 |
| Water vapor tolerance with gas ballast | 40 mbar |
| Lower ambient temperature (operation) | 12 °C |
| Upper ambient temperature (operation) | 40 °C |
| Lower ambient temperature (storage) | -10 °C |
| Upper ambient temperature (storage) | 60 °C |
| Max. back pressure (abs.) | 1.1 bar |
| Oil capacity (B-Oil) min. | 0.34 l |
| Oil capacity (B-Oil) max. | 0.73 l |
| Inlet connection | Small flange KF DN 16 / hose nozzle DN 10 mm |
| Outlet connection | Hose nozzle DN 8-10 mm |
| Rated motor power | 0.18 kW |
| Rated motor speed at 50/60 Hz | 1500/1800 min-1 |
| Protection class IEC 60529 | IP 40 |
| Dimension L in mm | 420 mm |
| Dimension B in mm | 156 mm |
| Dimension H in mm | 240 mm |
| Weight | 17.0 kg |
| Noise (sound pressure level) in dBA at 50 Hz or 1500 rpm/62% (VARIO)/1500 rpm (VARIO-SP)/12500 Upm (VACUU·PURE®) | 50 dBA |
| NRTL certification | Yes |
| Items supplied | Pump oil filled and completely mounted, ready for use, with manual. |
| Rated mains voltage range 1 | 220-230 V |
| Rated mains voltage range 2 | 100-115 V |
| Rated mains voltage range 3 | 120 V |
| Mains frequency 1 | 50-60 Hz |
| Mains frequency 2 | 50-60 Hz |
| Mains frequency 3 | 60 Hz |
Manufacturer Part Number/SKU: 20798136-EA
Tags: Brandtech Scientific
