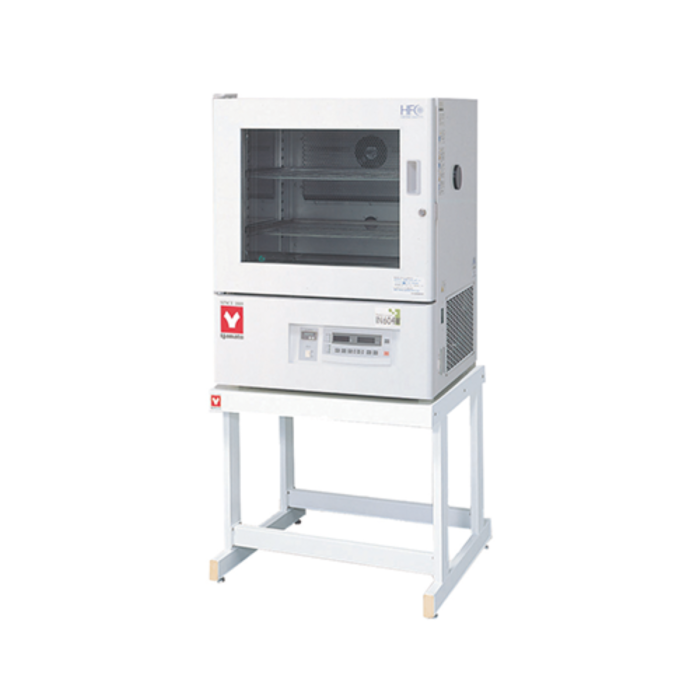

REFRIGERATED INCUBATOR PROGRAMMABLE WITH WINDOW 286L 220V
was $12,440.00 Special Price $11,102.70
REFRIGERATED INCUBATOR PROGRAMMABLE WITH WINDOW 286L 220V (1 per EA )
Manufacturer: Yamato Scientific America
SKU
IN-804W-220V-EA
REFRIGERATED INCUBATOR PROGRAMMABLE WITH WINDOW 286L 220V is available to buy in increments of 1
Product Details
Download Details and SpecificationsOperation and functions
- High accuracy temperature control and temperature distribution
- Inner glass door keeps temperature stable during sample observation
- Designed with a large dual glass door and inner door that forms a triplex glass door for improved heat retention (IN604W/804W)
- Interior light for better sample visibility (IN604W/804W)
- Optional slide shaker table available to put in and take out samples easily (IN604W)
| Model | IN604-115V IN604-220V | IN604W-115V IN604W-220V | IN804-115V IN804-220V | IN804W-115V IN804W-220V |
|---|---|---|---|---|
| System | Forced air convection | |||
| Operating temperature range | -10°C~+50°C | |||
| Temperature adjustment accuracy | ±0.3°C (refrigerator in continuous operation) / ±1.0°C (refrigerator in cycle operation) | |||
| Temp. distribution accuracy | ±1.0°C (refrigerator in continuous operation at 37°C) | |||
| Max. temp. reaching time | 20~50°C ~20min | 20~50°C ~30min | Data unavailable | |
| Minimum temp. reaching time | 20~-10°C ~ 45min | 20~-10°C ~55min | 20~-10°C ~65min | Data unavailable |
| Interior material | Stainless steel | |||
| Exterior material | Chrome free electronic galvanized plated steel plate chemical proof baking finish | |||
| Observation window | --- | W516 x H416mm (with key) | --- | Data unavailbale |
| Heat insulation material | Styrene foam | |||
| Refrigerator | Air-cooled fully closed compressor 250W | Air-cooled fully closed compressor 300W | ||
| Refrigerator medium | R134A | R404A | ||
| Defrosting mechanism | Manual ON / Auto OFF, Timer operation, Cycle operation | |||
| Blower fan | Axial fan | |||
| Heater | Iron-chrome wire heater: 550W | Iron-chrome wire heater: 750W | ||
| Sensor | Platinum resistance temperature detector: Pt100Ω (temp. controller), K-thermocouple (overheat prevention device) | |||
| Cable port (right side) | I.D.: 30mm | I.D.: 50 mm | I.D.: 30 mm | I.D.: 30 mm |
| Temperature control | PID control | |||
| Temperature setting | Digital setting with ?? keys | |||
| Temperature display | Measured temperature: 4-digit orange LED digital display + VFD fluorescent display | |||
| Timer / timer resolution | 0 min. ~ 999 hrs. 59 min. / 1 min. | |||
| Operation function | Fixed temperature, auto stop, auto start, program (up to 32 steps, repeat operation) | |||
| Additional functions | Timer function (accumulated time to 49,999 hrs), calibration off-set function, clock display | |||
| Safety device | Self diagnostic function (Temp. sensor error, Heater disconnection, SSR short-circuit, Main relay error, Automatic overheat prevention function), Key lock, Over current ELB, Overheat prevention device | |||
| Internal dimensions W x D x H | 600 x 477 x 500 mm | 600 x 477 x 1000 mm | ||
| External dimensions W x D x H | 710 x 645 x 913 mm | 710 x 645 x 1630 mm | ||
| Internal capacity | 143L | 286L | ||
| Shelf plate load | 15kg / pc. | |||
| Shelf rest step number / pitch | 13 steps / 30mm | 23 steps / 30mm | ||
| Power supply (50/60Hz) | AC115V 9A (with plug) AC220V 5.5A (no plug, round terminal) | AC115V 10.5A (with plug) AC220V 7.5A (no plug, round terminal) | AC115V 10.5A (with plug) AC220V 6A (no plug, round terminal) | AC115V (with plug) AC220V (no plug, round terminal) |
| Weight | ~89kg | ~ 120kg | ||
| Included accessories | Shelf and brackets (stainless steel punched metal) | |||
| 3 pcs. shelves / 6 pcs. brackets | 5 pcs. shelves / 10 pcs. brackets | |||
| Door keys | --- | 2 keys | --- | 2 keys |
| Optional accessories | Stand, additional shelf, cable port (ø30/50mm), recorder, warning light combination (stand-by/operation/error), temperature output terminal (4-20mA), external alarm output terminal, time up output terminal | |||
Manufacturer Part Number/SKU: IN-804W-220V-EA
Tags: Low temperature large capacity incubator, incubator with refrigeration, refrigerant incubator
