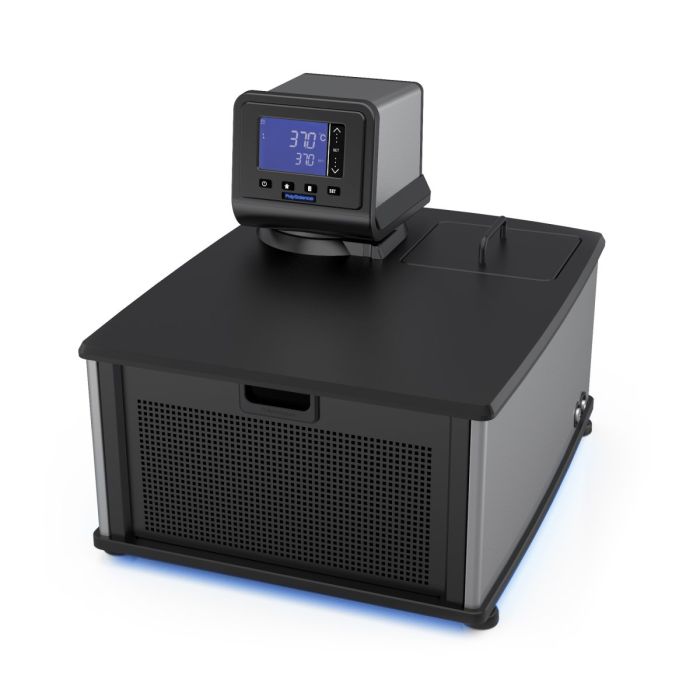

Refrigerated Circulator, 7L Low-Profile, Standard Digital (-20° to 170°C), 240V, 50Hz
was $4,902.50 Special Price $4,598.55
Our circulating baths are designed to work hard for your specific needs while making your job more efficient and ensuring the most precise temperature control. The baths feature an integral pump, heater, refrigeration system, and temperature controller. In addition to low temperature applications, Refrigerated/Heated Circulating Baths offer more precise control for applications that require bath temperatures near or below ambient. All PolyScience Circulating Baths provide internal circulation as well as external circulation capability. (1 per EA)
Manufacturer: Polyscience Corp
SKU
SD7LR-20-A12E-EA
Refrigerated Circulator, 7L Low-Profile, Standard Digital (-20° to 170°C), 240V, 50Hz is available to buy in increments of 1
Product Details
Download Details and Specifications| Body | -20, 7 L Ref. Circulator |
| Controller Type | Advanced Programmable |
| Display | 4.3" SmartTouch Touchscreen |
| Languages Supported | 11: French, German, Spanish, Chinese, Portuguese, Russian, Hindi, Arabic, Italian, Korean, English |
| Working Temperature Range °C | -20° to 200° |
| Working Temperature Range °F | -4° to 392° |
| External Temperature Control Capability | Yes |
| Flammability Class (DIN 12876-1) | III (FL) |
| Nominal Cooling Capacity @ +20C (W) | 200 |
| Reservoir Capacity (gallons) | 1.85 |
| Reservoir Capacity (liters) | 7 |
| Reservoir/Tank Material | Stainless Steel |
| Working Temperature Range °F | -4° to 392° |
| Working Temperature Range °C | -20° to 200° |
| Nominal Cooling Capacity @ +20C (W) | 200 |
| Reservoir Capacity (gallons) | 1.85 |
| Reservoir Capacity (liters) | 7 |
| Reservoir/Tank Material | Stainless Steel |
| Reservoir Cover | Included |
| DuraTop | Yes |
| Working Access (L x W x D) (inches) | 6.18 x 5.59 x 5 in |
| Working Access (L x W x D) (cm) | 15.7 x 14.2 x 12.7 cm |
| Temperature Stability °C | ±0.005° |
| Display | 4.3" SmartTouch Touchscreen |
| Display Resolution (Set) | 0.01 |
| Display Resolution (Read) | 0.001 |
| Pump Type | Pressure/Suction |
| Pump Speed | Variable |
| Over-Temperature Protection / Failsafe Heater Control | Yes |
| Low Liquid Level Protection | Yes |
| Reservoir Drain | Yes |
| Included Software | PolyTemp ViewerTDMS file viewerUSB driverTime/Temperature Program GeneratorPolyTemp Remote iPhone application |
| Maximum Ambient Temperature °F | 95° |
| Maximum Ambient Temperature °C | 35° |
| Overall Dimensions (L x W x D) (inches) | 21.3 x 8.7 x 24.3 in |
| Overall Dimensions (L x W x D) (cm) | 54.1 x 22.1 x 61.7 cm |
| Refrigerant | R134a |
| Environmental Compliance | ROHS, WEEE |
| Shipping Weight (pounds) | 90.00 |
| Shipping Weight (kilograms) | 40.80 |
Manufacturer Part Number/SKU: SD7LR-20-A12E-EA
