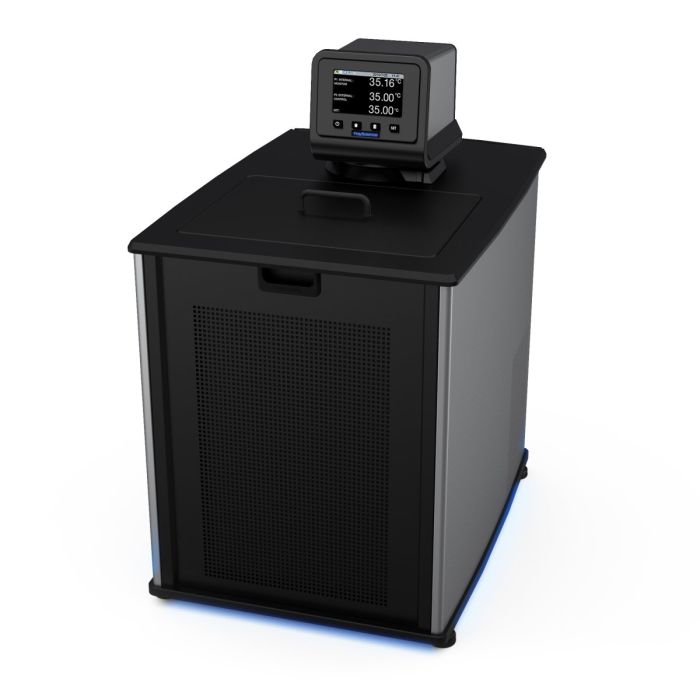

Refrigerated Circulator, 20L, Advanced Programmable (-30° to 200°C), 120V, 60Hz
was $8,826.00 Special Price $8,278.79
PolyScience Circulating Baths are as precise as they are reliable. Every product comes equipped with innovative proprietary features, from the quiet, energy-efficient heat removal of our WhisperCool™ Environmental Control System to the fast-acting temperature control of Cool Command™ Technology. Our Circulating Baths are easy to use, offering interface controller flexibility, clear navigational buttons and menu prompts, ergonomic design for easy repositioning and simple fluid connections. These hard-working machines were designed to make your life easier and more productive. (1 per EA)
Manufacturer: Polyscience Corp
SKU
AP20R-30-A11B-EA
Refrigerated Circulator, 20L, Advanced Programmable (-30° to 200°C), 120V, 60Hz is available to buy in increments of 1
Product Details
Download Details and SpecificationsKey Features:
- OpenMode time time/temperature programming (no restrictions on number of programs or steps)
- Intuitive 4.3” (10.9 cm) SmartTouch display
- 11 languages: French, German, Spanish, Chinese, Portuguese, Russian, Hindi, Arabic, Italian, Korean, English
- Variable speed pump with open- and closed-loop external circulation capability
- Swivel 180™ Rotating Controller
- On-board connectivity: USB, Ethernet, RS-232/RS-485, remote on/off and external temperature probe
- Event scheduling (time & date) with real-time clock
- Review temperature trends for up to 10 days
- Multiple selectable “home” screens
- On-screen help
- Automatic and/or user-adjustable performance optimization
- 10-point calibration capability
- Includes Enhanced Performance Hardware & Software Package (Pt100 temperature probe, USB flash drive for data logging, stainless steel fittings and tubing adapters, PolyScience LabVIEW Virtual Instrument, iPhone application download)
| Body | -30, 20 L Ref. Circulator |
| Controller Type | Advanced Programmable |
| Display | 4.3" SmartTouch Touchscreen |
| Languages Supported | 11: French, German, Spanish, Chinese, Portuguese, Russian, Hindi, Arabic, Italian, Korean, English |
| Working Temperature Range °C | -30° to 200° |
| Working Temperature Range °F | -22° to 392° |
| External Temperature Control Capability | Yes |
| Flammability Class (DIN 12876-1) | III (FL) |
| Nominal Cooling Capacity @ +20C (W) | 915 |
| Reservoir Capacity (gallons) | 5.28 |
| Reservoir Capacity (liters) | 20 |
| Reservoir/Tank Material | Stainless Steel |
| Working Temperature Range °F | -22° to 392° |
| Working Temperature Range °C | -30° to 200° |
| Nominal Cooling Capacity @ +20C (W) | 915 |
| Reservoir Capacity (gallons) | 5.28 |
| Reservoir Capacity (liters) | 20 |
| Reservoir/Tank Material | Stainless Steel |
| Reservoir Cover | Included |
| DuraTop | Yes |
| Working Access (L x W x D) (inches) | 9.85 x 12.45 x 5.5 in |
| Working Access (L x W x D) (cm) | 25 x 31.6 x 14 cm |
| Temperature Stability °C | ±0.005° |
| Display | 4.3" SmartTouch Touchscreen |
| Display Resolution (Set) | 0.01 |
| Display Resolution (Read) | 0.001 |
| Pump Type | Pressure/Suction |
| Pump Speed | Variable |
| Over-Temperature Protection / Failsafe Heater Control | Yes |
| Low Liquid Level Protection | Yes |
| WhisperCool Environmental Control Technology | Yes |
| Reservoir Drain | Yes |
| Included Software | PolyTemp ViewerTDMS file viewerUSB driverTime/Temperature Program GeneratorPolyTemp Remote iPhone application |
| Maximum Ambient Temperature °F | 95° |
| Maximum Ambient Temperature °C | 35° |
| Overall Dimensions (L x W x D) (inches) | 24 x 16.6 x 26.9 in |
| Overall Dimensions (L x W x D) (cm) | 61 x 41.9 x 68.3 cm |
| Refrigerant | R134A |
| Environmental Compliance | ROHS, WEEE |
| Shipping Weight (pounds) | 130.00 |
| Shipping Weight (kilograms) | 58.90 |
Manufacturer Part Number/SKU: AP20R-30-A11B-EA
