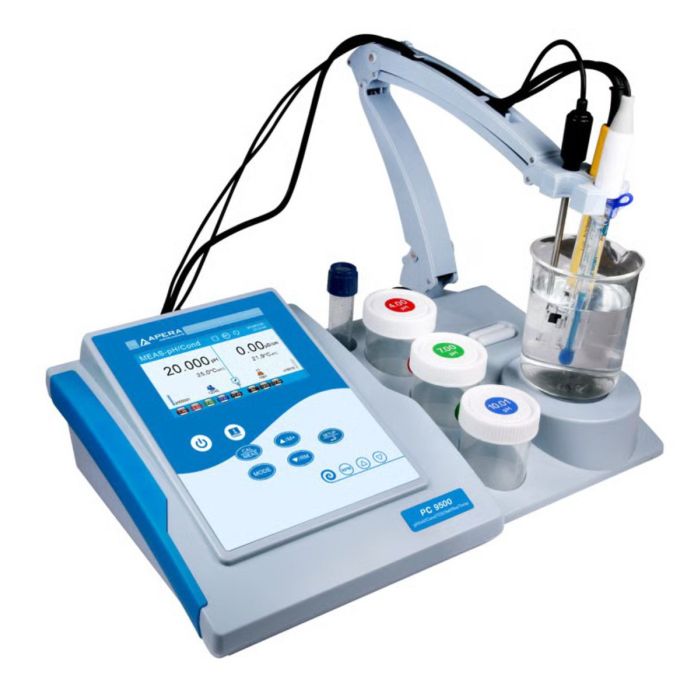

Premium Series Research-grade GLP Benchtop pH/Cond./TDS/Salinity/Resistivity Meter Kit with TestBench (printer sold separately)

• Instrument Features



  • Advanced, Intuitive Interface — Plain-language menus and graphic screen prompts eliminate the need for extensive manual reading or training. Multi-language support includes English, German, Spanish, and Chinese.

  • Dual-Channel Simultaneous Measurement — Measures pH/mV(ORP) and conductivity/TDS/salinity/resistivity at the same time for maximum efficiency.

  • Powerful Data Management —Manual/automatic data logger with 2000 sets of GLP-compliant data storage, including electrode ID, user ID, sample ID, company name, and optional calibration password protection.

    Export data via USB to PC or a mini-printer (sold separately).

  • i-Guide On-Screen Tutorials — Press the “i” key at any time for step-by-step setup and calibration instructions displayed directly on the screen.

  • Apera TestBench Included — Integrated workstation with a flexible electrode holder, intelligent magnetic stirrer, and buffer organizers — dramatically streamlines calibration and measurement workflows.

  pH/mV (ORP) Measurement

  • LabSen® 211 pH Electrode — Features a low-impedance glass membrane and long-life reference system for ±0.003 pH accuracy. Supports 0–100°C ATC via the MP500 temperature probe. Compatible with TRIS buffers.

  • Flexible Calibration Options — 1 to 5 point auto. calibration recognizing standard buffers (1.68 / 4.00 / 7.00 / 10.01 / 12.45) or user-defined standards. Automatic electrode slope display and calibration self-diagnosis.

  • Broad Compatibility — Standard BNC pH connector & RCA temperature connector (NTC 30KΩ). Compatible with all Swiss LabSen electrodes for specialized samples.

  Conductivity/TDS/Salinity/Resistivity Measurement



  • 2401T-F Conductivity Electrode (Included) — Glass-body delivers high-accuracy measurements from 0 to 200 mS/cm at ±0.5% F.S accuracy.

  • Flexible Conductivity Calibration — 1 to 4 point auto. calibration with standard solutions (84 µS/cm, 1413 µS/cm, 12.88 mS/cm, 111.8 mS/cm) or user-defined standards.

  • Quick Parameter Switching — One-tap conversion among conductivity, TDS, salinity, and resistivity.

  • Multiple Salinity Modes — Select from general salinity, saltwater salinity, or NaCl salinity.

  • Broad Compatibility — Standard BNC conductivity connector; compatible with 2310T-F (up to 2000 mS/cm) and DJS-0.1-F for high-purity water. Uses RCA temperature connector (NTC 30KΩ).

  Parameter Settings Menu



  Menu	Parameter	Options	Default
  pH	pH Buffer Standard	USA / NIST / User	USA
  	Resolution	0.001 / 0.01 / 0.1	0.01
  	Calibration Info	View / Print	View
  	Calibration Reminder	Off / Hour / Day	Off
  	Stability Standard	Low / Medium / High	Medium
  	Max/Min Reading Alarm	Off / Max / Min	Off
  	Display Mode	Digital / Dial	Digital
  	Electrode ID	Custom Input	---
  	Back to Factory Default	No / Yes	No
  Conductivity / TDS / Salinity	Cell Constant	10 / 1.0 / 0.1	1.0
  	Calibration Standard	Standard / CH / User	Standard
  	Calibration Info	Check / Print	Check
  	Calibration Reminder	Off / Hour / Day	Off
  	Reference Temp.	15–30°C	25°C
  	Temp. Compensation Coefficient	0.00–10.00%	2.00%
  	TDS Factor	0.40–1.00	0.71
  	Salinity Type	Linear / NaCl / Saltwater (Seawater)	Linear
  	Electrode ID	Custom Input	---
  	Back to Factory Default	No / Yes	No
  Data Management	Logging Destination	Memory / Printer / PC	Memory
  	Logging Mode	Manual / Auto	Manual
  	Printing Format	Simple / Complete	Simple
  	Delete Data	Yes / No	No
  General Settings	Sample ID	Custom Input	---
  	User ID	Custom Input	---
  	Company Name	Custom Input	---
  	Calibration Password	Custom Input	None
  	Display Info	Simple / Complete	Simple
  	Auto Hold	On / Off	Off
  	Temperature Unit	°C / °F	°C
  	Date Format	YYYY-MM-DD / MM-DD-YYYY / DD-MM-YYYY	YYYY-MM-DD
  	Language	English / German / Spanish / French / Italian / Chinese / Japanese	English




  What's in the Kit?



  Item	Quantity
  PC9500 pH/Conductivity Meter	1
  606 Test-Bench (with flexible electrode holder)	1
  LabSen 211 Glass pH Combination Electrode	1
  MP500 Temperature Electrode	1
  2401T-F Conductivity Electrode (ATC, K=1.0)	1
  pH Standard Buffers (4.00 / 7.00 / 10.01 pH, 50mL each)	3
  Conductivity Calibration Solutions (84 µS / 1413 µS / 12.88 mS, 50mL each)	3
  Stirrer Power Cable	1
  USB Cable	1
  PC-Link 9500 Flash Drive	1
  9V Adapter	1
  Calibration Vials	6
  L200 Stir Beads	6
  User Manual	1

  pH	Range	-2.000 to 20.000 pH
  	Resolution	0.1/0.01 /0.001pH
  	Accuracy	±.002 pH ± 1 digit
  	Temp. Compensation Range	0 to 100°C (auto. or manual)
  	Calibration Points	1 to 5 points
  	Buffer Series Options	USA, NIST, CH, and User-Define
  mV	Range	±2000.0 mV
  	Resolution	0.1 mV
  	Accuracy	±0.03% F.S ± 1 digit
  Conductivity	Range	0~2000 mS/cm, divided into five ranges, automatically switch measuring range. (0 to 19.99) μS/cm; (20.0 to 199.9) μS/cm;  (200 to 1999) μS/cm; (2.00 to 19.99) mS/cm; (20.0 to 199.9) mS/cm (200.0 to 2000) mS/cm
  	Resolution	0.01/0.1/1μS/cm; 0.01/0.1/1 mS/cm
  	Accuracy	±0.5% F.S
  	Temp. Compensation Range	0 to 50°C (auto. or manual)
  	Cell Constant	0.1/1/10 cm-1
  	Reference Temp.	15 to 30°C (adjustable)
  	Temp. Compensation Coefficient	0.00 to 10.00% (adjustable)
  	Calibration Points	1 to 4 points
  	Standard Series Options	Standard, CH, User-Define
  TDS	Range	0.00 mg/L to 1000 g/L
  	Resolution	0.01/0.1/1mg/L; 0.01/0.1/1 g/L
  	Accuracy	±0.5% F.S
  	Temp. Compensation Range	0 to 50°C (auto. or manual)
  	TDS Factor	0.40 to 1.00 (adjustable)
  Salinity	Range	0.00 to 100 ppt
  	Resolution	0.01/0.1 ppt
  	Accuracy	±0.5% F.S
  	Temp. Compensation Range	0 to 50° (auto. or manual)
  	Salinity Type	Linear / NaCl / Saltwater
  Resistivity	Range	0.00 Ω·m to 100MΩ·m
  	Resolution	0.1/1 Ω·m; 0.01/0.1/1KΩ·m; 0.1 MΩ·m
  	Accuracy	±0.5% F.S
  	Temp. Compensation Range	0 to 50°C (auto. or manual)
  Temperature	Range	-10.0 to 110.0°; 14.0 to 230°
  	Resolution	0.1; 0.1/1
  	Accuracy	±0.5°C

Manufacturer Part Number/SKU: PC9500-EA
