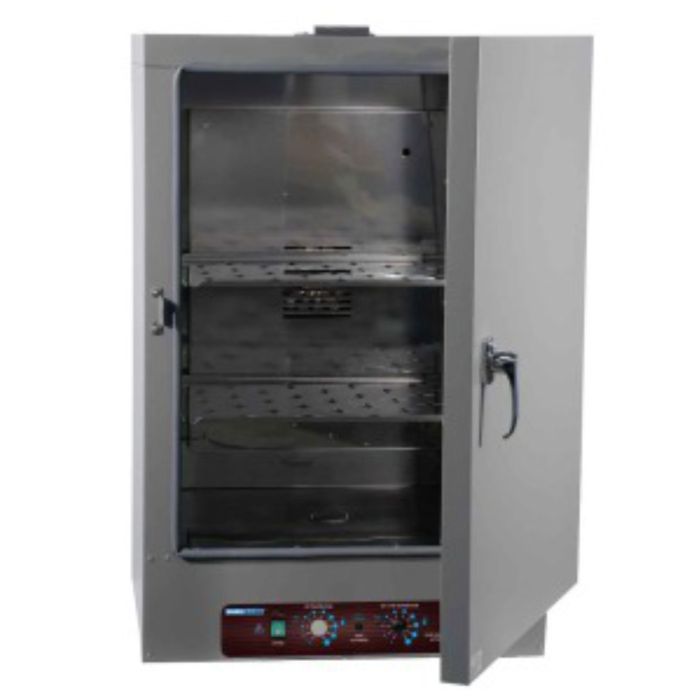

OVEN, FORCED AIR, 1.5 CU FT, 115V
$3,594.00
Heat-up (min):22 minutes @ 100C Shelving:2 Supplied Temperature Uniformity:+/- 3.5°C at 100°C Temperature Range:40°C to 200°C Exterior Dimensions WxDxH in. (cm):21.8 x 19 x 24 (55.3 x 48.3 x 61.0) Interior Dimensions WxDxH in. (cm):17 x 10.5 x 16.7 (43.1 x 26.6 x 42.5) Capacity:1.7 Cu.Ft. (49L) Maximum Energy Consumption (W):660/720 All specifications are determined by using average values on standard equipment at an ambient temperature of (22 ± 3)°C and line voltages within +/-10% of unit type (115V/230V). Temperature specifications follow DIN 12880 methodology. We reserve the right to change specifications at any time. (1 per EA)
Manufacturer: Sheldon Manufacturing
SKU
SMO1-EA
OVEN, FORCED AIR, 1.5 CU FT, 115V is available to buy in increments of 1
Product Details
Download Details and SpecificationsThe SMO1 has a quick ramp-up time to 306°C for faster cycle times. This unit includes an advanced PID temperature control system for sensitive response.
These ovens are recommended for critical and analytical use in laboratory and pilot plant product research. Typical applications for the oven include aging, asphalt testing, curing, drying, pre-heating, conditioning, and life cycle testing.
This unit is equipped with a stainless-steel interior for long-life operation and easy cleaning. Its triple wall construction minimizes external wall temperature which meets CE requirements to keep work spaces cool.
The SMO1's forced air ovens deliver precise uniformity, air distribution and the peace of mind expected of the SHEL LAB brand.
Features of this oven include:
- Embedded Microprocessor Control with Countdown Timer
- Horizontal Forced Airflow
- 1.75in (45 mm) Access Port
- UL/CSA Approved
- CE Approval
- DIN 12880 Compliant
- 24 Month Limited Warranty
MODEL
SMO1
PART ID
SMO1
EXTERIOR DIMENSIONS (W × D × H)
22.7 × 23.5 × 31.5
(577 mm × 596 mm × 800 mm)
INTERIOR DIMENSIONS (W × D × H)
12.1 × 13.7 × 14.5
(307 mm × 349 mm × 368 mm)
VOLUME
1.4 cu.ft. (39.4 L)
SHELF DIMENSIONS (W × D)
11.9 × 13.6 (302 mm × 345 mm)
UNIT WEIGHT
126.0 lbs (57.4 kg)
INTERIOR METAL
430 SST
EXTERIOR METAL
Painted Cold Roll Steel
OPERATING TEMPERATURE RANGE
Amb +20C - 306C
TEMPERATURE UNIFORMITY - MIDRANGE
2.3 °C
TEMPERATURE STABILITY - MIDRANGE
0.2 °C
CONTROLLER TYPE
Digital
DISPLAY RESOLUTION
0.1 °C
POWER VOLTAGE , FREQUENCY AND CURRENT
110-120 VAC, 50/60 Hz, 12.0 Amps
SAFETY CERTIFICATIONS
UL 61010-1, EN 61010-1, CSA 61010-1, CE
Manufacturer Part Number/SKU: SMO1-EA
Tags: Sheldon Manufacturing
