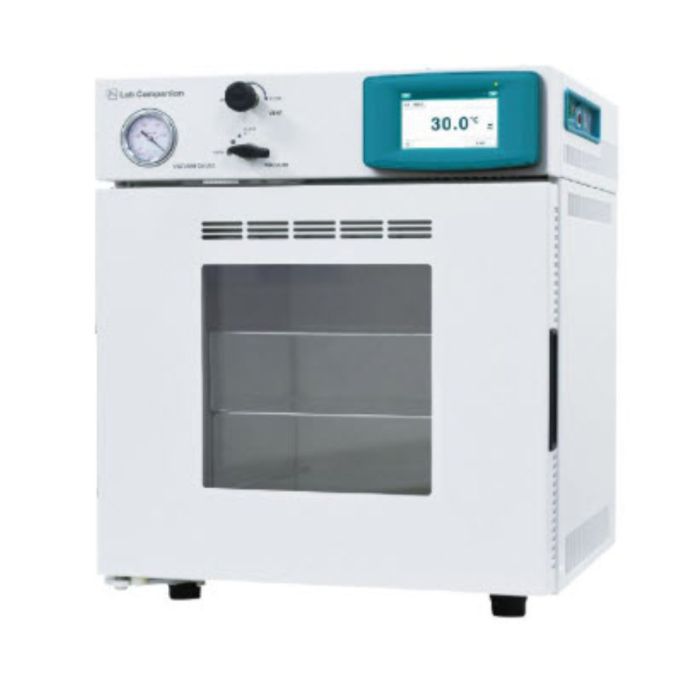

OV4-30 Vacuum Oven (28L), 230V, 50/60Hz, KR Plug, 230V, 50/60Hz
was $5,613.99 Special Price $5,613.99
Vacuum oven with improved usability and reliability (1 per EA )
Manufacturer: Jeio Tech
SKU
AAH13315K-EA
OV4-30 Vacuum Oven (28L), 230V, 50/60Hz, KR Plug, 230V, 50/60Hz is available to buy in increments of 1
Product Details
<td "="">0.2 / 0.36
| Control panel(L / cu ft) | 5 inch | 5 inch | |
| Chamber volume (L / cu ft) | 28 / 1 | 65 / 2.3 | |
| Temperature | Range (? / ?) | Amb. +15 to 250 / Amb. +27 to 482 | Amb. +15 to 250 / Amb. +27 to 482 |
| Fluctuation (±? / ? at 100?) | 0.2 / 0.36 | ||
| Variation (±? / ? at 100?) | 1.5 / 2.7 | 1.5 / 2.7 | |
| Heating time to 100? (min.) | 70 | 90 | |
| Vacuum gauge range, analog (Mpa) | 0 to 0.1 | 0 to 0.1 | |
| Dimension(W×D×H) | Interior (mm / inch) | 302×305×302 / 11.9×12×11.9 | 402×405×402 / 15.8×15.9×15.8 |
| Exterior (mm / inch) | 534×522×655 / 21.1×20.6×25.8 | 636×622×755 / 25.0×24.5×29.7 | |
| Net weight (Kg / lbs) | 69 / 152.1 | 110 / 242.5 | |
| Shelves | Quantity of shelves (standard/max.) | 2 / 3 | 3 / 4 |
| Max. Load per shelf (Kg / lbs) | 20 / 44.1 | 20 / 44.1 | |
| Electrical requirements (230V, 50 / 60Hz, A) | 5.7 | 6.7 | |
| Cat. No. | AAH13315K | AAH13325K | |
| Electrical requirements (120V, 60Hz, A) | 10.2 | 11.7 | |
| Cat. No. | AAH13316U | AAH13326U | |
? The lowest controllable temperature depends on variations in room and sample temperatures. Please contact technical support for consultation before purchasing.
? Technical data (according to DIN 12880, after 2013)
? You can add an extra shelf that can be placed at the bottom to experiment with more samples same time, and the value of Variation and Fluctuation may increase slightly.
Manufacturer Part Number/SKU: AAH13315K-EA
Tags: Jeio Tech
