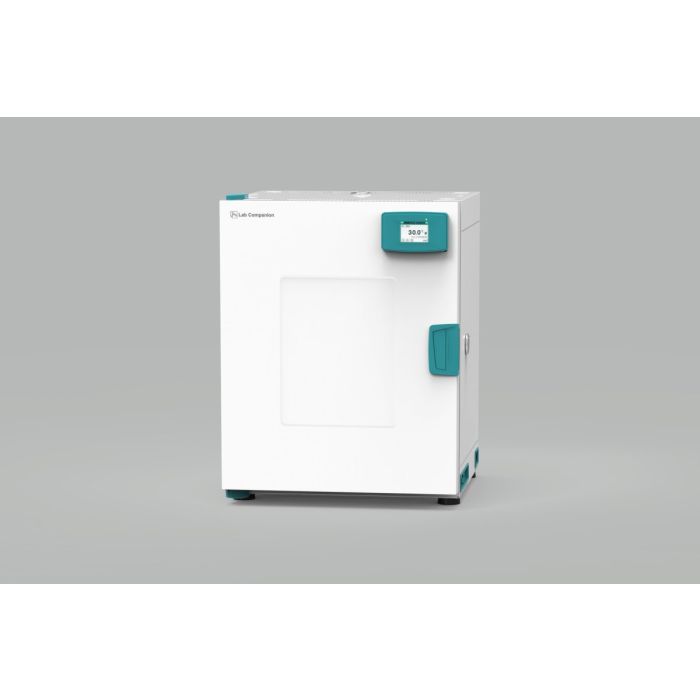

OF4-03S Standard Forced Convection Oven (26L, 120V, 60Hz), US Plug, 120V, 60Hz
was $2,535.00 Special Price $2,448.60
OF4-03S Standard Forced Convection Oven (26L, 120V, 60Hz), US Plug, 120V, 60Hz (1 per EA )
Manufacturer: Jeio Tech
SKU
AAH14116U-EA
OF4-03S Standard Forced Convection Oven (26L, 120V, 60Hz), US Plug, 120V, 60Hz is available to buy in increments of 1
Product Details
| Model | Solid door (without window) | OF4-03S | OF4-05S | OF4-10S | OF4-15S | |||
|---|---|---|---|---|---|---|---|---|
| Window door | OF4-03SW | OF4-05SW | OF4-10SW | OF4-15SW | ||||
| Chamber volume (L/cu ft) | 26/0.92 | 61/2.15 | 112/3.96 | 147/5.19 | ||||
| Temperature 1) | Range (?/?) | Amb. + 10~250 / Amb. + 18 ~ 482 | ||||||
| Fluctuation at 100? (±?/±?) | 0.3/0.54 | 0.3/0.54 | 0.3/0.54 | 0.3/0.54 | ||||
| Variation at 100? (±?/±?) | 1.4/2.52 | 1.9/3.42 | 1.7/3.06 | 1.5/2.70 | ||||
| Heating time to 100? (min) | 8 | 10 | 14 | 15 | ||||
| Recovery time at 100? (min) | 4 | 4 | 4 | 4 | ||||
| Control Panel | 3.5inch TFT Color LCD | |||||||
| Communication interface | USB, RS-232 (Option) | |||||||
| Function | Recently event record | 12ea | ||||||
| Dimensions | Interior (W x D x H, mm/inch) | 300 x 210 x 400 / 11.80 x 8.27 x 15.75 | 380 x 330 x 480 / 14.97 x 13.0 0x 18.90 | 485 x 350 x 655 / 19.09 x 13.78 x 25.79 | 550 x 376 x 710 / 21.65 x 14.80 x 27.95 | |||
| Exterior (W x D x H, mm/inch) | 478 x 527 x 604 / 18.82 X 20.75 X 23.78 | 558 x 648 x 684 / 21.97 X 25.51 X 26.93 | 663 x 677 x 859 / 26.1 X 26.65 X 33.82 | 728 x 704 x 914 / 28.66 X 27.72 X 35.98 | ||||
| Net weight (kg/lbs) | 33/72.8 | 53/116.8 | 63/138.9 | 73/160.9 | ||||
| Shelves | Quantity of shelves (Standard/max.) | 2/4 | 2/5 | 2/8 | 2/9 | |||
| Max. Load per shelf (kg/lbs) | 30/66.1 | |||||||
| Number of Air change per hour at 100 ? 2) | 123 | 22 | 18 | 11 | ||||
| Electrical requirements (230V, 50/60Hz, A) | 6.4 | |||||||
| Cat. No. | Solid door (without window) | AAH14115K | AAH14125K | AAH14135K | AAH14145K | |||
| Window door | AAH14215K | AAH14225K | AAH14235K | AAH14245K | ||||
| Electrical requirements (120V, 60Hz, A) | 12.3 | |||||||
| Cat. No. | Solid door (without window) | AAH14116U | AAH14126U | AAH14136U | AAH14146U | |||
| Window door | AAH14216U | AAH14226U | AAH14236U | AAH14246U | ||||
1) This data was measured when the fan speed was set to Step 5. If the fan speed is set to Step 1 or Step 3, the fluctuation and variation values will increase. (According to DIN 12880, before 2013)
2) This data was measured when the fan speed was set to Step 5. If the fan speed is set to Step 1 or Step 3, the number of air changes may decrease. (According to ASTM D 5374, reapproved 1999)
2) This data was measured when the fan speed was set to Step 5. If the fan speed is set to Step 1 or Step 3, the number of air changes may decrease. (According to ASTM D 5374, reapproved 1999)
Manufacturer Part Number/SKU: AAH14116U-EA
