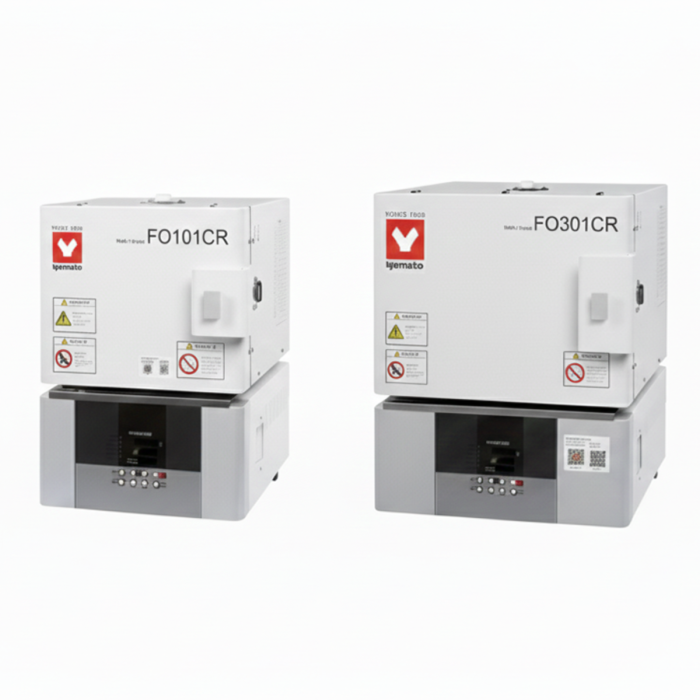

MUFFLE FURNACE WITH COMMUNICATION PORT 1.5L 115V
Manufacturer: Yamato Scientific America
Product Details
Download Details and SpecificationsReliable, consistent high heat.
Avoid delays and save time at work with Yamato’s standard lab muffle furnaces. Our muffle furnace models are a cut above the rest because of their capacity to supply reliable, consistent high heat.
We made sure to add top-quality parts that sustain high-temperature uniformity for your applications. Our standard units have energy-saving ceramic fiber as the internal material, an iron-chrome wire heater, and tightly sealed doors, which is highly beneficial when the maximum temperature exceeds 1000°C. Not only that, but they also have microprocessor-controlled thermoregulators, which provide outstanding repeatability.
Whether you’re doing heat treatments or quality control, you can rely on our multi-capacity Yamato FO series programmable muffle furnaces:
- Yamato FO Series 1.5 to 9L Programmable Muffle Furnaces
- Yamato FO Series 11.3 to 30L Programmable Muffle Furnaces
Best features
- ?Easy-to-use controller
- Comes with communication ports
- High-temperature accuracy at ±2.0°C
- Upgraded with long life R-thermocouple sensors
- Excellent heat tightness with a firmly sealed chamber door
- Comes with a wide selection of space-saving compact units with a maximum inner capacity
- ?Program operation of a maximum of 6 patterns: 30 steps x 1 pattern, 15 steps x 2 patterns, or 10 steps x 3 patterns
- Safety features include self-diagnostic functions, calibration off-set, lock function, auto-recovery after power failure, earth leakage breaker, and automatic overheat prevention device
- Selectable options include an exhaust system unit, N2 gas loading device (with a flow meter), a temperature output terminal, a time up/alarm output terminal, and a sample tray
| Model | FO100CR FO110CR | FO200CR FO210CR | FO300CR FO310CR | FO410CR |
|---|---|---|---|---|
| Operating temp. range | 100~1150°C | |||
| Temp. control accuracy | ±2°C (at 1150 ° C) | |||
| Max. temp. reaching time | ~60min. | ~60min. | ~70min. | ~70min. |
| Exterior material | Cold rolled steel plate with baked-on melamine resin finish | |||
| Internal material | Ceramic fiber | |||
| Sensor | R-thermocouple | |||
| Heater | Iron-chrome wire | |||
| 1kW | 1.5kW | 2kW | 2.2kW | |
| Exhaust port | ø20mm (top) | |||
| Cooling Fan Type | Axial fan motor | |||
| Temp. controller | PID control by microprocessor | |||
| Temp. setting/display method | Digital setting by?/? keys / Digital display | |||
| Operation function | Fixed temperature, quick auto stop, auto stop, auto start, program (maximum 6 patterns: 30 steps x 1 pattern, 15 steps x 2 patterns or 10 steps x 3 patterns) | |||
| Additional functions | Calibration off-set, power failure compensation, key lock | |||
| Timer | 1 min. to 99 Hrs. 59 min. and 100 Hrs. to 999 Hrs. | |||
| Safety Device | Self diagnostic (memory error, heater disconnection, sensor error, SSR short curcuit), Electric leakage breaker, Overheat prevention device | |||
| Internal dimensions WxDxH | 100×150×100 mm | 100×250×150 mm | 200×250×150 mm | 200×300×150 mm |
| External dimensions WxDxH | 346×405×517 mm | 346×505×567 mm | 446×505×567 mm | 446×554×567 mm |
| Internal capacity | 1.5L | 3.75L | 7.5L | 9L |
| Power source (50/60Hz) | AC115V 10A AC220V 5A no plug, round terminal | AC115V 14.5A AC220V 7.5A no plug, round terminal | AC115V 19A AC220V 9.5A no plug, round terminal | AC220V 10.5A single phase no plug, round terminal |
| Weight | ~24kg | ~30kg | ~37kg | ~38kg |
| Included accessory | Exhaust port cap 1 pc. | |||
Manufacturer Part Number/SKU: FO-101CR-EA
Tags: Muffle furnace, communication port
